IslandPathversion 1.0

IslandPath Analysis: Escherichia coli CFT073

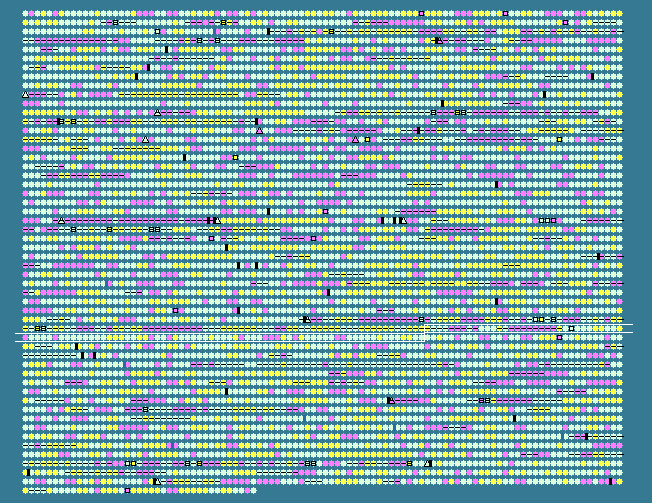

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.18 STD DEV: 5.55
Escherichia coli CFT073, complete genome - 1..5231428
5339 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3568	 54.76	0	3507297..3507674	+	125	26249512	-	c3677	-	hypothetical protein
3569	 53.37	0	3507671..3508159	+	162	26249513	-	c3678	-	hypothetical protein
3570	 48.48	0	3508176..3508373	+	65	26249514	-	c3679	-	hypothetical protein
3571	 48.11	0	3508458..3509303	+	281	26249515	-	c3680	-	hypothetical protein
3572	 46.46	0	3509372..3509767	+	131	26249516	-	c3681	-	hypothetical protein
3573	 40.31	-1	3509760..3510677	+	305	26249517	-	c3682	-	hypothetical protein
3574	 41.78	-1	3510482..3510694	+	70	26249518	-	c3683	-	hypothetical protein
3575	 48.08	0	3511126..3511281	+	51	26249519	-	c3684	-	hypothetical protein
3576	 30.56	-2	3511449..3511592	-	47	26249520	-	c3685	-	hypothetical protein
3577	 48.63	0	3512056..3513075	+	339	26249521	-	c3686	-	hypothetical protein
3578	 49.70	0	3513147..3514295	+	382	26249522	kpsE	c3687	-	KpsE protein
3579	 51.85	0	3514316..3515995	+	559	26249523	kpsD	c3688	-	KpsD protein
3580	 54.52	0	3516005..3516745	+	246	26249524	-	c3689	-	3-deoxy-manno-octulosonate cytidylyltransferase
3581	 51.82	0	3516742..3518769	+	675	26249525	kpsC	c3690	-	KpsC protein
3582	 45.68	0	3518804..3520042	+	412	26249526	kpsS	c3691	-	KpsS protein
3583	 30.92	-2	3520204..3521199	-	331	26249527	-	c3692	-	hypothetical protein
3584	 28.77	-2	3521205..3522233	-	342	26249528	-	c3693	-	hypothetical protein
3585	 31.36	-2	3522336..3526136	-	1266	26249529	-	c3694	-	hypothetical protein
3586	 30.26	-2	3526190..3527425	-	411	26249530	-	c3695	-	hypothetical protein
3587	 32.60	-2	3527441..3527848	-	135	26249531	-	c3696	-	putative glycerol-3-phosphate cytidyltransferase
3588	 38.39	-2	3527848..3528519	-	223	26249532	kpsT	c3697	-	KpsT protein
3589	 44.79	0	3528516..3529292	-	258	26249533	kpsM	c3698	-	KpsM protein
3590	 54.93	0	3530466..3531002	-	178	26249534	yghD	c3699	-	putative general secretion pathway protein YghD
3591	 50.00	0	3532178..3532591	-	137	26249535	-	c3702	-	hypothetical protein
3592	 53.63	0	3532771..3534120	-	449	26249536	-	c3703	-	transposase insG
3593	 53.24	0	3534256..3535938	-	560	26249537	yghK	c3704	-	glycolate transporter
3594	 53.45	0	3536293..3538464	-	723	26249538	glcB	c3705	-	malate synthase G
3595	 53.66	0	3538486..3538908	-	140	26249539	glcG	c3706	-	hypothetical protein
3596	 56.60	+1	3541181..3542680	-	499	26249540	glcD	c3709	-	glycolate oxidase subunit GlcD
3597	 54.67	0	3542871..3543695	+	274	26249541	glcC	c3710	-	DNA-binding transcriptional regulator GlcC
3598	 49.63	0	3543702..3544910	-	402	26249542	yghO	c3711	-	hypothetical protein
3599	 52.80	0	3545212..3546942	+	576	26249543	-	c3712	-	acyl-CoA synthetase
3600	 54.86	0	3546939..3547853	+	304	26249544	-	c3713	-	hypothetical protein
3601	 40.56	-1	3547885..3548133	+	82	26249545	-	c3714	-	hypothetical protein
3602	 52.09	0	3548133..3549305	+	390	26249546	-	c3715	-	hypothetical protein
3603	 51.77	0	3549340..3550500	-	386	26249547	-	c3716	-	hypothetical protein
3604	 51.17	0	3550416..3551486	-	356	26249548	-	c3717	-	hypothetical protein
3605	 48.58	0	3551517..3552080	-	187	26249549	-	c3718	-	hypothetical protein
3606	 46.18	0	3552089..3552913	-	274	26249550	-	c3719	-	hypothetical protein
3607	 52.44	0	3552913..3554262	-	449	26249551	yghQ	c3720	-	hypothetical protein
3608	 53.49	0	3554308..3555066	-	252	26249552	yghR	c3721	-	ATP-binding protein yghR
3609	 50.56	0	3555098..3555811	-	237	26249553	yghS	c3722	-	ATP-binding protein yghS
3610	 47.62	0	3555986..3556678	+	230	26249554	yghT	c3723	-	ATP-binding protein yghT
3611	 51.40	0	3556727..3558226	-	499	26249555	pitB	c3724	-	inorganic phosphate transporter
3612	 51.74	0	3558518..3560380	-	620	26249556	gsp	c3725	-	bifunctional glutathionylspermidine amidase/glutathionylspermidine synthetase
3613	 53.66	0	3560534..3561448	+	304	26249557	yghU	c3726	-	putative glutathione S-transferase YghU
3614	 52.21	0	3561590..3561838	-	82	26249558	hybG	c3727	-	hydrogenase 2 accessory protein HypG
3615	 53.80	0	3561851..3562192	-	113	26249559	hypA	c3728	-	hydrogenase nickel incorporation protein HybF
3616	 53.99	0	3562185..3562673	-	162	26249560	hybE	c3729	-	hydrogenase 2-specific chaperone
3617	 55.15	0	3562666..3563160	-	164	26249561	hybD	c3730	-	hydrogenase 2 maturation endopeptidase
3618	 53.35	0	3563160..3564863	-	567	26249562	hybC	c3731	-	hydrogenase 2 large subunit
3619	 53.18	0	3564860..3566038	-	392	26249563	hybB	c3732	-	putative hydrogenase 2 b cytochrome subunit
3620	 54.71	0	3566028..3567014	-	328	26249564	hybA	c3733	-	hydrogenase 2 protein HybA
3621	 54.33	0	3567017..3568135	-	372	26249565	-	c3734	-	hydrogenase 2 small subunit
3622	 44.79	0	3568324..3568611	-	95	26249566	yghW	c3735	-	hypothetical protein
3623	 52.21	0	3568730..3569656	-	308	26249567	-	c3736	-	hypothetical protein
3624	 52.16	0	3569774..3570814	+	346	26249568	yghZ	c3737	-	aldo-keto reductase
3625	 46.67	0	3570854..3571378	-	174	26249569	yqhA	c3738	-	hypothetical protein
3626	 53.94	0	3571536..3572423	+	295	26249570	yghA	c3739	-	oxidoreductase
3627	 48.36	0	3572462..3572887	-	141	26249571	exbD	c3740	-	biopolymer transport protein ExbD
3628	 52.38	0	3572894..3573628	-	244	26249572	exbB	c3741	-	biopolymer transport protein ExbB
3629	 50.49	0	3573745..3575067	+	440	26249573	metC	c3742	-	cystathionine beta-lyase
3630	 51.21	0	3575207..3575866	+	219	26249574	yghB	c3743	-	hypothetical protein
3631	 50.09	0	3575906..3577033	-	375	26249575	yqhC	c3744	-	putative transcriptional regulator YqhC
3632	 54.55	0	3576999..3578162	+	387	26249576	yqhD	c3745	-	oxidoreductase yqhD
3633	 50.72	0	3578267..3579094	+	275	26249577	dkgA	c3746	-	2,5-diketo-D-gluconate reductase A
3634	 47.40	0	3579568..3580221	+	217	26249578	yqhG	c3747	-	hypothetical protein
3635	 48.45	0	3580272..3580529	+	85	26249579	yqhH	c3748	-	putative outer membrane lipoprotein
3636	 54.41	0	3580571..3582790	-	739	26249580	-	c3749	-	hypothetical protein
3637	 44.53	-1	3583042..3583791	+	249	26249581	-	c3750	-	putative regulator
3638	 47.58	0	3584078..3585586	+	502	26249582	-	c3751	-	oxidoreductase ydfI
3639	 47.59	0	3585583..3586599	+	338	26249583	-	c3752	-	hypothetical protein
3640	 47.38	0	3586610..3587620	+	336	26249584	-	c3753	-	ureidoglycolate dehydrogenase
3641	 42.07	-1	3587693..3588676	+	327	26249585	-	c3754	-	putative c4-dicarboxylate transport system binding protein
3642	 38.30	-2	3588718..3589200	+	160	26249586	-	c3755	-	hypothetical protein
3643	 45.95	0	3589169..3590515	+	448	26249587	ygiK	c3756	-	c4-dicarboxylate permease
3644	 55.91	+1	3590586..3591998	-	470	26249588	sufI	c3757	-	repressor protein for FtsI
3645	 49.73	0	3592073..3592810	-	245	26249589	plsC	c3758	-	1-acyl-sn-glycerol-3-phosphate acyltransferase
3646	 45.51	0	3592859..3593014	-	51	26249590	-	c3759	-	hypothetical protein
3647	 54.80	0	3593045..3595303	-	752	26249591	parC	c3760	-	DNA topoisomerase IV subunit A
3648	 51.83	0	3595441..3597111	-	556	26249592	-	c3761	-	putative binding protein
3649	 53.00	0	3597157..3597639	-	160	26249593	ygiV	c3762	-	hypothetical protein
3650	 48.44	0	3597692..3598141	-	149	26249594	ygiW	c3763	-	hypothetical protein
3651	 52.27	0	3598236..3598895	+	219	26249595	ygiX	c3764	-	DNA-binding transcriptional regulator QseB
3652	 52.52	0	3598892..3600241	+	449	26249596	ygiY	c3765	-	sensor protein QseC
3653	 34.69	-2	3600626..3601363	-	245	26249597	-	c3766	-	hypothetical protein
3654	 32.50	-2	3601339..3601818	-	159	26249598	-	c3767	-	hypothetical protein
3655	 49.83	0	3602068..3602649	+	193	26249599	mdaB	c3768	-	modulator of drug activity B
3656	 50.16	0	3602680..3602994	+	104	26249600	ygiN	c3769	-	hypothetical protein
3657	 51.69	0	3603039..3603926	-	295	26249601	-	c3770	-	hypothetical protein
3658	 48.66	0	3603923..3604933	-	336	26249602	-	c3771	-	iron ABC transporter substrate-binding protein
3659	 50.10	0	3604881..3605930	-	349	26249603	-	c3772	-	iron ABC transporter permease
3660	 54.47	0	3605927..3606910	-	327	26249604	-	c3773	-	iron ABC transporter permease
3661	 49.14	0	3606907..3607716	-	269	26249605	-	c3774	-	ferric enterobactin transport ATP-binding protein fepC
3662	 47.99	0	3608090..3610231	+	713	26249606	-	c3775	-	putative iron compound receptor
3663	 53.62	0	3610295..3612187	-	630	26249607	parE	c3776	-	DNA topoisomerase IV subunit B
3664	 54.12	0	3612216..3612797	-	193	26249608	yqiA	c3777	-	esterase YqiA
3665	 56.76	+1	3612797..3613624	-	275	26249609	icc	c3778	-	cyclic 3',5'-adenosine monophosphate phosphodiesterase
3666	 48.23	0	3613649..3614071	-	140	26249610	yqiB	c3779	-	hypothetical protein
3667	 50.79	0	3614072..3614701	-	209	26249611	nudF	c3780	-	ADP-ribose pyrophosphatase NudF
50.18	MEAN

5.55	STD DEV
