IslandPathversion 1.0

IslandPath Analysis: Escherichia coli CFT073

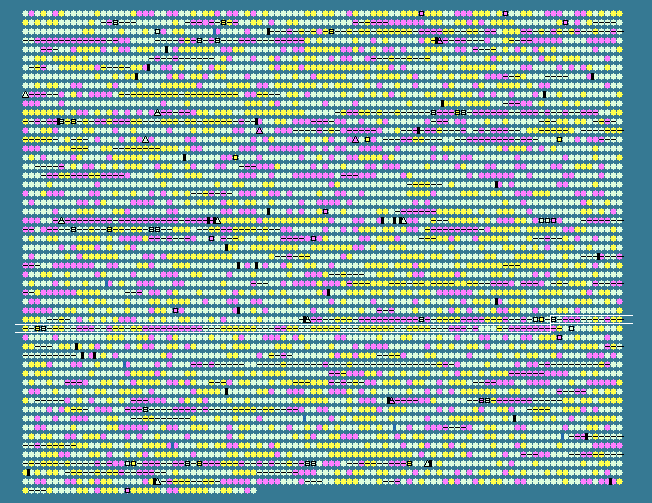

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.18 STD DEV: 5.55
Escherichia coli CFT073, complete genome - 1..5231428
5339 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3489	 52.96	0	3441312..3441902	-	196	26249432	-	c3597	-	transposase
3490	 49.38	0	3441905..3442066	-	53	26249433	-	c3598	-	hypothetical protein
3491	 42.53	-1	3442496..3442756	+	86	26249434	-	c3599	-	hypothetical protein
3492	 41.18	-1	3442798..3443358	+	186	26249435	-	c3600	-	hypothetical protein
3493	 38.13	-2	3443368..3443826	+	152	26249436	-	c3601	-	hypothetical protein
3494	 52.78	0	3444379..3444594	-	71	26249437	-	c3602	-	hypothetical protein
3495	 52.34	0	3444598..3444981	-	127	26249438	-	c3603	-	hypothetical protein
3496	 53.73	0	3444661..3445062	+	133	26249439	-	c3604	-	hypothetical protein
3497	 52.60	0	3444978..3445169	-	63	26249440	-	c3605	-	hypothetical protein
3498	 42.99	-1	3445257..3445577	-	106	26249441	-	c3606	-	hypothetical protein
3499	 53.93	0	3445858..3447357	+	499	26249442	-	c3607	-	hypothetical protein
3500	 53.70	0	3447354..3448109	+	251	26249443	-	c3608	-	hypothetical protein
3501	 54.22	0	3448318..3448542	-	74	26249444	-	c3609	-	hypothetical protein
3502	 51.65	0	3448776..3450866	-	696	26249445	-	c3610	-	bifunctional enterobactin receptor/adhesin protein
3503	 55.08	0	3451366..3452271	-	301	26249446	-	c3611	-	insertion element IS2 transposase InsD
3504	 48.27	0	3452264..3452638	-	124	26249447	-	c3612	-	transposase insC
3505	 50.94	0	3452810..3452968	+	52	26249448	-	c3613	-	hypothetical protein
3506	 54.84	0	3452972..3453157	-	61	26249449	-	c3614	-	hypothetical protein
3507	 54.99	0	3453103..3454584	-	493	26249450	-	c3615	-	hypothetical protein
3508	 52.42	0	3454615..3454965	-	116	26249451	-	c3616	-	hypothetical protein
3509	 49.09	0	3454962..3455399	-	145	26249452	-	c3617	-	hypothetical protein
3510	 43.06	-1	3455734..3456432	-	232	26249453	-	c3618	-	hypothetical protein
3511	 41.51	-1	3456362..3460261	-	1299	26249454	sat	c3619	-	Aecreted auto transpoter toxin
3512	 36.81	-2	3459134..3459277	+	47	26249456	-	c3621	-	hypothetical protein
3513	 47.22	0	3460499..3460642	+	47	26249457	-	c3622	-	hypothetical protein
3514	 52.72	0	3461193..3463472	-	759	26249458	iutA	c3623	-	IutA protein
3515	 46.41	0	3463394..3464731	-	445	26249459	iucD	c3624	-	IucD protein
3516	 54.73	0	3464728..3466470	-	580	26249460	iucC	c3625	-	IucC protein
3517	 56.54	+1	3466470..3467417	-	315	26249461	iucB	c3626	-	IucB protein
3518	 53.58	0	3467418..3469205	-	595	26249462	iucA	c3627	-	IucA protein
3519	 57.04	+1	3469278..3470471	+	397	26249463	shiF	c3628	-	shiF protein
3520	 63.41	+2	3469679..3469801	-	40	26249464	-	c3629	-	hypothetical protein
3521	 42.22	-1	3470630..3471619	-	329	26249465	-	c3630	-	hypothetical protein
3522	 39.39	-1	3471917..3472081	-	54	26249466	-	c3631	-	hypothetical protein
3523	 34.09	-2	3472357..3472488	-	43	26249467	-	c3632	-	hypothetical protein
3524	 37.59	-2	3472475..3473413	-	312	26249468	-	c3633	-	hypothetical protein
3525	 40.13	-1	3473463..3474581	-	372	26249469	-	c3634	-	hypothetical protein
3526	 36.03	-2	3474585..3475325	-	246	26249470	-	c3635	-	hypothetical protein
3527	 40.25	-1	3475341..3476150	-	269	26249471	-	c3636	-	hypothetical protein
3528	 42.36	-1	3476175..3477647	-	490	161486122	-	c3637	-	putative sialic acid transporter
3529	 40.64	-1	3477696..3478571	-	291	26249473	-	c3638	-	N-acetylmannosamine kinase
3530	 38.24	-2	3478605..3479522	-	305	26249474	-	c3639	-	N-acetylneuraminate lyase
3531	 51.24	0	3480253..3480615	+	120	26249475	-	c3640	-	hypothetical protein
3532	 52.99	0	3480612..3480962	+	116	26249476	-	c3641	-	hypothetical protein
3533	 52.17	0	3480627..3480971	-	114	26249477	-	c3642	-	hypothetical protein
3534	 55.22	0	3480993..3482093	+	366	26249478	-	c3643	-	hypothetical protein
3535	 56.36	+1	3481920..3482084	-	54	26249479	-	c3644	-	hypothetical protein
3536	 59.52	+1	3482090..3483628	+	512	26249480	-	c3645	-	hypothetical protein
3537	 54.87	0	3483544..3483738	-	64	26249481	-	c3646	-	hypothetical protein
3538	 56.36	+1	3483812..3484267	-	151	26249482	-	c3647	-	hypothetical protein
3539	 57.89	+1	3484397..3484966	-	189	26249483	-	c3648	-	hypothetical protein
3540	 49.78	0	3485694..3485918	-	74	26249484	-	c3649	-	hemolysin expression modulating protein
3541	 52.87	0	3486747..3487007	+	86	26249485	-	c3650	-	hypothetical protein
3542	 51.00	0	3487066..3487665	+	199	26249486	-	c3651	-	hypothetical protein
3543	 45.99	0	3487786..3489294	-	502	26249487	-	c3652	-	hypothetical protein
3544	 38.74	-2	3489471..3489692	-	73	26249488	-	c3653	-	hypothetical protein
3545	 58.88	+1	3490608..3491480	+	290	26249489	-	c3654	-	hypothetical protein
3546	 58.29	+1	3491808..3494936	+	1042	26249490	-	c3655	-	antigen 43 precursor
3547	 53.64	0	3495115..3495444	+	109	26249491	-	c3656	-	hypothetical protein
3548	 53.18	0	3495431..3495823	+	130	26249492	-	c3657	-	hypothetical protein
3549	 54.81	0	3495830..3497431	+	533	26249493	-	c3658	-	hypothetical protein
3550	 54.01	0	3497824..3498471	+	215	26249494	-	c3659	-	hypothetical protein
3551	 55.17	0	3498471..3498818	+	115	26249495	-	c3660	-	hypothetical protein
3552	 59.44	+1	3498552..3498731	-	59	26249496	-	c3661	-	hypothetical protein
3553	 57.34	+1	3498838..3499941	+	367	26249497	-	c3662	-	hypothetical protein
3554	 53.02	0	3500024..3500404	+	126	26249498	-	c3663	-	hypothetical protein
3555	 52.72	0	3500527..3503049	+	840	26249499	-	c3664	-	hypothetical protein
3556	 48.25	0	3503125..3503580	+	151	26249500	-	c3665	-	hypothetical protein
3557	 55.13	0	3503659..3503892	+	77	26249501	-	c3666	-	hypothetical protein
3558	 57.14	+1	3503701..3503889	-	62	26249502	-	c3667	-	hypothetical protein
3559	 56.53	+1	3503993..3504811	+	272	26249503	-	c3668	-	hypothetical protein
3560	 54.53	0	3504866..3505351	+	161	26249504	-	c3669	-	hypothetical protein
3561	 57.57	+1	3504920..3505831	-	303	26249505	-	c3670	-	hypothetical protein
3562	 58.33	+1	3505352..3505843	+	163	26249506	-	c3671	-	putative radC-like protein yeeS
3563	 53.09	0	3505840..3506568	-	242	26249507	-	c3672	-	hypothetical protein
3564	 52.70	0	3505906..3506127	+	73	26249508	-	c3673	-	hypothetical protein
3565	 56.74	+1	3506146..3506790	+	214	26249509	-	c3674	-	hypothetical protein
3566	 55.67	0	3506813..3507376	-	187	26249510	-	c3675	-	hypothetical protein
3567	 58.27	+1	3506840..3507220	+	126	26249511	-	c3676	-	hypothetical protein
3568	 54.76	0	3507297..3507674	+	125	26249512	-	c3677	-	hypothetical protein
3569	 53.37	0	3507671..3508159	+	162	26249513	-	c3678	-	hypothetical protein
3570	 48.48	0	3508176..3508373	+	65	26249514	-	c3679	-	hypothetical protein
3571	 48.11	0	3508458..3509303	+	281	26249515	-	c3680	-	hypothetical protein
3572	 46.46	0	3509372..3509767	+	131	26249516	-	c3681	-	hypothetical protein
3573	 40.31	-1	3509760..3510677	+	305	26249517	-	c3682	-	hypothetical protein
3574	 41.78	-1	3510482..3510694	+	70	26249518	-	c3683	-	hypothetical protein
3575	 48.08	0	3511126..3511281	+	51	26249519	-	c3684	-	hypothetical protein
3576	 30.56	-2	3511449..3511592	-	47	26249520	-	c3685	-	hypothetical protein
3577	 48.63	0	3512056..3513075	+	339	26249521	-	c3686	-	hypothetical protein
3578	 49.70	0	3513147..3514295	+	382	26249522	kpsE	c3687	-	KpsE protein
3579	 51.85	0	3514316..3515995	+	559	26249523	kpsD	c3688	-	KpsD protein
3580	 54.52	0	3516005..3516745	+	246	26249524	-	c3689	-	3-deoxy-manno-octulosonate cytidylyltransferase
3581	 51.82	0	3516742..3518769	+	675	26249525	kpsC	c3690	-	KpsC protein
3582	 45.68	0	3518804..3520042	+	412	26249526	kpsS	c3691	-	KpsS protein
3583	 30.92	-2	3520204..3521199	-	331	26249527	-	c3692	-	hypothetical protein
3584	 28.77	-2	3521205..3522233	-	342	26249528	-	c3693	-	hypothetical protein
3585	 31.36	-2	3522336..3526136	-	1266	26249529	-	c3694	-	hypothetical protein
3586	 30.26	-2	3526190..3527425	-	411	26249530	-	c3695	-	hypothetical protein
3587	 32.60	-2	3527441..3527848	-	135	26249531	-	c3696	-	putative glycerol-3-phosphate cytidyltransferase
3588	 38.39	-2	3527848..3528519	-	223	26249532	kpsT	c3697	-	KpsT protein
50.18	MEAN

5.55	STD DEV
