IslandPath Analysis: Escherichia coli CFT073

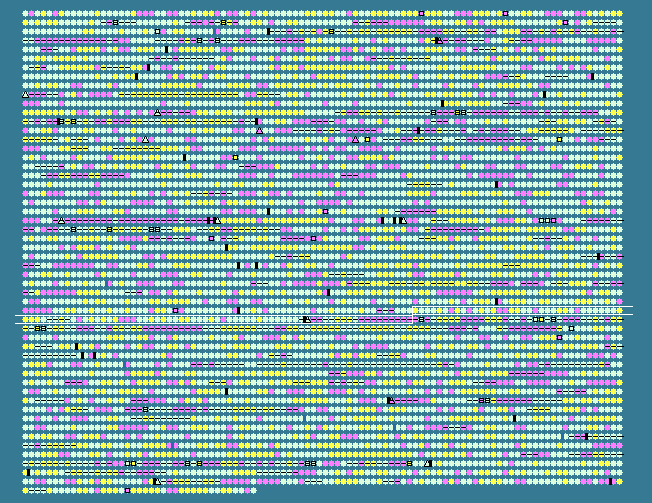

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.18 STD DEV: 5.55
Escherichia coli CFT073, complete genome - 1..5231428
5339 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3366	 56.34	+1	3333346..3335079	-	577	26249307	recJ	c3472	-	ssDNA exonuclease RecJ
3367	 48.24	0	3335085..3335795	-	236	26249308	dsbC	c3473	-	thiol:disulfide interchange protein DsbC
3368	 53.29	0	3335820..3336716	-	298	26249309	xerD	c3474	-	site-specific tyrosine recombinase XerD
3369	 51.72	0	3336828..3337349	+	173	26249310	fldB	c3475	-	flavodoxin FldB
3370	 53.92	0	3337389..3337796	-	135	26249311	ygfX	c3476	-	hypothetical protein
3371	 49.06	0	3337777..3338043	-	88	26249312	ygfY	c3477	-	hypothetical protein
3372	 43.23	-1	3338018..3338209	+	63	26249313	-	c3478	-	hypothetical protein
3373	 54.13	0	3338286..3339266	+	326	26249314	ygfZ	c3479	-	putative global regulator
3374	 52.12	0	3339343..3340002	-	219	26249315	yqfA	c3480	-	hypothetical protein
3375	 44.87	0	3340166..3340477	-	103	26249316	yqfB	c3481	-	hypothetical protein
3376	 51.17	0	3340498..3341955	+	485	26249317	bglA	c3482	-	6-phospho-beta-glucosidase BglA
3377	 55.46	0	3342121..3344994	-	957	26249318	gcvP	c3483	-	glycine dehydrogenase
3378	 51.40	0	3345112..3345504	-	130	26249319	gcvH	c3484	-	glycine cleavage system protein H
3379	 53.97	0	3345525..3346619	-	364	26249320	gcvT	c3485	-	glycine cleavage system aminomethyltransferase T
3380	 45.51	0	3346627..3346782	-	51	26249321	-	c3486	-	hypothetical protein
3381	 23.33	-2	3346795..3346944	-	49	26249322	-	c3487	-	hypothetical protein
3382	 54.70	0	3347067..3348269	-	400	26249323	visC	c3488	-	hypothetical protein
3383	 59.03	+1	3348292..3349470	-	392	26249324	ubiH	c3489	-	2-octaprenyl-6-methoxyphenyl hydroxylase
3384	 52.11	0	3349467..3350792	-	441	26249325	pepP	c3490	-	proline aminopeptidase P II
3385	 52.68	0	3350818..3351396	-	192	161486132	ygfB	c3491	-	hypothetical protein
3386	 46.67	0	3351564..3351893	+	109	26249327	ygfE	c3492	-	Z-ring-associated protein
3387	 52.07	0	3351995..3352741	+	248	26249328	ygfA	c3493	-	putative ligase
3388	 52.47	0	3353131..3354363	-	410	26249329	serA	c3494	-	D-3-phosphoglycerate dehydrogenase
3389	 50.55	0	3354619..3355350	-	243	26249330	rpiA	c3495	-	ribose-5-phosphate isomerase A
3390	 54.48	0	3355334..3355612	-	92	26249331	yqfE	c3496	-	hypothetical protein
3391	 54.47	0	3355705..3356598	+	297	161486131	iciA	c3497	-	chromosome replication initiation inhibitor protein
3392	 52.65	0	3356801..3357856	+	351	26249333	-	c3498	-	hypothetical protein
3393	 44.48	-1	3357853..3358749	-	298	26249334	ygfI	c3499	-	putative transcriptional regulator YgfI
3394	 52.50	0	3358907..3359647	-	246	26249335	yggE	c3500	-	hypothetical protein
3395	 50.47	0	3359740..3360375	-	211	26249336	yggA	c3501	-	arginine exporter protein
3396	 50.52	0	3360514..3361374	-	286	26249337	yggB	c3502	-	mechanosensitive channel MscS
3397	 51.02	0	3361565..3362644	-	359	161486130	fba	c3503	-	fructose-bisphosphate aldolase
3398	 51.43	0	3362858..3364084	-	408	26249339	pgk	c3504	-	phosphoglycerate kinase
3399	 51.37	0	3364071..3365090	-	339	161486129	epd	c3505	-	erythrose 4-phosphate dehydrogenase
3400	 56.18	+1	3365462..3365890	+	142	26249341	-	c3506	-	hypothetical protein
3401	 56.82	+1	3365917..3366495	+	192	26249342	-	c3507	-	hypothetical protein
3402	 56.21	+1	3366496..3367203	+	235	26249343	-	c3508	-	hypothetical protein
3403	 56.24	+1	3367332..3367868	+	178	26249344	-	c3509	-	ABC transporter ATP-binding protein
3404	 52.74	0	3367829..3368539	+	236	26249345	-	c3510	-	ABC transporter ATP-binding protein
3405	 52.38	0	3368511..3369224	-	237	26249346	frcK	c3511	-	putative fructose transport system kinase
3406	 48.82	0	3369221..3369730	-	169	26249347	yggD	c3512	-	putative DNA-binding transcriptional regulator
3407	 55.56	0	3369879..3370067	-	62	26249348	-	c3513	-	hypothetical protein
3408	 51.25	0	3370064..3371341	-	425	26249349	-	c3514	-	putative oxidoreductase
3409	 49.75	0	3371356..3372744	-	462	26249350	cmtA	c3515	-	PTS system, mannitol (Cryptic)-specific IIBC component
3410	 42.12	-1	3372772..3373215	-	147	26249351	cmtB	c3516	-	putative mannitol phosphotransferase subunit EIIA
3411	 46.94	0	3373532..3374266	+	244	26249352	-	c3517	-	hypothetical protein
3412	 55.92	+1	3374714..3376705	-	663	161486128	tktA	c3520	-	transketolase
3413	 51.74	0	3376764..3377741	+	325	26249356	yggG	c3521	-	putative metalloprotease yggG
3414	 55.48	0	3377945..3378865	-	306	26249357	speB	c3522	-	agmatinase
3415	 48.36	0	3379001..3379732	-	243	26249358	-	c3523	-	hypothetical protein
3416	 54.85	0	3379878..3381866	-	662	26249359	speA	c3524	-	arginine decarboxylase
3417	 39.46	-1	3381863..3382009	-	48	26249360	yqgB	c3525	-	hypothetical protein
3418	 41.27	-1	3382329..3382454	+	41	26249361	-	c3526	-	hypothetical protein
3419	 42.32	-1	3382342..3382608	-	88	26249362	yqgD	c3527	-	hypothetical protein
3420	 53.33	0	3382649..3383803	+	384	161486127	metK	c3528	-	S-adenosylmethionine synthetase
3421	 53.23	0	3384227..3385633	+	468	26249364	galP	c3529	-	galactose-proton symporter
3422	 55.07	0	3385656..3386207	+	183	26249365	sprT	c3530	-	hypothetical protein
3423	 53.45	0	3386299..3387009	+	236	26249366	endA	c3531	-	endonuclease I precursor
3424	 53.69	0	3387089..3387820	+	243	161486126	yggJ	c3532	-	hypothetical protein
3425	 52.16	0	3387833..3388783	+	316	26249368	gshB	c3533	-	glutathione synthetase
3426	 50.89	0	3388892..3389455	+	187	161486125	yqgE	c3534	-	hypothetical protein
3427	 53.72	0	3389455..3389871	+	138	26249370	yqgF	c3535	-	Holliday junction resolvase-like protein
3428	 54.36	0	3390045..3391100	-	351	26249371	yggR	c3536	-	hypothetical protein
3429	 51.49	0	3391043..3391747	+	234	26249372	yggS	c3537	-	hypothetical protein
3430	 51.50	0	3391765..3392331	+	188	26249373	yggT	c3538	-	hypothetical protein
3431	 48.80	0	3392328..3392618	+	96	161486124	yggU	c3539	-	hypothetical protein
3432	 55.89	+1	3392626..3393219	+	197	26249375	yggV	c3540	-	putative deoxyribonucleotide triphosphate pyrophosphatase
3433	 52.59	0	3393212..3394348	+	378	26249376	yggW	c3541	-	coproporphyrinogen III oxidase
3434	 43.55	-1	3394417..3395424	-	335	26249377	yggM	c3542	-	hypothetical protein
3435	 51.96	0	3395541..3396587	-	348	26249378	ansB	c3543	-	L-asparaginase II
3436	 52.64	0	3396763..3397482	-	239	26249379	yggN	c3544	-	hypothetical protein
3437	 52.48	0	3397503..3397643	-	46	26249380	-	c3545	-	hypothetical protein
3438	 48.62	0	3397666..3397992	-	108	161486123	yggL	c3546	-	hypothetical protein
3439	 52.92	0	3397992..3398711	-	239	26249382	trmB	c3547	-	tRNA (guanine-N(7))-methyltransferase
3440	 55.40	0	3398842..3399924	+	360	26249383	mutY	c3548	-	adenine DNA glycosylase
3441	 48.98	0	3399901..3400194	-	97	26249384	-	c3549	-	hypothetical protein
3442	 47.10	0	3399952..3400227	+	91	26249385	yggX	c3550	-	hypothetical protein
3443	 51.34	0	3400289..3401371	+	360	26249386	mltC	c3551	-	murein transglycosylase C
3444	 50.42	0	3401525..3402829	+	434	26249387	nupG	c3552	-	nucleoside permease nupG
3445	 52.29	0	3402878..3405013	-	711	26249388	speC	c3553	-	ornithine decarboxylase
3446	 50.49	0	3405094..3405297	-	67	26249389	-	c3554	-	hypothetical protein
3447	 51.69	0	3405412..3406119	+	235	26249390	yqgA	c3555	-	hypothetical protein
3448	 48.58	0	3406498..3407763	+	421	26249391	-	c3556	-	prophage P4 integrase
3449	 45.79	0	3408019..3409062	+	347	26249392	-	c3557	-	ShiA-like protein
3450	 40.64	-1	3409205..3409423	+	72	26249393	-	c3558	-	hypothetical protein
3451	 49.17	0	3409389..3410474	-	361	26249394	-	c3559	-	hypothetical protein
3452	 49.38	0	3410473..3410877	+	134	26249395	-	c3560	-	hypothetical protein
3453	 56.90	+1	3410874..3411221	+	115	26249396	-	c3561	-	hypothetical protein
3454	 58.82	+1	3411270..3411677	+	135	26249397	-	c3562	-	hypothetical protein
3455	 60.23	+1	3411690..3412808	+	372	26249398	-	c3563	-	hypothetical protein
3456	 46.84	0	3413218..3414690	-	490	26249399	-	c3564	-	hypothetical protein
3457	 46.61	0	3414691..3415413	-	240	26249400	-	c3565	-	putative response regulator
3458	 44.95	0	3415551..3415946	+	131	26249401	-	c3566	-	hypothetical protein
3459	 42.17	-1	3416056..3416892	+	278	26249402	-	c3567	-	hypothetical protein
3460	 37.86	-2	3416947..3417189	+	80	26249403	-	c3568	-	hypothetical protein
3461	 34.81	-2	3418210..3418884	+	224	26249404	hlyC	c3569	-	hemolysin C
3462	 40.91	-1	3418896..3421970	+	1024	26249405	hlyA	c3570	-	hemolysin A
3463	 42.48	-1	3421458..3421610	-	50	26249406	-	c3571	-	hypothetical protein
3464	 34.27	-2	3421802..3422014	-	70	26249407	-	c3572	-	hypothetical protein
3465	 40.16	-1	3422041..3424164	+	707	26249408	hlyB	c3573	-	hemolysin B
50.18	MEAN

5.55	STD DEV
