IslandPath Analysis: Escherichia coli CFT073

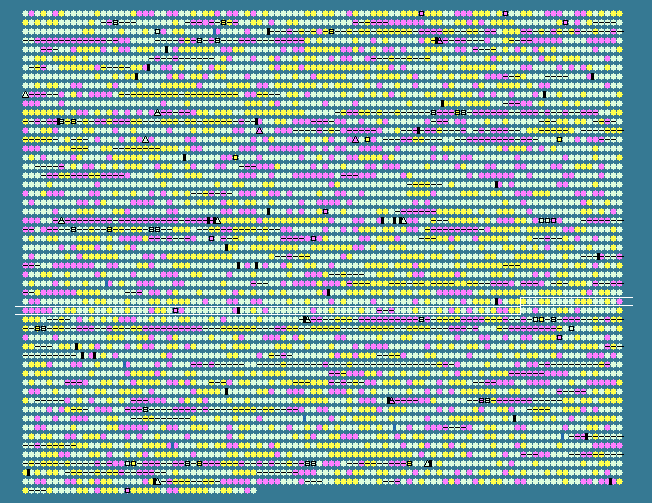

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.18 STD DEV: 5.55
Escherichia coli CFT073, complete genome - 1..5231428
5339 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3284	 61.52	+2	3227152..3228804	+	550	26249224	-	c3389	-	hypothetical protein
3285	 50.91	0	3228841..3229443	-	200	26249225	-	c3390	-	hypothetical protein
3286	 51.22	0	3228862..3229353	+	163	26249226	-	c3391	-	secreted protein Hcp
3287	 60.33	+1	3229545..3232181	+	878	26249227	-	c3392	-	ClpB protein
3288	 55.56	0	3232181..3234655	+	824	26249228	-	c3393	-	hypothetical protein
3289	 46.79	0	3234670..3235494	+	274	26249229	-	c3394	-	hypothetical protein
3290	 50.38	0	3235491..3237467	+	658	26249230	-	c3395	-	hypothetical protein
3291	 49.45	0	3237477..3237749	+	90	26249231	-	c3396	-	hypothetical protein
3292	 51.53	0	3237749..3239182	+	477	26249232	-	c3397	-	hypothetical protein
3293	 59.87	+1	3239189..3242527	+	1112	26249233	-	c3398	-	hypothetical protein
3294	 62.39	+2	3242493..3244130	+	545	26249234	-	c3399	-	hypothetical protein
3295	 58.04	+1	3244161..3246965	+	934	26249235	-	c3400	-	hypothetical protein
3296	 50.84	0	3246946..3247482	+	178	26249236	-	c3401	-	hypothetical protein
3297	 53.38	0	3247486..3247914	+	142	26249237	-	c3402	-	hypothetical protein
3298	 54.97	0	3247914..3249290	+	458	26249238	-	c3403	-	hypothetical protein
3299	 52.94	0	3248464..3248616	-	50	26249239	-	c3404	-	hypothetical protein
3300	 44.72	0	3249590..3250546	-	318	26249240	-	c3405	-	2-hydroxyacid dehydrogenase
3301	 41.37	-1	3250609..3251205	-	198	26249241	-	c3406	-	phosphosugar isomerase
3302	 37.67	-2	3251208..3252383	-	391	26249242	-	c3407	-	Beta-cystathionase
3303	 44.40	-1	3252383..3253963	-	526	26249243	-	c3408	-	PTS system, maltose and glucose-specific IIABC component
3304	 34.13	-2	3253995..3254876	-	293	26249244	-	c3409	-	antiterminator
3305	 32.68	-2	3254915..3255067	+	50	26249245	-	c3410	-	hypothetical protein
3306	 52.90	0	3255077..3256420	-	447	26249246	-	c3411	-	N-acetylmuramoyl-L-alanine amidase amiC precursor
3307	 52.55	0	3256562..3257893	+	443	161486136	argA	c3412	-	N-acetylglutamate synthase
3308	 55.12	0	3257955..3259781	-	608	26249248	RecD	c3413	-	exonuclease V subunit alpha
3309	 54.05	0	3259781..3263332	-	1183	26249249	RecB	c3414	-	exonuclease V subunit beta
3310	 50.78	0	3263316..3266204	-	962	26249250	ptr	c3415	-	protease III
3311	 53.31	0	3266380..3269748	-	1122	26249251	recC	c3416	-	exonuclease V subunit gamma
3312	 54.63	0	3269761..3270084	-	107	26249252	ppdC	c3417	-	hypothetical protein
3313	 53.19	0	3270069..3270476	-	135	26249253	ygdB	c3418	-	hypothetical protein
3314	 52.38	0	3270473..3271060	-	195	26249254	ppdB	c3419	-	hypothetical protein
3315	 54.35	0	3271027..3271497	-	156	26249255	ppdA	c3420	-	hypothetical protein
3316	 51.19	0	3271682..3272476	-	264	26249257	thyA	c3422	-	thymidylate synthase
3317	 52.63	0	3272483..3273358	-	291	26249258	lgt	c3423	-	prolipoprotein diacylglyceryl transferase
3318	 53.76	0	3273509..3275755	-	748	26249259	ptsP	c3424	-	fused phosphoenolpyruvate-protein phosphotransferase PtsP/GAF domain-containing protein
3319	 49.15	0	3275768..3276298	-	176	26249260	ygdP	c3425	-	dinucleoside polyphosphate hydrolase
3320	 53.62	0	3276983..3277672	+	229	26249261	mutH	c3426	-	DNA mismatch repair protein
3321	 50.84	0	3277741..3278454	+	237	26249262	-	c3427	-	hypothetical protein
3322	 43.38	-1	3278592..3278810	+	72	26249263	ygdR	c3428	-	lipoprotein ygdR precursor
3323	 54.56	0	3278918..3279958	+	346	26249264	-	c3429	-	putative aldo-keto reductase
3324	 55.36	0	3279990..3281183	-	397	26249265	ygeD	c3430	-	hypothetical protein
3325	 52.41	0	3281176..3283335	-	719	26249266	aas	c3431	-	bifunctional acyl-[acyl carrier protein] synthetase/2-acylglycerophosphoethanolamine acyltransferase
3326	 46.61	0	3283735..3284073	-	112	26249267	-	c3432	-	transposase
3327	 45.94	0	3284085..3284552	+	155	26249268	-	c3433	-	hypothetical protein
3328	 53.00	0	3284632..3285663	+	343	26249269	galR	c3434	-	DNA-binding transcriptional regulator GalR
3329	 52.81	0	3285670..3286932	-	420	26249270	lysA	c3435	-	diaminopimelate decarboxylase
3330	 53.21	0	3287054..3287989	+	311	26249271	lysR	c3436	-	DNA-binding transcriptional regulator LysR
3331	 50.65	0	3287976..3288668	-	230	26249272	ygeA	c3437	-	putative racemase
3332	 50.65	0	3288797..3290344	-	515	26249273	araE	c3438	-	arabinose-proton symporter
3333	 52.49	0	3290530..3291291	-	253	26249274	kduD	c3439	-	2-deoxy-D-gluconate 3-dehydrogenase
3334	 49.70	0	3291321..3292157	-	278	26249275	kduI	c3440	-	5-keto-4-deoxyuronate isomerase
3335	 52.96	0	3292444..3293625	-	393	161486135	yqeF	c3441	-	acetyl-CoA acetyltransferase
3336	 44.47	-1	3293880..3295109	+	409	26249277	yqeG	c3442	-	putative transport protein YqeG
3337	 50.00	0	3295578..3296357	-	259	26249278	ygeR	c3443	-	lipoprotein ygeR precursor
3338	 52.52	0	3296747..3299044	+	765	26249279	-	c3444	-	xanthine dehydrogenase subunit XdhA
3339	 53.92	0	3299055..3299933	+	292	26249280	ygeT	c3445	-	xanthine dehydrogenase subunit XdhB
3340	 50.83	0	3299930..3300409	+	159	26249281	-	c3446	-	xanthine dehydrogenase subunit XdhC
3341	 45.92	0	3300449..3302227	-	592	26249282	ygeV	c3447	-	putative sigma-54-dependent transcriptional regulator ygeV
3342	 50.04	0	3302703..3303893	+	396	26249283	ygeW	c3448	-	hypothetical protein
3343	 53.22	0	3303951..3305147	+	398	26249284	ygeX	c3449	-	diaminopropionate ammonia-lyase
3344	 50.66	0	3305205..3306416	+	403	26249285	ygeY	c3450	-	peptidase
3345	 52.60	0	3306470..3307855	+	461	161486134	ygeZ	c3451	-	dihydropyrimidinase
3346	 49.62	0	3307903..3308835	+	310	26249287	yqeA	c3452	-	carbamate kinase
3347	 52.21	0	3308876..3310501	-	541	26249288	yqeB	c3453	-	hypothetical protein
3348	 49.03	0	3310549..3311319	-	256	26249289	yqeC	c3454	-	hypothetical protein
3349	 43.18	-1	3311423..3312001	+	192	26249290	ygfJ	c3455	-	hypothetical protein
3350	 52.53	0	3312323..3315421	+	1032	26249291	ygfK	c3456	-	putative selenate reductase subunit YgfK
3351	 52.75	0	3315424..3316752	+	442	161486133	-	c3457	-	putative chlorohydrolase/aminohydrolase
3352	 53.72	0	3316803..3317582	+	259	26249293	ygfM	c3458	-	putative selenate reductase subunit YgfM
3353	 52.80	0	3317579..3320449	+	956	26249294	-	c3459	-	putative selenate reductase subunit YgfN
3354	 48.01	0	3320557..3322014	+	485	26249295	ygfO	c3460	-	putative purine permease ygfO
3355	 47.99	0	3321909..3323348	+	479	26249296	ygfP	c3461	-	guanine deaminase
3356	 53.22	0	3323384..3324751	+	455	26249297	-	c3462	-	hypothetical protein
3357	 54.88	0	3324787..3325278	-	163	26249298	ygfS	c3463	-	putative electron transport protein ygfS
3358	 52.76	0	3325275..3327209	-	644	26249299	ygfT	c3464	-	putative oxidoreductase Fe-S binding subunit
3359	 49.43	0	3327501..3329078	+	525	26249300	ygfU	c3465	-	putative purine permease ygfU
3360	 35.42	-2	3329062..3329205	+	47	26249301	-	c3466	-	hypothetical protein
3361	 49.91	0	3329328..3329876	+	182	26249302	-	c3467	-	isopentenyl-diphosphate delta-isomerase
3362	 46.08	0	3329981..3330490	-	169	26249303	-	c3468	-	hypothetical protein
3363	 52.57	0	3330630..3332147	-	505	26249304	lysS	c3469	-	lysyl-tRNA synthetase
3364	 52.33	0	3330747..3332162	+	471	26249305	-	c3470	-	hypothetical protein
3365	 53.41	0	3332157..3333255	-	365	26249306	prfB	c5622	-	peptide chain release factor 2
3366	 56.34	+1	3333346..3335079	-	577	26249307	recJ	c3472	-	ssDNA exonuclease RecJ
3367	 48.24	0	3335085..3335795	-	236	26249308	dsbC	c3473	-	thiol:disulfide interchange protein DsbC
3368	 53.29	0	3335820..3336716	-	298	26249309	xerD	c3474	-	site-specific tyrosine recombinase XerD
3369	 51.72	0	3336828..3337349	+	173	26249310	fldB	c3475	-	flavodoxin FldB
3370	 53.92	0	3337389..3337796	-	135	26249311	ygfX	c3476	-	hypothetical protein
3371	 49.06	0	3337777..3338043	-	88	26249312	ygfY	c3477	-	hypothetical protein
3372	 43.23	-1	3338018..3338209	+	63	26249313	-	c3478	-	hypothetical protein
3373	 54.13	0	3338286..3339266	+	326	26249314	ygfZ	c3479	-	putative global regulator
3374	 52.12	0	3339343..3340002	-	219	26249315	yqfA	c3480	-	hypothetical protein
3375	 44.87	0	3340166..3340477	-	103	26249316	yqfB	c3481	-	hypothetical protein
3376	 51.17	0	3340498..3341955	+	485	26249317	bglA	c3482	-	6-phospho-beta-glucosidase BglA
3377	 55.46	0	3342121..3344994	-	957	26249318	gcvP	c3483	-	glycine dehydrogenase
3378	 51.40	0	3345112..3345504	-	130	26249319	gcvH	c3484	-	glycine cleavage system protein H
3379	 53.97	0	3345525..3346619	-	364	26249320	gcvT	c3485	-	glycine cleavage system aminomethyltransferase T
3380	 45.51	0	3346627..3346782	-	51	26249321	-	c3486	-	hypothetical protein
3381	 23.33	-2	3346795..3346944	-	49	26249322	-	c3487	-	hypothetical protein
3382	 54.70	0	3347067..3348269	-	400	26249323	visC	c3488	-	hypothetical protein
3383	 59.03	+1	3348292..3349470	-	392	26249324	ubiH	c3489	-	2-octaprenyl-6-methoxyphenyl hydroxylase
50.18	MEAN

5.55	STD DEV
