IslandPath Analysis: Escherichia coli CFT073

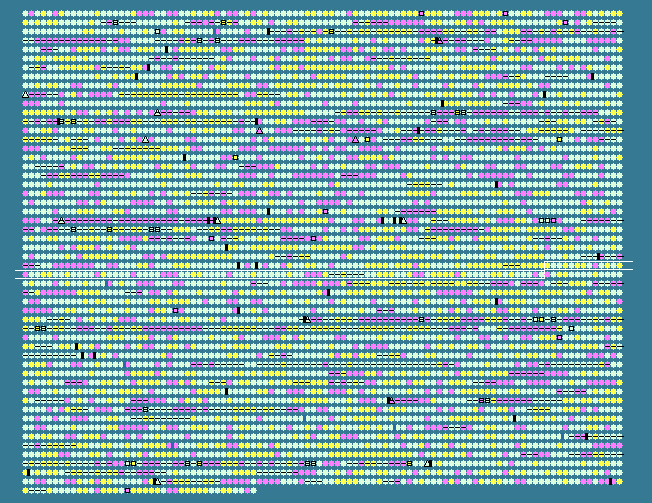

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.18 STD DEV: 5.55
Escherichia coli CFT073, complete genome - 1..5231428
5339 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2888	 54.13	0	2845060..2845761	-	233	26248827	-	c2985	-	ethanolamine utilization protein EutQ
2889	 50.21	0	2845736..2846215	-	159	26248828	-	c2986	-	ethanolamine utilization protein eutP
2890	 48.53	0	2846228..2846635	-	135	26248829	-	c2987	-	ethanolamine utilization protein eutS
2891	 54.34	0	2846856..2849135	-	759	26248830	-	c2988	-	malic enzyme
2892	 50.26	0	2849424..2850374	+	316	26248831	talA	c2989	-	transaldolase A
2893	 53.89	0	2850394..2852397	+	667	161486159	tktB	c2990	-	transketolase
2894	 54.31	0	2852500..2853543	-	347	26248833	ypfG	c2991	-	hypothetical protein
2895	 51.52	0	2853437..2853568	-	43	26248834	-	c2992	-	hypothetical protein
2896	 44.44	-1	2853443..2853703	+	86	26248835	-	c2993	-	hypothetical protein
2897	 48.76	0	2853669..2854271	-	200	26248836	yffH	c2994	-	hypothetical protein
2898	 55.35	0	2854312..2856291	-	659	26248837	yffG	c2995	-	putative oxidoreductase Fe-S binding subunit
2899	 52.33	0	2856482..2858197	+	571	26248838	narQ	c2996	-	nitrate/nitrite sensor protein NarQ
2900	 54.43	0	2858361..2861474	+	1037	26248839	acrD	c2997	-	aminoglycoside/multidrug efflux system
2901	 45.66	0	2862013..2862369	+	118	26248840	yffB	c2998	-	hypothetical protein
2902	 53.19	0	2862373..2863500	+	375	26248841	dapE	c2999	-	succinyl-diaminopimelate desuccinylase
2903	 48.26	0	2863528..2863728	+	66	26248842	-	c3000	-	hypothetical protein
2904	 53.93	0	2863809..2864507	-	232	161486158	ypfH	c3001	-	esterase YpfH
2905	 54.51	0	2864581..2866596	-	671	26248844	ypfI	c3002	-	hypothetical protein
2906	 53.36	0	2866611..2867474	-	287	26248845	ypfJ	c3003	-	hypothetical protein
2907	 52.01	0	2867642..2868364	-	240	26248846	purC	c3004	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
2908	 55.49	0	2868568..2869605	-	345	26248847	nlpB	c3005	-	lipoprotein
2909	 52.06	0	2869619..2870515	-	298	26248848	dapA	c3006	-	dihydrodipicolinate synthase
2910	 49.91	0	2870643..2871215	+	190	161486157	gcvR	c3007	-	glycine cleavage system transcriptional repressor
2911	 49.04	0	2871215..2871685	+	156	26248850	bcp	c3008	-	thioredoxin-dependent thiol peroxidase
2912	 53.20	0	2871784..2872845	-	353	26248851	perM	c3009	-	putative permease PerM
2913	 42.94	-1	2872876..2873052	+	58	26248852	-	c3010	-	hypothetical protein
2914	 53.83	0	2873058..2874521	+	487	26248853	yfgC	c3011	-	hypothetical protein
2915	 51.39	0	2874542..2874901	+	119	26248854	-	c3012	-	hypothetical protein
2916	 53.41	0	2875039..2875785	-	248	26248855	yfgE	c3013	-	DNA replication initiation factor
2917	 51.58	0	2875835..2877166	-	443	26248856	uraA	c3014	-	uracil transporter
2918	 52.95	0	2877210..2877836	-	208	161486156	upp	c3015	-	uracil phosphoribosyltransferase
2919	 40.29	-1	2877798..2878142	+	114	26248858	-	c3016	-	hypothetical protein
2920	 53.08	0	2878161..2879198	+	345	26248859	purM	c3017	-	phosphoribosylaminoimidazole synthetase
2921	 53.36	0	2879198..2879836	+	212	26248860	purN	c3018	-	phosphoribosylglycinamide formyltransferase
2922	 48.87	0	2880002..2882074	+	690	26248861	ppk	c3019	-	polyphosphate kinase
2923	 50.97	0	2882079..2883620	+	513	26248862	ppx	c3020	-	exopolyphosphatase
2924	 46.61	0	2883659..2885902	-	747	26248863	yfgF	c3021	-	hypothetical protein
2925	 32.68	-2	2886084..2886236	-	50	26248864	-	c3022	-	hypothetical protein
2926	 42.96	-1	2886119..2886409	-	96	26248865	-	c3023	-	hypothetical protein
2927	 46.82	0	2886756..2887274	+	172	26248866	yfgH	c3024	-	lipoprotein yfgH precursor
2928	 49.44	0	2887290..2887829	+	179	26248867	yfgI	c3025	-	hypothetical protein
2929	 54.18	0	2887923..2889500	-	525	26248868	guaA	c3026	-	bifunctional GMP synthase/glutamine amidotransferase protein
2930	 54.49	0	2889569..2891104	-	511	26248869	guaB	c3027	-	inositol-5-monophosphate dehydrogenase
2931	 53.59	0	2891197..2892573	+	458	26248870	xseA	c3028	-	exodeoxyribonuclease VII large subunit
2932	 51.52	0	2892642..2900693	-	2683	26248871	-	c3029	-	RatA-like protein
2933	 52.25	0	2900814..2901791	-	325	26248872	-	c3030	-	SinI-like protein
2934	 48.10	0	2901846..2904053	-	735	26248873	-	c3031	-	SinH-like protein
2935	 45.37	0	2904232..2904447	-	71	26248874	yfgJ	c3032	-	hypothetical protein
2936	 52.75	0	2904510..2905982	-	490	161486155	engA	c3033	-	GTP-binding protein EngA
2937	 52.93	0	2906100..2907278	-	392	26248876	yfgL	c3034	-	outer membrane protein assembly complex subunit YfgL
2938	 49.60	0	2907289..2907909	-	206	26248877	yfgM	c3035	-	hypothetical protein
2939	 54.59	0	2907927..2909201	-	424	26248878	hisS	c3036	-	histidyl-tRNA synthetase
2940	 52.99	0	2909312..2910430	-	372	26248879	ispG	c3037	-	4-hydroxy-3-methylbut-2-en-1-yl diphosphate synthase
2941	 53.57	0	2910457..2911464	-	335	26248880	yfgA	c3038	-	hypothetical protein
2942	 52.73	0	2911749..2912903	-	384	26248881	yfgB	c3039	-	hypothetical protein
2943	 50.38	0	2913020..2913547	+	175	26248882	-	c3040	-	hypothetical protein
2944	 52.08	0	2913053..2913484	-	143	26248883	ndk	c3041	-	nucleoside diphosphate kinase
2945	 56.68	+1	2913633..2915945	-	770	26248884	pbpC	c3042	-	penicillin-binding protein 1C
2946	 53.04	0	2915946..2920907	-	1653	26248885	yfhM	c3043	-	lipoprotein yfhM precursor
2947	 52.60	0	2921114..2921959	+	281	161486154	sseA	c3044	-	3-mercaptopyruvate sulfurtransferase
2948	 46.41	0	2921943..2922095	+	50	26248887	-	c3045	-	hypothetical protein
2949	 42.03	-1	2922287..2922424	+	45	26248888	-	c3046	-	hypothetical protein
2950	 46.59	0	2922456..2923232	-	258	161486153	sseB	c3047	-	enhanced serine sensitivity protein SseB
2951	 56.46	+1	2923375..2924658	-	427	26248890	pepB	c3048	-	aminopeptidase B
2952	 50.75	0	2924717..2924917	-	66	26248891	yfhJ	c3049	-	hypothetical protein
2953	 52.38	0	2924929..2925264	-	111	26248892	fdx	c3050	-	ferredoxin, 2Fe-2S
2954	 58.13	+1	2925266..2927116	-	616	161486152	hscA	c3051	-	chaperone protein HscA
2955	 52.33	0	2927133..2927648	-	171	26248894	hscB	c3052	-	co-chaperone HscB
2956	 51.23	0	2927744..2928067	-	107	161486151	iscA	c3053	-	iron-sulfur cluster assembly protein
2957	 49.07	0	2928003..2928485	+	160	26248896	-	c3054	-	hypothetical protein
2958	 49.61	0	2928084..2928470	-	128	26248897	-	c3055	-	scaffold protein
2959	 52.70	0	2928498..2929736	-	412	26248898	yfhO	c3056	-	cysteine desulfurase
2960	 53.78	0	2929824..2930312	-	162	26248899	yfhP	c3057	-	DNA-binding transcriptional regulator IscR
2961	 54.25	0	2930583..2931323	-	246	26248900	yfhQ	c3058	-	putative tRNA/rRNA methyltransferase YfhQ
2962	 54.60	0	2931442..2932245	+	267	26248901	suhB	c3059	-	inositol monophosphatase
2963	 49.66	0	2932363..2933244	+	293	26248902	yfhR	c3060	-	hypothetical protein
2964	 51.99	0	2933435..2934715	+	426	161486150	csiE	c3061	-	stationary phase inducible protein CsiE
2965	 56.75	+1	2934707..2935846	-	379	26248904	hcaT	c3062	-	putative 3-phenylpropionic acid transporter
2966	 38.89	-2	2935880..2936023	-	47	26248905	-	c3063	-	hypothetical protein
2967	 45.75	0	2936066..2936218	+	50	26248906	-	c3064	-	hypothetical protein
2968	 50.35	0	2936209..2936637	+	142	26248907	yphA	c3065	-	hypothetical protein
2969	 54.52	0	2936797..2937669	-	290	26248908	yphB	c3066	-	hypothetical protein
2970	 54.06	0	2937681..2938775	-	364	26248909	yphC	c3067	-	hypothetical protein
2971	 55.16	0	2938808..2939806	-	332	26248910	yphD	c3068	-	ABC transporter permease
2972	 55.82	+1	2939831..2941342	-	503	26248911	yphE	c3069	-	ABC transporter ATP-binding protein
2973	 45.93	0	2941365..2942348	-	327	26248912	yphF	c3070	-	ABC transporter periplasmic-binding protein
2974	 54.28	0	2942445..2945819	-	1124	26248913	yphG	c3071	-	hypothetical protein
2975	 51.33	0	2945838..2947037	+	399	26248914	yphH	c3072	-	hypothetical protein
2976	 52.70	0	2947101..2948360	-	419	26248915	glyA	c3073	-	serine hydroxymethyltransferase
2977	 52.64	0	2948684..2949874	+	396	26248916	hmpA	c3075	-	nitric oxide dioxygenase
2978	 50.15	0	2949919..2950257	-	112	26248917	glnB	c3076	-	nitrogen regulatory protein P-II 1
2979	 55.02	0	2950318..2951691	-	457	26248918	yfhA	c3077	-	hypothetical protein
2980	 54.58	0	2951642..2952361	-	239	26248919	yfhG	c3078	-	hypothetical protein
2981	 52.78	0	2952520..2954010	-	496	26248920	yfhK	c3079	-	putative sensor-like histidine kinase yfhK
2982	 56.51	+1	2954523..2958410	-	1295	26248921	purL	c3080	-	phosphoribosylformylglycinamidine synthase
2983	 50.61	0	2958668..2960224	+	518	26248922	yfhD	c3081	-	putative transglycosylase
2984	 52.51	0	2960221..2960757	-	178	26248923	yfhC	c3082	-	tRNA-specific adenosine deaminase
2985	 52.04	0	2960782..2961417	-	211	161486149	yfhB	c3083	-	hypothetical protein
2986	 43.48	-1	2961378..2961515	-	45	26248925	-	c3084	-	hypothetical protein
2987	 51.83	0	2961626..2962474	+	282	161486148	yfhH	c3085	-	putative DNA-binding transcriptional regulator
50.18	MEAN

5.55	STD DEV
