IslandPath Analysis: Escherichia coli CFT073

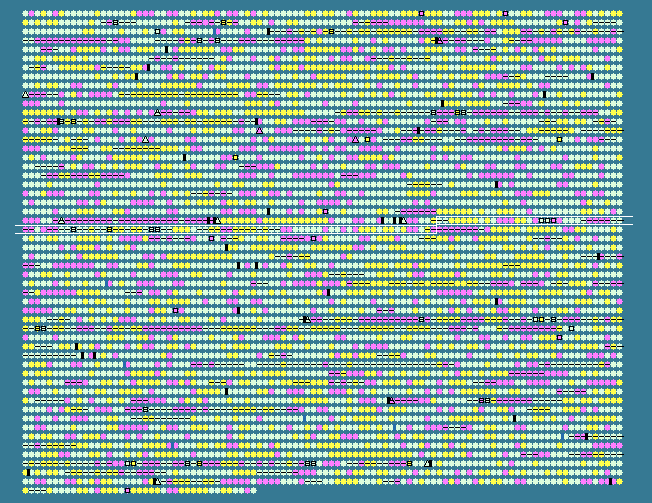

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 50.18   STD DEV: 5.55
Escherichia coli CFT073, complete genome - 1..5231428
5339 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2370	 53.52	0	2270909..2274271	-	1120	26248307	-	c2455	-	putative peptide synthetase
2371	 51.94	0	2274181..2275620	-	479	26248308	-	c2456	-	hypothetical protein
2372	 56.38	+1	2275682..2277169	-	495	26248309	-	c2457	-	putative amidase
2373	 56.37	+1	2277138..2283602	-	2154	26248310	-	c2458	-	putative peptide synthetase
2374	 56.11	+1	2283613..2290113	-	2166	26248311	-	c2459	-	putative peptide synthetase
2375	 56.91	+1	2290157..2293189	-	1010	26248312	-	c2460	-	putative polyketide synthase
2376	 55.32	0	2293239..2298050	-	1603	26248313	-	c2461	-	hypothetical protein
2377	 49.24	0	2295405..2295536	+	43	26248314	-	c2462	-	hypothetical protein
2378	 56.03	+1	2298083..2299351	-	422	26248315	-	c2463	-	putative transacylase
2379	 52.09	0	2299348..2300376	-	342	26248316	-	c2464	-	putative acyl-coa dehydrogenase
2380	 39.39	-1	2300422..2300619	+	65	26248317	-	c2465	-	hypothetical protein
2381	 39.76	-1	2300482..2300730	-	82	26248318	-	c2466	-	hypothetical protein
2382	 43.79	-1	2300760..2301629	-	289	26248319	-	c2467	-	putative 3-hydroxyacyl-CoA dehydrogenase
2383	 55.02	0	2301639..2304248	-	869	26248320	-	c2468	-	putative polyketide synthase
2384	 55.83	+1	2304280..2308338	-	1352	26248321	-	c2469	-	putative polyketide synthase
2385	 51.58	0	2308283..2313910	-	1875	26248322	-	c2470	-	putative peptide/polyketide synthase
2386	 34.15	-2	2314524..2315258	+	244	26248323	-	c2471	-	hypothetical protein
2387	 47.19	0	2315404..2315670	+	88	26248324	-	c2472	-	transposase
2388	 47.50	0	2315775..2316254	+	159	26248325	-	c2473	-	transposase
2389	 45.61	0	2316245..2316472	+	75	26248326	-	c2474	-	transposase
2390	 37.09	-2	2316562..2316987	-	141	26248327	-	c2475	-	hypothetical protein
2391	 49.04	0	2317279..2318214	-	311	26248328	erfK	c2476	-	hypothetical protein
2392	 51.20	0	2318276..2319355	-	359	26248329	cobT	c2477	-	nicotinate-nucleotide--dimethylbenzimidazole phosphoribosyltransferase
2393	 52.82	0	2319367..2320146	-	259	26248330	cobS	c2478	-	cobalamin synthase
2394	 50.37	0	2320107..2320652	-	181	26248331	cobU	c2479	-	adenosylcobinamide kinase/adenosylcobinamide-phosphate guanylyltransferase
2395	 43.09	-1	2320804..2320926	-	40	26248332	-	c2480	-	hypothetical protein
2396	 41.82	-1	2321117..2321281	-	54	26248333	-	c2481	-	hypothetical protein
2397	 45.30	0	2322324..2324471	+	715	26248334	-	c2482	-	putative outer membrane receptor for iron compound or colicin
2398	 43.41	-1	2324459..2324587	+	42	26248335	-	c2483	-	hypothetical protein
2399	 50.54	0	2324842..2325486	-	214	26248336	-	c2484	-	hypothetical protein
2400	 49.07	0	2325471..2326760	-	429	26248337	-	c2485	-	hypothetical protein
2401	 35.02	-2	2327685..2328395	+	236	26248338	-	c2486	-	hypothetical protein
2402	 45.90	0	2329640..2330164	+	174	26248339	-	c2489	-	putative transferase
2403	 48.05	0	2330118..2330939	+	273	26248340	-	c2490	-	hypothetical protein
2404	 41.48	-1	2331944..2333158	+	404	26248341	-	c2492	-	putative carbohydrate kinase
2405	 39.53	-1	2333172..2333930	+	252	26248342	-	c2493	-	hypothetical protein
2406	 46.69	0	2333984..2334949	+	321	26248343	-	c2494	-	hypothetical protein
2407	 47.83	0	2334952..2335986	+	344	26248344	-	c2495	-	putative phosphotriesterase-related protein
2408	 50.62	0	2336398..2336559	-	53	26248345	-	c2496	-	hypothetical protein
2409	 50.58	0	2336638..2337495	-	285	26248346	-	c2497	-	transposase
2410	 52.55	0	2338301..2338711	-	136	26248347	-	c2498	-	hypothetical protein
2411	 52.74	0	2338699..2339100	-	133	26248348	-	c2499	-	hypothetical protein
2412	 56.93	+1	2339266..2339871	-	201	26248349	-	c2500	-	hypothetical protein
2413	 53.11	0	2340476..2340652	-	58	26248350	-	c2501	-	hypothetical protein
2414	 50.39	0	2340603..2340983	+	126	26248351	-	c2502	-	hypothetical protein
2415	 57.73	+1	2341416..2342612	+	398	26248352	-	c2503	-	transposase
2416	 57.97	+1	2342382..2342519	-	45	26248353	-	c2504	-	hypothetical protein
2417	 53.76	0	2342736..2343014	+	92	26248354	-	c2505	-	hypothetical protein
2418	 50.00	0	2343093..2343332	+	79	26248355	-	c2506	-	hypothetical protein
2419	 54.48	0	2344396..2344920	+	174	26248356	-	c2508	-	hypothetical protein
2420	 53.70	0	2344917..2345672	+	251	26248357	-	c2509	-	insertion sequence ATP-binding protein
2421	 49.15	0	2345772..2346125	+	117	26248358	-	c2510	-	hypothetical protein
2422	 50.06	0	2347151..2347933	-	260	26248359	-	c2511	-	transposase/IS protein
2423	 52.79	0	2347930..2348952	-	340	26248360	-	c2512	-	transposase
2424	 50.53	0	2349503..2349880	-	125	26248361	-	c2513	-	hypothetical protein
2425	 50.90	0	2350449..2351621	+	390	26248362	-	c2514	-	hypothetical protein
2426	 56.64	+1	2352463..2353230	-	255	26248363	-	c2515	-	putative ABC transporter
2427	 56.85	+1	2353227..2354285	-	352	26248364	-	c2516	-	ABC transporter
2428	 55.19	0	2354304..2355296	-	330	26248365	-	c2517	-	periplasmic binding protein
2429	 53.60	0	2355304..2357469	-	721	26248366	-	c2518	-	TonB dependent receptor
2430	 51.74	0	2358550..2360934	+	794	26248367	-	c2520	-	hypothetical protein
2431	 52.54	0	2360110..2360286	-	58	26248368	-	c2521	-	hypothetical protein
2432	 53.86	0	2360931..2361836	+	301	26248369	-	c2522	-	hypothetical protein
2433	 54.62	0	2361833..2362903	+	356	26248370	-	c2523	-	hypothetical protein
2434	 45.93	0	2362931..2363716	+	261	26248371	-	c2524	-	hypothetical protein
2435	 42.82	-1	2363732..2364142	+	136	26248372	-	c2525	-	hypothetical protein
2436	 56.20	+1	2364363..2365184	+	273	26248373	-	c2526	-	hypothetical protein
2437	 54.32	0	2365275..2365760	+	161	26248374	-	c2527	-	hypothetical protein
2438	 55.19	0	2365329..2365868	-	179	26248375	-	c2528	-	hypothetical protein
2439	 57.94	+1	2365806..2366252	+	148	26248376	-	c2529	-	putative radC-like protein yeeS
2440	 52.70	0	2366321..2366542	+	73	26248377	-	c2530	-	hypothetical protein
2441	 57.99	+1	2366616..2366984	+	122	26248378	-	c2531	-	hypothetical protein
2442	 53.60	0	2367073..2367447	+	124	26248379	-	c2532	-	hypothetical protein
2443	 49.74	0	2367444..2367638	+	64	26248380	yeeW	c2533	-	hypothetical protein
2444	 46.46	0	2368536..2368931	-	131	26248381	yeeX	c2534	-	hypothetical protein
2445	 41.46	-1	2368950..2369072	+	40	26248382	-	c2535	-	hypothetical protein
2446	 50.61	0	2369037..2370095	-	352	26248383	yeeA	c2536	-	hypothetical protein
2447	 47.47	0	2370293..2370766	-	157	26248384	sbmC	c2537	-	DNA gyrase inhibitor
2448	 49.10	0	2370885..2372057	-	390	26248385	dacD	c2538	-	D-alanyl-D-alanine carboxypeptidase
2449	 50.49	0	2372260..2373687	+	475	161486193	sbcB	c2539	-	exonuclease I
2450	 52.45	0	2373761..2375125	-	454	26248387	yeeF	c2540	-	putative transport protein YeeF
2451	 42.03	-1	2375301..2375438	-	45	26248388	-	c2541	-	hypothetical protein
2452	 50.89	0	2375386..2376336	-	316	26248389	yeeY	c2542	-	putative transcriptional regulator YeeY
2453	 51.88	0	2376361..2377185	-	274	26248390	-	c2543	-	hypothetical protein
2454	 43.14	-1	2377268..2377522	-	84	26248391	-	c2544	-	hypothetical protein
2455	 48.02	0	2377519..2377770	-	83	161486192	yefM	c2545	-	antitoxin YefM
2456	 43.14	-1	2378053..2378103	+	16	26248393	hisL	c5496	-	his operon leader peptide
2457	 54.33	0	2378249..2379148	+	299	26248394	hisG	c2546	-	ATP phosphoribosyltransferase
2458	 57.99	+1	2379145..2380458	+	437	26248395	hisD	c2547	-	histidinol dehydrogenase
2459	 55.18	0	2380455..2381525	+	356	26248396	hisC	c2548	-	histidinol-phosphate aminotransferase
2460	 53.56	0	2381525..2382592	+	355	161486191	hisB	c2549	-	imidazole glycerol-phosphate dehydratase/histidinol phosphatase
2461	 55.84	+1	2382592..2383182	+	196	26248398	hisH	c2550	-	imidazole glycerol phosphate synthase subunit HisH
2462	 55.83	+1	2383182..2383919	+	245	161486190	hisA	c2551	-	1-(5-phosphoribosyl)-5-[(5-phosphoribosylamino)methylideneamino] imidazole-4-carboxamide isomerase
2463	 52.77	0	2383901..2384677	+	258	26248400	hisF	c2552	-	imidazole glycerol phosphate synthase subunit HisF
2464	 53.92	0	2384671..2385282	+	203	26248401	hisI	c2553	-	bifunctional phosphoribosyl-AMP cyclohydrolase/phosphoribosyl-ATP pyrophosphatase protein
2465	 45.76	0	2385469..2386482	-	337	26248402	wzzB	c2554	-	chain length determinant protein
2466	 43.87	-1	2386589..2387755	-	388	26248403	ugd	c2555	-	UDP-glucose 6-dehydrogenase
2467	 50.25	0	2388005..2389411	-	468	26248404	gnd	c2556	-	6-phosphogluconate dehydrogenase
2468	 54.85	0	2389574..2390944	-	456	26248405	manB	c2557	-	phosphomannomutase
2469	 38.09	-2	2391027..2392478	-	483	26248406	-	c2558	-	mannose-1-phosphate guanylyltransferase
50.18	MEAN

5.55	STD DEV
