IslandPath Analysis: Escherichia coli CFT073

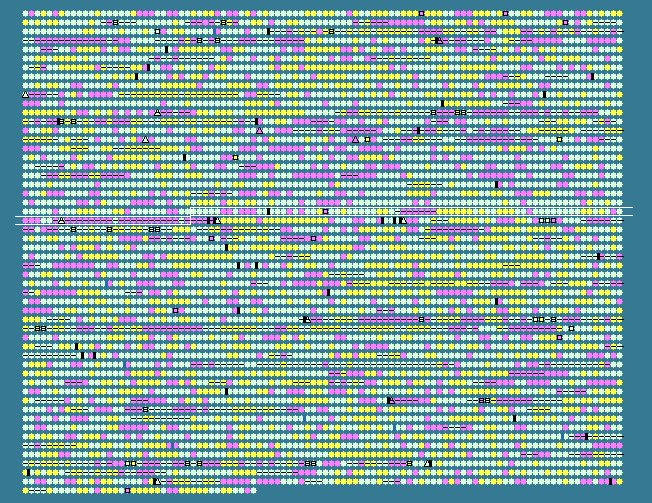

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.18 STD DEV: 5.55
Escherichia coli CFT073, complete genome - 1..5231428
5339 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2229	 50.81	0	2131230..2132219	-	329	26248164	araH	c2312	-	L-arabinose transporter permease protein
2230	 52.01	0	2132231..2133745	-	504	161486201	araG	c2313	-	L-arabinose transporter ATP-binding protein
2231	 50.72	0	2133815..2134855	-	346	26248166	araF	c2314	-	L-arabinose-binding periplasmic protein precursor
2232	 48.02	0	2135601..2136104	+	167	26248167	yecI	c2315	-	Ferritin-like protein 2
2233	 50.00	0	2136183..2136434	-	83	26248168	-	c2316	-	hypothetical protein
2234	 39.46	-1	2136546..2136692	+	48	26248169	-	c2317	-	hypothetical protein
2235	 39.46	-1	2136549..2136695	-	48	26248170	-	c2318	-	hypothetical protein
2236	 50.31	0	2136898..2137221	+	107	26248171	yecR	c2319	-	hypothetical protein
2237	 31.16	-2	2137231..2137368	-	45	26248172	-	c2320	-	hypothetical protein
2238	 42.88	-1	2137378..2137890	+	170	26248173	ftn	c2321	-	ferritin
2239	 45.42	0	2137928..2138167	-	79	26248174	yecH	c2322	-	hypothetical protein
2240	 51.16	0	2138358..2139569	+	403	26248175	tyrP	c2323	-	tyrosine transporter
2241	 52.85	0	2139631..2140296	-	221	26248176	yecA	c2324	-	hypothetical protein
2242	 52.28	0	2140945..2141493	-	182	26248177	pgsA	c2325	-	phosphatidylglycerophosphate synthetase
2243	 51.61	0	2141550..2143382	-	610	26248178	uvrC	c2326	-	excinuclease ABC subunit C
2244	 49.62	0	2143379..2144035	-	218	26248179	uvrY	c2327	-	response regulator
2245	 30.23	-2	2144274..2144402	-	42	26248180	-	c2328	-	hypothetical protein
2246	 48.00	0	2144494..2144718	+	74	26248181	yecF	c2329	-	hypothetical protein
2247	 46.06	0	2144786..2145508	-	240	161486200	sdiA	c2330	-	DNA-binding transcriptional activator SdiA
2248	 53.65	0	2145738..2146490	-	250	26248183	yecC	c2331	-	putative amino-acid ABC transporter ATP-binding protein YecC
2249	 53.21	0	2146487..2147155	-	222	26248184	yecS	c2332	-	amino-acid ABC transporter permease protein YecS
2250	 53.80	0	2147170..2148156	-	328	26248185	yedO	c2333	-	D-cysteine desulfhydrase
2251	 46.08	0	2148324..2148833	-	169	26248186	-	c2334	-	transposase
2252	 49.30	0	2148973..2149830	-	285	26248187	fliY	c2335	-	cystine transporter subunit
2253	 46.94	0	2149861..2150448	-	195	26248188	fliZ	c2336	-	protein FliZ
2254	 54.31	0	2150458..2151177	-	239	26248189	fliA	c2337	-	flagellar biosynthesis sigma factor
2255	 47.20	0	2151497..2153284	-	595	26248190	fliC	c2338	-	flagellin
2256	 51.81	0	2153550..2154956	+	468	26248191	fliD	c2339	-	flagellar capping protein
2257	 47.93	0	2154981..2155391	+	136	26248192	fliS	c2340	-	flagellar protein FliS
2258	 52.19	0	2155391..2155756	+	121	26248193	fliT	c2341	-	flagellar biosynthesis protein FliT
2259	 49.66	0	2155834..2157321	+	495	26248194	amyA	c2342	-	cytoplasmic alpha-amylase
2260	 56.12	+1	2157355..2157771	-	138	26248195	yedD	c2343	-	hypothetical protein
2261	 54.24	0	2157922..2159160	+	412	26248196	yedE	c2344	-	putative inner membrane protein
2262	 48.29	0	2159157..2159390	+	77	26248197	yedF	c2345	-	hypothetical protein
2263	 52.02	0	2159499..2160167	+	222	26248198	yedK	c2346	-	hypothetical protein
2264	 36.05	-2	2160619..2160765	+	48	26248199	-	c2347	-	hypothetical protein
2265	 44.41	-1	2160734..2161762	+	342	26248200	-	c2348	-	Outer membrane porin protein nmpC precursor
2266	 37.09	-2	2162264..2163061	-	265	26248201	ybcM	c2349	-	putative transcriptional regulator YbcM
2267	 42.75	-1	2163071..2163622	-	183	26248202	ybcL	c2350	-	putative kinase inhibitor
2268	 43.90	-1	2163238..2163360	+	40	26248203	-	c2351	-	hypothetical protein
2269	 43.24	-1	2163791..2164123	-	110	161486199	emrE	c2352	-	multidrug efflux protein
2270	 54.92	0	2164468..2164782	-	104	161486198	fliE	c2353	-	flagellar hook-basal body protein FliE
2271	 54.97	0	2164997..2166655	+	552	26248206	fliF	c2354	-	flagellar MS-ring protein
2272	 56.12	+1	2166648..2167643	+	331	26248207	fliG	c2355	-	flagellar motor switch protein G
2273	 56.13	+1	2166801..2167730	-	309	26248208	-	c2356	-	hypothetical protein
2274	 57.21	+1	2167636..2168322	+	228	161486197	fliH	c2357	-	flagellar assembly protein H
2275	 58.30	+1	2168322..2169695	+	457	26248210	fliI	c2358	-	flagellum-specific ATP synthase
2276	 52.25	0	2169714..2170157	+	147	26248211	fliJ	c2359	-	flagellar biosynthesis chaperone
2277	 54.79	0	2170154..2171281	+	375	26248212	fliK	c2360	-	flagellar hook-length control protein
2278	 52.90	0	2171386..2171850	+	154	26248213	fliL	c2361	-	flagellar basal body-associated protein FliL
2279	 53.14	0	2171810..2172859	+	349	26248214	fliM	c2362	-	flagellar motor switch protein FliM
2280	 55.80	+1	2172856..2173269	+	137	26248215	fliN	c2363	-	flagellar motor switch protein FliN
2281	 55.83	+1	2173269..2173637	+	122	26248216	fliO	c2364	-	flagellar biosynthesis protein FliO
2282	 53.79	0	2173637..2174374	+	245	26248217	fliP	c2365	-	flagellar biosynthesis protein FliP
2283	 51.11	0	2174384..2174653	+	89	26248218	fliQ	c2366	-	flagellar biosynthesis protein FliQ
2284	 46.95	0	2174662..2175447	+	261	26248219	fliR	c2367	-	flagellar biosynthesis protein FliR
2285	 38.46	-2	2175737..2176360	+	207	26248221	rcsA	c2369	-	colanic acid capsular biosynthesis activation protein A
2286	 50.79	0	2176404..2176592	-	62	26248222	dsrB	c2370	-	hypothetical protein
2287	 49.62	0	2176689..2176952	-	87	26248223	-	c2371	-	hypothetical protein
2288	 48.56	0	2176740..2176982	+	80	26248224	yodD	c2372	-	hypothetical protein
2289	 51.84	0	2177280..2178095	+	271	26248225	yedP	c2373	-	mannosyl-3-phosphoglycerate phosphatase
2290	 51.87	0	2178092..2179801	-	569	26248226	yedQ	c2374	-	hypothetical protein
2291	 47.62	0	2179707..2179895	-	62	26248227	-	c2375	-	hypothetical protein
2292	 51.91	0	2179957..2180139	-	60	26248228	yodC	c2376	-	hypothetical protein
2293	 53.27	0	2180218..2181135	-	305	26248229	yedI	c2377	-	hypothetical protein
2294	 54.18	0	2181308..2182228	+	306	26248230	yedA	c2378	-	hypothetical protein
2295	 56.48	+1	2182217..2182687	-	156	26248231	vsr	c2379	-	very short patch repair protein
2296	 51.80	0	2182668..2184086	-	472	26248232	dcm	c2380	-	DNA cytosine methylase
2297	 53.83	0	2184198..2184875	-	225	26248233	yedJ	c2381	-	hypothetical protein
2298	 49.22	0	2184888..2185271	-	127	26248234	yedR	c2382	-	hypothetical protein
2299	 42.82	-1	2185750..2186877	+	375	26248235	-	c2383	-	Outer membrane protein N precursor
2300	 48.36	0	2187473..2188324	+	283	26248237	yedU	c2385	-	chaperone protein HchA
2301	 39.59	-1	2188432..2189790	-	452	26248238	yedV	c2386	-	putative sensor-like histidine kinase yedV
2302	 44.49	-1	2189790..2190461	-	223	161486196	yedW	c2387	-	transcriptional regulatory protein YedW
2303	 42.27	-1	2190594..2191007	+	137	26248240	-	c2388	-	transthyretin-like protein precursor
2304	 52.04	0	2191116..2192120	+	334	26248241	yedY	c2389	-	putative sulfite oxidase subunit YedY
2305	 48.11	0	2192121..2192756	+	211	26248242	yedZ	c2390	-	putative sulfite oxidase subunit YedZ
2306	 38.86	-2	2193014..2193646	+	210	26248243	yodA	c2391	-	hypothetical protein
2307	 48.73	0	2194512..2195732	+	406	26248244	-	c2392	-	P4 family integrase
2308	 32.07	-2	2195846..2197666	+	606	26248245	-	c2393	-	hypothetical protein
2309	 44.13	-1	2197781..2199244	-	487	26248246	-	c2394	-	PilV-like protein
2310	 44.62	-1	2199297..2199854	-	185	26248247	-	c2395	-	putative type IV pilin protein precursor
2311	 35.24	-2	2200253..2200567	-	104	26248248	-	c2396	-	hypothetical protein
2312	 43.31	-1	2201204..2202706	+	500	26248249	-	c2397	-	hypothetical protein
2313	 32.14	-2	2202763..2203686	+	307	26248250	-	c2398	-	hypothetical protein
2314	 33.14	-2	2203818..2204327	-	169	26248251	-	c2399	-	hypothetical protein
2315	 29.63	-2	2204464..2205300	+	278	26248252	-	c2400	-	hypothetical protein
2316	 47.05	0	2205646..2206221	-	191	26248253	-	c2401	-	hypothetical protein
2317	 33.33	-2	2206262..2206399	-	45	26248254	-	c2402	-	hypothetical protein
2318	 36.61	-2	2206594..2207082	+	162	26248255	-	c2403	-	hypothetical protein
2319	 34.74	-2	2207072..2207284	+	70	26248256	-	c2404	-	hypothetical protein
2320	 33.42	-2	2207572..2208753	-	393	26248257	-	c2405	-	hypothetical protein
2321	 45.07	0	2208805..2209767	-	320	26248258	-	c2406	-	hypothetical protein
2322	 23.53	-2	2210085..2210237	+	50	26248259	-	c2407	-	hypothetical protein
2323	 32.82	-2	2211120..2211701	+	193	26248260	-	c2408	-	hypothetical protein
2324	 31.01	-2	2211786..2212517	-	243	26248261	-	c2409	-	hypothetical protein
2325	 36.25	-2	2212691..2213170	+	159	26248262	-	c2410	-	hypothetical protein
2326	 46.42	0	2213329..2213733	+	134	26248263	-	c2411	-	DNA-binding protein H-NS
2327	 47.24	0	2213797..2214177	-	126	26248264	-	c2412	-	hypothetical protein
2328	 36.63	-2	2214256..2214498	-	80	26248265	-	c2413	-	hypothetical protein
50.18	MEAN

5.55	STD DEV
