IslandPath Analysis: Escherichia coli CFT073

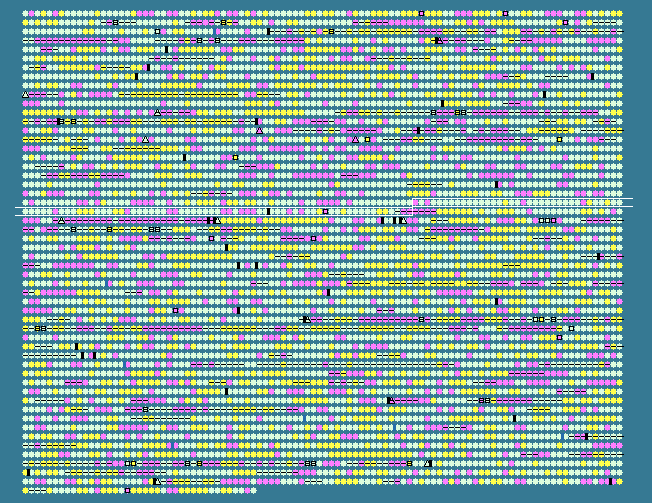

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.18 STD DEV: 5.55
Escherichia coli CFT073, complete genome - 1..5231428
5339 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2166	 46.38	0	2073714..2073989	+	91	26248100	yebW	c2246	-	hypothetical protein
2167	 47.88	0	2073990..2074649	-	219	26248101	pphA	c2247	-	serine/threonine protein phosphatase 1
2168	 41.18	-1	2074871..2075023	-	50	26248102	-	c2248	-	hypothetical protein
2169	 46.78	0	2075041..2075382	-	113	26248103	yebY	c2249	-	hypothetical protein
2170	 53.15	0	2075395..2076267	-	290	26248104	yebZ	c2250	-	hypothetical protein
2171	 48.80	0	2076271..2076645	-	124	26248105	-	c2251	-	hypothetical protein
2172	 48.05	0	2076784..2077014	+	76	161486211	holE	c2252	-	DNA polymerase III subunit theta
2173	 51.90	0	2077117..2077773	+	218	26248107	yobB	c2253	-	hypothetical protein
2174	 51.58	0	2077797..2078459	+	220	161486210	-	c2254	-	exodeoxyribonuclease X
2175	 47.47	0	2078456..2078851	-	131	26248109	-	c2255	-	hypothetical protein
2176	 50.39	0	2078852..2080516	-	554	26248110	ptrB	c2256	-	protease II
2177	 51.58	0	2080602..2081204	+	200	26248111	-	c2257	-	hypothetical protein
2178	 51.97	0	2080725..2081384	-	219	26248112	yebE	c2258	-	hypothetical protein
2179	 49.86	0	2081711..2082079	-	122	26248113	yebF	c2259	-	hypothetical protein
2180	 49.83	0	2082134..2082424	-	96	26248114	yebG	c2260	-	DNA damage-inducible protein YebG
2181	 55.61	0	2083792..2084433	-	213	26248115	eda	c2263	-	keto-hydroxyglutarate-aldolase/keto-deoxy-phosphogluconate aldolase
2182	 53.37	0	2084470..2086281	-	603	161486209	edd	c2264	-	phosphogluconate dehydratase
2183	 51.56	0	2086516..2087991	-	491	26248117	zwf	c2265	-	glucose-6-phosphate 1-dehydrogenase
2184	 34.00	-2	2088157..2088306	-	49	26248118	-	c2266	-	hypothetical protein
2185	 49.20	0	2088329..2089198	+	289	26248119	yebK	c2267	-	DNA-binding transcriptional regulator HexR
2186	 52.81	0	2089326..2090768	+	480	161486208	pykA	c2268	-	pyruvate kinase
2187	 50.51	0	2090900..2091871	-	323	26248121	msbB	c2269	-	lipid A biosynthesis (KDO)2-(lauroyl)-lipid IVA acyltransferase
2188	 52.38	0	2091990..2093312	-	440	26248122	yebA	c2270	-	hypothetical protein
2189	 48.77	0	2093328..2094260	-	310	161486207	znuA	c2271	-	high-affinity zinc transporter periplasmic component
2190	 49.34	0	2094339..2095094	+	251	26248124	znuC	c2272	-	high-affinity zinc transporter ATPase
2191	 51.53	0	2095091..2095876	+	261	26248125	znuB	c2273	-	high-affinity zinc transporter membrane component
2192	 52.42	0	2096023..2097033	-	336	26248126	ruvB	c2274	-	Holliday junction DNA helicase B
2193	 53.43	0	2097042..2097653	-	203	26248127	ruvA	c2275	-	Holliday junction DNA helicase motor protein
2194	 42.62	-1	2097929..2098531	+	200	161486206	yebB	c2276	-	hypothetical protein
2195	 55.62	0	2098533..2099057	-	174	26248129	ruvC	c2277	-	Holliday junction resolvase
2196	 51.55	0	2099089..2099829	-	246	26248130	yebC	c2278	-	hypothetical protein
2197	 52.70	0	2099858..2100301	-	147	26248131	ntpA	c2279	-	dATP pyrophosphohydrolase
2198	 53.81	0	2100303..2102075	-	590	26248132	aspS	c2280	-	aspartyl-tRNA synthetase
2199	 53.09	0	2102385..2102951	+	188	161486205	yecD	c2281	-	hypothetical protein
2200	 50.18	0	2102948..2103766	+	272	26248134	yecE	c2282	-	hypothetical protein
2201	 49.75	0	2103819..2104214	+	131	161486204	yecN	c2283	-	hypothetical protein
2202	 50.40	0	2104255..2104998	+	247	26248136	yecO	c2284	-	hypothetical protein
2203	 52.57	0	2104995..2105966	+	323	26248137	yecP	c2285	-	hypothetical protein
2204	 51.76	0	2106131..2108578	-	815	26248138	bisZ	c2286	-	trimethylamine-N-oxide reductase 2 precursor
2205	 47.77	0	2108585..2109685	-	366	26248139	yecK	c2287	-	cytochrome c-type protein torY
2206	 44.70	0	2109591..2109722	-	43	26248140	-	c2288	-	hypothetical protein
2207	 52.34	0	2110073..2110819	-	248	26248141	-	c2289	-	copper homeostasis protein CutC
2208	 51.48	0	2110833..2111405	-	190	26248142	yecM	c2290	-	hypothetical protein
2209	 53.00	0	2111615..2113348	+	577	26248143	argS	c2291	-	arginyl-tRNA synthetase
2210	 53.69	0	2113401..2113793	-	130	26248144	flhE	c2292	-	flagellar protein flhE precursor
2211	 55.03	0	2113793..2115871	-	692	161486203	flhA	c2293	-	flagellar biosynthesis protein FlhA
2212	 55.09	0	2115864..2117012	-	382	26248146	flhB	c2294	-	flagellar biosynthesis protein FlhB
2213	 49.66	0	2117045..2117191	+	48	26248147	-	c2295	-	hypothetical protein
2214	 53.49	0	2117221..2117865	-	214	161486202	cheZ	c2296	-	chemotaxis regulator CheZ
2215	 49.49	0	2117876..2118265	-	129	26248149	cheY	c2297	-	chemotaxis regulatory protein CheY
2216	 54.29	0	2118280..2119329	-	349	26248150	cheB	c2298	-	chemotaxis-specific methylesterase
2217	 54.24	0	2119332..2120192	-	286	26248151	cheR	c2299	-	chemotaxis methyltransferase CheR
2218	 42.28	-1	2120318..2120440	-	40	26248152	-	c2300	-	hypothetical protein
2219	 52.11	0	2120483..2122165	-	560	26248153	tar	c2301	-	methyl-accepting chemotaxis protein II
2220	 52.18	0	2122289..2122792	-	167	26248154	cheW	c2302	-	purine-binding chemotaxis protein
2221	 53.00	0	2122813..2124831	-	672	26248155	cheA	c2303	-	chemotaxis protein CheA
2222	 53.18	0	2124782..2125708	-	308	26248156	motB	c2304	-	flagellar motor protein MotB
2223	 51.24	0	2125705..2126592	-	295	26248157	motA	c2305	-	flagellar motor protein MotA
2224	 49.22	0	2126718..2127296	-	192	26248158	flhC	c2306	-	transcriptional activator FlhC
2225	 46.67	0	2127299..2127658	-	119	26248160	flhD	c2308	-	transcriptional activator FlhD
2226	 44.99	0	2128429..2128857	+	142	26248161	yecG	c2309	-	universal stress protein UspC
2227	 49.65	0	2128864..2130297	-	477	26248162	otsA	c2310	-	trehalose-6-phosphate synthase
2228	 51.05	0	2130263..2131120	-	285	26248163	otsB	c2311	-	trehalose-6-phosphate phosphatase
2229	 50.81	0	2131230..2132219	-	329	26248164	araH	c2312	-	L-arabinose transporter permease protein
2230	 52.01	0	2132231..2133745	-	504	161486201	araG	c2313	-	L-arabinose transporter ATP-binding protein
2231	 50.72	0	2133815..2134855	-	346	26248166	araF	c2314	-	L-arabinose-binding periplasmic protein precursor
2232	 48.02	0	2135601..2136104	+	167	26248167	yecI	c2315	-	Ferritin-like protein 2
2233	 50.00	0	2136183..2136434	-	83	26248168	-	c2316	-	hypothetical protein
2234	 39.46	-1	2136546..2136692	+	48	26248169	-	c2317	-	hypothetical protein
2235	 39.46	-1	2136549..2136695	-	48	26248170	-	c2318	-	hypothetical protein
2236	 50.31	0	2136898..2137221	+	107	26248171	yecR	c2319	-	hypothetical protein
2237	 31.16	-2	2137231..2137368	-	45	26248172	-	c2320	-	hypothetical protein
2238	 42.88	-1	2137378..2137890	+	170	26248173	ftn	c2321	-	ferritin
2239	 45.42	0	2137928..2138167	-	79	26248174	yecH	c2322	-	hypothetical protein
2240	 51.16	0	2138358..2139569	+	403	26248175	tyrP	c2323	-	tyrosine transporter
2241	 52.85	0	2139631..2140296	-	221	26248176	yecA	c2324	-	hypothetical protein
2242	 52.28	0	2140945..2141493	-	182	26248177	pgsA	c2325	-	phosphatidylglycerophosphate synthetase
2243	 51.61	0	2141550..2143382	-	610	26248178	uvrC	c2326	-	excinuclease ABC subunit C
2244	 49.62	0	2143379..2144035	-	218	26248179	uvrY	c2327	-	response regulator
2245	 30.23	-2	2144274..2144402	-	42	26248180	-	c2328	-	hypothetical protein
2246	 48.00	0	2144494..2144718	+	74	26248181	yecF	c2329	-	hypothetical protein
2247	 46.06	0	2144786..2145508	-	240	161486200	sdiA	c2330	-	DNA-binding transcriptional activator SdiA
2248	 53.65	0	2145738..2146490	-	250	26248183	yecC	c2331	-	putative amino-acid ABC transporter ATP-binding protein YecC
2249	 53.21	0	2146487..2147155	-	222	26248184	yecS	c2332	-	amino-acid ABC transporter permease protein YecS
2250	 53.80	0	2147170..2148156	-	328	26248185	yedO	c2333	-	D-cysteine desulfhydrase
2251	 46.08	0	2148324..2148833	-	169	26248186	-	c2334	-	transposase
2252	 49.30	0	2148973..2149830	-	285	26248187	fliY	c2335	-	cystine transporter subunit
2253	 46.94	0	2149861..2150448	-	195	26248188	fliZ	c2336	-	protein FliZ
2254	 54.31	0	2150458..2151177	-	239	26248189	fliA	c2337	-	flagellar biosynthesis sigma factor
2255	 47.20	0	2151497..2153284	-	595	26248190	fliC	c2338	-	flagellin
2256	 51.81	0	2153550..2154956	+	468	26248191	fliD	c2339	-	flagellar capping protein
2257	 47.93	0	2154981..2155391	+	136	26248192	fliS	c2340	-	flagellar protein FliS
2258	 52.19	0	2155391..2155756	+	121	26248193	fliT	c2341	-	flagellar biosynthesis protein FliT
2259	 49.66	0	2155834..2157321	+	495	26248194	amyA	c2342	-	cytoplasmic alpha-amylase
2260	 56.12	+1	2157355..2157771	-	138	26248195	yedD	c2343	-	hypothetical protein
2261	 54.24	0	2157922..2159160	+	412	26248196	yedE	c2344	-	putative inner membrane protein
2262	 48.29	0	2159157..2159390	+	77	26248197	yedF	c2345	-	hypothetical protein
2263	 52.02	0	2159499..2160167	+	222	26248198	yedK	c2346	-	hypothetical protein
2264	 36.05	-2	2160619..2160765	+	48	26248199	-	c2347	-	hypothetical protein
2265	 44.41	-1	2160734..2161762	+	342	26248200	-	c2348	-	Outer membrane porin protein nmpC precursor
50.18	MEAN

5.55	STD DEV
