IslandPath Analysis: Escherichia coli CFT073

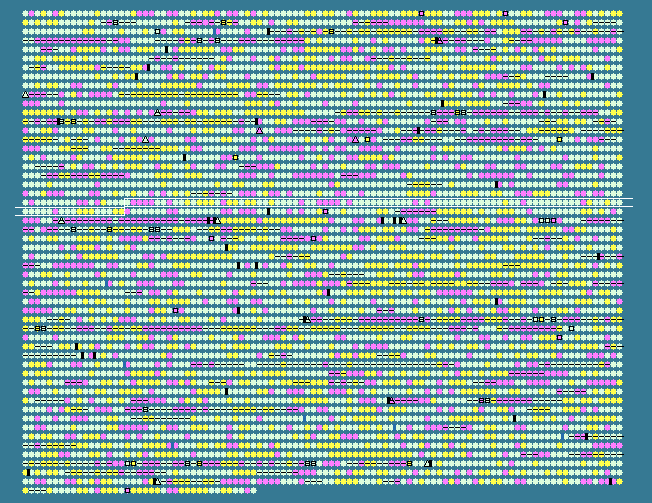

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.18 STD DEV: 5.55
Escherichia coli CFT073, complete genome - 1..5231428
5339 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2118	 52.55	0	2034511..2034765	-	84	26248052	yoaF	c2198	-	hypothetical protein
2119	 46.41	0	2034819..2035973	+	384	26248053	yeaP	c2199	-	hypothetical protein
2120	 45.78	0	2036241..2036489	-	82	26248054	yeaQ	c2200	-	hypothetical protein
2121	 44.72	0	2036501..2036623	-	40	26248055	-	c2201	-	hypothetical protein
2122	 46.45	0	2036637..2036819	-	60	26248056	yoaG	c2202	-	hypothetical protein
2123	 48.58	0	2036655..2037146	+	163	26248057	-	c2203	-	hypothetical protein
2124	 48.61	0	2036823..2037182	-	119	26248058	yeaR	c2204	-	hypothetical protein
2125	 45.54	0	2037355..2037993	-	212	26248059	yeaS	c2205	-	leucine export protein LeuE
2126	 48.35	0	2038120..2038452	-	110	26248060	-	c2206	-	hypothetical protein
2127	 49.12	0	2038276..2038446	+	56	26248061	-	c2207	-	hypothetical protein
2128	 53.90	0	2038536..2039663	-	375	26248062	rnd	c2208	-	ribonuclease D
2129	 51.03	0	2039733..2041484	-	583	26248063	fadD	c2209	-	long-chain-fatty-acid--CoA ligase
2130	 53.78	0	2041623..2042204	-	193	26248064	yeaY	c2210	-	lipoprotein yeaY precursor
2131	 55.89	+1	2042244..2042939	-	231	26248065	yeaZ	c2211	-	hypothetical protein
2132	 55.57	0	2042997..2044907	-	636	26248066	-	c2212	-	ATP-dependent helicase yoaA
2133	 50.89	0	2044991..2045383	+	130	26248067	yoaB	c2213	-	hypothetical protein
2134	 40.83	-1	2045745..2046104	+	119	26248068	yoaC	c2214	-	hypothetical protein
2135	 58.18	+1	2046221..2046385	+	54	26248069	-	c2215	-	hypothetical protein
2136	 56.11	+1	2046224..2046403	-	59	26248070	yoaH	c2216	-	hypothetical protein
2137	 51.25	0	2046477..2047838	+	453	26248071	pabB	c2217	-	para-aminobenzoate synthase component I
2138	 54.92	0	2047842..2048420	+	192	26248072	yeaB	c2218	-	hypothetical protein
2139	 53.92	0	2048604..2049968	+	454	26248073	sdaA	c2219	-	L-serine dehydratase 1
2140	 49.61	0	2049996..2050124	+	42	26248074	-	c2220	-	hypothetical protein
2141	 50.21	0	2050069..2051697	+	542	26248075	yoaD	c2221	-	hypothetical protein
2142	 53.76	0	2051701..2053257	-	518	26248076	yoaE	c2222	-	hypothetical protein
2143	 50.21	0	2053720..2054691	+	323	26248077	manX	c2223	-	PTS system, mannose-specific IIAB component
2144	 51.81	0	2054754..2055554	+	266	26248078	manY	c2224	-	PTS system, mannose-specific IIC component
2145	 52.10	0	2054850..2055611	-	253	26248079	-	c2225	-	hypothetical protein
2146	 52.50	0	2055558..2056418	+	286	26248080	manZ	c2226	-	mannose-specific PTS system protein IID
2147	 45.32	0	2056473..2056931	+	152	26248081	yobD	c2227	-	hypothetical protein
2148	 50.72	0	2057306..2057926	+	206	26248082	yebN	c2228	-	hypothetical protein
2149	 51.23	0	2057923..2058732	-	269	26248083	rrmA	c2229	-	23S rRNA methyltransferase A
2150	 44.44	-1	2058862..2059149	+	95	26248084	-	c2230	-	hypothetical protein
2151	 46.19	0	2058898..2059107	-	69	26248085	cspC	c2231	-	cold shock-like protein CspC
2152	 42.36	-1	2059120..2059263	-	47	26248086	yobF	c2232	-	hypothetical protein
2153	 43.40	-1	2059933..2060220	-	95	26248087	yebO	c2233	-	hypothetical protein
2154	 47.92	0	2060295..2060438	-	47	26248088	yobG	c2234	-	hypothetical protein
2155	 44.17	-1	2060597..2060836	+	79	26248089	-	c2235	-	hypothetical protein
2156	 49.87	0	2060980..2061771	-	263	26248090	-	c2236	-	transcriptional regulator kdgR
2157	 51.04	0	2061837..2063321	+	494	26248091	yebQ	c2237	-	putative transport protein YebQ
2158	 53.17	0	2063367..2064248	-	293	26248092	htpX	c2238	-	heat shock protein HtpX
2159	 50.27	0	2064440..2066488	-	682	26248093	prc	c2239	-	carboxy-terminal protease
2160	 53.22	0	2066508..2067206	-	232	26248094	proQ	c2240	-	putative solute/DNA competence effector
2161	 50.11	0	2067303..2067749	-	148	26248095	-	c2241	-	hypothetical protein
2162	 49.71	0	2067863..2069218	+	451	26248096	yebS	c2242	-	hypothetical protein
2163	 53.14	0	2069145..2071820	+	891	26248097	yebT	c2243	-	hypothetical protein
2164	 52.49	0	2071894..2073339	+	481	26248098	yebU	c2244	-	rRNA (cytosine-C(5)-)-methyltransferase RsmF
2165	 49.60	0	2073442..2073693	+	83	26248099	yebV	c2245	-	hypothetical protein
2166	 46.38	0	2073714..2073989	+	91	26248100	yebW	c2246	-	hypothetical protein
2167	 47.88	0	2073990..2074649	-	219	26248101	pphA	c2247	-	serine/threonine protein phosphatase 1
2168	 41.18	-1	2074871..2075023	-	50	26248102	-	c2248	-	hypothetical protein
2169	 46.78	0	2075041..2075382	-	113	26248103	yebY	c2249	-	hypothetical protein
2170	 53.15	0	2075395..2076267	-	290	26248104	yebZ	c2250	-	hypothetical protein
2171	 48.80	0	2076271..2076645	-	124	26248105	-	c2251	-	hypothetical protein
2172	 48.05	0	2076784..2077014	+	76	161486211	holE	c2252	-	DNA polymerase III subunit theta
2173	 51.90	0	2077117..2077773	+	218	26248107	yobB	c2253	-	hypothetical protein
2174	 51.58	0	2077797..2078459	+	220	161486210	-	c2254	-	exodeoxyribonuclease X
2175	 47.47	0	2078456..2078851	-	131	26248109	-	c2255	-	hypothetical protein
2176	 50.39	0	2078852..2080516	-	554	26248110	ptrB	c2256	-	protease II
2177	 51.58	0	2080602..2081204	+	200	26248111	-	c2257	-	hypothetical protein
2178	 51.97	0	2080725..2081384	-	219	26248112	yebE	c2258	-	hypothetical protein
2179	 49.86	0	2081711..2082079	-	122	26248113	yebF	c2259	-	hypothetical protein
2180	 49.83	0	2082134..2082424	-	96	26248114	yebG	c2260	-	DNA damage-inducible protein YebG
2181	 55.61	0	2083792..2084433	-	213	26248115	eda	c2263	-	keto-hydroxyglutarate-aldolase/keto-deoxy-phosphogluconate aldolase
2182	 53.37	0	2084470..2086281	-	603	161486209	edd	c2264	-	phosphogluconate dehydratase
2183	 51.56	0	2086516..2087991	-	491	26248117	zwf	c2265	-	glucose-6-phosphate 1-dehydrogenase
2184	 34.00	-2	2088157..2088306	-	49	26248118	-	c2266	-	hypothetical protein
2185	 49.20	0	2088329..2089198	+	289	26248119	yebK	c2267	-	DNA-binding transcriptional regulator HexR
2186	 52.81	0	2089326..2090768	+	480	161486208	pykA	c2268	-	pyruvate kinase
2187	 50.51	0	2090900..2091871	-	323	26248121	msbB	c2269	-	lipid A biosynthesis (KDO)2-(lauroyl)-lipid IVA acyltransferase
2188	 52.38	0	2091990..2093312	-	440	26248122	yebA	c2270	-	hypothetical protein
2189	 48.77	0	2093328..2094260	-	310	161486207	znuA	c2271	-	high-affinity zinc transporter periplasmic component
2190	 49.34	0	2094339..2095094	+	251	26248124	znuC	c2272	-	high-affinity zinc transporter ATPase
2191	 51.53	0	2095091..2095876	+	261	26248125	znuB	c2273	-	high-affinity zinc transporter membrane component
2192	 52.42	0	2096023..2097033	-	336	26248126	ruvB	c2274	-	Holliday junction DNA helicase B
2193	 53.43	0	2097042..2097653	-	203	26248127	ruvA	c2275	-	Holliday junction DNA helicase motor protein
2194	 42.62	-1	2097929..2098531	+	200	161486206	yebB	c2276	-	hypothetical protein
2195	 55.62	0	2098533..2099057	-	174	26248129	ruvC	c2277	-	Holliday junction resolvase
2196	 51.55	0	2099089..2099829	-	246	26248130	yebC	c2278	-	hypothetical protein
2197	 52.70	0	2099858..2100301	-	147	26248131	ntpA	c2279	-	dATP pyrophosphohydrolase
2198	 53.81	0	2100303..2102075	-	590	26248132	aspS	c2280	-	aspartyl-tRNA synthetase
2199	 53.09	0	2102385..2102951	+	188	161486205	yecD	c2281	-	hypothetical protein
2200	 50.18	0	2102948..2103766	+	272	26248134	yecE	c2282	-	hypothetical protein
2201	 49.75	0	2103819..2104214	+	131	161486204	yecN	c2283	-	hypothetical protein
2202	 50.40	0	2104255..2104998	+	247	26248136	yecO	c2284	-	hypothetical protein
2203	 52.57	0	2104995..2105966	+	323	26248137	yecP	c2285	-	hypothetical protein
2204	 51.76	0	2106131..2108578	-	815	26248138	bisZ	c2286	-	trimethylamine-N-oxide reductase 2 precursor
2205	 47.77	0	2108585..2109685	-	366	26248139	yecK	c2287	-	cytochrome c-type protein torY
2206	 44.70	0	2109591..2109722	-	43	26248140	-	c2288	-	hypothetical protein
2207	 52.34	0	2110073..2110819	-	248	26248141	-	c2289	-	copper homeostasis protein CutC
2208	 51.48	0	2110833..2111405	-	190	26248142	yecM	c2290	-	hypothetical protein
2209	 53.00	0	2111615..2113348	+	577	26248143	argS	c2291	-	arginyl-tRNA synthetase
2210	 53.69	0	2113401..2113793	-	130	26248144	flhE	c2292	-	flagellar protein flhE precursor
2211	 55.03	0	2113793..2115871	-	692	161486203	flhA	c2293	-	flagellar biosynthesis protein FlhA
2212	 55.09	0	2115864..2117012	-	382	26248146	flhB	c2294	-	flagellar biosynthesis protein FlhB
2213	 49.66	0	2117045..2117191	+	48	26248147	-	c2295	-	hypothetical protein
2214	 53.49	0	2117221..2117865	-	214	161486202	cheZ	c2296	-	chemotaxis regulator CheZ
2215	 49.49	0	2117876..2118265	-	129	26248149	cheY	c2297	-	chemotaxis regulatory protein CheY
2216	 54.29	0	2118280..2119329	-	349	26248150	cheB	c2298	-	chemotaxis-specific methylesterase
2217	 54.24	0	2119332..2120192	-	286	26248151	cheR	c2299	-	chemotaxis methyltransferase CheR
50.18	MEAN

5.55	STD DEV
