IslandPathversion 1.0

IslandPath Analysis: Escherichia coli CFT073

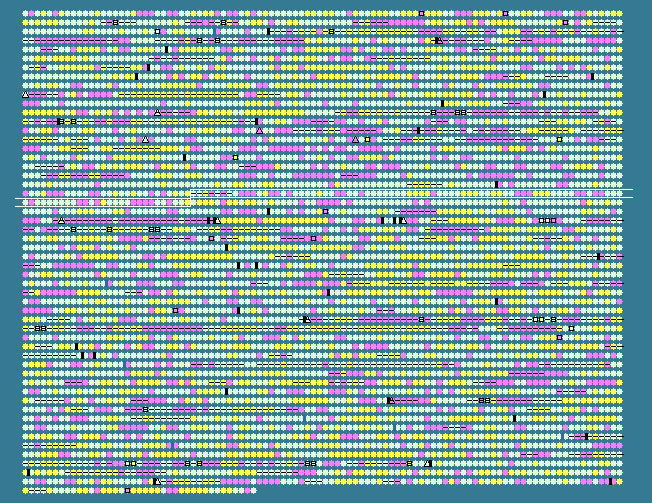

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.18 STD DEV: 5.55
Escherichia coli CFT073, complete genome - 1..5231428
5339 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2029	 49.61	0	1951016..1951144	-	42	26247963	-	c2108	-	hypothetical protein
2030	 50.00	0	1951220..1951519	-	99	26247964	ihfA	c2109	-	integration host factor subunit alpha
2031	 54.78	0	1953927..1954910	-	327	161486216	pheS	c2112	-	phenylalanyl-tRNA synthetase subunit alpha
2032	 35.56	-2	1955194..1955238	-	14	26247966	pheM	c5495	-	phenylalanyl-tRNA synthetase operon leader peptide
2033	 48.74	0	1955361..1955717	-	118	26247967	rplT	c2113	-	50S ribosomal protein L20
2034	 46.41	0	1955839..1956450	+	203	26247968	-	c2114	-	hypothetical protein
2035	 47.82	0	1956064..1956498	-	144	26247969	infC	c2115	-	translation initiation factor IF-3
2036	 49.40	0	1956610..1958538	-	642	26247970	thrS	c2116	-	threonyl-tRNA synthetase
2037	 35.52	-2	1959224..1959589	+	121	26247971	-	c2117	-	hypothetical protein
2038	 38.14	-2	1959607..1959918	+	103	26247972	-	c2118	-	hypothetical protein
2039	 32.29	-2	1959899..1960090	+	63	26247973	-	c2119	-	hypothetical protein
2040	 49.01	0	1960421..1961179	-	252	26247974	ydiY	c2120	-	hypothetical protein
2041	 54.34	0	1961463..1962395	+	310	26247975	pfkB	c2121	-	6-phosphofructokinase 2
2042	 44.71	0	1962424..1962801	-	125	26247976	-	c2122	-	hypothetical protein
2043	 43.99	-1	1962496..1962786	+	96	26247977	ydiZ	c2123	-	hypothetical protein
2044	 52.50	0	1962892..1963752	+	286	26247978	yniA	c2124	-	hypothetical protein
2045	 44.13	-1	1963793..1964329	-	178	26247979	yniB	c2125	-	hypothetical protein
2046	 50.97	0	1964476..1965144	+	222	26247980	yniC	c2126	-	2-deoxyglucose-6-phosphatase
2047	 50.42	0	1965308..1965898	+	196	161486215	ydjM	c2127	-	hypothetical protein
2048	 52.80	0	1966031..1967422	+	463	26247982	ydjN	c2128	-	putative symporter ydjN
2049	 50.38	0	1967469..1967732	-	87	26247983	-	c2129	-	cell division modulator
2050	 54.09	0	1967898..1968056	-	52	26247984	-	c2130	-	hypothetical protein
2051	 51.11	0	1967915..1970176	+	753	26247985	katE	c2131	-	hydroperoxidase II
2052	 50.20	0	1970223..1970981	-	252	26247986	ydjC	c2132	-	hypothetical protein
2053	 46.55	0	1970994..1972400	-	468	26247987	celF	c2133	-	6-phospho-beta-glucosidase
2054	 41.04	-1	1972449..1973291	-	280	26247988	celD	c2134	-	DNA-binding transcriptional regulator ChbR
2055	 48.72	0	1973299..1973649	-	116	26247989	celC	c2135	-	N,N'-diacetylchitobiose-specific PTS system transporter subunit IIA
2056	 48.49	0	1973700..1975058	-	452	26247990	celB	c2136	-	N,N'-diacetylchitobiose-specific PTS system transporter subunit IIC
2057	 43.93	-1	1975143..1975463	-	106	26247991	celA	c2137	-	N,N'-diacetylchitobiose-specific PTS system transporter subunit IIB
2058	 48.97	0	1975763..1976101	-	112	26247992	osmE	c2138	-	DNA-binding transcriptional activator OsmE
2059	 49.76	0	1976303..1977130	+	275	26247993	nadE	c2139	-	NAD synthetase
2060	 50.45	0	1977360..1978247	+	295	26247994	ydjQ	c2140	-	nucleotide excision repair endonuclease
2061	 50.70	0	1978207..1978845	-	212	26247995	ydjR	c2141	-	hypothetical protein
2062	 51.12	0	1978973..1979461	+	162	26247996	-	c2142	-	hypothetical protein
2063	 51.03	0	1978985..1979470	-	161	26247997	spy	c2143	-	periplasmic protein
2064	 53.46	0	1979800..1980768	-	322	26247998	ydjS	c2144	-	succinylglutamate desuccinylase
2065	 55.06	0	1980761..1982104	-	447	26247999	-	c2145	-	succinylarginine dihydrolase
2066	 58.22	+1	1982101..1983579	-	492	26248000	astD	c2146	-	succinylglutamic semialdehyde dehydrogenase
2067	 54.75	0	1983663..1984610	-	315	26248001	-	c2147	-	arginine succinyltransferase
2068	 55.20	0	1984607..1985827	-	406	26248002	argD	c2148	-	bifunctional succinylornithine transaminase/acetylornithine transaminase
2069	 43.27	-1	1986090..1986260	+	56	26248003	-	c2149	-	hypothetical protein
2070	 53.41	0	1986273..1987079	+	268	161486214	xthA	c2150	-	exonuclease III
2071	 47.04	0	1987198..1987956	+	252	26248005	ydjX	c2151	-	hypothetical protein
2072	 49.05	0	1987799..1988638	+	279	26248006	ydjY	c2152	-	hypothetical protein
2073	 50.99	0	1988652..1989359	+	235	26248007	ydjZ	c2153	-	hypothetical protein
2074	 56.83	+1	1989359..1989907	+	182	26248008	ynjA	c2154	-	hypothetical protein
2075	 54.67	0	1989917..1991083	+	388	26248009	-	c2155	-	hypothetical protein
2076	 56.41	+1	1991032..1992591	+	519	26248010	ynjC	c2156	-	ABC transporter permease
2077	 51.82	0	1992558..1993244	+	228	26248011	ynjD	c2157	-	ABC transporter ATP-binding protein
2078	 53.36	0	1993296..1994618	+	440	26248012	-	c2158	-	putative thiosulfate sulfurtransferase ynjE precursor
2079	 54.55	0	1994627..1995253	-	208	26248013	ynjF	c2159	-	hypothetical protein
2080	 54.90	0	1995334..1995741	+	135	26248014	-	c2160	-	pyrimidine (deoxy)nucleoside triphosphate pyrophosphohydrolase
2081	 49.82	0	1995707..1995979	-	90	26248015	ynjH	c2161	-	hypothetical protein
2082	 53.50	0	1996215..1997558	+	447	26248016	gdhA	c2162	-	glutamate dehydrogenase
2083	 43.52	-1	1997614..1999557	-	647	26248017	-	c2163	-	hypothetical protein
2084	 45.15	0	1999554..2001254	-	566	26248018	ybeW	c2164	-	chaperone protein hscC
2085	 34.21	-2	2001324..2002124	-	266	26248019	-	c2165	-	hypothetical protein
2086	 54.24	0	2002243..2004246	-	667	26248020	topB	c2166	-	DNA topoisomerase III
2087	 55.33	0	2004194..2005243	-	349	26248021	selD	c2167	-	selenophosphate synthetase
2088	 54.74	0	2005354..2005923	-	189	26248022	ydjA	c2168	-	hypothetical protein
2089	 47.88	0	2005959..2006123	+	54	26248023	-	c2169	-	hypothetical protein
2090	 51.86	0	2006066..2007922	+	618	26248024	sppA	c2170	-	protease 4
2091	 50.05	0	2008089..2009105	+	338	26248025	ansA	c2171	-	cytoplasmic asparaginase I
2092	 53.12	0	2009116..2009757	+	213	161486213	ydjB	c2172	-	nicotinamidase/pyrazinamidase
2093	 45.66	0	2009850..2011277	-	475	26248027	ydjE	c2173	-	metabolite transporter
2094	 42.29	-1	2011326..2012084	-	252	26248028	ydjF	c2174	-	putative transcriptional regulator YdjF
2095	 48.32	0	2012221..2013201	-	326	26248029	ydjG	c2175	-	oxidoreductase ydjG
2096	 44.69	0	2013211..2014179	-	322	26248030	ydjH	c2176	-	putative sugar kinase ydjH
2097	 44.92	0	2014163..2014999	-	278	26248031	ydjI	c2177	-	hypothetical protein
2098	 46.74	0	2015020..2016063	-	347	26248032	ydjJ	c2178	-	hypothetical protein
2099	 48.99	0	2016080..2017459	-	459	26248033	ydjK	c2179	-	metabolite transporter
2100	 49.02	0	2017344..2017496	-	50	26248034	-	c2180	-	hypothetical protein
2101	 50.14	0	2017486..2018562	-	358	26248035	ydjL	c2181	-	hypothetical protein
2102	 43.71	-1	2018932..2019249	-	105	26248036	yeaC	c2182	-	hypothetical protein
2103	 47.97	0	2019246..2019689	-	147	26248037	yeaA	c2183	-	methionine sulfoxide reductase B
2104	 49.95	0	2019992..2020996	+	334	26248038	gapA	c2184	-	glyceraldehyde-3-phosphate dehydrogenase
2105	 49.12	0	2021059..2021964	+	301	26248039	yeaD	c2185	-	hypothetical protein
2106	 50.00	0	2022015..2022914	-	299	26248040	yeaE	c2186	-	hypothetical protein
2107	 51.81	0	2022959..2023705	-	248	26248041	yeaF	c2187	-	MltA-interacting protein precursor
2108	 49.72	0	2024141..2026075	+	644	26248042	yeaG	c2188	-	hypothetical protein
2109	 49.30	0	2026188..2027471	+	427	26248043	yeaH	c2189	-	hypothetical protein
2110	 38.89	-2	2027618..2029093	+	491	26248044	yeaI	c2190	-	hypothetical protein
2111	 45.74	0	2029274..2030764	+	496	161486212	yeaJ	c2191	-	hypothetical protein
2112	 50.99	0	2030807..2031310	+	167	26248046	yeaK	c2192	-	hypothetical protein
2113	 46.41	0	2031311..2031463	-	50	26248047	-	c2193	-	hypothetical protein
2114	 55.48	0	2031585..2032031	+	148	26248048	yeaL	c2194	-	hypothetical protein
2115	 50.12	0	2031988..2032809	-	273	26248049	yeaM	c2195	-	putative transcriptional regulator YeaM
2116	 53.13	0	2032906..2034087	+	393	26248050	yeaN	c2196	-	putative transport protein YeaN
2117	 51.49	0	2034121..2034489	+	122	26248051	yeaO	c2197	-	hypothetical protein
2118	 52.55	0	2034511..2034765	-	84	26248052	yoaF	c2198	-	hypothetical protein
2119	 46.41	0	2034819..2035973	+	384	26248053	yeaP	c2199	-	hypothetical protein
2120	 45.78	0	2036241..2036489	-	82	26248054	yeaQ	c2200	-	hypothetical protein
2121	 44.72	0	2036501..2036623	-	40	26248055	-	c2201	-	hypothetical protein
2122	 46.45	0	2036637..2036819	-	60	26248056	yoaG	c2202	-	hypothetical protein
2123	 48.58	0	2036655..2037146	+	163	26248057	-	c2203	-	hypothetical protein
2124	 48.61	0	2036823..2037182	-	119	26248058	yeaR	c2204	-	hypothetical protein
2125	 45.54	0	2037355..2037993	-	212	26248059	yeaS	c2205	-	leucine export protein LeuE
2126	 48.35	0	2038120..2038452	-	110	26248060	-	c2206	-	hypothetical protein
2127	 49.12	0	2038276..2038446	+	56	26248061	-	c2207	-	hypothetical protein
2128	 53.90	0	2038536..2039663	-	375	26248062	rnd	c2208	-	ribonuclease D
50.18	MEAN

5.55	STD DEV
