IslandPath Analysis: Escherichia coli CFT073

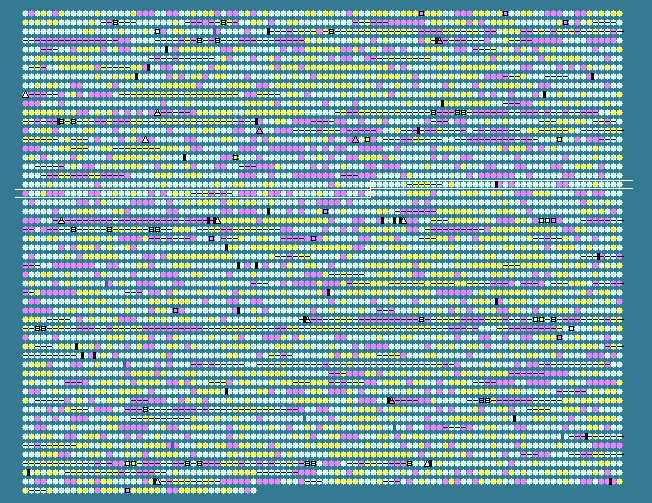

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.18 STD DEV: 5.55
Escherichia coli CFT073, complete genome - 1..5231428
5339 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1959	 52.53	0	1884663..1885235	-	190	26247893	sodC	c2038	-	superoxide dismutase
1960	 52.06	0	1885265..1886161	-	298	26247894	ydhF	c2039	-	oxidoreductase ydhF
1961	 48.15	0	1886210..1886587	-	125	26247895	ydhL	c2040	-	hypothetical protein
1962	 47.15	0	1886218..1886340	+	40	26247896	-	c2041	-	hypothetical protein
1963	 52.50	0	1886552..1887151	+	199	26247897	ydhM	c2042	-	putative transcriptional regulator YdhM
1964	 52.91	0	1887188..1888285	+	365	26247898	nemA	c2043	-	N-ethylmaleimide reductase
1965	 50.74	0	1888366..1888773	+	135	26247899	gloA	c2044	-	glyoxalase I
1966	 54.32	0	1888876..1889523	+	215	26247900	rnt	c2045	-	ribonuclease T
1967	 54.86	0	1889585..1889728	-	47	26247901	-	c2046	-	hypothetical protein
1968	 56.25	+1	1889616..1889759	+	47	26247902	-	c2047	-	hypothetical protein
1969	 52.59	0	1889895..1890242	-	115	26247903	ydhD	c2048	-	hypothetical protein
1970	 48.43	0	1890577..1891404	+	275	26247904	ydhO	c2049	-	hypothetical protein
1971	 49.83	0	1891532..1892113	+	193	26247905	sodB	c2050	-	superoxide dismutase
1972	 54.19	0	1892259..1893428	-	389	26247906	ydhP	c2051	-	putative transport protein YdhP
1973	 53.31	0	1893982..1895007	+	341	26247907	purR	c2052	-	DNA-binding transcriptional repressor PurR
1974	 53.59	0	1895004..1895936	-	310	26247908	ydhB	c2053	-	putative DNA-binding transcriptional regulator
1975	 53.22	0	1896049..1897260	+	403	26247909	ydhC	c2054	-	inner membrane transport protein YdhC
1976	 47.87	0	1897551..1898699	+	382	26247910	cfa	c2055	-	cyclopropane fatty acyl phospholipid synthase
1977	 47.20	0	1898739..1899380	-	213	26247911	ribE	c2056	-	riboflavin synthase subunit alpha
1978	 53.28	0	1899595..1900968	+	457	26247912	ydhE	c2057	-	multidrug efflux protein
1979	 51.23	0	1901009..1902265	-	418	26247913	ydhQ	c2058	-	hypothetical protein
1980	 44.12	-1	1902839..1903144	+	101	26247914	-	c2059	-	hypothetical protein
1981	 47.24	0	1903270..1904880	+	536	26247915	ydhS	c2060	-	hypothetical protein
1982	 45.24	0	1904867..1904992	-	41	26247916	-	c2061	-	hypothetical protein
1983	 52.40	0	1904886..1905698	-	270	26247917	ydhT	c2062	-	hypothetical protein
1984	 51.27	0	1905087..1905833	+	248	26247918	-	c2063	-	hypothetical protein
1985	 49.75	0	1905702..1906487	-	261	26247919	ydhU	c2064	-	PhsC protein
1986	 49.86	0	1906484..1907203	-	239	26247920	-	c2065	-	putative ferredoxin-like protein ydhX
1987	 52.47	0	1907216..1907863	-	215	26247921	ydhW	c2066	-	hypothetical protein
1988	 48.07	0	1907867..1909969	-	700	161486219	ydhV	c2067	-	putative oxidoreductase
1989	 48.33	0	1909990..1910616	-	208	26247923	-	c2068	-	hypothetical protein
1990	 46.67	0	1911072..1911281	-	69	26247924	ydhZ	c2069	-	hypothetical protein
1991	 44.96	0	1911393..1911521	+	42	26247925	-	c2070	-	hypothetical protein
1992	 49.54	0	1911623..1913251	+	542	26247926	pykF	c2071	-	pyruvate kinase
1993	 50.63	0	1913562..1913798	+	78	26247927	lpp	c2072	-	major outer membrane lipoprotein precursor
1994	 52.64	0	1913861..1914865	-	334	26247928	ynhG	c2073	-	hypothetical protein
1995	 48.20	0	1915014..1915430	-	138	26247929	ynhA	c2074	-	cysteine desufuration protein SufE
1996	 55.04	0	1915443..1916663	-	406	26247930	-	c2075	-	selenocysteine lyase
1997	 53.38	0	1916660..1917931	-	423	26247931	ynhC	c2076	-	cysteine desulfurase activator complex subunit SufD
1998	 49.93	0	1917906..1918652	-	248	26247932	sufC	c2077	-	cysteine desulfurase ATPase component
1999	 51.60	0	1918662..1920188	-	508	26247933	ynhE	c2078	-	cysteine desulfurase activator complex subunit SufB
2000	 52.30	0	1920158..1920526	-	122	26247934	sufA	c2079	-	iron-sulfur cluster assembly scaffold protein
2001	 43.70	-1	1921075..1921344	-	89	26247935	ydiH	c2080	-	hypothetical protein
2002	 50.85	0	1921363..1921773	-	136	26247936	ydiI	c2081	-	hypothetical protein
2003	 53.25	0	1921770..1924826	-	1018	26247937	ydiJ	c2082	-	hypothetical protein
2004	 54.09	0	1925040..1926152	+	370	26247938	ydiK	c2083	-	putative inner membrane protein
2005	 44.79	0	1926554..1926937	+	127	26247939	ydiL	c2084	-	hypothetical protein
2006	 45.51	0	1927037..1928251	+	404	26247940	ydiM	c2085	-	putative transport protein YdiM
2007	 45.05	0	1928472..1929743	+	423	26247941	ydiN	c2086	-	putative transport protein YdiN
2008	 48.10	0	1929755..1930621	+	288	26247942	aroE	c2087	-	quinate/shikimate dehydrogenase
2009	 49.93	0	1930652..1931410	+	252	26247943	aroD	c2088	-	3-dehydroquinate dehydratase
2010	 47.49	0	1931556..1933151	+	531	26247944	ydiF	c2089	-	hypothetical protein
2011	 51.65	0	1933165..1934316	+	383	161486218	ydiO	c2090	-	putative acyl-CoA dehydrogenase
2012	 42.76	-1	1934359..1935270	-	303	26247946	ydiP	c2091	-	putative transcriptional regulator YdiP
2013	 41.24	-1	1935373..1935549	-	58	26247947	-	c2092	-	hypothetical protein
2014	 51.24	0	1935586..1936350	+	254	161486217	ydiQ	c2093	-	putative electron transfer flavoprotein YdiQ
2015	 53.46	0	1936370..1937308	+	312	26247949	ydiR	c2094	-	electron transfer flavoprotein subunit YdiR
2016	 54.65	0	1937363..1938652	+	429	26247950	ydiS	c2095	-	hypothetical protein
2017	 48.64	0	1938649..1938942	+	97	26247951	ydiT	c2096	-	ferredoxin-like protein ydiT
2018	 50.09	0	1938945..1940645	+	566	26247952	ydiD	c2097	-	short chain acyl-CoA synthetase
2019	 54.52	0	1940702..1943080	-	792	26247953	ppsA	c2098	-	phosphoenolpyruvate synthase
2020	 50.48	0	1943413..1944246	+	277	26247954	ydiA	c2099	-	hypothetical protein
2021	 53.10	0	1944403..1945449	+	348	26247955	aroH	c2100	-	phospho-2-dehydro-3-deoxyheptonate aldolase
2022	 46.12	0	1945554..1945772	+	72	26247956	ydiE	c2101	-	hypothetical protein
2023	 52.33	0	1945776..1947212	-	478	26247957	ydiU	c2102	-	hypothetical protein
2024	 41.46	-1	1947275..1947988	-	237	26247958	ydiV	c2103	-	hypothetical protein
2025	 49.46	0	1948235..1948699	-	154	26247959	nlpC	c2104	-	lipoprotein NlpC
2026	 55.47	0	1948777..1949526	-	249	26247960	btuD	c2105	-	vitamin B12-transporter ATPase
2027	 48.91	0	1949526..1950077	-	183	26247961	btuE	c2106	-	putative glutathione peroxidase
2028	 54.84	0	1950139..1951119	-	326	26247962	btuC	c2107	-	vtamin B12-transporter permease
2029	 49.61	0	1951016..1951144	-	42	26247963	-	c2108	-	hypothetical protein
2030	 50.00	0	1951220..1951519	-	99	26247964	ihfA	c2109	-	integration host factor subunit alpha
2031	 54.78	0	1953927..1954910	-	327	161486216	pheS	c2112	-	phenylalanyl-tRNA synthetase subunit alpha
2032	 35.56	-2	1955194..1955238	-	14	26247966	pheM	c5495	-	phenylalanyl-tRNA synthetase operon leader peptide
2033	 48.74	0	1955361..1955717	-	118	26247967	rplT	c2113	-	50S ribosomal protein L20
2034	 46.41	0	1955839..1956450	+	203	26247968	-	c2114	-	hypothetical protein
2035	 47.82	0	1956064..1956498	-	144	26247969	infC	c2115	-	translation initiation factor IF-3
2036	 49.40	0	1956610..1958538	-	642	26247970	thrS	c2116	-	threonyl-tRNA synthetase
2037	 35.52	-2	1959224..1959589	+	121	26247971	-	c2117	-	hypothetical protein
2038	 38.14	-2	1959607..1959918	+	103	26247972	-	c2118	-	hypothetical protein
2039	 32.29	-2	1959899..1960090	+	63	26247973	-	c2119	-	hypothetical protein
2040	 49.01	0	1960421..1961179	-	252	26247974	ydiY	c2120	-	hypothetical protein
2041	 54.34	0	1961463..1962395	+	310	26247975	pfkB	c2121	-	6-phosphofructokinase 2
2042	 44.71	0	1962424..1962801	-	125	26247976	-	c2122	-	hypothetical protein
2043	 43.99	-1	1962496..1962786	+	96	26247977	ydiZ	c2123	-	hypothetical protein
2044	 52.50	0	1962892..1963752	+	286	26247978	yniA	c2124	-	hypothetical protein
2045	 44.13	-1	1963793..1964329	-	178	26247979	yniB	c2125	-	hypothetical protein
2046	 50.97	0	1964476..1965144	+	222	26247980	yniC	c2126	-	2-deoxyglucose-6-phosphatase
2047	 50.42	0	1965308..1965898	+	196	161486215	ydjM	c2127	-	hypothetical protein
2048	 52.80	0	1966031..1967422	+	463	26247982	ydjN	c2128	-	putative symporter ydjN
2049	 50.38	0	1967469..1967732	-	87	26247983	-	c2129	-	cell division modulator
2050	 54.09	0	1967898..1968056	-	52	26247984	-	c2130	-	hypothetical protein
2051	 51.11	0	1967915..1970176	+	753	26247985	katE	c2131	-	hydroperoxidase II
2052	 50.20	0	1970223..1970981	-	252	26247986	ydjC	c2132	-	hypothetical protein
2053	 46.55	0	1970994..1972400	-	468	26247987	celF	c2133	-	6-phospho-beta-glucosidase
2054	 41.04	-1	1972449..1973291	-	280	26247988	celD	c2134	-	DNA-binding transcriptional regulator ChbR
2055	 48.72	0	1973299..1973649	-	116	26247989	celC	c2135	-	N,N'-diacetylchitobiose-specific PTS system transporter subunit IIA
2056	 48.49	0	1973700..1975058	-	452	26247990	celB	c2136	-	N,N'-diacetylchitobiose-specific PTS system transporter subunit IIC
2057	 43.93	-1	1975143..1975463	-	106	26247991	celA	c2137	-	N,N'-diacetylchitobiose-specific PTS system transporter subunit IIB
2058	 48.97	0	1975763..1976101	-	112	26247992	osmE	c2138	-	DNA-binding transcriptional activator OsmE
50.18	MEAN

5.55	STD DEV
