IslandPath Analysis: Escherichia coli CFT073

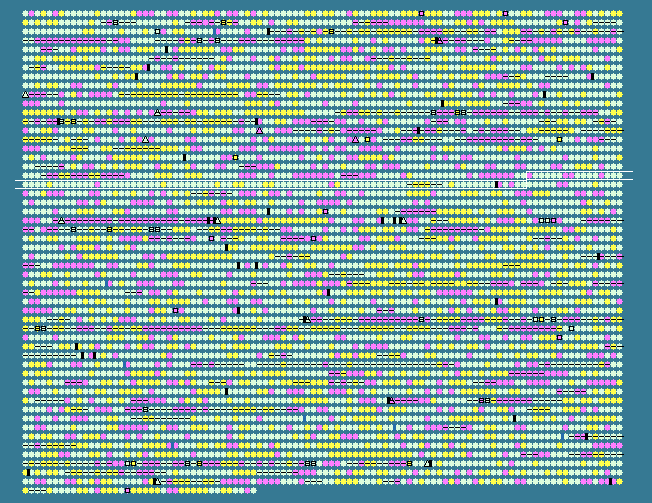

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.18 STD DEV: 5.55
Escherichia coli CFT073, complete genome - 1..5231428
5339 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1885	 44.70	0	1805113..1806009	-	298	26247818	ydeH	c1963	-	hypothetical protein
1886	 50.28	0	1806510..1808621	-	703	26247819	dcp	c1964	-	dipeptidyl carboxypeptidase II
1887	 50.66	0	1808677..1809438	+	253	26247820	ydfG	c1965	-	3-hydroxy acid dehydrogenase
1888	 50.80	0	1809527..1810213	+	228	26247821	ydfH	c1966	-	putative transcriptional regulator YdfH
1889	 51.96	0	1810390..1810593	+	67	26247822	ydfZ	c1967	-	hypothetical protein
1890	 49.42	0	1810629..1812089	-	486	26247823	-	c1968	-	oxidoreductase ydfI
1891	 46.35	0	1812178..1813545	-	455	26247824	ydfJ	c1969	-	metabolite transport protein
1892	 45.40	0	1813603..1814646	-	347	26247825	rspB	c1970	-	putative dehydrogenase
1893	 50.88	0	1814634..1815881	-	415	26247826	rspA	c1971	-	starvation sensing protein rspA
1894	 51.79	0	1816054..1816389	-	111	26247827	ynfA	c1972	-	hypothetical protein
1895	 50.29	0	1816515..1816856	+	113	26247828	ynfB	c1973	-	hypothetical protein
1896	 46.88	0	1816891..1817451	+	186	26247829	speG	c1974	-	spermidine N(1)-acetyltransferase
1897	 44.16	-1	1817454..1818164	-	236	161486227	ynfC	c1975	-	hypothetical protein
1898	 52.87	0	1818230..1818577	+	115	26247831	ynfD	c1976	-	hypothetical protein
1899	 50.52	0	1818776..1821202	+	808	26247832	ynfE	c1977	-	putative dimethyl sulfoxide reductase chain ynfE precursor
1900	 50.72	0	1821260..1823686	+	808	26247833	ynfF	c1978	-	dimethyl sulfoxide reductase chain ynfF precursor
1901	 52.27	0	1823697..1824314	+	205	26247834	ynfG	c1979	-	anaerobic dimethyl sulfoxide reductase chain ynfG
1902	 49.66	0	1824295..1824441	-	48	26247835	-	c1980	-	hypothetical protein
1903	 51.23	0	1824316..1825170	+	284	26247836	ynfH	c1981	-	anaerobic dimethyl sulfoxide reductase chain ynfH
1904	 53.66	0	1825213..1825827	+	204	161486226	ynfI	c1982	-	twin-argninine leader-binding protein DmsD
1905	 54.10	0	1826022..1827278	+	418	161486225	ynfJ	c1983	-	putative voltage-gated ClC-type chloride channel ClcB
1906	 52.16	0	1827231..1827926	-	231	161486224	bioD	c1984	-	putative dithiobiotin synthetase
1907	 52.01	0	1828051..1829271	-	406	26247840	mlc	c1985	-	Mlc protein
1908	 52.13	0	1829406..1830299	-	297	26247841	ynfL	c1986	-	putative transcriptional regulator YnfL
1909	 52.71	0	1830406..1831659	+	417	26247842	ynfM	c1987	-	putative transport protein YnfM
1910	 51.13	0	1832071..1832379	+	102	161486223	asr	c1988	-	acid shock protein precursor
1911	 52.55	0	1832655..1833476	+	273	26247845	-	c1990	-	putative protease ydgD precursor
1912	 51.21	0	1833515..1833844	-	109	26247846	ydgE	c1991	-	multidrug efflux system protein MdtI
1913	 43.44	-1	1833831..1834196	-	121	26247847	ydgF	c1992	-	multidrug efflux system protein MdtJ
1914	 50.14	0	1834608..1835642	+	344	26247848	tqsA	c1993	-	putative transport protein
1915	 52.56	0	1835667..1837055	-	462	26247849	pntB	c1994	-	pyridine nucleotide transhydrogenase
1916	 52.24	0	1837066..1838652	-	528	26247850	pntA	c1995	-	NAD(P) transhydrogenase subunit alpha
1917	 50.79	0	1839122..1840066	+	314	26247851	ydgH	c1996	-	hypothetical protein
1918	 53.19	0	1840225..1841634	+	469	26247852	ydgI	c1997	-	putative arginine/ornithine antiporter
1919	 51.31	0	1841671..1842393	+	240	26247853	ydgB	c1998	-	short chain dehydrogenase
1920	 47.32	0	1842390..1842725	-	111	26247854	ydgC	c1999	-	hypothetical protein
1921	 48.33	0	1842794..1843573	+	259	26247855	rstA	c2000	-	DNA-binding transcriptional regulator RstA
1922	 51.31	0	1843577..1844878	+	433	26247856	rstB	c2001	-	sensor protein RstB
1923	 49.79	0	1844942..1845883	+	313	26247857	tus	c2002	-	DNA replication terminus site-binding protein
1924	 54.20	0	1845880..1847283	-	467	26247858	fumC	c2003	-	fumarate hydratase
1925	 51.12	0	1847426..1849072	-	548	26247859	fumA	c2004	-	fumarate hydratase class I, aerobic
1926	 50.60	0	1849271..1850446	+	391	26247860	manA	c2005	-	mannose-6-phosphate isomerase
1927	 49.57	0	1850547..1852055	+	502	26247861	ydgA	c2006	-	hypothetical protein
1928	 47.39	0	1852100..1853365	-	421	26247862	uidC	c2007	-	putative outer membrane porin protein
1929	 51.75	0	1853404..1854777	-	457	26247863	uidB	c2008	-	glucuronide transporter
1930	 51.88	0	1854774..1856585	-	603	26247864	uidA	c2009	-	beta-D-glucuronidase
1931	 50.59	0	1856975..1857565	-	196	26247865	uidR	c2010	-	uid operon repressor
1932	 47.27	0	1857794..1858561	-	255	26247866	hdhA	c2011	-	7-alpha-hydroxysteroid dehydrogenase
1933	 54.42	0	1858673..1859701	-	342	26247867	malI	c2012	-	DNA-binding transcriptional repressor MalI
1934	 52.42	0	1859876..1861468	+	530	161486222	malX	c2013	-	bifunctional maltose and glucose-specific PTS system components IICB
1935	 51.32	0	1861478..1862650	+	390	26247869	malY	c2014	-	cystathionine beta-lyase
1936	 53.69	0	1862754..1863755	+	333	26247870	add	c2015	-	adenosine deaminase
1937	 53.99	0	1863791..1864831	-	346	161486221	ydgJ	c2016	-	putative oxidoreductase
1938	 47.22	0	1865472..1865687	+	71	26247872	ydgT	c2017	-	oriC-binding nucleoid-associated protein
1939	 49.03	0	1865749..1866213	+	154	26247873	ydgK	c2018	-	hypothetical protein
1940	 51.20	0	1866290..1866871	+	193	26247874	-	c2019	-	Na(+)-translocating NADH-quinone reductase subunit E
1941	 55.09	0	1866871..1867449	+	192	26247875	-	c2020	-	electron transport complex protein RnfB
1942	 54.87	0	1867442..1869670	+	742	26247876	-	c2021	-	electron transport complex protein RnfC
1943	 53.07	0	1869671..1870729	+	352	26247877	rnfD	c2022	-	electron transport complex protein RnfD
1944	 52.82	0	1870733..1871353	+	206	26247878	-	c2023	-	electron transport complex protein RnfG
1945	 52.87	0	1871357..1872052	+	231	26247879	ydgQ	c2024	-	SoxR-reducing system protein RsxE
1946	 48.11	0	1872052..1872687	+	211	26247880	nth	c2025	-	endonuclease III
1947	 51.03	0	1873298..1874800	+	500	26247881	tppB	c2026	-	putative tripeptide transporter permease
1948	 50.50	0	1874906..1875511	+	201	26247882	gst	c2027	-	glutathionine S-transferase
1949	 52.20	0	1875555..1876418	-	287	26247883	pdxY	c2028	-	pyridoxamine kinase
1950	 51.83	0	1876477..1877763	-	428	26247884	tyrS	c2029	-	tyrosyl-tRNA synthetase
1951	 51.45	0	1877880..1878536	-	218	26247885	pdxH	c2030	-	pyridoxamine 5'-phosphate oxidase
1952	 46.67	0	1878595..1878924	-	109	26247886	ydhA	c2031	-	lysozyme inhibitor
1953	 55.50	0	1879022..1880131	-	369	26247887	anmK	c2032	-	anhydro-N-acetylmuramic acid kinase
1954	 50.64	0	1880405..1880872	+	155	26247888	slyB	c2033	-	Outer membrane lipoprotein slyB precursor
1955	 47.82	0	1880919..1881353	-	144	161486220	slyA	c2034	-	transcriptional regulator SlyA
1956	 48.10	0	1881554..1881790	+	78	26247890	ydhI	c2035	-	hypothetical protein
1957	 50.56	0	1881751..1882650	+	299	26247891	ydhJ	c2036	-	hypothetical protein
1958	 52.81	0	1882650..1884662	+	670	26247892	ydhK	c2037	-	hypothetical protein
1959	 52.53	0	1884663..1885235	-	190	26247893	sodC	c2038	-	superoxide dismutase
1960	 52.06	0	1885265..1886161	-	298	26247894	ydhF	c2039	-	oxidoreductase ydhF
1961	 48.15	0	1886210..1886587	-	125	26247895	ydhL	c2040	-	hypothetical protein
1962	 47.15	0	1886218..1886340	+	40	26247896	-	c2041	-	hypothetical protein
1963	 52.50	0	1886552..1887151	+	199	26247897	ydhM	c2042	-	putative transcriptional regulator YdhM
1964	 52.91	0	1887188..1888285	+	365	26247898	nemA	c2043	-	N-ethylmaleimide reductase
1965	 50.74	0	1888366..1888773	+	135	26247899	gloA	c2044	-	glyoxalase I
1966	 54.32	0	1888876..1889523	+	215	26247900	rnt	c2045	-	ribonuclease T
1967	 54.86	0	1889585..1889728	-	47	26247901	-	c2046	-	hypothetical protein
1968	 56.25	+1	1889616..1889759	+	47	26247902	-	c2047	-	hypothetical protein
1969	 52.59	0	1889895..1890242	-	115	26247903	ydhD	c2048	-	hypothetical protein
1970	 48.43	0	1890577..1891404	+	275	26247904	ydhO	c2049	-	hypothetical protein
1971	 49.83	0	1891532..1892113	+	193	26247905	sodB	c2050	-	superoxide dismutase
1972	 54.19	0	1892259..1893428	-	389	26247906	ydhP	c2051	-	putative transport protein YdhP
1973	 53.31	0	1893982..1895007	+	341	26247907	purR	c2052	-	DNA-binding transcriptional repressor PurR
1974	 53.59	0	1895004..1895936	-	310	26247908	ydhB	c2053	-	putative DNA-binding transcriptional regulator
1975	 53.22	0	1896049..1897260	+	403	26247909	ydhC	c2054	-	inner membrane transport protein YdhC
1976	 47.87	0	1897551..1898699	+	382	26247910	cfa	c2055	-	cyclopropane fatty acyl phospholipid synthase
1977	 47.20	0	1898739..1899380	-	213	26247911	ribE	c2056	-	riboflavin synthase subunit alpha
1978	 53.28	0	1899595..1900968	+	457	26247912	ydhE	c2057	-	multidrug efflux protein
1979	 51.23	0	1901009..1902265	-	418	26247913	ydhQ	c2058	-	hypothetical protein
1980	 44.12	-1	1902839..1903144	+	101	26247914	-	c2059	-	hypothetical protein
1981	 47.24	0	1903270..1904880	+	536	26247915	ydhS	c2060	-	hypothetical protein
1982	 45.24	0	1904867..1904992	-	41	26247916	-	c2061	-	hypothetical protein
1983	 52.40	0	1904886..1905698	-	270	26247917	ydhT	c2062	-	hypothetical protein
1984	 51.27	0	1905087..1905833	+	248	26247918	-	c2063	-	hypothetical protein
50.18	MEAN

5.55	STD DEV
