IslandPath Analysis: Escherichia coli CFT073

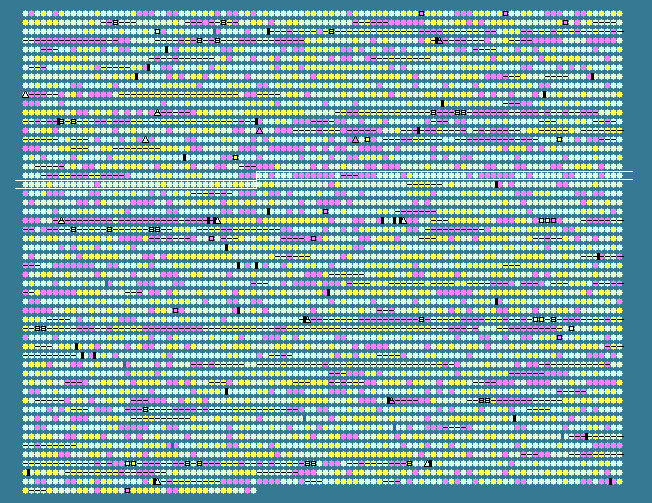

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.18 STD DEV: 5.55
Escherichia coli CFT073, complete genome - 1..5231428
5339 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1840	 49.54	0	1749589..1750020	+	143	26247773	osmC	c1916	-	osmotically inducible protein C
1841	 51.01	0	1751294..1752634	-	446	26247774	-	c1918	-	putative sensor kinase
1842	 44.75	0	1752635..1752853	-	72	26247775	-	c1919	-	hypothetical protein
1843	 52.50	0	1753177..1754496	-	439	26247776	yddW	c1920	-	lipoprotein yddW precursor
1844	 48.37	0	1754627..1756162	-	511	26247777	xasA	c1921	-	amino acid antiporter
1845	 52.38	0	1756318..1757787	-	489	26247778	gadB	c1922	-	glutamate decarboxylase beta
1846	 46.67	0	1758079..1760874	-	931	26247779	pqqL	c1923	-	zinc protease pqqL
1847	 46.19	0	1760919..1763291	-	790	26247780	yddB	c1924	-	hypothetical protein
1848	 43.24	-1	1763329..1765014	-	561	26247781	yddA	c1925	-	ABC transporter ATP-binding protein
1849	 39.13	-1	1765305..1766477	-	390	26247782	ydeM	c1926	-	hypothetical protein
1850	 43.65	-1	1766514..1768229	-	571	26247783	ydeN	c1927	-	putative sulfatase ydeN precursor
1851	 39.24	-1	1768598..1769359	-	253	26247784	ydeO	c1928	-	transcriptional regulator YdeO
1852	 37.88	-2	1769435..1769632	-	65	26247785	-	c1929	-	hypothetical protein
1853	 49.65	0	1769880..1772159	-	759	26247786	ydeP	c1930	-	putative oxidoreductase
1854	 44.26	-1	1772498..1773412	-	304	26247787	ydeQ	c1931	-	fimbrial-like protein ydeQ precursor
1855	 43.45	-1	1773472..1773975	-	167	26247788	ydeR	c1932	-	fimbrial-like protein ydeR precursor
1856	 43.69	-1	1773988..1774518	-	176	26247789	ydeS	c1933	-	fimbrial-like protein ydeS precursor
1857	 44.34	-1	1774532..1777183	-	883	26247790	-	c1934	-	Outer membrane usher protein fimD precursor
1858	 45.29	0	1777225..1777935	-	236	26247791	-	c1935	-	chaperone protein fimC precursor
1859	 44.44	-1	1778297..1778908	-	203	26247792	-	c1936	-	Type-1 fimbrial protein, A chain precursor
1860	 46.74	0	1779636..1780418	-	260	26247793	-	c1937	-	hypothetical protein
1861	 49.05	0	1780528..1781475	+	315	26247794	oprR	c1938	-	putative transcriptional regulator YcjZ
1862	 47.90	0	1781157..1781609	+	150	26247795	-	c1939	-	hypothetical protein
1863	 47.22	0	1781779..1783197	-	472	26247796	hipA	c1940	-	protein hipA
1864	 45.61	0	1783191..1783475	-	94	26247797	hipB	c1941	-	DNA-binding transcriptional regulator HipB
1865	 54.94	0	1783765..1784523	+	252	26247798	tam	c1942	-	trans-aconitate 2-methyltransferase
1866	 47.72	0	1784527..1785492	-	321	26247799	yneE	c1943	-	hypothetical protein
1867	 48.84	0	1787317..1788735	-	472	26247800	yneF	c1945	-	hypothetical protein
1868	 51.39	0	1788874..1789233	-	119	26247801	yneG	c1946	-	hypothetical protein
1869	 51.78	0	1789233..1790159	-	308	26247802	yneH	c1947	-	glutaminase
1870	 52.51	0	1790223..1791635	-	470	26247803	yneI	c1948	-	aldehyde-dehydrogenase like protein
1871	 53.51	0	1791712..1792593	+	293	26247804	yneJ	c1949	-	putative transcriptional regulator YneJ
1872	 50.80	0	1792932..1794122	+	396	26247805	sotB	c1950	-	sugar efflux transporter
1873	 50.30	0	1794147..1794812	-	221	26247806	marC	c1951	-	multiple drug resistance protein MarC
1874	 49.20	0	1795024..1795458	+	144	26247807	marR	c1952	-	DNA-binding transcriptional repressor MarR
1875	 44.79	0	1795479..1795862	+	127	161486229	marA	c1953	-	DNA-binding transcriptional activator MarA
1876	 48.86	0	1795894..1796112	+	72	26247809	marB	c1954	-	hypothetical protein
1877	 44.40	-1	1796169..1797614	-	481	26247810	celA	c1955	-	6-phospho-beta-glucosidase
1878	 42.65	-1	1797633..1799306	-	557	26247811	-	c1956	-	hypothetical protein
1879	 43.81	-1	1799361..1799675	-	104	26247812	-	c1957	-	PTS system, cellobiose-specific IIA component
1880	 42.95	-1	1799700..1801061	-	453	26247813	-	c1958	-	hypothetical protein
1881	 41.67	-1	1801137..1801448	-	103	26247814	-	c1959	-	PTS system, cellobiose-specific IIB component
1882	 41.06	-1	1801647..1802345	+	232	26247815	-	c1960	-	hypothetical protein
1883	 49.78	0	1802390..1803289	-	299	161486228	ydeD	c1961	-	O-acetylserine/cysteine export protein
1884	 49.83	0	1803484..1804671	+	395	26247817	ydeF	c1962	-	putative MFS-type transporter YdeE
1885	 44.70	0	1805113..1806009	-	298	26247818	ydeH	c1963	-	hypothetical protein
1886	 50.28	0	1806510..1808621	-	703	26247819	dcp	c1964	-	dipeptidyl carboxypeptidase II
1887	 50.66	0	1808677..1809438	+	253	26247820	ydfG	c1965	-	3-hydroxy acid dehydrogenase
1888	 50.80	0	1809527..1810213	+	228	26247821	ydfH	c1966	-	putative transcriptional regulator YdfH
1889	 51.96	0	1810390..1810593	+	67	26247822	ydfZ	c1967	-	hypothetical protein
1890	 49.42	0	1810629..1812089	-	486	26247823	-	c1968	-	oxidoreductase ydfI
1891	 46.35	0	1812178..1813545	-	455	26247824	ydfJ	c1969	-	metabolite transport protein
1892	 45.40	0	1813603..1814646	-	347	26247825	rspB	c1970	-	putative dehydrogenase
1893	 50.88	0	1814634..1815881	-	415	26247826	rspA	c1971	-	starvation sensing protein rspA
1894	 51.79	0	1816054..1816389	-	111	26247827	ynfA	c1972	-	hypothetical protein
1895	 50.29	0	1816515..1816856	+	113	26247828	ynfB	c1973	-	hypothetical protein
1896	 46.88	0	1816891..1817451	+	186	26247829	speG	c1974	-	spermidine N(1)-acetyltransferase
1897	 44.16	-1	1817454..1818164	-	236	161486227	ynfC	c1975	-	hypothetical protein
1898	 52.87	0	1818230..1818577	+	115	26247831	ynfD	c1976	-	hypothetical protein
1899	 50.52	0	1818776..1821202	+	808	26247832	ynfE	c1977	-	putative dimethyl sulfoxide reductase chain ynfE precursor
1900	 50.72	0	1821260..1823686	+	808	26247833	ynfF	c1978	-	dimethyl sulfoxide reductase chain ynfF precursor
1901	 52.27	0	1823697..1824314	+	205	26247834	ynfG	c1979	-	anaerobic dimethyl sulfoxide reductase chain ynfG
1902	 49.66	0	1824295..1824441	-	48	26247835	-	c1980	-	hypothetical protein
1903	 51.23	0	1824316..1825170	+	284	26247836	ynfH	c1981	-	anaerobic dimethyl sulfoxide reductase chain ynfH
1904	 53.66	0	1825213..1825827	+	204	161486226	ynfI	c1982	-	twin-argninine leader-binding protein DmsD
1905	 54.10	0	1826022..1827278	+	418	161486225	ynfJ	c1983	-	putative voltage-gated ClC-type chloride channel ClcB
1906	 52.16	0	1827231..1827926	-	231	161486224	bioD	c1984	-	putative dithiobiotin synthetase
1907	 52.01	0	1828051..1829271	-	406	26247840	mlc	c1985	-	Mlc protein
1908	 52.13	0	1829406..1830299	-	297	26247841	ynfL	c1986	-	putative transcriptional regulator YnfL
1909	 52.71	0	1830406..1831659	+	417	26247842	ynfM	c1987	-	putative transport protein YnfM
1910	 51.13	0	1832071..1832379	+	102	161486223	asr	c1988	-	acid shock protein precursor
1911	 52.55	0	1832655..1833476	+	273	26247845	-	c1990	-	putative protease ydgD precursor
1912	 51.21	0	1833515..1833844	-	109	26247846	ydgE	c1991	-	multidrug efflux system protein MdtI
1913	 43.44	-1	1833831..1834196	-	121	26247847	ydgF	c1992	-	multidrug efflux system protein MdtJ
1914	 50.14	0	1834608..1835642	+	344	26247848	tqsA	c1993	-	putative transport protein
1915	 52.56	0	1835667..1837055	-	462	26247849	pntB	c1994	-	pyridine nucleotide transhydrogenase
1916	 52.24	0	1837066..1838652	-	528	26247850	pntA	c1995	-	NAD(P) transhydrogenase subunit alpha
1917	 50.79	0	1839122..1840066	+	314	26247851	ydgH	c1996	-	hypothetical protein
1918	 53.19	0	1840225..1841634	+	469	26247852	ydgI	c1997	-	putative arginine/ornithine antiporter
1919	 51.31	0	1841671..1842393	+	240	26247853	ydgB	c1998	-	short chain dehydrogenase
1920	 47.32	0	1842390..1842725	-	111	26247854	ydgC	c1999	-	hypothetical protein
1921	 48.33	0	1842794..1843573	+	259	26247855	rstA	c2000	-	DNA-binding transcriptional regulator RstA
1922	 51.31	0	1843577..1844878	+	433	26247856	rstB	c2001	-	sensor protein RstB
1923	 49.79	0	1844942..1845883	+	313	26247857	tus	c2002	-	DNA replication terminus site-binding protein
1924	 54.20	0	1845880..1847283	-	467	26247858	fumC	c2003	-	fumarate hydratase
1925	 51.12	0	1847426..1849072	-	548	26247859	fumA	c2004	-	fumarate hydratase class I, aerobic
1926	 50.60	0	1849271..1850446	+	391	26247860	manA	c2005	-	mannose-6-phosphate isomerase
1927	 49.57	0	1850547..1852055	+	502	26247861	ydgA	c2006	-	hypothetical protein
1928	 47.39	0	1852100..1853365	-	421	26247862	uidC	c2007	-	putative outer membrane porin protein
1929	 51.75	0	1853404..1854777	-	457	26247863	uidB	c2008	-	glucuronide transporter
1930	 51.88	0	1854774..1856585	-	603	26247864	uidA	c2009	-	beta-D-glucuronidase
1931	 50.59	0	1856975..1857565	-	196	26247865	uidR	c2010	-	uid operon repressor
1932	 47.27	0	1857794..1858561	-	255	26247866	hdhA	c2011	-	7-alpha-hydroxysteroid dehydrogenase
1933	 54.42	0	1858673..1859701	-	342	26247867	malI	c2012	-	DNA-binding transcriptional repressor MalI
1934	 52.42	0	1859876..1861468	+	530	161486222	malX	c2013	-	bifunctional maltose and glucose-specific PTS system components IICB
1935	 51.32	0	1861478..1862650	+	390	26247869	malY	c2014	-	cystathionine beta-lyase
1936	 53.69	0	1862754..1863755	+	333	26247870	add	c2015	-	adenosine deaminase
1937	 53.99	0	1863791..1864831	-	346	161486221	ydgJ	c2016	-	putative oxidoreductase
1938	 47.22	0	1865472..1865687	+	71	26247872	ydgT	c2017	-	oriC-binding nucleoid-associated protein
1939	 49.03	0	1865749..1866213	+	154	26247873	ydgK	c2018	-	hypothetical protein
50.18	MEAN

5.55	STD DEV
