IslandPath Analysis: Escherichia coli CFT073

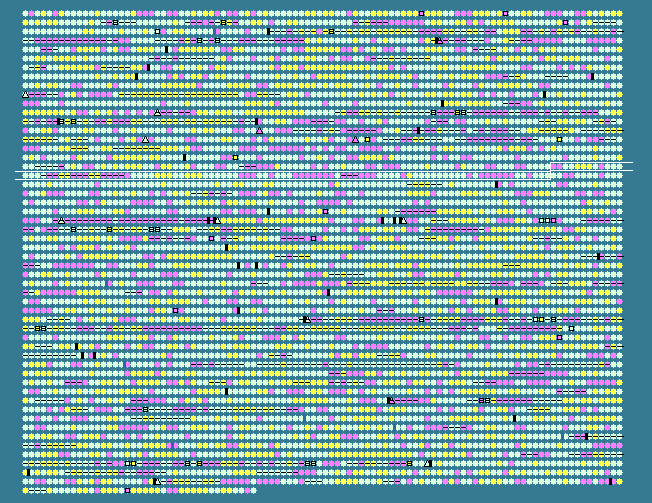

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.18 STD DEV: 5.55
Escherichia coli CFT073, complete genome - 1..5231428
5339 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1789	 40.31	-1	1699860..1699988	-	42	26247722	-	c1861	-	hypothetical protein
1790	 46.57	0	1700015..1700218	+	67	26247723	-	c1862	-	hypothetical protein
1791	 50.96	0	1700297..1701703	+	468	26247724	ydcR	c1863	-	hypothetical protein
1792	 53.05	0	1701948..1703093	+	381	26247725	ydcS	c1864	-	ABC transporter periplasmic-binding protein
1793	 54.93	0	1703111..1704124	+	337	26247726	ydcT	c1865	-	ABC transporter ATP-binding protein
1794	 54.03	0	1704125..1705066	+	313	26247727	ydcU	c1866	-	ABC transporter permease
1795	 53.95	0	1705056..1705700	+	214	26247728	ydcV	c1867	-	ABC transporter permease
1796	 53.47	0	1705873..1707297	+	474	26247729	ydcW	c1869	-	gamma-aminobutyraldehyde dehydrogenase
1797	 44.98	0	1707609..1707857	+	82	26247730	-	c1870	-	hypothetical protein
1798	 52.56	0	1707943..1708176	+	77	26247731	ydc	c1871	-	hypothetical protein
1799	 52.67	0	1708177..1708626	-	149	26247732	ydcZ	c1872	-	hypothetical protein
1800	 51.89	0	1708623..1709204	-	193	26247733	yncA	c1873	-	acetyltransferase yncA
1801	 47.68	0	1709348..1709584	+	78	26247734	-	c1874	-	hypothetical protein
1802	 50.00	0	1711967..1713028	+	353	26247735	yncE	c1877	-	hypothetical protein
1803	 51.77	0	1713141..1714691	-	516	26247736	ansP	c1878	-	L-asparagine permease
1804	 46.89	0	1714907..1715083	+	58	26247737	-	c1879	-	hypothetical protein
1805	 43.33	-1	1715196..1715525	+	109	26247738	-	c1880	-	hypothetical protein
1806	 38.00	-2	1715945..1716094	-	49	26247739	-	c1881	-	hypothetical protein
1807	 56.84	+1	1716066..1716350	+	94	26247740	-	c1882	-	hypothetical protein
1808	 57.78	+1	1716369..1718327	+	652	26247741	-	c1883	-	hypothetical protein
1809	 44.26	-1	1718427..1719167	+	246	26247742	-	c1884	-	hypothetical protein
1810	 38.11	-2	1719505..1720740	+	411	26247743	-	c1885	-	hypothetical protein
1811	 43.39	-1	1720751..1721794	+	347	26247744	-	c1886	-	hypothetical protein
1812	 54.74	0	1721906..1722190	+	94	26247745	-	c1887	-	hypothetical protein
1813	 56.73	+1	1722209..1724614	+	801	26247746	-	c1888	-	hypothetical protein
1814	 35.82	-2	1724601..1725203	+	200	26247747	-	c1889	-	hypothetical protein
1815	 30.91	-2	1725540..1725992	+	150	26247748	-	c1890	-	hypothetical protein
1816	 28.99	-2	1726211..1726717	+	168	26247749	-	c1891	-	hypothetical protein
1817	 27.14	-2	1726714..1727181	+	155	26247750	-	c1892	-	hypothetical protein
1818	 35.42	-2	1727294..1727437	+	47	26247751	-	c1893	-	hypothetical protein
1819	 52.46	0	1728047..1728616	-	189	26247752	yddH	c1894	-	hypothetical protein
1820	 50.35	0	1728791..1729636	+	281	26247753	nhoA	c1895	-	N-hydroxyarylamine O-acetyltransferase
1821	 52.35	0	1729732..1730625	-	297	26247754	yddE	c1896	-	hypothetical protein
1822	 51.84	0	1730705..1731385	-	226	26247755	narV	c1897	-	respiratory nitrate reductase 2 gamma chain
1823	 55.75	+1	1731382..1732077	-	231	26247756	narW	c1898	-	respiratory nitrate reductase 2 delta chain
1824	 54.05	0	1732077..1733621	-	514	26247757	narY	c1899	-	respiratory nitrate reductase 2 beta chain
1825	 54.53	0	1733618..1737481	-	1287	26247758	narZ	c1900	-	respiratory nitrate reductase 2 alpha chain
1826	 49.03	0	1737453..1738841	-	462	26247759	narU	c1901	-	nitrite extrusion protein 2
1827	 49.89	0	1739114..1739995	-	293	26247760	yddG	c1902	-	hypothetical protein
1828	 54.04	0	1740228..1743275	+	1015	26247761	fdnG	c5623	-	formate dehydrogenase, nitrate-inducible, major subunit
1829	 54.07	0	1743252..1744196	-	314	26247762	-	c1905	-	hypothetical protein
1830	 54.35	0	1743288..1744172	+	294	26247763	fdnH	c1906	-	formate dehydrogenase-N beta subunit
1831	 49.54	0	1744165..1744818	+	217	26247764	fdnI	c1907	-	formate dehydrogenase-N subunit gamma
1832	 50.18	0	1745018..1745290	+	90	26247765	-	c1908	-	hypothetical protein
1833	 51.58	0	1745044..1745328	-	94	26247766	yddM	c1909	-	hypothetical protein
1834	 48.35	0	1745328..1745600	-	90	26247767	-	c1910	-	hypothetical protein
1835	 53.21	0	1745792..1746802	-	336	161486231	adhP	c1911	-	alcohol dehydrogenase
1836	 51.71	0	1746936..1748660	-	574	26247769	sfcA	c1912	-	malate dehydrogenase
1837	 44.93	0	1748790..1748927	-	45	26247770	rpsV	c1913	-	30S ribosomal subunit S22
1838	 45.83	0	1749029..1749244	-	71	161486230	-	c1914	-	biofilm-dependent modulation protein
1839	 33.33	-2	1749411..1749551	+	46	26247772	-	c1915	-	hypothetical protein
1840	 49.54	0	1749589..1750020	+	143	26247773	osmC	c1916	-	osmotically inducible protein C
1841	 51.01	0	1751294..1752634	-	446	26247774	-	c1918	-	putative sensor kinase
1842	 44.75	0	1752635..1752853	-	72	26247775	-	c1919	-	hypothetical protein
1843	 52.50	0	1753177..1754496	-	439	26247776	yddW	c1920	-	lipoprotein yddW precursor
1844	 48.37	0	1754627..1756162	-	511	26247777	xasA	c1921	-	amino acid antiporter
1845	 52.38	0	1756318..1757787	-	489	26247778	gadB	c1922	-	glutamate decarboxylase beta
1846	 46.67	0	1758079..1760874	-	931	26247779	pqqL	c1923	-	zinc protease pqqL
1847	 46.19	0	1760919..1763291	-	790	26247780	yddB	c1924	-	hypothetical protein
1848	 43.24	-1	1763329..1765014	-	561	26247781	yddA	c1925	-	ABC transporter ATP-binding protein
1849	 39.13	-1	1765305..1766477	-	390	26247782	ydeM	c1926	-	hypothetical protein
1850	 43.65	-1	1766514..1768229	-	571	26247783	ydeN	c1927	-	putative sulfatase ydeN precursor
1851	 39.24	-1	1768598..1769359	-	253	26247784	ydeO	c1928	-	transcriptional regulator YdeO
1852	 37.88	-2	1769435..1769632	-	65	26247785	-	c1929	-	hypothetical protein
1853	 49.65	0	1769880..1772159	-	759	26247786	ydeP	c1930	-	putative oxidoreductase
1854	 44.26	-1	1772498..1773412	-	304	26247787	ydeQ	c1931	-	fimbrial-like protein ydeQ precursor
1855	 43.45	-1	1773472..1773975	-	167	26247788	ydeR	c1932	-	fimbrial-like protein ydeR precursor
1856	 43.69	-1	1773988..1774518	-	176	26247789	ydeS	c1933	-	fimbrial-like protein ydeS precursor
1857	 44.34	-1	1774532..1777183	-	883	26247790	-	c1934	-	Outer membrane usher protein fimD precursor
1858	 45.29	0	1777225..1777935	-	236	26247791	-	c1935	-	chaperone protein fimC precursor
1859	 44.44	-1	1778297..1778908	-	203	26247792	-	c1936	-	Type-1 fimbrial protein, A chain precursor
1860	 46.74	0	1779636..1780418	-	260	26247793	-	c1937	-	hypothetical protein
1861	 49.05	0	1780528..1781475	+	315	26247794	oprR	c1938	-	putative transcriptional regulator YcjZ
1862	 47.90	0	1781157..1781609	+	150	26247795	-	c1939	-	hypothetical protein
1863	 47.22	0	1781779..1783197	-	472	26247796	hipA	c1940	-	protein hipA
1864	 45.61	0	1783191..1783475	-	94	26247797	hipB	c1941	-	DNA-binding transcriptional regulator HipB
1865	 54.94	0	1783765..1784523	+	252	26247798	tam	c1942	-	trans-aconitate 2-methyltransferase
1866	 47.72	0	1784527..1785492	-	321	26247799	yneE	c1943	-	hypothetical protein
1867	 48.84	0	1787317..1788735	-	472	26247800	yneF	c1945	-	hypothetical protein
1868	 51.39	0	1788874..1789233	-	119	26247801	yneG	c1946	-	hypothetical protein
1869	 51.78	0	1789233..1790159	-	308	26247802	yneH	c1947	-	glutaminase
1870	 52.51	0	1790223..1791635	-	470	26247803	yneI	c1948	-	aldehyde-dehydrogenase like protein
1871	 53.51	0	1791712..1792593	+	293	26247804	yneJ	c1949	-	putative transcriptional regulator YneJ
1872	 50.80	0	1792932..1794122	+	396	26247805	sotB	c1950	-	sugar efflux transporter
1873	 50.30	0	1794147..1794812	-	221	26247806	marC	c1951	-	multiple drug resistance protein MarC
1874	 49.20	0	1795024..1795458	+	144	26247807	marR	c1952	-	DNA-binding transcriptional repressor MarR
1875	 44.79	0	1795479..1795862	+	127	161486229	marA	c1953	-	DNA-binding transcriptional activator MarA
1876	 48.86	0	1795894..1796112	+	72	26247809	marB	c1954	-	hypothetical protein
1877	 44.40	-1	1796169..1797614	-	481	26247810	celA	c1955	-	6-phospho-beta-glucosidase
1878	 42.65	-1	1797633..1799306	-	557	26247811	-	c1956	-	hypothetical protein
1879	 43.81	-1	1799361..1799675	-	104	26247812	-	c1957	-	PTS system, cellobiose-specific IIA component
1880	 42.95	-1	1799700..1801061	-	453	26247813	-	c1958	-	hypothetical protein
1881	 41.67	-1	1801137..1801448	-	103	26247814	-	c1959	-	PTS system, cellobiose-specific IIB component
1882	 41.06	-1	1801647..1802345	+	232	26247815	-	c1960	-	hypothetical protein
1883	 49.78	0	1802390..1803289	-	299	161486228	ydeD	c1961	-	O-acetylserine/cysteine export protein
1884	 49.83	0	1803484..1804671	+	395	26247817	ydeF	c1962	-	putative MFS-type transporter YdeE
1885	 44.70	0	1805113..1806009	-	298	26247818	ydeH	c1963	-	hypothetical protein
1886	 50.28	0	1806510..1808621	-	703	26247819	dcp	c1964	-	dipeptidyl carboxypeptidase II
1887	 50.66	0	1808677..1809438	+	253	26247820	ydfG	c1965	-	3-hydroxy acid dehydrogenase
1888	 50.80	0	1809527..1810213	+	228	26247821	ydfH	c1966	-	putative transcriptional regulator YdfH
50.18	MEAN

5.55	STD DEV
