IslandPath Analysis: Escherichia coli CFT073

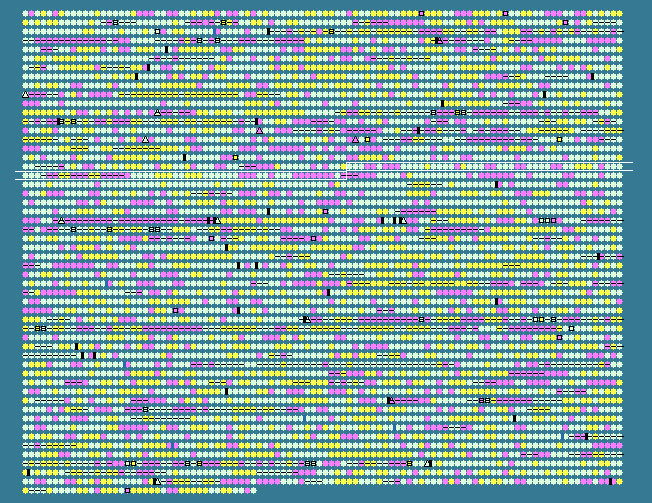

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 50.18   STD DEV: 5.55
Escherichia coli CFT073, complete genome - 1..5231428
5339 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1755	 47.82	0	1659061..1659495	-	144	26247688	hslJ	c1826	-	heat-inducible protein
1756	 50.00	0	1659594..1660583	-	329	26247689	ldhA	c1827	-	D-lactate dehydrogenase
1757	 51.82	0	1660791..1663430	+	879	26247690	ydbH	c1828	-	hypothetical protein
1758	 43.55	-1	1663427..1663612	+	61	26247691	ynbE	c1829	-	hypothetical protein
1759	 44.17	-1	1663587..1663946	+	119	26247692	ydbL	c1830	-	hypothetical protein
1760	 51.57	0	1670579..1671439	+	286	26247693	ydbC	c1832	-	putative oxidoreductase
1761	 44.00	-1	1671484..1671708	-	74	26247694	-	c1833	-	hypothetical protein
1762	 45.21	0	1671738..1672343	+	201	26247695	ynbA	c1834	-	hypothetical protein
1763	 43.03	-1	1672343..1673239	+	298	26247696	ynbB	c1835	-	hypothetical protein
1764	 51.54	0	1673255..1675012	+	585	26247697	ynbC	c1836	-	hypothetical protein
1765	 49.50	0	1674927..1676318	+	463	26247698	ynbD	c1837	-	hypothetical protein
1766	 51.58	0	1676303..1676965	+	220	26247699	-	c1838	-	hypothetical protein
1767	 51.98	0	1676372..1676977	-	201	26247700	acpD	c1839	-	azoreductase
1768	 53.82	0	1677235..1681080	+	1281	161486233	hrpA	c1840	-	ATP-dependent RNA helicase HrpA
1769	 51.31	0	1681353..1682153	+	266	26247702	ydcF	c1841	-	hypothetical protein
1770	 50.83	0	1682350..1683789	+	479	26247703	aldA	c1842	-	aldehyde dehydrogenase A
1771	 48.60	0	1683831..1684832	-	333	26247704	-	c1843	-	glyceraldehyde 3-phosphate dehydrogenase A
1772	 48.21	0	1685021..1685551	+	176	161486232	cybB	c1844	-	cytochrome b561
1773	 45.98	0	1685796..1685969	+	57	26247706	ydcA	c1845	-	hypothetical protein
1774	 53.72	0	1686126..1686596	+	156	26247707	-	c1846	-	hypothetical protein
1775	 47.98	0	1686634..1687698	-	354	26247708	ycdI	c1847	-	putative transcriptional regulator YdcI
1776	 53.05	0	1687774..1689117	+	447	26247709	ydcJ	c1848	-	hypothetical protein
1777	 50.97	0	1689342..1690997	+	551	26247710	mdoD	c1849	-	glucan biosynthesis protein D
1778	 41.99	-1	1691131..1691361	+	76	26247711	ydcH	c1850	-	hypothetical protein
1779	 42.88	-1	1691409..1691963	+	184	26247712	rimL	c1851	-	ribosomal-protein-L7/L12-serine acetyltransferase
1780	 47.91	0	1691955..1692935	-	326	26247713	ydcK	c1852	-	hypothetical protein
1781	 51.32	0	1692951..1694051	+	366	26247714	tehA	c1853	-	potassium-tellurite ethidium and proflavin transporter
1782	 46.80	0	1694048..1694641	+	197	26247715	tehB	c1854	-	tellurite resistance protein TehB
1783	 41.09	-1	1694925..1695053	-	42	26247716	-	c1855	-	hypothetical protein
1784	 44.69	0	1694944..1695612	+	222	26247717	ydcL	c1856	-	lipoprotein ydcL precursor
1785	 52.47	0	1695647..1696942	-	431	26247718	ydcO	c1857	-	hypothetical protein
1786	 49.53	0	1696911..1697447	+	178	26247719	ydcN	c1858	-	hypothetical protein
1787	 50.65	0	1697478..1699481	+	667	26247720	ydcP	c1859	-	putative protease ydcP precursor
1788	 48.92	0	1699573..1699803	-	76	26247721	yncJ	c1860	-	hypothetical protein
1789	 40.31	-1	1699860..1699988	-	42	26247722	-	c1861	-	hypothetical protein
1790	 46.57	0	1700015..1700218	+	67	26247723	-	c1862	-	hypothetical protein
1791	 50.96	0	1700297..1701703	+	468	26247724	ydcR	c1863	-	hypothetical protein
1792	 53.05	0	1701948..1703093	+	381	26247725	ydcS	c1864	-	ABC transporter periplasmic-binding protein
1793	 54.93	0	1703111..1704124	+	337	26247726	ydcT	c1865	-	ABC transporter ATP-binding protein
1794	 54.03	0	1704125..1705066	+	313	26247727	ydcU	c1866	-	ABC transporter permease
1795	 53.95	0	1705056..1705700	+	214	26247728	ydcV	c1867	-	ABC transporter permease
1796	 53.47	0	1705873..1707297	+	474	26247729	ydcW	c1869	-	gamma-aminobutyraldehyde dehydrogenase
1797	 44.98	0	1707609..1707857	+	82	26247730	-	c1870	-	hypothetical protein
1798	 52.56	0	1707943..1708176	+	77	26247731	ydc	c1871	-	hypothetical protein
1799	 52.67	0	1708177..1708626	-	149	26247732	ydcZ	c1872	-	hypothetical protein
1800	 51.89	0	1708623..1709204	-	193	26247733	yncA	c1873	-	acetyltransferase yncA
1801	 47.68	0	1709348..1709584	+	78	26247734	-	c1874	-	hypothetical protein
1802	 50.00	0	1711967..1713028	+	353	26247735	yncE	c1877	-	hypothetical protein
1803	 51.77	0	1713141..1714691	-	516	26247736	ansP	c1878	-	L-asparagine permease
1804	 46.89	0	1714907..1715083	+	58	26247737	-	c1879	-	hypothetical protein
1805	 43.33	-1	1715196..1715525	+	109	26247738	-	c1880	-	hypothetical protein
1806	 38.00	-2	1715945..1716094	-	49	26247739	-	c1881	-	hypothetical protein
1807	 56.84	+1	1716066..1716350	+	94	26247740	-	c1882	-	hypothetical protein
1808	 57.78	+1	1716369..1718327	+	652	26247741	-	c1883	-	hypothetical protein
1809	 44.26	-1	1718427..1719167	+	246	26247742	-	c1884	-	hypothetical protein
1810	 38.11	-2	1719505..1720740	+	411	26247743	-	c1885	-	hypothetical protein
1811	 43.39	-1	1720751..1721794	+	347	26247744	-	c1886	-	hypothetical protein
1812	 54.74	0	1721906..1722190	+	94	26247745	-	c1887	-	hypothetical protein
1813	 56.73	+1	1722209..1724614	+	801	26247746	-	c1888	-	hypothetical protein
1814	 35.82	-2	1724601..1725203	+	200	26247747	-	c1889	-	hypothetical protein
1815	 30.91	-2	1725540..1725992	+	150	26247748	-	c1890	-	hypothetical protein
1816	 28.99	-2	1726211..1726717	+	168	26247749	-	c1891	-	hypothetical protein
1817	 27.14	-2	1726714..1727181	+	155	26247750	-	c1892	-	hypothetical protein
1818	 35.42	-2	1727294..1727437	+	47	26247751	-	c1893	-	hypothetical protein
1819	 52.46	0	1728047..1728616	-	189	26247752	yddH	c1894	-	hypothetical protein
1820	 50.35	0	1728791..1729636	+	281	26247753	nhoA	c1895	-	N-hydroxyarylamine O-acetyltransferase
1821	 52.35	0	1729732..1730625	-	297	26247754	yddE	c1896	-	hypothetical protein
1822	 51.84	0	1730705..1731385	-	226	26247755	narV	c1897	-	respiratory nitrate reductase 2 gamma chain
1823	 55.75	+1	1731382..1732077	-	231	26247756	narW	c1898	-	respiratory nitrate reductase 2 delta chain
1824	 54.05	0	1732077..1733621	-	514	26247757	narY	c1899	-	respiratory nitrate reductase 2 beta chain
1825	 54.53	0	1733618..1737481	-	1287	26247758	narZ	c1900	-	respiratory nitrate reductase 2 alpha chain
1826	 49.03	0	1737453..1738841	-	462	26247759	narU	c1901	-	nitrite extrusion protein 2
1827	 49.89	0	1739114..1739995	-	293	26247760	yddG	c1902	-	hypothetical protein
1828	 54.04	0	1740228..1743275	+	1015	26247761	fdnG	c5623	-	formate dehydrogenase, nitrate-inducible, major subunit
1829	 54.07	0	1743252..1744196	-	314	26247762	-	c1905	-	hypothetical protein
1830	 54.35	0	1743288..1744172	+	294	26247763	fdnH	c1906	-	formate dehydrogenase-N beta subunit
1831	 49.54	0	1744165..1744818	+	217	26247764	fdnI	c1907	-	formate dehydrogenase-N subunit gamma
1832	 50.18	0	1745018..1745290	+	90	26247765	-	c1908	-	hypothetical protein
1833	 51.58	0	1745044..1745328	-	94	26247766	yddM	c1909	-	hypothetical protein
1834	 48.35	0	1745328..1745600	-	90	26247767	-	c1910	-	hypothetical protein
1835	 53.21	0	1745792..1746802	-	336	161486231	adhP	c1911	-	alcohol dehydrogenase
1836	 51.71	0	1746936..1748660	-	574	26247769	sfcA	c1912	-	malate dehydrogenase
1837	 44.93	0	1748790..1748927	-	45	26247770	rpsV	c1913	-	30S ribosomal subunit S22
1838	 45.83	0	1749029..1749244	-	71	161486230	-	c1914	-	biofilm-dependent modulation protein
1839	 33.33	-2	1749411..1749551	+	46	26247772	-	c1915	-	hypothetical protein
1840	 49.54	0	1749589..1750020	+	143	26247773	osmC	c1916	-	osmotically inducible protein C
1841	 51.01	0	1751294..1752634	-	446	26247774	-	c1918	-	putative sensor kinase
1842	 44.75	0	1752635..1752853	-	72	26247775	-	c1919	-	hypothetical protein
1843	 52.50	0	1753177..1754496	-	439	26247776	yddW	c1920	-	lipoprotein yddW precursor
1844	 48.37	0	1754627..1756162	-	511	26247777	xasA	c1921	-	amino acid antiporter
1845	 52.38	0	1756318..1757787	-	489	26247778	gadB	c1922	-	glutamate decarboxylase beta
1846	 46.67	0	1758079..1760874	-	931	26247779	pqqL	c1923	-	zinc protease pqqL
1847	 46.19	0	1760919..1763291	-	790	26247780	yddB	c1924	-	hypothetical protein
1848	 43.24	-1	1763329..1765014	-	561	26247781	yddA	c1925	-	ABC transporter ATP-binding protein
1849	 39.13	-1	1765305..1766477	-	390	26247782	ydeM	c1926	-	hypothetical protein
1850	 43.65	-1	1766514..1768229	-	571	26247783	ydeN	c1927	-	putative sulfatase ydeN precursor
1851	 39.24	-1	1768598..1769359	-	253	26247784	ydeO	c1928	-	transcriptional regulator YdeO
1852	 37.88	-2	1769435..1769632	-	65	26247785	-	c1929	-	hypothetical protein
1853	 49.65	0	1769880..1772159	-	759	26247786	ydeP	c1930	-	putative oxidoreductase
1854	 44.26	-1	1772498..1773412	-	304	26247787	ydeQ	c1931	-	fimbrial-like protein ydeQ precursor
50.18	MEAN

5.55	STD DEV
