IslandPath Analysis: Escherichia coli CFT073

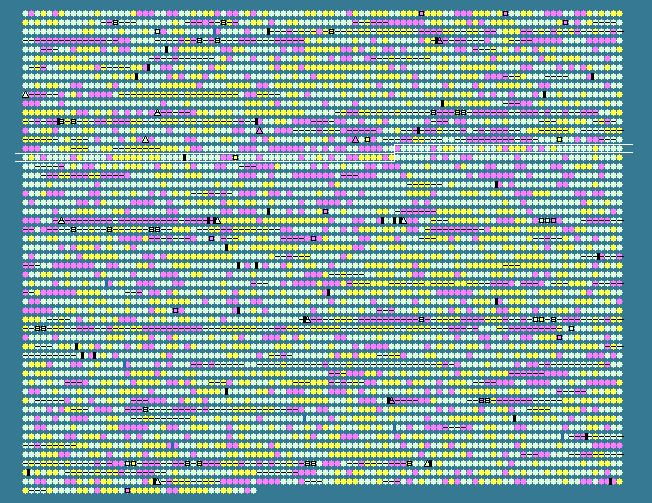

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.18 STD DEV: 5.55
Escherichia coli CFT073, complete genome - 1..5231428
5339 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1563	 37.94	-2	1467497..1467778	-	93	26247495	-	c1630	-	hypothetical protein
1564	 48.10	0	1468083..1468502	+	139	26247496	umuD	c1631	-	DNA polymerase V subunit UmuD
1565	 50.91	0	1468502..1469770	+	422	26247497	umuC	c1632	-	DNA polymerase V subunit UmuC
1566	 52.92	0	1469815..1470345	-	176	161486244	dsbB	c1633	-	disulfide bond formation protein B
1567	 52.14	0	1470491..1472032	-	513	161486243	nhaB	c1634	-	sodium/proton antiporter
1568	 50.97	0	1472254..1472973	+	239	26247500	fadR	c1635	-	fatty acid metabolism regulator
1569	 43.65	-1	1472961..1473086	-	41	26247501	-	c1636	-	hypothetical protein
1570	 49.97	0	1473136..1474668	-	510	26247502	ycgB	c1637	-	hypothetical protein
1571	 56.51	+1	1474998..1476296	+	432	161486242	dadA	c1638	-	D-amino acid dehydrogenase small subunit
1572	 57.24	+1	1476306..1477376	+	356	26247504	dadX	c1639	-	alanine racemase
1573	 52.96	0	1477433..1479169	-	578	26247505	ycgO	c1640	-	potassium/proton antiporter
1574	 52.02	0	1479264..1480178	-	304	26247506	ldcA	c1641	-	L,D-carboxypeptidase A
1575	 51.10	0	1480164..1480889	+	241	26247508	mltE	c1643	-	membrane-bound lytic murein transglycosylase E
1576	 50.75	0	1480891..1481625	-	244	26247509	ycgR	c1644	-	hypothetical protein
1577	 54.51	0	1481793..1482080	+	95	26247510	ymgE	c1645	-	transglycosylase associated protein
1578	 49.65	0	1482130..1484121	-	663	26247511	prrA	c1646	-	outer membrane receptor
1579	 51.93	0	1484126..1484980	-	284	26247512	modD	c1647	-	molybdenum transport protein ModD
1580	 56.07	+1	1484977..1485684	-	235	26247513	-	c1648	-	hypothetical protein
1581	 45.33	0	1485730..1485879	+	49	26247514	-	c1649	-	hypothetical protein
1582	 53.75	0	1485799..1486557	-	252	26247515	-	c1650	-	putative iron compound ABC transporter, ATP-binding protein
1583	 55.30	0	1486554..1487450	-	298	26247516	fecD	c1651	-	Iron(III) dicitrate transport system permease protein fecD
1584	 53.76	0	1487534..1488556	-	340	26247517	-	c1652	-	hypothetical protein
1585	 33.33	-2	1488624..1488749	-	41	26247518	-	c1653	-	hypothetical protein
1586	 51.71	0	1488887..1490584	-	565	26247519	treA	c1654	-	trehalase
1587	 42.13	-1	1490529..1490744	+	71	26247520	-	c1655	-	hypothetical protein
1588	 49.96	0	1490903..1492327	-	474	26247521	ycgC	c1656	-	dihydroxyacetone kinase subunit M
1589	 54.15	0	1492332..1493042	-	236	26247522	-	c1657	-	dihydroxyacetone kinase ADP-binding subunit
1590	 52.41	0	1492975..1494075	-	366	26247523	ycgT	c1658	-	dihydroxyacetone kinase subunit DhaK
1591	 51.68	0	1494264..1496192	+	642	26247524	-	c1659	-	DNA-binding transcriptional regulator DhaR
1592	 47.19	0	1496229..1496459	-	76	26247525	-	c1660	-	hypothetical protein
1593	 51.37	0	1496597..1497688	-	363	26247526	ychF	c1661	-	translation-associated GTPase
1594	 50.09	0	1497805..1498389	-	194	26247527	pth	c1662	-	peptidyl-tRNA hydrolase
1595	 53.41	0	1498667..1498945	+	92	26247528	ychH	c1663	-	hypothetical protein
1596	 54.82	0	1499000..1500679	-	559	26247529	ychM	c1664	-	putative sulfate transporter YchM
1597	 52.76	0	1500804..1501817	-	337	26247530	prsA	c1665	-	ribose-phosphate pyrophosphokinase
1598	 52.70	0	1501902..1502753	-	283	26247531	ispE	c1666	-	4-diphosphocytidyl-2-C-methyl-D-erythritol kinase
1599	 49.28	0	1502753..1503442	-	229	26247532	lolB	c1667	-	outer membrane lipoprotein LolB
1600	 53.38	0	1503590..1504846	+	418	161486241	hemA	c1668	-	glutamyl-tRNA reductase
1601	 52.72	0	1504888..1505970	+	360	26247534	prfA	c1669	-	peptide chain release factor 1
1602	 55.52	0	1505970..1506803	+	277	26247535	hemK	c1670	-	N5-glutamine S-adenosyl-L-methionine-dependent methyltransferase
1603	 48.09	0	1506800..1507192	+	130	26247536	-	c1671	-	putative transcriptional regulator
1604	 46.05	0	1507196..1508005	+	269	26247537	ychA	c1672	-	putative transcriptional regulator
1605	 49.22	0	1508002..1508964	-	320	26247538	-	c1673	-	hypothetical protein
1606	 50.99	0	1508041..1508895	+	284	26247539	kdsA	c1674	-	2-dehydro-3-deoxyphosphooctonate aldolase
1607	 51.61	0	1509044..1509322	-	92	26247540	-	c1675	-	hypothetical protein
1608	 47.31	0	1509561..1510748	-	395	26247541	chaA	c1676	-	calcium/sodium:proton antiporter
1609	 45.45	0	1510931..1511161	+	76	26247542	chaB	c1677	-	cation transport regulator
1610	 55.05	0	1511271..1512002	+	243	26247543	chaC	c1678	-	cation transport protein chaC
1611	 50.85	0	1512046..1512399	-	117	26247544	ychN	c1679	-	hypothetical protein
1612	 51.18	0	1512584..1513978	+	464	26247545	ychP	c1680	-	hypothetical protein
1613	 51.46	0	1513979..1514695	-	238	26247546	narL	c1681	-	transcriptional regulator NarL
1614	 53.14	0	1514622..1516418	-	598	26247547	narX	c1682	-	nitrate/nitrite sensor protein NarX
1615	 37.44	-2	1516444..1516662	+	72	26247548	-	c1683	-	hypothetical protein
1616	 53.72	0	1516751..1518148	+	465	26247549	narK	c1684	-	nitrite extrusion protein 1
1617	 54.86	0	1518541..1522284	+	1247	26247550	narG	c1685	-	respiratory nitrate reductase 1 alpha chain
1618	 54.06	0	1522281..1523819	+	512	26247551	narH	c1686	-	respiratory nitrate reductase 1 beta chain
1619	 55.41	0	1523816..1524526	+	236	26247552	narJ	c1687	-	respiratory nitrate reductase 1 delta chain
1620	 55.31	0	1524526..1525203	+	225	26247553	narI	c1688	-	respiratory nitrate reductase 1 gamma chain
1621	 51.44	0	1525279..1526322	+	347	26247554	-	c1689	-	hypothetical protein
1622	 54.18	0	1526319..1527335	+	338	26247555	-	c1690	-	hypothetical protein
1623	 54.28	0	1527313..1528119	+	268	26247556	-	c1691	-	putative gumP-like protein
1624	 52.91	0	1528116..1529402	+	428	26247557	-	c1692	-	hypothetical protein
1625	 50.57	0	1529387..1530001	+	204	26247558	-	c1693	-	hypothetical protein
1626	 48.53	0	1529994..1531118	+	374	26247559	-	c1694	-	hypothetical protein
1627	 52.01	0	1531105..1532196	+	363	26247560	-	c1695	-	hypothetical protein
1628	 48.04	0	1532753..1533595	-	280	26247561	purU	c1696	-	formyltetrahydrofolate deformylase
1629	 47.06	0	1533645..1534103	-	152	161486240	ychJ	c1697	-	hypothetical protein
1630	 50.05	0	1534177..1535121	+	314	26247563	ychK	c1698	-	hypothetical protein
1631	 48.32	0	1535213..1536226	+	337	26247564	hnr	c1699	-	response regulator of RpoS
1632	 46.97	0	1536428..1537336	+	302	26247565	galU	c1700	-	UTP--glucose-1-phosphate uridylyltransferase subunit GalU
1633	 47.10	0	1537480..1537893	-	137	26247566	hns	c1701	-	global DNA-binding transcriptional dual regulator H-NS
1634	 37.21	-2	1537985..1538113	-	42	26247567	-	c1702	-	hypothetical protein
1635	 42.39	-1	1538497..1539114	+	205	26247568	tdk	c1703	-	thymidine kinase
1636	 53.73	0	1539241..1540446	-	401	26247569	-	c1704	-	transposase insG
1637	 50.49	0	1540572..1543247	-	891	26247570	adhE	c1705	-	bifunctional acetaldehyde-CoA/alcohol dehydrogenase
1638	 47.53	0	1543724..1544371	+	215	26247571	ychE	c1706	-	hypothetical protein
1639	 47.30	0	1545037..1546740	+	567	26247572	oppA	c1707	-	periplasmic oligopeptide-binding protein precursor
1640	 46.36	0	1546826..1547746	+	306	26247573	oppB	c1708	-	oligopeptide transporter permease
1641	 52.48	0	1547761..1548669	+	302	26247574	oppC	c1709	-	oligopeptide transport system permease protein oppC
1642	 51.78	0	1548681..1549694	+	337	26247575	oppD	c1710	-	oligopeptide transporter ATP-binding component
1643	 52.24	0	1549691..1550695	+	334	26247576	oppF	c1711	-	oligopeptide transport ATP-binding protein oppF
1644	 47.88	0	1550748..1551077	-	109	161486239	yciU	c1712	-	dsDNA-mimic protein
1645	 51.54	0	1551112..1552572	-	486	26247578	cls	c1713	-	cardiolipin synthetase
1646	 48.77	0	1552604..1552888	+	94	26247579	-	c1714	-	hypothetical protein
1647	 42.61	-1	1552943..1554214	-	423	26247580	kch	c1715	-	voltage-gated potassium channel
1648	 49.49	0	1554496..1554792	-	98	161486238	yciI	c1716	-	YciI-like protein
1649	 52.86	0	1554965..1555732	+	255	26247582	tonB	c1717	-	transport protein TonB
1650	 58.13	+1	1555198..1555443	-	81	26247583	-	c1718	-	hypothetical protein
1651	 48.87	0	1555772..1556170	-	132	26247584	yciA	c1719	-	acyl-CoA thioester hydrolase
1652	 46.48	0	1556275..1556814	-	179	26247585	ispZ	c1720	-	intracellular septation protein A
1653	 49.33	0	1556844..1557587	-	247	26247586	yciC	c1721	-	hypothetical protein
1654	 49.23	0	1557866..1558582	+	238	26247587	ompW	c1722	-	outer membrane protein W
1655	 40.63	-1	1558641..1559147	-	168	26247588	yciE	c1723	-	hypothetical protein
1656	 43.06	-1	1559193..1559696	-	167	26247589	yciF	c1724	-	hypothetical protein
1657	 55.14	0	1560020..1560826	-	268	26247590	trpA	c1725	-	tryptophan synthase subunit alpha
1658	 54.52	0	1560826..1562019	-	397	26247591	trpB	c1726	-	tryptophan synthase subunit beta
1659	 56.02	+1	1563393..1564988	-	531	26247592	trpD	c1729	-	bifunctional anthranilate synthase/anthranilate phosphoribosyltransferase
1660	 54.00	0	1564988..1566550	-	520	26247593	trpE	c1730	-	anthranilate synthase component I
1661	 44.44	-1	1566642..1566686	-	14	26247594	trpL	c5494	-	Trp operon leader peptide
1662	 53.97	0	1566824..1567705	+	293	26247595	trpH	c1731	-	protein trpH
50.18	MEAN

5.55	STD DEV
