IslandPath Analysis: Escherichia coli CFT073

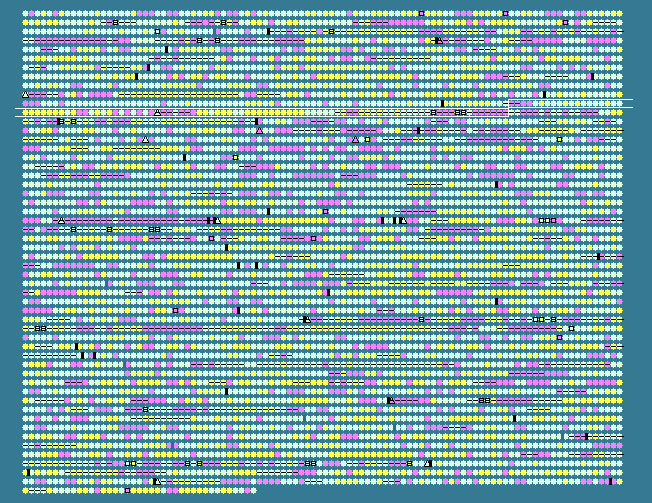

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 50.18   STD DEV: 5.55
Escherichia coli CFT073, complete genome - 1..5231428
5339 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1082	 43.19	-1	1086202..1086414	+	70	26247008	cspG	c1123	-	cold shock protein CspG
1083	 42.80	-1	1086555..1086818	+	87	26247009	sfa	c1124	-	cold shock gene
1084	 39.66	-1	1086808..1086981	+	57	26247010	-	c1125	-	GnsB protein
1085	 39.66	-1	1086823..1086996	-	57	26247011	-	c1126	-	hypothetical protein
1086	 48.79	0	1087030..1088103	-	357	26247012	yccM	c1127	-	putative electron transport protein yccM
1087	 54.01	0	1088186..1090918	-	910	161486256	torS	c1128	-	hybrid sensory histidine kinase TorS
1088	 53.55	0	1091001..1092029	+	342	26247015	torT	c1130	-	periplasmic sensory protein associated with the TorRS two-component regulatory system
1089	 53.54	0	1092002..1092694	-	230	26247016	torR	c1131	-	DNA-binding transcriptional regulator TorR
1090	 50.29	0	1092776..1093996	+	406	26247017	torC	c1132	-	cytochrome c-type protein torC
1091	 55.36	0	1093996..1096542	+	848	26247018	torA	c1133	-	trimethylamine-N-oxide reductase 1 precursor
1092	 52.83	0	1096539..1097138	+	199	161486255	torD	c1134	-	chaperone protein TorD
1093	 54.90	0	1097494..1097799	-	101	26247020	yccD	c1135	-	chaperone-modulator protein CbpM
1094	 53.31	0	1097799..1098719	-	306	26247021	cbpA	c1136	-	curved DNA-binding protein CbpA
1095	 51.20	0	1099254..1100210	+	318	26247022	agp	c1137	-	glucose-1-phosphatase/inositol phosphatase
1096	 49.80	0	1100241..1100495	+	84	26247023	-	c1138	-	hypothetical protein
1097	 47.37	0	1100533..1100760	-	75	26247024	yccJ	c1139	-	hypothetical protein
1098	 53.94	0	1100781..1101377	-	198	26247025	wrbA	c1140	-	TrpR binding protein WrbA
1099	 49.69	0	1101781..1101939	+	52	26247026	-	c1141	-	hypothetical protein
1100	 50.00	0	1101936..1102073	+	45	26247027	-	c1142	-	hypothetical protein
1101	 53.91	0	1102006..1103400	-	464	26247028	ycdG	c1143	-	putative purine permease ycdG
1102	 58.38	+1	1103355..1103909	-	184	26247029	-	c1144	-	putative flavin:NADH reductase ycdH
1103	 56.51	+1	1103860..1104450	-	196	26247030	-	c1145	-	hypothetical protein
1104	 58.09	+1	1104460..1105287	-	275	26247031	ycdJ	c1146	-	hypothetical protein
1105	 54.78	0	1105268..1105654	-	128	26247032	ycdK	c1147	-	hypothetical protein
1106	 55.92	+1	1105666..1106400	-	244	26247033	ycdL	c1148	-	isochorismatase family protein ycdL
1107	 54.48	0	1106358..1107539	-	393	26247034	-	c1149	-	putative monooxygenase ycdM
1108	 51.20	0	1107710..1108375	+	221	26247035	ycdC	c1150	-	putative transcriptional regulator YcdC
1109	 56.04	+1	1108415..1112377	-	1320	161486254	putA	c1151	-	trifunctional transcriptional regulator/proline dehydrogenase/pyrroline-5-carboxylate dehydrogenase
1110	 36.67	-2	1112432..1112641	+	69	26247037	-	c1152	-	hypothetical protein
1111	 39.06	-2	1112529..1112720	-	63	26247038	-	c1153	-	hypothetical protein
1112	 53.61	0	1112800..1114308	+	502	26247039	putP	c1154	-	Sodium/proline symporter
1113	 54.43	0	1114592..1115359	+	255	26247040	-	c1155	-	putative cytochrome
1114	 50.80	0	1115417..1116544	+	375	26247041	ycdO	c1156	-	hypothetical protein
1115	 53.85	0	1116550..1117821	+	423	26247042	ycdB	c1157	-	hypothetical protein
1116	 34.81	-2	1117958..1118092	-	44	26247043	-	c1158	-	hypothetical protein
1117	 52.60	0	1118312..1119235	+	307	26247044	phoH	c1159	-	hypothetical protein
1118	 43.72	-1	1119285..1119698	-	137	26247045	ycdP	c1160	-	hypothetical protein
1119	 46.98	0	1119700..1121025	-	441	26247046	ycdQ	c1161	-	N-glycosyltransferase PgaC
1120	 44.43	-1	1121018..1123036	-	672	26247047	ycdR	c1162	-	lipoprotein ycdR precursor
1121	 46.99	0	1123045..1125468	-	807	26247048	ycdS	c1163	-	outer membrane protein PgaA
1122	 37.83	-2	1125933..1127423	+	496	26247049	ycdT	c1164	-	hypothetical protein
1123	 48.71	0	1127702..1128904	+	400	26247050	-	c1165	-	P4 family integrase
1124	 32.45	-2	1129092..1130909	-	605	26247051	-	c1166	-	hypothetical protein
1125	 43.03	-1	1131195..1131359	+	54	26247052	-	c1167	-	hypothetical protein
1126	 47.07	0	1131407..1131799	+	130	26247053	-	c1168	-	hypothetical protein
1127	 44.18	-1	1132071..1132319	+	82	26247054	alpA	c1169	-	prophage CP4-57 regulatory protein alpA
1128	 42.16	-1	1132944..1134404	+	486	26247055	-	c1170	-	hypothetical protein
1129	 44.28	-1	1135368..1135961	+	197	26247056	-	c1171	-	hypothetical protein
1130	 56.98	+1	1136060..1136317	-	85	26247057	-	c1172	-	hypothetical protein
1131	 56.52	+1	1136063..1136269	+	68	26247058	-	c1173	-	hypothetical protein
1132	 49.93	0	1136438..1138438	-	666	26247059	-	c1174	-	hypothetical protein
1133	 54.67	0	1138353..1139519	-	388	26247060	-	c1175	-	putative aminotransferase
1134	 54.49	0	1139941..1140564	-	207	26247061	-	c1176	-	hypothetical protein
1135	 55.43	0	1142429..1142953	+	174	26247062	-	c1183	-	hypothetical protein
1136	 51.41	0	1142992..1143417	+	141	26247063	-	c1184	-	hypothetical protein
1137	 49.70	0	1143016..1143180	-	54	26247064	-	c1185	-	hypothetical protein
1138	 55.28	0	1143727..1144956	-	409	26247065	-	c1186	-	3-oxoacyl-(acyl carrier protein) synthase II
1139	 56.69	+1	1144953..1145684	-	243	26247066	fabG	c1187	-	3-ketoacyl-(acyl-carrier-protein) reductase
1140	 59.78	+1	1145684..1146148	-	154	26247067	-	c1188	-	hypothetical protein
1141	 60.31	+1	1146145..1147323	-	392	26247068	-	c1189	-	3-oxoacyl-(acyl carrier protein) synthase I
1142	 57.09	+1	1147316..1147900	-	194	26247069	-	c1190	-	hypothetical protein
1143	 58.09	+1	1147897..1150215	-	772	26247070	-	c1191	-	hypothetical protein
1144	 54.29	0	1150184..1150789	-	201	26247071	-	c1192	-	hypothetical protein
1145	 54.37	0	1150786..1151208	-	140	26247072	-	c1193	-	hypothetical protein
1146	 57.73	+1	1151212..1152834	-	540	26247073	-	c1194	-	hypothetical protein
1147	 61.79	+2	1152806..1152928	-	40	26247074	-	c1195	-	hypothetical protein
1148	 50.26	0	1152879..1153256	-	125	26247075	-	c1196	-	hypothetical protein
1149	 47.83	0	1153219..1154577	-	452	26247076	-	c1197	-	hypothetical protein
1150	 51.97	0	1154574..1155158	-	194	26247077	-	c1198	-	hypothetical protein
1151	 48.02	0	1155160..1155411	-	83	26247078	-	c1199	-	acyl carrier protein
1152	 49.22	0	1155423..1155680	-	85	26247079	-	c1200	-	putative acyl carrier protein
1153	 51.07	0	1155655..1156494	-	279	26247080	-	c1201	-	putative phospholipid biosynthesis acyltransferase
1154	 53.68	0	1156473..1157219	-	248	26247081	-	c1202	-	hypothetical protein
1155	 45.89	0	1157236..1158294	-	352	26247082	-	c1203	-	putative O-methyltransferase
1156	 41.79	-1	1158359..1158748	-	129	26247083	-	c1204	-	hypothetical protein
1157	 56.29	+1	1159313..1162039	+	908	26247084	-	c1205	-	hypothetical protein
1158	 55.64	0	1161999..1163231	+	410	26247085	-	c1206	-	hypothetical protein
1159	 51.98	0	1163191..1164804	+	537	26247086	-	c1207	-	hypothetical protein
1160	 53.70	0	1165325..1165702	+	125	26247087	-	c1208	-	hypothetical protein
1161	 47.73	0	1166202..1166597	+	131	26247088	-	c1209	-	hypothetical protein
1162	 50.85	0	1166395..1166571	-	58	26247089	-	c1210	-	hypothetical protein
1163	 55.85	+1	1167823..1168386	+	187	26247090	-	c1213	-	hypothetical protein
1164	 47.50	0	1168463..1168702	-	79	26247091	-	c1214	-	Cea protein
1165	 47.14	0	1169460..1169669	+	69	26247092	-	c1215	-	entry exclusion protein 2
1166	 49.36	0	1169792..1169947	-	51	26247093	-	c1216	-	hypothetical protein
1167	 50.16	0	1169968..1170276	-	102	26247094	-	c1217	-	hypothetical protein
1168	 49.60	0	1170358..1170861	-	167	26247095	-	c1218	-	hypothetical protein
1169	 53.47	0	1170833..1171582	-	249	26247096	-	c1219	-	putative transposase
1170	 41.13	-1	1172485..1173561	+	358	26247097	-	c1220	-	phospho-2-dehydro-3-deoxyheptonate aldolase
1171	 35.47	-2	1173449..1173682	+	77	26247098	-	c1221	-	hypothetical protein
1172	 37.12	-2	1174032..1174163	+	43	26247099	-	c1222	-	hypothetical protein
1173	 56.84	+1	1174628..1175380	-	250	26247100	-	c1224	-	transposase insF
1174	 50.67	0	1175364..1175588	-	74	26247101	-	c1225	-	transposase insE
1175	 50.68	0	1176756..1177049	+	97	26247102	mchB	c1227	-	MchB protein
1176	 43.26	-1	1177321..1178871	+	516	26247103	mchC	c1229	-	MchC protein
1177	 42.38	-1	1178897..1179349	+	150	26247104	mchD	c1230	-	MchD protein
1178	 42.35	-1	1179502..1180776	+	424	26247105	mchE	c1231	-	microcin H47 secretion protein
1179	 46.00	0	1180751..1182865	+	704	26247106	mchF	c1232	-	microcin H47 secretion ATP-binding protein
1180	 32.90	-2	1183572..1184258	-	228	26247107	-	c1233	-	hypothetical protein
1181	 36.09	-2	1184358..1184828	-	156	26247108	-	c1234	-	hypothetical protein
50.18	MEAN

5.55	STD DEV
