IslandPathversion 1.0

IslandPath Analysis: Escherichia coli CFT073

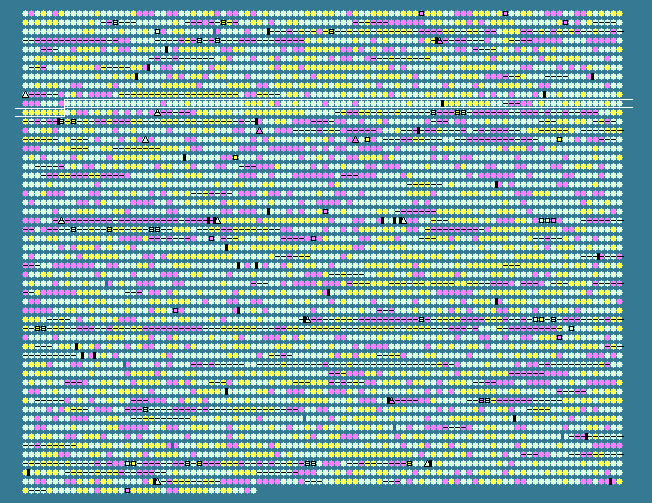

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.18 STD DEV: 5.55
Escherichia coli CFT073, complete genome - 1..5231428
5339 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1008	 50.84	0	1005832..1007625	-	597	26246930	ycaO	c1043	-	hypothetical protein
1009	 47.91	0	1007722..1008414	+	230	26246931	ycaP	c1044	-	hypothetical protein
1010	 49.59	0	1008613..1009701	+	362	26246932	serC	c1045	-	phosphoserine aminotransferase
1011	 50.00	0	1009772..1011055	+	427	26246933	aroA	c1046	-	3-phosphoshikimate 1-carboxyvinyltransferase
1012	 48.97	0	1011216..1011989	+	257	26246934	ycaL	c1047	-	putative metalloprotease ycaL
1013	 53.65	0	1012162..1012845	+	227	26246935	cmk	c1048	-	cytidylate kinase
1014	 51.19	0	1012956..1014629	+	557	26246936	rpsA	c1049	-	30S ribosomal protein S1
1015	 49.12	0	1014789..1015073	+	94	26246937	ihfB	c1050	-	integration host factor subunit beta
1016	 48.22	0	1014798..1015106	-	102	26246938	-	c1051	-	hypothetical protein
1017	 49.49	0	1015279..1017543	+	754	161486261	ycaI	c1052	-	hypothetical protein
1018	 50.31	0	1017580..1019328	+	582	26246941	msbA	c1054	-	lipid transporter ATP-binding/permease protein
1019	 52.15	0	1020349..1021581	+	410	26246942	ycaQ	c1057	-	hypothetical protein
1020	 48.09	0	1021633..1021815	+	60	26246943	ycaR	c1058	-	hypothetical protein
1021	 53.01	0	1021812..1022558	+	248	26246944	kdsB	c1059	-	3-deoxy-manno-octulosonate cytidylyltransferase
1022	 51.90	0	1022712..1023605	+	297	26246945	ycbJ	c1060	-	hypothetical protein
1023	 51.79	0	1023582..1024361	-	259	26246946	ycbC	c1061	-	hypothetical protein
1024	 46.06	0	1024264..1024428	-	54	26246947	-	c1062	-	hypothetical protein
1025	 51.75	0	1024485..1025282	+	265	26246948	smtA	c1063	-	putative metallothionein SmtA
1026	 52.46	0	1025279..1026601	+	440	26246949	mukF	c1064	-	condesin subunit F
1027	 51.50	0	1026555..1027286	+	243	26246950	mukE	c1065	-	condesin subunit E
1028	 55.48	0	1027286..1031746	+	1486	26246951	mukB	c1066	-	cell division protein MukB
1029	 52.92	0	1032007..1033854	+	615	26246952	ycbB	c1067	-	hypothetical protein
1030	 50.18	0	1034026..1034583	+	185	26246953	ycbK	c1068	-	hypothetical protein
1031	 51.85	0	1034610..1035257	+	215	26246954	ycbL	c1069	-	hypothetical protein
1032	 52.06	0	1035307..1036497	-	396	26246955	aspC	c1070	-	aromatic amino acid aminotransferase
1033	 47.84	0	1036682..1037770	-	362	26246956	ompF	c1071	-	outer membrane protein F
1034	 52.61	0	1038373..1039773	-	466	26246957	asnC	c1072	-	asparaginyl-tRNA synthetase
1035	 51.64	0	1039942..1041192	-	416	26246958	pncB	c1073	-	nicotinate phosphoribosyltransferase
1036	 49.46	0	1039960..1040145	+	61	26246959	-	c1074	-	hypothetical protein
1037	 53.27	0	1041410..1044022	+	870	26246960	pepN	c1075	-	aminopeptidase N
1038	 55.99	+1	1044217..1044984	-	255	26246961	ssuB	c1076	-	aliphatic sulfonates transport ATP-binding subunit
1039	 54.97	0	1044981..1045775	-	264	26246962	ssuC	c1077	-	alkanesulfonate transporter permease subunit
1040	 56.98	+1	1045784..1046929	-	381	26246963	ycbN	c1078	-	alkanesulfonate monooxygenase
1041	 52.81	0	1046926..1047885	-	319	161486260	ycbO	c1079	-	alkanesulfonate transporter substrate-binding subunit
1042	 54.17	0	1047878..1048453	-	191	26246965	ycbP	c1080	-	NAD(P)H-dependent FMN reductase
1043	 46.44	0	1048663..1049700	+	345	26246966	pyrD	c1081	-	dihydroorotate dehydrogenase 2
1044	 48.19	0	1049838..1050416	+	192	26246967	ycbW	c1082	-	hypothetical protein
1045	 50.63	0	1050413..1051522	-	369	26246968	ycbX	c1083	-	hypothetical protein
1046	 54.39	0	1051620..1053728	+	702	26246969	ycbY	c1084	-	23S rRNA m(2)G2445 methyltransferase
1047	 52.10	0	1053740..1055647	+	635	26246970	uup	c1085	-	ABC transporter ATPase component
1048	 51.99	0	1055777..1057030	+	417	26246971	pqiA	c1086	-	paraquat-inducible protein A
1049	 50.09	0	1056975..1058675	+	566	26246972	pqiB	c1087	-	paraquat-inducible protein B
1050	 52.84	0	1058672..1059235	+	187	26246973	ymbA	c1088	-	hypothetical protein
1051	 41.67	-1	1059400..1059531	-	43	26246974	-	c1089	-	hypothetical protein
1052	 52.60	0	1059727..1060245	-	172	161486259	fabA	c1090	-	3-hydroxydecanoyl-(acyl carrier protein) dehydratase
1053	 51.56	0	1060314..1062074	-	586	26246976	-	c1091	-	putative protease La-like protein
1054	 47.02	0	1062260..1062712	+	150	26246977	ycbG	c1092	-	hypothetical protein
1055	 52.89	0	1062790..1063929	-	379	26246978	ompA	c1093	-	outer membrane protein A
1056	 36.99	-2	1063996..1064214	+	72	26246979	-	c1094	-	hypothetical protein
1057	 48.26	0	1064198..1064713	-	171	26246980	sulA	c1095	-	SOS cell division inhibitor
1058	 47.78	0	1064926..1065555	+	209	26246981	yccR	c1096	-	hypothetical protein
1059	 52.01	0	1065518..1067680	-	720	26246982	yccS	c1097	-	hypothetical protein
1060	 48.77	0	1067690..1068136	-	148	26246983	yccF	c1098	-	hypothetical protein
1061	 52.65	0	1068259..1070313	+	684	161486258	helD	c1099	-	DNA helicase IV
1062	 52.94	0	1070345..1070803	-	152	161486257	mgsA	c1100	-	methylglyoxal synthase
1063	 50.23	0	1070899..1071561	-	220	26246986	yccT	c1101	-	hypothetical protein
1064	 52.12	0	1071653..1072147	+	164	26246987	-	c1102	-	hypothetical protein
1065	 55.05	0	1072116..1072511	+	131	26246988	-	c1103	-	hypothetical protein
1066	 53.39	0	1072192..1072560	-	122	26246989	yccV	c1104	-	hypothetical protein
1067	 51.97	0	1072567..1073757	-	396	26246990	yccW	c1105	-	hypothetical protein
1068	 50.38	0	1073732..1074130	+	132	26246991	-	c1106	-	putative acylphosphatase
1069	 48.48	0	1074127..1074456	-	109	26246992	yccK	c1107	-	sulfurtransferase TusE
1070	 51.52	0	1074548..1075207	-	219	26246995	yccA	c1110	-	hypothetical protein
1071	 56.03	+1	1075769..1075909	-	46	26246997	-	c1112	-	hypothetical protein
1072	 55.93	+1	1075901..1077046	+	381	26246998	hyaA	c1113	-	hydrogenase-1 small chain precursor
1073	 56.24	+1	1077043..1078836	+	597	26246999	hyaB	c1114	-	hydrogenase 1 large subunit
1074	 51.13	0	1078855..1079562	+	235	26247000	hyaC	c1115	-	hydrogenase 1 b-type cytochrome subunit
1075	 59.01	+1	1079559..1080146	+	195	26247001	hyaD	c1116	-	hydrogenase 1 maturation protease
1076	 55.14	0	1080143..1080541	+	132	26247002	hyaE	c1117	-	hydrogenase-1 operon protein HyaE
1077	 54.90	0	1080538..1081395	+	285	26247003	hyaF	c1118	-	hydrogenase-1 operon protein HyaF
1078	 54.11	0	1081529..1083073	+	514	26247004	appC	c1119	-	cytochrome bd-II oxidase subunit I
1079	 53.12	0	1083085..1084221	+	378	26247005	appB	c1120	-	cytochrome bd-II oxidase subunit II
1080	 53.24	0	1084376..1085716	+	446	26247006	appA	c1121	-	phosphoanhydride phosphorylase
1081	 47.42	0	1085704..1085916	-	70	26247007	cspH	c1122	-	cold shock-like protein cspH
1082	 43.19	-1	1086202..1086414	+	70	26247008	cspG	c1123	-	cold shock protein CspG
1083	 42.80	-1	1086555..1086818	+	87	26247009	sfa	c1124	-	cold shock gene
1084	 39.66	-1	1086808..1086981	+	57	26247010	-	c1125	-	GnsB protein
1085	 39.66	-1	1086823..1086996	-	57	26247011	-	c1126	-	hypothetical protein
1086	 48.79	0	1087030..1088103	-	357	26247012	yccM	c1127	-	putative electron transport protein yccM
1087	 54.01	0	1088186..1090918	-	910	161486256	torS	c1128	-	hybrid sensory histidine kinase TorS
1088	 53.55	0	1091001..1092029	+	342	26247015	torT	c1130	-	periplasmic sensory protein associated with the TorRS two-component regulatory system
1089	 53.54	0	1092002..1092694	-	230	26247016	torR	c1131	-	DNA-binding transcriptional regulator TorR
1090	 50.29	0	1092776..1093996	+	406	26247017	torC	c1132	-	cytochrome c-type protein torC
1091	 55.36	0	1093996..1096542	+	848	26247018	torA	c1133	-	trimethylamine-N-oxide reductase 1 precursor
1092	 52.83	0	1096539..1097138	+	199	161486255	torD	c1134	-	chaperone protein TorD
1093	 54.90	0	1097494..1097799	-	101	26247020	yccD	c1135	-	chaperone-modulator protein CbpM
1094	 53.31	0	1097799..1098719	-	306	26247021	cbpA	c1136	-	curved DNA-binding protein CbpA
1095	 51.20	0	1099254..1100210	+	318	26247022	agp	c1137	-	glucose-1-phosphatase/inositol phosphatase
1096	 49.80	0	1100241..1100495	+	84	26247023	-	c1138	-	hypothetical protein
1097	 47.37	0	1100533..1100760	-	75	26247024	yccJ	c1139	-	hypothetical protein
1098	 53.94	0	1100781..1101377	-	198	26247025	wrbA	c1140	-	TrpR binding protein WrbA
1099	 49.69	0	1101781..1101939	+	52	26247026	-	c1141	-	hypothetical protein
1100	 50.00	0	1101936..1102073	+	45	26247027	-	c1142	-	hypothetical protein
1101	 53.91	0	1102006..1103400	-	464	26247028	ycdG	c1143	-	putative purine permease ycdG
1102	 58.38	+1	1103355..1103909	-	184	26247029	-	c1144	-	putative flavin:NADH reductase ycdH
1103	 56.51	+1	1103860..1104450	-	196	26247030	-	c1145	-	hypothetical protein
1104	 58.09	+1	1104460..1105287	-	275	26247031	ycdJ	c1146	-	hypothetical protein
1105	 54.78	0	1105268..1105654	-	128	26247032	ycdK	c1147	-	hypothetical protein
1106	 55.92	+1	1105666..1106400	-	244	26247033	ycdL	c1148	-	isochorismatase family protein ycdL
1107	 54.48	0	1106358..1107539	-	393	26247034	-	c1149	-	putative monooxygenase ycdM
50.18	MEAN

5.55	STD DEV
