IslandPath Analysis: Escherichia coli str. K12 substr. MG1655

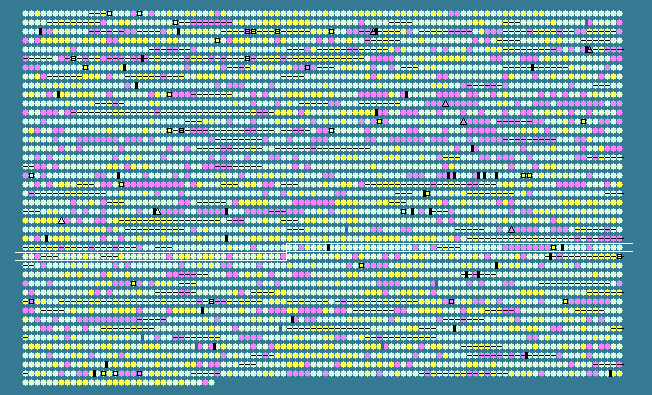

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 51.16   STD DEV: 4.75
Escherichia coli str. K-12 substr. MG1655, complete genome - 1..4639675
4132 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2645	 54.55	0	2939258..2939653	-	131	16130714	ygdD	b2807	-	conserved inner membrane protein
2646	 49.13	0	2939672..2940589	-	305	16130715	gcvA	b2808	-	DNA-binding transcriptional dual regulator
2647	 46.49	0	2940940..2941167	-	75	90111491	ygdI	b2809	-	predicted protein
2648	 55.89	0	2941359..2942564	+	401	16130717	csdA	b2810	-	cysteine sulfinate desulfinase
2649	 54.50	0	2942564..2943007	+	147	16130718	csdE	b2811	-	predicted Fe-S metabolism protein
2650	 54.65	0	2943058..2943864	-	268	16130719	ygdL	b2812	-	conserved protein
2651	 52.82	0	2944103..2945200	-	365	16130720	mltA	b2813	-	membrane-bound lytic murein transglycosylase A
2652	 53.51	0	2945779..2947032	-	417	90111492	amiC	b2817	-	N-acetylmuramoyl-L-alanine amidase
2653	 52.55	0	2947264..2948595	+	443	16130722	argA	b2818	-	fused acetylglutamate kinase homolog (inactive)/amino acid N-acetyltransferase
2654	 55.28	0	2948657..2950483	-	608	16130723	recD	b2819	-	exonuclease V (RecBCD complex), alpha chain
2655	 54.56	0	2950483..2954025	-	1180	16130724	recB	b2820	-	exonuclease V (RecBCD complex), beta subunit
2656	 51.16	0	2954018..2956906	-	962	16130725	ptrA	b2821	-	protease III
2657	 53.61	0	2957082..2960450	-	1122	16130726	recC	b2822	-	exonuclease V (RecBCD complex), gamma chain
2658	 54.94	0	2960463..2960786	-	107	16130727	ppdC	b2823	-	predicted protein
2659	 52.70	0	2960771..2961178	-	135	90111493	ygdB	b2824	-	predicted protein
2660	 52.30	0	2961175..2961738	-	187	16130729	ppdB	b2825	-	conserved protein
2661	 54.14	0	2961729..2962199	-	156	16130730	ppdA	b2826	-	conserved protein
2662	 51.07	0	2962383..2963177	-	264	16130731	thyA	b2827	-	thymidylate synthetase
2663	 52.85	0	2963184..2964059	-	291	16130732	lgt	b2828	-	phosphatidylglycerol-prolipoprotein diacylglyceryl transferase
2664	 53.89	0	2964210..2966456	-	748	16130733	ptsP	b2829	-	fused PTS enzyme: PEP-protein phosphotransferase (enzyme I)/GAF domain containing protein
2665	 49.34	0	2966469..2966999	-	176	16130734	rppH	b2830	-	nucleotide hydrolase
2666	 42.18	-1	2967352..2967498	-	48	145698305	ygdT	b4610	-	hypothetical protein
2667	 53.62	0	2967684..2968373	+	229	16130735	mutH	b2831	-	methyl-directed mismatch repair protein
2668	 49.86	0	2968442..2969155	+	237	16130736	ygdQ	b2832	-	predicted inner membrane protein
2669	 43.38	-1	2969293..2969511	+	72	16130737	ygdR	b2833	-	predicted protein
2670	 54.37	0	2969619..2970659	+	346	16130738	tas	b2834	-	predicted oxidoreductase, NADP(H)-dependent aldo-keto reductase
2671	 55.53	0	2970691..2971884	-	397	16130739	lplT	b2835	-	predicted inner membrane protein
2672	 52.64	0	2971877..2974036	-	719	16130740	aas	b2836	-	fused 2-acylglycerophospho-ethanolamine acyl transferase/acyl-acyl carrier protein synthetase
2673	 52.71	0	2974621..2975652	+	343	16130741	galR	b2837	-	DNA-binding transcriptional repressor
2674	 53.05	0	2975659..2976921	-	420	16130742	lysA	b2838	-	diaminopimelate decarboxylase, PLP-binding
2675	 53.42	0	2977043..2977978	+	311	16130743	lysR	b2839	-	DNA-binding transcriptional dual regulator
2676	 50.94	0	2977965..2978657	-	230	16130744	ygeA	b2840	-	predicted racemase
2677	 51.16	0	2978786..2980204	-	472	16130745	araE	b2841	-	arabinose transporter
2678	 51.97	0	2980519..2981280	-	253	16130746	kduD	b2842	-	2-deoxy-D-gluconate 3-dehydrogenase
2679	 49.58	0	2981310..2982146	-	278	16130747	kduI	b2843	-	predicted 5-keto 4-deoxyuronate isomerase
2680	 53.55	0	2982433..2983614	-	393	90111494	yqeF	b2844	-	predicted acyltransferase
2681	 44.47	-1	2983869..2985098	+	409	16130749	yqeG	b2845	-	predicted transporter
2682	 37.44	-2	2985558..2986190	+	210	90111495	yqeH	b2846	-	conserved protein with bipartite regulator domain
2683	 39.63	-2	2986524..2987333	+	269	16130751	yqeI	b2847	-	predicted transcriptional regulator
2684	 31.68	-2	2987326..2987808	+	160	90111496	yqeJ	b2848	-	predicted protein
2685	 32.86	-2	2987957..2988382	-	141	90111497	yqeK	b2849	-	predicted protein
2686	 32.72	-2	2989290..2989781	+	163	16130755	ygeG	b2851	-	predicted chaperone
2687	 34.71	-2	2990116..2991492	+	458	16130756	ygeH	b2852	-	predictedtranscriptional regulator
2688	 33.79	-2	2991660..2991878	+	72	16130757	ygeI	b2853	-	predicted protein
2689	 55.08	0	2994394..2995299	-	301	16130763	insD	b2860	-	KpLE2 phage-like element; IS2 insertion element transposase InsAB'
2690	 53.01	0	2995257..2995622	-	121	145698306	insC	b2861	-	KpLE2 phage-like element; IS2 insertion element repressor InsA
2691	 50.93	0	2997158..2997913	-	251	90111503	ygeR	b2865	-	tetratricopeptide repeat transcriptional regulator
2692	 52.99	0	2998367..3000625	+	752	16130768	xdhA	b2866	-	xanthine dehydrogenase, molybdenum binding subunit
2693	 53.70	0	3000636..3001514	+	292	16130769	xdhB	b2867	-	xanthine dehydrogenase, FAD-binding subunit
2694	 52.08	0	3001511..3001990	+	159	16130770	xdhC	b2868	-	xanthine dehydrogenase, Fe-S binding subunit
2695	 45.76	-1	3002030..3003808	-	592	16130771	ygeV	b2869	-	predicted DNA-binding transcriptional regulator
2696	 49.96	0	3004284..3005474	+	396	49176276	ygeW	b2870	-	conserved protein
2697	 53.63	0	3005532..3006728	+	398	16130773	ygeX	b2871	-	2,3-diaminopropionate ammonia-lyase
2698	 51.49	0	3006786..3007997	+	403	16130774	ygeY	b2872	-	predicted peptidase
2699	 52.81	0	3008050..3009435	+	461	90111504	hyuA	b2873	-	D-stereospecific phenylhydantoinase
2700	 49.09	0	3009483..3010415	+	310	16130776	yqeA	b2874	-	predicted amino acid kinase
2701	 52.21	0	3010636..3012261	-	541	16130777	yqeB	b2875	-	conserved protein with NAD(P)-binding Rossman fold
2702	 50.45	0	3012309..3013079	-	256	90111505	yqeC	b2876	-	conserved protein
2703	 43.18	-1	3013182..3013760	+	192	16130779	ygfJ	b2877	-	conserved protein
2704	 52.21	0	3014082..3017180	+	1032	16130780	ygfK	b2878	-	predicted oxidoreductase, Fe-S subunit
2705	 52.67	0	3017183..3018511	+	442	90111506	ssnA	b2879	-	predicted chlorohydrolase/aminohydrolase
2706	 54.49	0	3018562..3019341	+	259	16130782	ygfM	b2880	-	predicted oxidoreductase
2707	 52.94	0	3019338..3022208	+	956	16130783	xdhD	b2881	-	fused predicted xanthine/hypoxanthine oxidase: molybdopterin-binding subunit/Fe-S binding subunit
2708	 48.89	0	3022373..3023773	+	466	90111507	ygfO	b2882	-	predicted transporter
2709	 48.94	0	3023788..3025107	+	439	16130785	guaD	b2883	-	guanine deaminase
2710	 52.56	0	3025143..3026510	+	455	49176279	ygfQ	b4464	-	predicted transporter
2711	 54.81	0	3026546..3027034	-	162	90111508	ygfS	b2886	-	predicted oxidoreductase, 4Fe-4S ferredoxin-type subunit
2712	 52.86	0	3027034..3028953	-	639	90111509	ygfT	b2887	-	fused predicted oxidoreductase: Fe-S subunit/nucleotide-binding subunit
2713	 49.00	0	3029389..3030837	+	482	90111510	ygfU	b2888	-	predicted transporter
2714	 50.09	0	3031087..3031635	+	182	16130791	idi	b2889	-	isopentenyl diphosphate isomerase
2715	 53.10	0	3031679..3033196	-	505	16130792	lysS	b2890	-	lysine tRNA synthetase, constitutive
2716	 53.50	0	3033206..3034304	-	365	16130793	prfB	b2891	-	peptide chain release factor RF-2
2717	 56.63	+1	3034395..3036128	-	577	16130794	recJ	b2892	-	ssDNA exonuclease, 5' --> 3'-specific
2718	 48.38	0	3036134..3036844	-	236	16130795	dsbC	b2893	-	protein disulfide isomerase II
2719	 53.07	0	3036869..3037765	-	298	16130796	xerD	b2894	-	site-specific tyrosine recombinase
2720	 51.34	0	3037877..3038398	+	173	16130797	fldB	b2895	-	flavodoxin 2
2721	 53.43	0	3038438..3038845	-	135	16130798	ygfX	b2896	-	predicted protein
2722	 49.44	0	3038826..3039092	-	88	16130799	ygfY	b2897	-	conserved protein
2723	 53.92	0	3039335..3040315	+	326	16130800	ygfZ	b2898	-	predicted folate-dependent regulatory protein
2724	 51.97	0	3040511..3041170	-	219	16130801	yqfA	b2899	-	predicted oxidoreductase, inner membrane subunit
2725	 43.59	-1	3041334..3041645	-	103	16130802	yqfB	b2900	-	conserved protein
2726	 50.76	0	3041684..3043123	+	479	16130803	bglA	b2901	-	6-phospho-beta-glucosidase A
2727	 54.97	0	3043180..3043923	-	247	16130804	ygfF	b2902	-	predicted NAD(P)-binding oxidoreductase with NAD(P)-binding Rossmann-fold domain
2728	 55.95	+1	3044190..3047063	-	957	16130805	gcvP	b2903	-	glycine decarboxylase, PLP-dependent, subunit (protein P) of glycine cleavage complex
2729	 52.56	0	3047182..3047571	-	129	16130806	gcvH	b2904	-	glycine cleavage complex lipoylprotein
2730	 54.61	0	3047595..3048689	-	364	16130807	gcvT	b2905	-	aminomethyltransferase, tetrahydrofolate-dependent, subunit (T protein) of glycine cleavage complex
2731	 54.95	0	3049137..3050339	-	400	16130808	visC	b2906	-	predicted oxidoreductase with FAD/NAD(P)-binding domain
2732	 59.54	+1	3050362..3051540	-	392	16130809	ubiH	b2907	-	2-octaprenyl-6-methoxyphenol hydroxylase, FAD/NAD(P)-binding
2733	 53.54	0	3051537..3052862	-	441	16130810	pepP	b2908	-	proline aminopeptidase P II
2734	 51.30	0	3052888..3053466	-	192	90111511
