IslandPathversion 1.0

IslandPath Analysis: Enterococcus faecalis V583

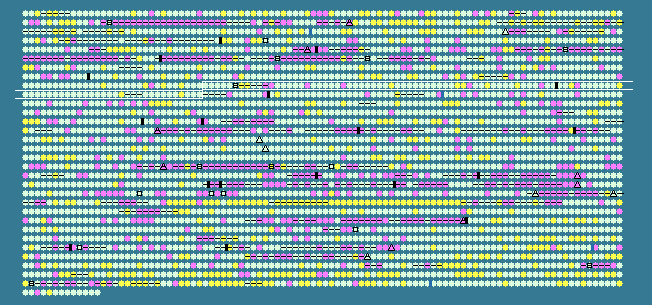

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.28 STD DEV: 4.35
Enterococcus faecalis V583, complete genome - 1..3218031
3113 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
831	 35.33	0	874786..875136	-	116	29375492	-	EF0908	-	hypothetical protein
832	 37.05	0	875227..876168	+	313	29375493	-	EF0909	-	peptide ABC transporter, permease protein
833	 37.70	0	876168..877220	+	350	29375494	-	EF0910	-	peptide ABC transporter, permease protein
834	 38.62	0	877230..878288	+	352	29375495	-	EF0911	-	peptide ABC transporter, ATP-binding protein
835	 39.18	0	878288..879244	+	318	29375496	-	EF0912	-	peptide ABC transporter, ATP-binding protein
836	 34.83	0	879285..880355	+	356	29375497	-	EF0913	-	transposase, putative
837	 42.15	+1	880755..881276	+	173	29375498	infC	EF0914	-	translation initiation factor IF-3
838	 43.28	+1	881390..881590	+	66	29375499	rpmI	EF0915	-	50S ribosomal protein L35
839	 39.17	0	881651..882010	+	119	29375500	rplT	EF0916	-	50S ribosomal protein L20
840	 37.61	0	882056..882406	-	116	29375501	-	EF0917	-	hypothetical protein
841	 32.50	-1	882504..882863	+	119	29375502	-	EF0918	-	hypothetical protein
842	 33.10	0	882991..883425	+	144	29375503	-	EF0919	-	acetyltransferase
843	 36.43	0	883443..883958	+	171	29375504	-	EF0920	-	hypothetical protein
844	 39.63	0	883974..885149	-	391	29375505	-	EF0921	-	sulfate transporter family protein
845	 40.33	0	885379..886407	-	342	29375506	-	EF0922	-	hypothetical protein
846	 35.38	0	886520..887350	+	276	29375507	-	EF0923	-	LysR family transcriptional regulator
847	 37.23	0	887415..888287	+	290	29375508	-	EF0924	-	hypothetical protein
848	 26.67	-2	888561..888785	+	74	29375509	-	EF0925	-	hypothetical protein
849	 35.85	0	888874..889548	+	224	29375510	-	EF0926	-	DNA-binding response regulator
850	 35.87	0	889562..890587	+	341	29375511	-	EF0927	-	sensor histidine kinase
851	 37.73	0	890735..891598	+	287	29375512	-	EF0928	-	glucose uptake protein
852	 40.30	0	891639..893030	+	463	29375513	-	EF0929	-	amino acid permease family protein
853	 36.47	0	893218..895227	+	669	29375514	metG	EF0930	-	methionyl-tRNA synthetase
854	 32.97	0	895327..895602	+	91	29375515	-	EF0931	-	hypothetical protein
855	 36.63	0	895661..896266	-	201	29375516	-	EF0932	-	hypothetical protein
856	 36.61	0	896387..898585	-	732	29375517	-	EF0933	-	hypothetical protein
857	 39.04	0	898744..899514	+	256	29375518	-	EF0934	-	TatD family hydrolase
858	 37.52	0	899523..900095	+	190	29375519	-	EF0935	-	primase-related protein
859	 37.61	0	900114..901001	+	295	29375520	ksgA	EF0936	-	dimethyladenosine transferase
860	 36.57	0	901129..901746	+	205	29375521	-	EF0937	-	hypothetical protein
861	 38.22	0	901796..902899	-	367	29375522	-	EF0938	-	sugar ABC  transporter ATP-binding protein
862	 42.08	+1	903085..903507	+	140	29375523	mgsA	EF0939	-	methylglyoxal synthase
863	 36.11	0	903781..904320	+	179	29375524	-	EF0940	-	hypothetical protein
864	 39.33	0	904372..906138	-	588	29375525	-	EF0941	-	ABC transporter, ATP-binding/permease protein
865	 39.24	0	906128..907855	-	575	29375526	-	EF0942	-	ABC transporter, ATP-binding/permease protein
866	 36.51	0	907963..908748	+	261	29375527	-	EF0943	-	hypothetical protein
867	 39.87	0	909009..910217	+	402	29375528	-	EF0944	-	extracellular protein, putative
868	 39.54	0	910314..910877	+	187	29375529	-	EF0945	-	acetyltransferase
869	 38.48	0	910923..911447	-	174	29375530	-	EF0946	-	hypothetical protein
870	 39.77	0	911499..912368	-	289	29375531	-	EF0947	-	HAD superfamily hydrolase
871	 40.09	0	912502..913182	+	226	29375532	ung	EF0948	-	uracil-DNA glycosylase
872	 36.99	0	913338..914321	+	327	29375533	eutD	EF0949	-	phosphotransacetylase
873	 41.46	0	914478..914957	+	159	29375534	-	EF0950	-	hypothetical protein
874	 41.38	0	914950..915471	+	173	29375535	-	EF0951	-	acetyltransferase
875	 31.90	-1	915641..915850	+	69	29375536	-	EF0953	-	hypothetical protein
876	 36.30	0	915924..916934	-	336	29375537	-	EF0954	-	LacI family sugar-binding transcriptional regulator
877	 38.69	0	916958..917965	-	335	29375538	-	EF0955	-	aldose 1-epimerase, putative
878	 40.96	0	917955..918623	-	222	29375539	pgmB	EF0956	-	beta-phosphoglucomutase
879	 39.22	0	918616..920910	-	764	29375540	-	EF0957	-	glycosy hydrolase family protein
880	 39.88	0	921191..923359	+	722	29375541	-	EF0958	-	PTS system, IIABC components
881	 38.52	0	923425..923559	+	44	29375542	-	EF0959	-	hypothetical protein
882	 38.91	0	923574..924398	+	274	29375543	-	EF0960	-	endonuclease/exonuclease/phosphatase family protein
883	 43.14	+1	924458..925273	-	271	29375544	-	EF0961	-	pyrroline-5-carboxylate reductase, putative
884	 37.49	0	925400..926362	+	320	29375545	-	EF0962	-	AraC family transcriptional regulator
885	 35.33	0	926343..926642	+	99	29375546	-	EF0963	-	hypothetical protein
886	 35.74	0	926659..926949	+	96	29375547	-	EF0964	-	hypothetical protein
887	 28.71	-1	927109..927822	-	237	29375548	-	EF0965	-	hypothetical protein
888	 35.01	0	927976..928752	+	258	29375549	-	EF0966	-	MerR family transcriptional regulator
889	 34.02	0	928993..930885	+	630	29375550	-	EF0967	-	hypothetical protein
890	 39.81	0	931315..931623	+	102	29375551	rplU	EF0968	-	50S ribosomal protein L21
891	 38.26	0	931656..932000	+	114	29375552	-	EF0969	-	hypothetical protein
892	 40.97	0	932013..932300	+	95	29375553	rpmA	EF0970	-	50S ribosomal protein L27
893	 32.01	-1	932500..932952	+	150	29375554	-	EF0971	-	phosphate-starvation-inducible protein PsiE
894	 37.87	0	933023..933838	-	271	29375555	-	EF0972	-	DNA repair exonuclease family protein
895	 37.75	0	934010..935074	+	354	29375556	pepQ-1	EF0973	-	proline dipeptidase
896	 36.76	0	935088..935408	+	106	29375557	-	EF0974	-	hypothetical protein
897	 37.73	0	935741..936172	+	143	29375558	-	EF0976	-	hypothetical protein
898	 37.42	0	936153..936617	+	154	29375559	nusB	EF0977	-	transcription antitermination protein NusB
899	 38.89	0	936721..937566	+	281	29375560	folD	EF0978	-	methylenetetrahydrofolate dehydrogenase/methenyltetrahydrofolate cyclohydrolase
900	 41.05	0	937576..938922	+	448	29375561	xseA	EF0979	-	exodeoxyribonuclease VII large subunit
901	 37.23	0	938924..939154	+	76	29375562	xseB	EF0980	-	exodeoxyribonuclease VII, small subunit
902	 40.59	0	939154..940035	+	293	29375563	ispA	EF0981	-	geranyltranstransferase
903	 40.44	0	940049..940864	+	271	29375564	tlyA	EF0982	-	hemolysin A
904	 37.56	0	941003..941452	+	149	29375565	-	EF0983	-	ArgR family transcriptional regulator
905	 38.89	0	941470..943143	+	557	29375566	recN	EF0984	-	DNA repair protein RecN
906	 35.67	0	943234..943404	-	56	29375567	-	EF0985	-	hypothetical protein
907	 34.99	0	943412..944377	-	321	29375568	-	EF0986	-	cation transporter
908	 35.11	0	944622..945014	+	130	29375569	-	EF0987	-	putative lipoprotein
909	 38.89	0	945302..945733	+	143	29375570	-	EF0988	-	cell division protein MraZ
910	 39.79	0	945745..946704	+	319	29375571	mraW	EF0989	-	S-adenosyl-methyltransferase MraW
911	 35.78	0	946721..947128	+	135	29375572	-	EF0990	-	cell division protein
912	 37.60	0	947128..949356	+	742	29375573	pbpC	EF0991	-	penicillin-binding protein C
913	 36.13	0	949383..950348	+	321	29375574	mraY	EF0992	-	phospho-N-acetylmuramoyl-pentapeptide-transferase
914	 40.19	0	950371..951741	+	456	29375575	murD	EF0993	-	UDP-N-acetylmuramoyl-L-alanyl-D-glutamate synthetase
915	 38.74	0	951746..952837	+	363	29375576	murG	EF0994	-	N-acetylglucosaminyl transferase
916	 36.71	0	952846..953970	+	374	29375577	ftsQ	EF0995	-	cell division protein FtsQ
917	 40.82	0	954144..955466	+	440	29375578	ftsA	EF0996	-	cell division protein FtsA
918	 39.82	0	955493..956725	+	410	29375579	ftsZ	EF0997	-	cell division protein FtsZ
919	 36.28	0	956742..957419	+	225	29375580	-	EF0998	-	hypothetical protein
920	 40.31	0	957433..958077	+	214	29375581	-	EF0999	-	hypothetical protein
921	 39.52	0	958154..958363	+	69	29375582	-	EF1000	-	hypothetical protein
922	 38.44	0	958390..959172	+	260	29375583	-	EF1001	-	S4 domain-containing protein
923	 35.19	0	959324..960025	+	233	29375584	divIVA	EF1002	-	cell division protein DivIVA
924	 38.08	0	960336..963116	+	926	29375585	ileS	EF1003	-	isoleucyl-tRNA synthetase
925	 38.85	0	963168..964691	-	507	29375586	zwf	EF1004	-	glucose-6-phosphate 1-dehydrogenase
926	 35.87	0	964691..965359	-	222	29375587	-	EF1005	-	iron-dependent repressor
927	 41.46	0	965531..965899	-	122	29375588	-	EF1006	-	hypothetical protein
928	 37.04	0	966940..967938	+	332	29375589	-	EF1008	-	Gfo/Idh/MocA family oxidoreductase
929	 39.63	0	967965..969266	+	433	29375590	-	EF1009	-	DEAD-box ATP dependent DNA helicase
930	 36.59	0	969311..972016	+	901	29375591	-	EF1010	-	sigma-54 factor interaction domain-containing protein
37.28	MEAN

4.35	STD DEV
