IslandPath Analysis: Enterococcus faecalis V583

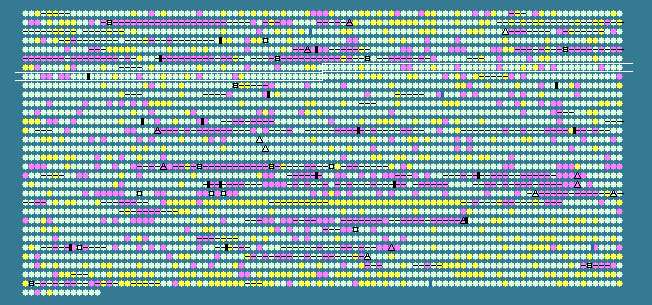

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.28 STD DEV: 4.35
Enterococcus faecalis V583, complete genome - 1..3218031
3113 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
651	 36.35	0	670591..671253	+	220	29375312	-	EF0716	-	hypothetical protein
652	 40.67	0	671298..673220	-	640	29375313	-	EF0717	-	PTS system, fructose-specific family, IIABC components
653	 37.25	0	673244..674161	-	305	29375314	fruK-2	EF0718	-	1-phosphofructokinase
654	 38.91	0	674158..674910	-	250	29375315	-	EF0719	-	DeoR family transcriptional regulator
655	 38.14	0	675049..676608	-	519	29375316	-	EF0720	-	voltage-gated chloride channel family protein
656	 39.27	0	676773..679031	+	752	29375317	pcrA	EF0721	-	ATP-dependent DNA helicase PcrA
657	 41.56	0	679157..681187	+	676	29375318	ligA	EF0722	-	DNA ligase, NAD-dependent
658	 38.46	0	681335..681451	+	38	29375319	-	EF0723	-	hypothetical protein
659	 38.24	0	681769..682074	+	101	29375320	gatC	EF0724	-	aspartyl/glutamyl-tRNA amidotransferase subunit C
660	 39.39	0	682074..683543	+	489	29375321	gatA	EF0725	-	glutamyl-tRNA(Gln) amidotransferase, A subunit
661	 38.99	0	683543..684973	+	476	29375322	gatB	EF0726	-	aspartyl/glutamyl-tRNA amidotransferase subunit B
662	 39.67	0	684992..686080	+	362	29375323	-	EF0727	-	putative lipid kinase
663	 37.99	0	686280..687653	+	457	29375324	-	EF0728	-	RNA methyltransferase
664	 30.50	-1	687922..688239	+	105	29375325	-	EF0730	-	hypothetical protein
665	 33.33	0	688282..689127	-	281	29375326	-	EF0731	-	LuxR family transcriptional regulator
666	 36.18	0	689526..690545	+	339	29375327	argF-2	EF0732	-	putrescine carbamoyltransferase
667	 37.11	0	690612..691988	+	458	29375328	-	EF0733	-	amino acid permease family protein
668	 39.64	0	692065..693078	+	337	29375329	-	EF0734	-	agmatine deiminase
669	 41.94	+1	693090..694019	+	309	29375330	arcC-3	EF0735	-	carbamate kinase
670	 40.01	0	694216..695802	+	528	29375331	-	EF0737	-	amidase
671	 38.19	0	695994..696137	-	47	29375332	-	EF0738	-	hypothetical protein
672	 37.74	0	696376..697056	+	226	29375333	-	EF0739	-	nicotinamide mononucleotide transporter PnuC, putative
673	 33.80	0	697065..697709	+	214	29375334	-	EF0740	-	deoxynucleoside kinase
674	 38.89	0	698059..698490	+	143	29375335	-	EF0741	-	hypothetical protein
675	 35.14	0	698603..698989	+	128	29375336	-	EF0742	-	hypothetical protein
676	 38.69	0	699036..699371	-	111	29375337	-	EF0743	-	hypothetical protein
677	 38.43	0	699669..701060	+	463	29375338	-	EF0744	-	sodium/dicarboxylate symporter family protein
678	 36.22	0	701193..701573	+	126	29375339	-	EF0745	-	glyoxalase family protein
679	 34.36	0	701726..702892	+	388	29375340	-	EF0746	-	penicillin-binding protein, putative
680	 33.47	0	702992..703702	+	236	29375341	-	EF0747	-	hypothetical protein
681	 38.07	0	704291..705241	+	316	29375342	-	EF0748	-	hypothetical protein
682	 34.81	0	705465..705803	+	112	29375343	-	EF0750	-	cell wall surface anchor family protein
683	 39.07	0	705803..706534	+	243	29375344	-	EF0751	-	hypothetical protein
684	 41.79	+1	706551..707330	+	259	29375345	-	EF0752	-	hypothetical protein
685	 39.05	0	707350..709449	+	699	29375346	-	EF0753	-	hypothetical protein
686	 41.43	0	709472..710212	+	246	29375347	-	EF0754	-	hypothetical protein
687	 32.88	-1	710288..711382	+	364	29375348	-	EF0755	-	hypothetical protein
688	 37.33	0	711584..712033	+	149	29375349	-	EF0756	-	hypothetical protein
689	 32.23	-1	712037..713485	+	482	29375350	-	EF0757	-	hypothetical protein
690	 38.22	0	713595..715499	+	634	29375351	-	EF0758	-	cadmium-translocating P-type ATPase
691	 39.31	0	715535..716254	+	239	29375352	-	EF0759	-	sapB protein, putative
692	 37.53	0	716302..717039	-	245	29375353	-	EF0760	-	amino acid ABC transporter, ATP-binding protein
693	 36.05	0	717041..719209	-	722	29375354	-	EF0761	-	amino acid ABC transporter, amino acid-binding/permease protein
694	 39.49	0	719488..721485	+	665	29375355	uvrB	EF0762	-	excinuclease ABC subunit B
695	 40.28	0	721603..724422	+	939	29375356	uvrA	EF0763	-	excinuclease ABC, subunit A
696	 38.27	0	724593..725159	+	188	29375357	-	EF0764	-	hypothetical protein
697	 26.92	-2	725232..725387	+	51	29375358	-	EF0765	-	hypothetical protein
698	 39.53	0	725553..726440	+	295	29375359	-	EF0766	-	hypothetical protein
699	 38.86	0	726440..727435	+	331	29375360	-	EF0767	-	hypothetical protein
700	 35.47	0	727469..728404	+	311	29375361	-	EF0768	-	hypothetical protein
701	 40.04	0	728638..729561	+	307	29375362	-	EF0769	-	hypothetical protein
702	 38.34	0	729674..730192	+	172	29375363	-	EF0770	-	hypothetical protein
703	 39.39	0	730237..730830	-	197	29375364	clpP	EF0771	-	ATP-dependent Clp protease proteolytic subunit
704	 32.76	-1	731026..731544	+	172	29375365	-	EF0773	-	hypothetical protein
705	 33.09	0	731565..731969	-	134	29375366	-	EF0774	-	hypothetical protein
706	 39.46	0	732434..735322	+	962	29375367	-	EF0775	-	anchor protein, putative
707	 30.21	-1	735347..735730	+	127	29375368	-	EF0776	-	hypothetical protein
708	 29.41	-1	735904..736413	+	169	29375369	-	EF0778	-	hypothetical protein
709	 34.96	0	736443..738230	+	595	29375370	-	EF0779	-	glycerophosphoryl diester phosphodiesterase family protein
710	 35.05	0	738256..738663	+	135	29375371	-	EF0780	-	MutT/nudix family protein
711	 37.31	0	738897..739097	+	66	29375372	-	EF0781	-	cold shock domain-contain protein
712	 37.67	0	739902..741215	+	437	29375373	rpoN	EF0782	-	RNA polymerase factor sigma-54
713	 38.02	0	741416..743293	+	625	29375374	-	EF0783	-	acyltransferase, putative
714	 40.25	0	743509..744693	+	394	29375375	metK	EF0784	-	S-adenosylmethionine synthetase
715	 39.88	0	744866..746332	+	488	29375376	-	EF0785	-	drug resistance transporter, EmrB/QacA family protein
716	 41.16	0	746371..747162	+	263	29375377	-	EF0786	-	tributyrin esterase, putative
717	 39.22	0	747243..747905	-	220	29375378	-	EF0787	-	TetR family transcriptional regulator
718	 39.51	0	748159..749874	+	571	29375379	-	EF0789	-	ABC transporter, ATP-binding/permease protein
719	 37.34	0	749874..751643	+	589	29375380	-	EF0790	-	ABC transporter, ATP-binding/permease protein
720	 33.17	0	752054..752659	+	201	29375381	-	EF0791	-	TetR family transcriptional regulator
721	 36.94	0	752797..753876	+	359	29375382	-	EF0792	-	permease domain protein
722	 37.67	0	753881..754549	+	222	29375383	-	EF0793	-	ABC transporter, ATP-binding protein
723	 37.77	0	754606..755169	-	187	29375384	-	EF0794	-	hypothetical protein
724	 40.87	0	755169..756137	-	322	29375385	-	EF0795	-	hypothetical protein
725	 34.25	0	756153..756803	-	216	29375386	-	EF0796	-	type 2 phosphatidic acid phosphatase family protein
726	 36.65	0	756975..758000	-	341	29375387	-	EF0797	-	hypothetical protein
727	 35.61	0	758000..758659	-	219	29375388	-	EF0798	-	hypothetical protein
728	 42.28	+1	758976..761189	+	737	29375389	-	EF0799	-	autolysin
729	 39.01	0	761593..764007	+	804	29375390	leuS	EF0801	-	leucyl-tRNA synthetase
730	 30.93	-1	764063..764353	-	96	29375391	-	EF0802	-	hypothetical protein
731	 36.04	0	764384..764827	-	147	29375392	-	EF0803	-	hypothetical protein
732	 37.06	0	765003..765833	-	276	29375393	-	EF0804	-	amino acid ABC transporter, amino acid-binding protein
733	 40.25	0	765847..766482	-	211	29375394	-	EF0805	-	amino acid ABC transporter, ATP-binding protein
734	 36.60	0	766495..767136	-	213	29375395	-	EF0806	-	amino acid ABC transporter, permease protein
735	 38.79	0	767972..769603	+	543	29375396	-	EF0807	-	pheromone binding protein, putative
736	 28.12	-2	769605..769700	+	31	29375397	-	EF0808	-	hypothetical protein
737	 42.17	+1	769710..769958	+	82	29375398	-	EF0809	-	hypothetical protein
738	 38.96	0	770351..772075	+	574	29375399	-	EF0810	-	hypothetical protein
739	 39.49	0	772079..772906	+	275	29375400	-	EF0811	-	hypothetical protein
740	 39.86	0	773289..774452	+	387	29375401	-	EF0812	-	glucuronyl hydrolase, putative
741	 39.12	0	774465..776243	+	592	29375402	-	EF0813	-	glycosy hydrolase family protein
742	 34.46	0	776268..776975	-	235	29375403	-	EF0814	-	GntR family transcriptional regulator
743	 38.40	0	777203..778129	+	308	29375404	-	EF0815	-	PTS system, IIAB components
744	 39.65	0	778178..778969	+	263	29375405	-	EF0816	-	PTS system, IIC component
745	 38.02	0	778953..779762	+	269	29375406	-	EF0817	-	PTS system, IID component
746	 37.71	0	779877..782891	+	1004	29375407	-	EF0818	-	polysaccharide lyase family protein 8
747	 35.49	0	782960..783283	-	107	29375408	-	EF0819	-	hypothetical protein
748	 37.11	0	783535..784143	-	202	29375409	rplY	EF0820	-	50S ribosomal protein L25/general stress protein Ctc
749	 35.24	0	785253..785933	+	226	29375410	-	EF0822	-	HAD superfamily hydrolase
750	 39.72	0	785913..786053	-	46	29375411	-	EF0823	-	hypothetical protein
37.28	MEAN

4.35	STD DEV
