IslandPath Analysis: Enterococcus faecalis V583

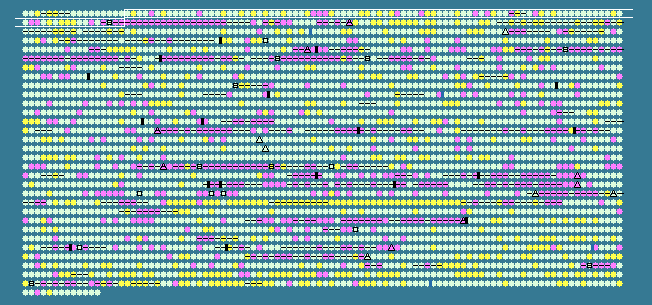

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.28 STD DEV: 4.35
Enterococcus faecalis V583, complete genome - 1..3218031
3113 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
18	 38.87	0	23088..24080	+	330	29374679	-	EF0020	-	PTS system, mannose-specific IIAB components
19	 41.92	+1	24115..24918	+	267	29374680	-	EF0021	-	PTS system, mannose-specific IIC component
20	 40.24	0	24941..25852	+	303	29374681	-	EF0022	-	PTS system, mannose-specific IID component
21	 37.57	0	26014..26391	+	125	29374682	-	EF0024	-	hypothetical protein
22	 32.01	-1	26639..27166	+	175	29374683	-	EF0025	-	hypothetical protein
23	 38.24	0	27213..27416	-	67	29374684	-	EF0026	-	hypothetical protein
24	 40.99	0	27614..28384	+	256	29374685	-	EF0027	-	phosphosugar-binding transcriptional regulator, putative
25	 40.60	0	28533..30101	+	522	29374686	-	EF0028	-	bifunctional maltose and glucose-specific PTS system components IICB
26	 40.74	0	30116..31330	+	404	29374687	-	EF0029	-	aminotransferase, class II
27	 38.32	0	31430..31810	+	126	29374688	-	EF0030	-	endoribonuclease L-PSP, putative
28	 38.66	0	32001..34592	+	863	29374689	-	EF0031	-	hypothetical protein
29	 37.46	0	34629..37244	-	871	29374690	-	EF0032	-	hypothetical protein
30	 26.00	-2	37660..37809	-	49	29374691	-	EF0033	-	hypothetical protein
31	 40.00	0	37788..38297	-	169	29374692	-	EF0034	-	hypothetical protein
32	 38.25	0	38305..38772	-	155	29374693	-	EF0035	-	hypothetical protein
33	 35.36	0	38849..39784	+	311	29374694	-	EF0036	-	hypothetical protein
34	 42.66	+1	39876..41129	-	417	29374695	proA	EF0037	-	gamma-glutamyl phosphate reductase
35	 36.89	0	41116..41931	-	271	29374696	proB	EF0038	-	gamma-glutamyl kinase
36	 39.38	0	42257..42736	+	159	29374697	-	EF0039	-	deoxyuridine 5`-triphosphate nucleotidohydrolase, putative
37	 41.94	+1	42815..44185	+	456	29374698	radA	EF0040	-	DNA repair protein RadA
38	 37.70	0	44286..45431	+	381	29374699	-	EF0041	-	PilT domain-containing protein
39	 41.35	0	45450..45923	+	157	29374700	ispF	EF0042	-	2C-methyl-D-erythritol 2,4-cyclodiphosphate synthase
40	 38.89	0	45976..47433	+	485	29374701	gltX	EF0043	-	glutamyl-tRNA synthetase
41	 46.85	+2	47703..48242	+	179	29374702	cysE	EF0044	-	serine O-acetyltransferase
42	 40.48	0	48235..49647	+	470	29374703	cysS	EF0045	-	cysteinyl-tRNA synthetase
43	 39.85	0	49644..50042	+	132	29374704	-	EF0046	-	hypothetical protein
44	 42.87	+1	50032..50880	+	282	29374705	-	EF0047	-	RNA methyltransferase
45	 40.11	0	50895..51425	+	176	29374706	-	EF0048	-	hypothetical protein
46	 37.57	0	51511..52077	+	188	29374707	-	EF0049	-	RNA polymerase sigma-70 factor family protein
47	 39.84	0	52192..52437	+	81	29374708	-	EF0050	-	hypothetical protein
48	 41.43	0	52618..53469	+	283	29374709	ispE	EF0051	-	4-diphosphocytidyl-2-C-methyl-D-erythritol kinase
49	 29.03	-1	53530..54156	-	208	29374710	-	EF0052	-	hypothetical protein
50	 31.38	-1	54156..55025	-	289	29374711	dnaQ	EF0053	-	DNA polymerase III, epsilon subunit
51	 31.63	-1	55025..55435	-	136	29374712	-	EF0054	-	hypothetical protein
52	 41.19	0	55754..56707	+	317	29374713	-	EF0055	-	adhesion lipoprotein
53	 38.82	0	56733..57425	+	230	29374714	-	EF0056	-	ABC transporter, ATP-binding protein
54	 37.62	0	57587..58426	+	279	29374715	-	EF0057	-	ABC transporter, permease protein
55	 40.15	0	58570..59391	+	273	29374716	purR	EF0058	-	purine operon repressor
56	 40.38	0	59602..60978	+	458	29374717	glmU	EF0059	-	UDP-N-acetylglucosamine pyrophosphorylase
57	 41.20	0	61420..65361	+	1313	29374718	-	EF0062	-	5'-nucleotidase family protein
58	 40.95	0	65497..67176	+	559	29374719	-	EF0063	-	pheromone binding protein, putative
59	 34.22	0	67223..67447	-	74	29374720	-	EF0064	-	hypothetical protein
60	 42.05	+1	67462..68448	-	328	29374721	-	EF0065	-	luciferase family protein
61	 39.51	0	68667..69281	+	204	29374722	ruvA	EF0066	-	Holliday junction DNA helicase RuvA
62	 42.38	+1	69294..70310	+	338	29374723	ruvB	EF0067	-	Holliday junction DNA helicase B
63	 31.51	-1	70434..70871	-	145	29374724	-	EF0068	-	hypothetical protein
64	 40.20	0	71084..71782	+	232	29374725	-	EF0069	-	N-acetylmannosamine-6-phosphate 2-epimerase
65	 39.19	0	71960..74299	+	779	29374726	-	EF0071	-	putative lipoprotein
66	 34.42	0	74846..75763	+	305	29374727	-	EF0073	-	Cro/CI family transcriptional regulator
67	 33.79	0	75810..76463	-	217	29374728	-	EF0074	-	Crp/FNR family transcriptional regulator
68	 44.41	+1	76736..77629	+	297	29374729	-	EF0076	-	short chain dehydrogenase/reductase family oxidoreductase
69	 41.71	+1	77642..78214	+	190	29374730	-	EF0077	-	hypothetical protein
70	 37.50	0	78227..78418	+	63	29374731	-	EF0078	-	hypothetical protein
71	 39.38	0	78431..78943	+	170	29374732	-	EF0079	-	gls24 protein
72	 35.47	0	79002..79562	+	186	29374733	-	EF0080	-	gls24 protein
73	 44.44	+1	79586..79828	+	80	29374734	-	EF0081	-	hypothetical protein
74	 37.22	0	80195..81430	+	411	29374735	-	EF0082	-	major facilitator family transporter
75	 38.33	0	81451..81630	+	59	29374736	-	EF0083	-	hypothetical protein
76	 33.33	0	81786..82169	-	127	29374737	-	EF0084	-	hypothetical protein
77	 34.69	0	82166..83269	-	367	29374738	-	EF0085	-	hypothetical protein
78	 32.53	-1	83263..84750	-	495	29374739	-	EF0086	-	hypothetical protein
79	 41.62	0	85595..91558	+	1987	29374740	-	EF0089	-	hypothetical protein
80	 39.13	0	91977..92891	+	304	29374741	-	EF0090	-	diacylglycerol kinase catalytic subunit
81	 35.13	0	92973..94478	+	501	29374742	-	EF0091	-	hypothetical protein
82	 31.67	-1	94814..95053	+	79	29374743	-	EF0092	-	hypothetical protein
83	 41.10	0	95068..98235	+	1055	29374744	-	EF0093	-	cell wall surface anchor family protein
84	 39.95	0	98403..99173	+	256	29374745	-	EF0094	-	formate/nitrite transporter family protein
85	 39.95	0	99329..100114	+	261	29374746	-	EF0095	-	putative lipoprotein
86	 32.45	-1	100173..100853	-	226	29374747	-	EF0096	-	hypothetical protein
87	 41.28	0	101110..102216	+	368	29374748	-	EF0097	-	regulatory protein pfoR, putative
88	 38.33	0	102239..102898	+	219	29374749	sdhB-1	EF0098	-	L-serine dehydratase, iron-sulfur-dependent, beta subunit
89	 43.62	+1	102913..103806	+	297	29374750	sdhA-1	EF0099	-	L-serine dehydratase, iron-sulfur-dependent, alpha subunit
90	 40.25	0	103833..105104	+	423	29374751	serS-1	EF0100	-	seryl-tRNA synthetase
91	 40.33	0	105141..106055	-	304	29374752	-	EF0101	-	alpha/beta fold family hydrolase
92	 36.67	0	106222..106701	-	159	29374753	-	EF0102	-	ArgR family transcriptional regulator
93	 36.40	0	106944..107432	+	162	29374754	-	EF0103	-	ArgR family transcriptional regulator
94	 37.16	0	107729..108955	+	408	29374755	arcA	EF0104	-	arginine deiminase
95	 37.35	0	108985..110004	+	339	29374756	argF-1	EF0105	-	ornithine carbamoyltransferase
96	 40.51	0	110110..111042	+	310	29374757	arcC-1	EF0106	-	carbamate kinase
97	 35.35	0	111067..111759	+	230	29374758	-	EF0107	-	Crp/FNR family transcriptional regulator
98	 38.50	0	111807..113258	+	483	29374759	-	EF0108	-	C4-dicarboxylate transporter, putative
99	 42.14	+1	113349..114029	-	226	29374760	-	EF0109	-	ThiJ/PfpI family protein
100	 40.18	0	114026..114361	-	111	29374761	-	EF0110	-	ArsR family transcriptional regulator
101	 40.59	0	114544..115563	+	339	29374762	-	EF0111	-	oxidoreductase, zinc-binding
102	 26.37	-2	115686..116489	+	267	29374763	-	EF0112	-	hypothetical protein
103	 27.70	-2	116482..117297	+	271	29374764	-	EF0113	-	hypothetical protein
104	 40.23	0	117533..120040	+	835	29374765	-	EF0114	-	glycosy hydrolase family protein
105	 43.34	+1	120325..121593	+	422	29374766	-	EF0115	-	endoribonuclease L-PSP, putative
106	 36.94	0	121643..122086	-	147	29374767	-	EF0116	-	hypothetical protein
107	 41.47	0	122083..123495	-	470	29374768	-	EF0117	-	GntR family transcriptional regulator
108	 41.20	0	123593..124558	+	321	29374769	-	EF0118	-	ornithine cyclodeaminase, putative
109	 41.32	0	124560..125348	+	262	29374770	-	EF0119	-	PhzF family phenazine biosynthesis protein
110	 40.04	0	125396..125932	-	178	29374771	-	EF0120	-	hypothetical protein
111	 39.04	0	125857..126084	-	75	29374772	-	EF0121	-	hypothetical protein
112	 30.16	-1	126108..126485	-	125	29374773	-	EF0122	-	hypothetical protein
113	 39.12	0	126495..128846	-	783	29374774	-	EF0123	-	hypothetical protein
114	 33.33	0	128949..129308	-	119	29374775	-	EF0124	-	hypothetical protein
115	 36.57	0	129645..130817	+	390	29374776	-	EF0125	-	IS256, transposase
116	 30.42	-1	130937..131554	+	205	29374777	-	EF0126	-	hypothetical protein
117	 28.30	-2	132152..132727	+	191	29374778	-	EF0127	-	hypothetical protein
37.28	MEAN

4.35	STD DEV
