IslandPathversion 1.0

IslandPath Analysis: Enterococcus faecalis V583

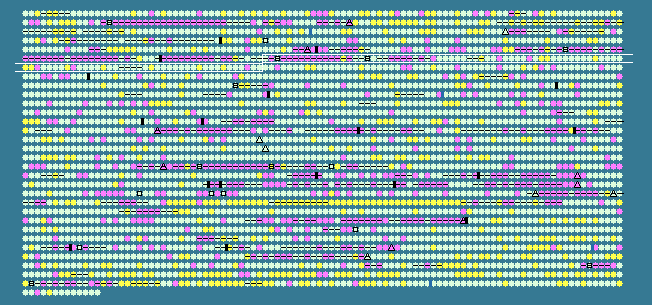

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.28 STD DEV: 4.35
Enterococcus faecalis V583, complete genome - 1..3218031
3113 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
541	 35.46	0	549976..551526	+	516	29375202	-	EF0590	-	polysaccharide deacetylase family protein
542	 27.73	-2	559056..559430	+	124	29375203	-	EF0594	-	hypothetical protein
543	 35.03	0	559459..560637	-	392	29375204	-	EF0595	-	ISEf1, transposase
544	 31.60	-1	562902..563132	+	76	29375205	-	EF0599	-	hypothetical protein
545	 22.76	-2	563269..563892	-	207	29375206	-	EF0600	-	TetR family transcriptional regulator
546	 27.60	-2	563900..564544	-	214	29375207	-	EF0601	-	TetR family transcriptional regulator
547	 26.13	-2	566493..566978	-	161	29375208	-	EF0603	-	hypothetical protein
548	 31.61	-1	567357..567935	-	192	29375209	-	EF0604	-	gls24 protein
549	 26.20	-2	568182..568742	-	186	29375210	-	EF0605	-	hypothetical protein
550	 30.77	-1	569460..569927	-	155	29375211	-	EF0606	-	Dps family protein
551	 31.84	-1	570062..570595	-	177	29375212	-	EF0607	-	ParB-like nuclease domain-containing protein
552	 24.88	-2	570582..571007	-	141	29375213	-	EF0608	-	hypothetical protein
553	 28.30	-2	571004..572275	-	423	29375214	-	EF0609	-	hypothetical protein
554	 42.98	+1	572918..573031	-	37	29375215	-	EF0610	-	hypothetical protein
555	 29.29	-1	573245..573640	-	131	29375216	-	EF0611	-	hypothetical protein
556	 36.23	0	573915..574190	-	91	29375217	-	EF0612	-	hypothetical protein
557	 35.09	0	574384..574554	-	56	29375218	-	EF0613	-	hypothetical protein
558	 35.09	0	575151..575549	+	132	29375219	-	EF0615	-	IS200 family transposase
559	 40.16	0	575675..576655	-	326	29375220	-	EF0616	-	ornithine cyclodeaminase
560	 38.34	0	576668..577546	-	292	29375221	-	EF0617	-	hypothetical protein
561	 35.08	0	577561..578361	-	266	29375222	-	EF0618	-	hypothetical protein
562	 25.00	-2	578689..578784	-	31	29375223	-	EF0619	-	hypothetical protein
563	 31.58	-1	579321..579491	+	56	29375224	-	EF0621	-	hypothetical protein
564	 28.48	-2	579550..579714	+	54	29375225	-	EF0622	-	hypothetical protein
565	 29.96	-1	580458..580724	+	88	29375226	-	EF0624	-	hypothetical protein
566	 36.24	0	581066..581752	+	228	29375227	-	EF0625	-	hypothetical protein
567	 25.86	-2	581815..581988	+	57	29375228	-	EF0626	-	hypothetical protein
568	 35.69	0	582072..582326	+	84	29375229	-	EF0627	-	hypothetical protein
569	 32.37	-1	582370..582786	+	138	29375230	-	EF0628	-	PTS system, IIA component, putative
570	 37.50	0	583783..584622	+	279	29375231	-	EF0629	-	aldo/keto reductase family oxidoreductase
571	 37.27	0	584645..585127	+	160	29375232	-	EF0630	-	glyoxalase family protein
572	 36.38	0	585293..586738	+	481	29375233	-	EF0631	-	cardiolipin synthetase, putative
573	 37.55	0	587436..588692	+	418	29375234	tryS-1	EF0633	-	tyrosyl-tRNA synthetase
574	 36.84	0	588943..590853	+	636	29375235	-	EF0634	-	decarboxylase, putative
575	 34.46	0	591056..592474	+	472	29375236	-	EF0635	-	amino acid permease family protein
576	 39.37	0	592599..594005	+	468	29375237	nhaC-2	EF0636	-	Na+/H+ antiporter
577	 41.83	+1	594362..595279	+	305	29375238	-	EF0637	-	hypothetical protein
578	 35.78	0	595331..595780	-	149	29375239	-	EF0638	-	hypothetical protein
579	 38.86	0	595919..596425	-	168	29375240	-	EF0639	-	low temperature requirement C protein, putative
580	 25.93	-2	596453..596560	+	35	29375241	-	EF0640	-	hypothetical protein
581	 39.31	0	596557..597510	-	317	29375242	ldh-2	EF0641	-	L-lactate dehydrogenase
582	 36.36	0	597678..598040	+	120	29375243	-	EF0642	-	hypothetical protein
583	 35.28	0	598056..598466	+	136	29375244	-	EF0643	-	hypothetical protein
584	 35.14	0	598513..599340	-	275	29375245	-	EF0644	-	LysR family transcriptional regulator
585	 33.02	0	599482..600450	+	322	29375246	-	EF0645	-	exfoliative toxin A, putative
586	 38.33	0	600474..601433	+	319	29375247	-	EF0646	-	NAD-dependent epimerase/dehydratase family protein
587	 44.55	+1	601447..601776	-	109	29375248	-	EF0647	-	hypothetical protein
588	 40.78	0	601906..602523	+	205	29375249	-	EF0648	-	nitroreductase family protein
589	 36.98	0	602711..603724	+	337	29375250	lplA-1	EF0650	-	lipoate-protein ligase A
590	 33.94	0	604833..605159	-	108	29375251	-	EF0652	-	hypothetical protein
591	 38.71	0	605289..605567	+	92	29375252	-	EF0653	-	hypothetical protein
592	 37.71	0	605572..606507	+	311	29375253	-	EF0654	-	LacI family sugar-binding transcriptional regulator
593	 38.86	0	606679..607275	+	198	29375254	-	EF0655	-	nitroreductase family protein, putative
594	 40.07	0	607318..608163	+	281	29375255	-	EF0656	-	glyoxalase family protein
595	 39.76	0	608293..609054	+	253	29375256	-	EF0657	-	DeoR family transcriptional regulator
596	 40.90	0	609067..610467	+	466	29375257	-	EF0658	-	hypothetical protein
597	 40.40	0	610555..611205	+	216	29375258	-	EF0659	-	phage SPO1 DNA polymerase-related protein, putative
598	 38.48	0	611380..612720	+	446	29375259	-	EF0660	-	MATE efflux family protein
599	 37.92	0	612745..614553	-	602	29375260	-	EF0661	-	oligoendopeptidase F, putative
600	 34.51	0	614699..615208	+	169	29375261	-	EF0662	-	hypothetical protein
601	 43.48	+1	615339..616067	+	242	29375262	-	EF0663	-	hypothetical protein
602	 43.74	+1	616120..616590	+	156	29375263	-	EF0664	-	hypothetical protein
603	 32.76	-1	616666..616839	-	57	29375264	-	EF0665	-	hypothetical protein
604	 38.97	0	616952..617926	-	324	29375265	-	EF0666	-	glyoxalase family protein
605	 38.74	0	617957..618529	+	190	29375266	-	EF0667	-	hypothetical protein
606	 40.54	0	618596..620122	-	508	29375267	murE	EF0668	-	UDP-N-acetylmuramoylalanyl-D-glutamate--2,6-diaminopimelate ligase
607	 38.36	0	620326..621975	+	549	29375268	-	EF0669	-	polysaccharide biosynthesis family protein
608	 41.74	+1	622952..624367	+	471	29375269	-	EF0671	-	dipeptidase PepV
609	 32.91	-1	624512..624745	+	77	29375270	-	EF0672	-	hypothetical protein
610	 38.24	0	624910..625929	-	339	29375271	-	EF0673	-	hypothetical protein
611	 39.94	0	626166..627119	+	317	29375272	-	EF0674	-	glycine betaine/carnitine/choline ABC transporter, ATP-binding protein
612	 37.29	0	627120..628637	+	505	29375273	-	EF0675	-	glycine betaine/carnitine/choline ABC transporter, glycine betaine/carnitine/choline-binding protein
613	 37.94	0	628779..629234	+	151	29375274	argR	EF0676	-	arginine repressor
614	 41.48	0	629268..630776	+	502	29375275	-	EF0677	-	phosphoglucomutase/phosphomannomutase family protein
615	 35.14	0	630800..631354	+	184	29375276	-	EF0678	-	acetyltransferase
616	 40.60	0	632686..634872	+	728	29375277	-	EF0680	-	penicillin-binding protein 2A
617	 36.84	0	634935..635276	+	113	29375278	-	EF0681	-	hypothetical protein
618	 40.21	0	635432..636667	+	411	29375279	-	EF0682	-	DNA repair exonuclease family protein
619	 39.56	0	636664..639375	+	903	29375280	-	EF0683	-	hypothetical protein
620	 38.94	0	639372..640316	+	314	29375281	-	EF0684	-	cmp-binding protein, putative
621	 35.86	0	640356..641384	-	342	29375282	-	EF0685	-	rotamase family protein
622	 40.87	0	641548..641892	-	114	29375283	-	EF0686	-	hypothetical protein
623	 36.15	0	641893..642318	-	141	29375284	-	EF0687	-	HIT family protein
624	 36.59	0	642534..643271	+	245	29375285	-	EF0688	-	ABC transporter, ATP-binding protein
625	 38.20	0	643273..644484	+	403	29375286	-	EF0689	-	hypothetical protein
626	 38.59	0	644613..645392	+	259	29375287	-	EF0690	-	hypothetical protein
627	 34.11	0	645465..646109	+	214	29375288	trmB	EF0691	-	tRNA (guanine-N(7))-methyltransferase
628	 35.61	0	646169..646915	-	248	29375289	-	EF0692	-	RpiR family phosphosugar-binding transcriptional regulator , putative
629	 34.63	0	647094..648020	+	308	29375290	fruK-1	EF0693	-	1-phosphofructokinase
630	 42.07	+1	648025..649443	+	472	29375291	-	EF0694	-	PTS system, fructose-specific family, IIBC components
631	 39.83	0	649470..649931	+	153	29375292	-	EF0695	-	PTS system, IIA component
632	 39.57	0	649928..650905	+	325	29375293	lacD-1	EF0696	-	tagatose 1,6-diphosphate aldolase
633	 36.89	0	651094..651627	+	177	29375294	-	EF0697	-	hypothetical protein
634	 42.59	+1	651715..652146	-	143	29375295	-	EF0698	-	acetyltransferase
635	 34.90	0	652292..653437	+	381	29375296	-	EF0699	-	hypothetical protein
636	 38.26	0	653612..654991	+	459	29375297	-	EF0700	-	hemolysin
637	 40.25	0	655165..656739	+	524	29375298	prfC	EF0701	-	peptide chain release factor 3
638	 29.05	-1	656915..657358	+	147	29375299	-	EF0702	-	hypothetical protein
639	 34.26	0	657374..658021	+	215	29375300	-	EF0703	-	hypothetical protein
640	 38.94	0	658088..659158	+	356	29375301	-	EF0704	-	putative lipoprotein
37.28	MEAN

4.35	STD DEV
