IslandPath Analysis: Enterococcus faecalis V583

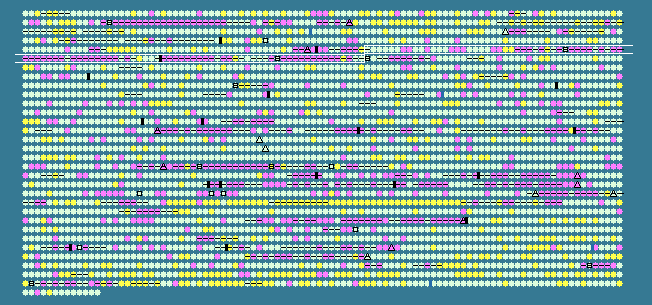

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 37.28   STD DEV: 4.35
Enterococcus faecalis V583, complete genome - 1..3218031
3113 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
458	 40.25	0	457105..458376	+	423	29375119	-	EF0491	-	hypothetical protein
459	 35.60	0	458379..458996	+	205	29375120	-	EF0492	-	hypothetical protein
460	 35.77	0	459028..459396	+	122	29375121	-	EF0493	-	hypothetical protein
461	 40.63	0	459396..459710	+	104	29375122	-	EF0494	-	hypothetical protein
462	 35.59	0	459763..460737	+	324	29375123	-	EF0495	-	hypothetical protein
463	 36.40	0	460742..461002	+	86	29375124	-	EF0496	-	hypothetical protein
464	 32.82	-1	460999..461391	+	130	29375125	-	EF0497	-	hypothetical protein
465	 31.68	-1	461423..461905	+	160	29375126	-	EF0498	-	hypothetical protein
466	 38.56	0	462000..462458	+	152	29375127	ssb-2	EF0499	-	single-strand binding protein
467	 37.67	0	462563..465055	+	830	29375128	-	EF0500	-	hypothetical protein
468	 33.04	0	465066..465410	+	114	29375129	-	EF0501	-	putative lipoprotein
469	 36.62	0	465423..467768	+	781	29375130	-	EF0502	-	hypothetical protein
470	 35.37	0	467755..470013	+	752	29375131	-	EF0503	-	hypothetical protein
471	 40.35	0	470015..470185	-	56	29375132	-	EF0504	-	hypothetical protein
472	 30.73	-1	470593..471321	+	242	29375133	-	EF0505	-	hypothetical protein
473	 30.27	-1	471327..471815	+	162	29375134	-	EF0506	-	hypothetical protein
474	 31.09	-1	472407..472673	+	88	29375135	-	EF0507	-	hypothetical protein
475	 34.73	0	472706..473206	+	166	29375136	-	EF0508	-	hypothetical protein
476	 34.14	0	473219..473467	+	82	29375137	-	EF0509	-	hypothetical protein
477	 36.93	0	473543..473959	+	138	29375138	ssb-3	EF0510	-	single-strand binding protein
478	 39.32	0	473983..474567	+	194	29375139	nuc-1	EF0511	-	thermonuclease precursor
479	 30.34	-1	474678..474944	+	88	29375140	-	EF0512	-	DNA-damage-inducible protein J, putative
480	 32.25	-1	474937..475212	+	91	29375141	-	EF0513	-	hypothetical protein
481	 41.71	+1	477367..478404	-	345	29375142	-	EF0516	-	hypothetical protein
482	 40.89	0	478430..479368	-	312	29375143	-	EF0517	-	2-dehydropantoate 2-reductase
483	 32.73	-1	479496..479825	-	109	29375144	-	EF0518	-	cell wall surface anchor family protein
484	 24.73	-2	479855..480040	+	61	29375145	-	EF0519	-	hypothetical protein
485	 30.67	-1	481349..482323	-	324	29375146	-	EF0521	-	choloylglycine hydrolase family protein
486	 33.81	0	483259..483678	+	139	29375147	-	EF0523	-	hypothetical protein
487	 26.37	-2	484016..484216	-	66	29375148	-	EF0524	-	Cro/CI family transcriptional regulator
488	 43.96	+1	484620..484826	+	68	29375149	-	EF0525	-	cylL-L protein
489	 34.90	0	484860..485051	+	63	29375150	-	EF0526	-	cylL-S protein
490	 27.10	-2	485112..488093	+	993	29375151	cylM	EF0527	-	cylM protein
491	 36.57	0	489003..490175	+	390	29375152	-	EF0529	-	IS256, transposase
492	 25.71	-2	490230..491147	+	305	29375153	-	EF0530	-	AraC family transcriptional regulator
493	 22.54	-2	491277..491693	+	138	29375154	-	EF0531	-	hypothetical protein
494	 29.27	-1	491723..491845	+	40	29375155	-	EF0532	-	hypothetical protein
495	 27.78	-2	491990..492655	+	221	29375156	-	EF0533	-	hypothetical protein
496	 36.76	0	492701..493255	-	184	29375157	-	EF0534	-	resolvase family site-specific recombinase
497	 28.08	-2	494871..495689	-	272	29375158	-	EF0539	-	RpiR family phosphosugar-binding transcriptional regulator
498	 34.46	0	495845..496552	+	235	29375159	-	EF0540	-	N-acetylmannosamine-6-phosphate 2-epimerase
499	 25.36	-2	499173..499937	-	254	29375160	-	EF0542	-	hypothetical protein
500	 27.20	-2	499934..500977	-	347	29375161	-	EF0543	-	hypothetical protein
501	 32.18	-1	501328..501501	+	57	29375162	rpmF	EF0544	-	50S ribosomal protein L32
502	 27.39	-2	501514..501900	+	128	29375163	-	EF0545	-	hypothetical protein
503	 29.14	-1	501952..502356	+	134	29375164	-	EF0546	-	hypothetical protein
504	 31.19	-1	502550..503620	+	356	29375165	-	EF0547	-	ammonium transporter family protein
505	 30.60	-1	503723..504856	+	377	29375166	-	EF0548	-	hypothetical protein
506	 29.65	-1	507125..508291	-	388	29375167	-	EF0550	-	xylose repressor, putative
507	 33.53	0	508658..510724	+	688	29375168	-	EF0551	-	glycosy hydrolase family protein
508	 34.35	0	510724..511509	+	261	29375169	-	EF0552	-	PTS system, IIC component
509	 32.10	-1	511502..512314	+	270	29375170	-	EF0553	-	PTS system, IID component
510	 30.23	-1	512339..512821	+	160	29375171	-	EF0554	-	PTS system, IIB component
511	 33.58	0	512833..513240	+	135	29375172	-	EF0555	-	PTS system, IIA component
512	 32.26	-1	513345..514652	+	435	29375173	xylA	EF0556	-	xylose isomerase
513	 32.53	-1	514714..516204	+	496	29375174	xylB	EF0557	-	D-xylulose kinase
514	 27.78	-2	517088..518671	-	527	29375175	-	EF0559	-	polysaccharide biosynthesis family protein
515	 32.30	-1	520795..521085	+	96	29375176	-	EF0562	-	hypothetical protein
516	 27.89	-2	521552..521845	+	97	29375177	-	EF0563	-	hypothetical protein
517	 33.99	0	521855..522007	+	50	29375178	-	EF0564	-	hypothetical protein
518	 33.74	0	522174..522419	+	81	29375179	-	EF0566	-	hypothetical protein
519	 40.43	0	522905..524581	+	558	29375180	kdpA	EF0567	-	potassium-transporting ATPase subunit A
520	 41.41	0	524597..526627	+	676	29375181	kdpB	EF0568	-	potassium-transporting ATPase subunit B
521	 38.79	0	526641..527171	+	176	29375182	kdpC	EF0569	-	potassium-transporting ATPase, subunit C
522	 37.88	0	527258..529810	+	850	29375183	kdpD	EF0570	-	sensor histidine kinase KdpD
523	 37.10	0	529822..530511	+	229	29375184	-	EF0571	-	DNA-binding response regulator
524	 33.27	0	535599..537209	+	536	29375185	-	EF0573	-	hypothetical protein
525	 29.52	-1	537292..537396	+	34	29375186	-	EF0574	-	hypothetical protein
526	 30.69	-1	537810..538529	+	239	29375187	-	EF0575	-	cationic ABC transporter, ATP-binding protein
527	 30.60	-1	538531..539373	+	280	29375188	-	EF0576	-	cation ABC transporter, permease protein
528	 32.91	-1	539370..540320	+	316	29375189	-	EF0577	-	adhesion lipoprotein
529	 25.64	-2	540335..540568	+	77	29375190	-	EF0578	-	iron-dependent repressor family protein
530	 30.06	-1	540965..541483	+	172	29375191	-	EF0579	-	transcriptional regulator, putative
531	 29.15	-1	541613..542281	+	222	29375192	-	EF0580	-	hypothetical protein
532	 29.33	-1	542283..543707	+	474	29375193	-	EF0581	-	ABC transporter, ATP-binding protein
533	 34.74	0	543725..544294	+	189	29375194	-	EF0582	-	hypothetical protein
534	 31.62	-1	544404..546158	+	584	29375195	-	EF0583	-	ABC transporter, ATP-binding protein/permease protein
535	 33.68	0	546142..547884	+	580	29375196	-	EF0584	-	ABC transporter, ATP-binding/permease protein
536	 42.59	+1	548407..548676	+	89	29375197	rpsN	EF0585	-	30S ribosomal protein S14
537	 35.00	0	548691..548870	+	59	29375198	rpmF	EF0586	-	50S ribosomal protein L32
538	 34.66	0	548902..549279	+	125	29375199	-	EF0587	-	hypothetical protein
539	 34.67	0	549300..549449	+	49	29375200	rpmG	EF0588	-	50S ribosomal protein L33
540	 38.18	0	549473..549637	+	54	29375201	-	EF0589	-	hypothetical protein
541	 35.46	0	549976..551526	+	516	29375202	-	EF0590	-	polysaccharide deacetylase family protein
542	 27.73	-2	559056..559430	+	124	29375203	-	EF0594	-	hypothetical protein
543	 35.03	0	559459..560637	-	392	29375204	-	EF0595	-	ISEf1, transposase
544	 31.60	-1	562902..563132	+	76	29375205	-	EF0599	-	hypothetical protein
545	 22.76	-2	563269..563892	-	207	29375206	-	EF0600	-	TetR family transcriptional regulator
546	 27.60	-2	563900..564544	-	214	29375207	-	EF0601	-	TetR family transcriptional regulator
547	 26.13	-2	566493..566978	-	161	29375208	-	EF0603	-	hypothetical protein
548	 31.61	-1	567357..567935	-	192	29375209	-	EF0604	-	gls24 protein
549	 26.20	-2	568182..568742	-	186	29375210	-	EF0605	-	hypothetical protein
550	 30.77	-1	569460..569927	-	155	29375211	-	EF0606	-	Dps family protein
551	 31.84	-1	570062..570595	-	177	29375212	-	EF0607	-	ParB-like nuclease domain-containing protein
552	 24.88	-2	570582..571007	-	141	29375213	-	EF0608	-	hypothetical protein
553	 28.30	-2	571004..572275	-	423	29375214	-	EF0609	-	hypothetical protein
554	 42.98	+1	572918..573031	-	37	29375215	-	EF0610	-	hypothetical protein
555	 29.29	-1	573245..573640	-	131	29375216	-	EF0611	-	hypothetical protein
556	 36.23	0	573915..574190	-	91	29375217	-	EF0612	-	hypothetical protein
557	 35.09	0	574384..574554	-	56	29375218	-	EF0613	-	hypothetical protein
37.28	MEAN

4.35	STD DEV
