IslandPathversion 1.0

IslandPath Analysis: Enterococcus faecalis V583

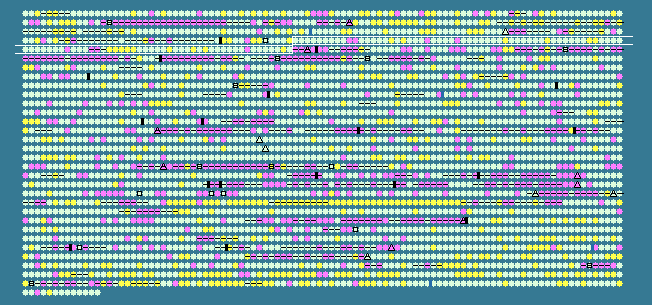

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.28 STD DEV: 4.35
Enterococcus faecalis V583, complete genome - 1..3218031
3113 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
346	 39.16	0	336219..336905	+	228	29375007	-	EF0369	-	HAD superfamily hydrolase
347	 36.33	0	337091..338827	+	578	29375008	-	EF0370	-	septation ring formation regulator EzrA
348	 40.05	0	338954..340099	+	381	29375009	-	EF0371	-	aminotransferase, class V
349	 36.65	0	340151..340843	-	230	29375010	-	EF0372	-	DNA-binding response regulator
350	 36.17	0	340840..342321	-	493	29375011	-	EF0373	-	sensor histidine kinase
351	 35.79	0	342508..343485	+	325	29375012	-	EF0374	-	putative lipoprotein
352	 38.20	0	343670..344635	+	321	29375013	-	EF0375	-	hypothetical protein
353	 38.31	0	344854..345897	+	347	29375014	-	EF0376	-	hypothetical protein
354	 39.93	0	346269..346874	+	201	29375015	-	EF0377	-	ankyrin repeat-containing protein
355	 32.62	-1	348247..348666	-	139	29375016	-	EF0379	-	death-on-curing family protein
356	 30.00	-1	348663..348902	-	79	29375017	-	EF0380	-	hypothetical protein
357	 40.17	0	349003..349821	-	272	29375018	-	EF0381	-	hypothetical protein
358	 34.97	0	349790..351382	-	530	29375019	-	EF0382	-	hypothetical protein
359	 40.04	0	351505..354516	+	1003	29375020	-	EF0383	-	hypothetical protein
360	 37.53	0	354509..355342	+	277	29375021	-	EF0384	-	hypothetical protein
361	 38.20	0	355352..356605	+	417	29375022	-	EF0385	-	major facilitator family transporter
362	 41.21	0	356740..357678	+	312	29375023	arcC-2	EF0386	-	carbamate kinase
363	 37.51	0	357685..358905	+	406	29375024	-	EF0387	-	sodium/dicarboxylate symporter family protein
364	 41.90	+1	358995..360056	+	353	29375025	allD	EF0388	-	ureidoglycolate dehydrogenase
365	 38.27	0	360122..361477	+	451	29375026	-	EF0389	-	hypothetical protein
366	 40.39	0	361493..362725	+	410	29375027	-	EF0390	-	N-acyl-D-amino-acid deacylase family protein
367	 37.39	0	363117..365411	+	764	29375028	-	EF0392	-	hypothetical protein
368	 20.00	-2	365503..365667	-	54	29375029	-	EF0393	-	hypothetical protein
369	 40.44	0	365868..367217	+	449	29375030	-	EF0394	-	secreted antigen, putative
370	 40.07	0	367625..368752	+	375	29375031	-	EF0395	-	methionine synthase, putative
371	 35.70	0	368804..369988	-	394	29375032	-	EF0396	-	hypothetical protein
372	 36.82	0	370004..370519	-	171	29375033	-	EF0397	-	hypothetical protein
373	 23.53	-2	370596..370697	+	33	29375034	-	EF0398	-	hypothetical protein
374	 38.28	0	370712..371398	+	228	29375035	-	EF0399	-	hypothetical protein
375	 37.99	0	371395..372339	+	314	29375036	-	EF0400	-	hypothetical protein
376	 39.41	0	372355..372996	+	213	29375037	pcp	EF0401	-	pyrrolidone-carboxylate peptidase
377	 37.68	0	373586..374989	+	467	29375038	nhaC-1	EF0402	-	Na+/H+ antiporter
378	 37.24	0	375141..375575	+	144	29375039	-	EF0403	-	MarR family transcriptional regulator
379	 39.15	0	375580..376215	+	211	29375040	-	EF0404	-	nitroreductase family protein
380	 39.57	0	376258..377091	-	277	29375041	-	EF0405	-	HAD superfamily hydrolase
381	 40.97	0	377290..379017	+	575	29375042	-	EF0406	-	PTS system, IIBC component
382	 37.76	0	379008..381041	+	677	29375043	-	EF0407	-	transcriptional regulator, putative
383	 39.54	0	381052..381486	+	144	29375044	-	EF0408	-	PTS system, IIA component
384	 39.10	0	381741..381896	-	51	29375045	-	EF0409	-	hypothetical protein
385	 40.16	0	382082..383854	+	590	29375046	-	EF0411	-	PTS system, mannitol-specfic IIBC components
386	 36.30	0	383869..384306	+	145	29375047	mltF	EF0412	-	PTS system, mannitol-specific IIA component
387	 38.87	0	384321..385475	+	384	29375048	mtlD	EF0413	-	mannitol-1-phosphate 5-dehydrogenase
388	 43.55	+1	385542..386657	-	371	29375049	-	EF0414	-	DadA family oxidoreductase
389	 39.75	0	386736..387374	-	212	29375050	-	EF0415	-	hypothetical protein
390	 40.29	0	387695..388873	+	392	29375051	-	EF0417	-	hypothetical protein
391	 37.30	0	390874..391578	-	234	29375052	-	EF0419	-	hypothetical protein
392	 39.66	0	391578..393095	-	505	29375053	-	EF0420	-	drug resistance transporter, EmrB/QacA family protein
393	 35.75	0	393208..393663	+	151	29375054	-	EF0421	-	MerR family transcriptional regulator
394	 36.52	0	393794..394546	+	250	29375055	-	EF0422	-	IclR family transcriptional regulator
395	 44.14	+1	394707..395354	+	215	29375056	eda-1	EF0423	-	keto-hydroxyglutarate-aldolase/keto-deoxy-phosphogluconate aldolase
396	 42.86	+1	395359..396366	+	335	29375057	-	EF0424	-	2-dehydro-3-deoxygluconokinase, putative
397	 36.70	0	396388..397218	+	276	29375058	kduI-1	EF0425	-	5-keto-4-deoxyuronate isomerase
398	 39.67	0	397240..398028	+	262	29375059	-	EF0426	-	gluconate 5-dehydrogenase
399	 36.12	0	398252..399364	+	370	29375060	-	EF0428	-	hypothetical protein
400	 36.81	0	399385..400392	+	335	29375061	-	EF0429	-	TRAP dicarboxylate transporter, DctP subunit
401	 34.38	0	400407..400883	+	158	29375062	-	EF0430	-	TRAP dicarboxylate transporter, DctQ subunit
402	 37.04	0	400919..402214	+	431	29375063	-	EF0431	-	TRAP dicarboxylate transporter, DctM subunit
403	 34.02	0	402362..403234	-	290	29375064	-	EF0432	-	AraC family transcriptional regulator
404	 38.92	0	403381..404865	+	494	29375065	-	EF0433	-	rhamnulokinase, putative
405	 39.55	0	404862..406148	+	428	29375066	rhaA	EF0434	-	L-rhamnose isomerase
406	 38.33	0	406185..407024	+	279	29375067	rhaD	EF0435	-	rhamnulose-1-phosphate aldolase
407	 35.26	0	407021..407332	+	103	29375068	-	EF0436	-	hypothetical protein
408	 32.14	-1	407542..408462	+	306	29375069	-	EF0437	-	AraC family transcriptional regulator
409	 34.52	0	408455..409300	+	281	29375070	-	EF0438	-	hypothetical protein
410	 34.33	0	409383..409583	-	66	29375071	-	EF0439	-	immunity protein PlnM, putative
411	 39.95	0	409689..411170	-	493	29375072	-	EF0440	-	di-/tripeptide transporter
412	 21.62	-2	411372..411482	-	36	29375073	-	EF0441	-	hypothetical protein
413	 26.13	-2	411489..411710	+	73	29375074	-	EF0442	-	hypothetical protein
414	 40.00	0	411989..412588	+	199	29375075	-	EF0443	-	LysM domain-containing protein
415	 40.81	0	413203..414018	+	271	29375076	menB	EF0445	-	naphthoate synthase
416	 41.22	0	414023..415480	+	485	29375077	-	EF0446	-	O-succinylbenzoic acid--CoA ligase
417	 43.13	+1	415477..416844	+	455	29375078	-	EF0447	-	menaquinone-specific isochorismate synthase
418	 41.12	0	416844..418577	+	577	29375079	menD	EF0448	-	2-succinyl-6-hydroxy-2,4-cyclohexadiene-1-carboxylic acid synthase/2-oxoglutarate decarboxylase
419	 43.91	+1	418586..419389	+	267	29375080	-	EF0449	-	alpha/beta fold family hydrolase
420	 40.31	0	419390..420493	+	367	29375081	-	EF0450	-	mandelate racemase/muconate lactonizing enzyme family protein
421	 40.63	0	420550..421248	-	232	29375082	-	EF0451	-	putative 6-phosphogluconolactonase
422	 38.90	0	421500..423026	-	508	29375083	-	EF0452	-	AMP-binding family protein
423	 36.82	0	423247..423648	+	133	29375084	-	EF0453	-	OsmC/Ohr family protein
424	 38.59	0	423692..424471	-	259	29375085	-	EF0454	-	hypothetical protein
425	 41.04	0	424632..425435	+	267	29375086	-	EF0455	-	PTS system, IIC component
426	 38.95	0	425428..426246	+	272	29375087	-	EF0456	-	PTS system, IID component
427	 37.53	0	426277..426753	+	158	29375088	-	EF0457	-	PTS system, IIB component
428	 38.73	0	426770..427621	+	283	29375089	-	EF0458	-	phosphosugar-binding transcriptional regulator, putative
429	 41.31	0	427624..428526	+	300	29375090	-	EF0459	-	N-acetylmuramic acid-6-phosphate etherase
430	 40.30	0	428539..429528	+	329	29375091	-	EF0460	-	hypothetical protein
431	 43.33	+1	429538..429957	+	139	29375092	-	EF0461	-	PTS system, IIA component
432	 37.28	0	429992..430801	-	269	29375093	-	EF0462	-	hypothetical protein
433	 38.75	0	430995..431603	+	202	29375094	sodA	EF0463	-	superoxide dismutase, Mn
434	 39.35	0	431752..432732	+	326	29375095	dapF	EF0464	-	diaminopimelate epimerase
435	 40.45	0	432882..434090	+	402	29375096	-	EF0465	-	transcriptional regulator
436	 36.75	0	434221..434922	+	233	29375097	nagB	EF0466	-	glucosamine-6-phosphate isomerase
437	 38.18	0	435018..435719	+	233	29375098	-	EF0467	-	MgtC family protein
438	 31.75	-1	435878..436447	+	189	29375099	-	EF0468	-	LemA family protein
439	 34.34	0	436492..437778	+	428	29375100	-	EF0469	-	hypothetical protein
440	 35.40	0	437818..438783	-	321	29375101	nrdF	EF0470	-	ribonucleotide-diphosphate reductase subunit beta
441	 35.83	0	438984..441143	-	719	29375102	nrdE	EF0471	-	ribonucleotide-diphosphate reductase subunit alpha
442	 37.30	0	441124..441501	-	125	29375103	nrdI	EF0472	-	ribonucleotide reductase stimulatory protein
443	 37.78	0	441503..441727	-	74	29375104	nrdH	EF0473	-	ribonucleoside-diphosphate reductase 2, NrdH-redoxin
444	 41.98	+1	442241..442714	+	157	29375105	feoA	EF0475	-	ferrous iron transport protein A
445	 40.63	0	442711..444861	+	716	29375106	feoB	EF0476	-	ferrous iron transport protein B
37.28	MEAN

4.35	STD DEV
