IslandPathversion 1.0

IslandPath Analysis: Enterococcus faecalis V583

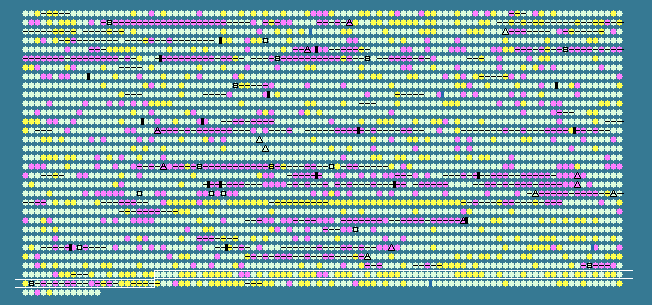

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.28 STD DEV: 4.35
Enterococcus faecalis V583, complete genome - 1..3218031
3113 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2923	 38.89	0	3005907..3006212	-	101	29377584	-	EF3130	-	hypothetical protein
2924	 37.63	0	3006268..3007152	-	294	29377585	-	EF3131	-	hypothetical protein
2925	 36.07	0	3007169..3007387	-	72	29377586	-	EF3132	-	hypothetical protein
2926	 38.64	0	3007567..3008037	-	156	29377587	-	EF3133	-	hypothetical protein
2927	 41.28	0	3008352..3009005	-	217	29377588	eda-2	EF3134	-	2-dehydro-3-deoxyphosphogluconate aldolase/4-hydroxy-2-oxoglutarate aldolase
2928	 42.18	+1	3009010..3010083	-	357	29377589	-	EF3135	-	mannonate dehydratase
2929	 44.81	+1	3010107..3010559	-	150	29377590	-	EF3136	-	PTS system, IIA component
2930	 35.31	0	3010637..3011143	-	168	29377591	-	EF3137	-	PTS system, IIB component
2931	 41.92	+1	3011165..3012037	-	290	29377592	-	EF3138	-	PTS system, IID component
2932	 42.65	+1	3012058..3012894	-	278	29377593	-	EF3139	-	PTS system, IIC component
2933	 43.81	+1	3012907..3014013	-	368	29377594	-	EF3140	-	alcohol dehydrogenase, iron-containing
2934	 42.71	+1	3014028..3015029	-	333	29377595	-	EF3141	-	D-isomer specific 2-hydroxyacid dehydrogenase family protein
2935	 42.67	+1	3015042..3015941	-	299	29377596	-	EF3142	-	6-phosphogluconate dehydrogenase-like protein
2936	 38.06	0	3016354..3017241	+	295	29377597	-	EF3144	-	RpiR family phosphosugar-binding transcriptional regulator
2937	 30.24	-1	3017375..3017827	-	150	29377598	-	EF3145	-	hypothetical protein
2938	 30.13	-1	3018368..3019084	-	238	29377599	-	EF3146	-	hypothetical protein
2939	 38.69	0	3019630..3020208	-	192	29377600	pgsA	EF3148	-	CDP-diacylglycerol--glycerol-3-phosphate 3-phosphatidyltransferase
2940	 43.94	+1	3020333..3021199	-	288	29377601	-	EF3149	-	hypothetical protein
2941	 38.62	0	3021367..3022671	-	434	29377602	-	EF3150	-	M16 family peptidase
2942	 41.06	0	3022664..3023932	-	422	29377603	-	EF3151	-	hypothetical protein
2943	 42.89	+1	3024141..3024590	+	149	29377604	mscL	EF3152	-	large conductance mechanosensitive channel protein
2944	 46.30	+2	3024631..3025347	-	238	29377605	-	EF3153	-	hypothetical protein
2945	 41.21	0	3025445..3026155	-	236	29377606	-	EF3154	-	hypothetical protein
2946	 40.34	0	3026239..3026937	-	232	29377607	-	EF3155	-	hypothetical protein
2947	 42.16	+1	3027279..3027992	-	237	29377608	-	EF3156	-	GntR family transcriptional regulator
2948	 44.50	+1	3028662..3030998	+	778	29377609	-	EF3157	-	glycosy hydrolase family protein
2949	 47.00	+2	3031013..3031663	+	216	29377610	-	EF3158	-	HAD superfamily hydrolase
2950	 32.43	-1	3032274..3032717	+	147	29377611	-	EF3160	-	hypothetical protein
2951	 28.36	-2	3033479..3033880	+	133	29377612	-	EF3161	-	hypothetical protein
2952	 39.81	0	3034065..3035036	-	323	29377613	prsA-2	EF3163	-	ribose-phosphate pyrophosphokinase
2953	 42.69	+1	3035211..3035648	-	145	29377614	-	EF3164	-	methionine sulfoxide reductase B
2954	 47.39	+2	3035781..3036335	-	184	29377615	maf	EF3165	-	maf protein
2955	 43.32	+1	3036360..3038492	-	710	29377616	mutL	EF3166	-	DNA mismatch repair protein
2956	 39.97	0	3038524..3041100	-	858	29377617	hexA	EF3167	-	DNA mismatch repair protein
2957	 40.32	0	3041101..3041472	-	123	29377618	-	EF3168	-	hypothetical protein
2958	 42.73	+1	3041561..3042358	-	265	29377619	-	EF3169	-	hypothetical protein
2959	 39.24	0	3042518..3044074	-	518	29377620	-	EF3170	-	HD/KH domain-containing protein
2960	 42.60	+1	3044471..3045517	-	348	29377621	recA	EF3171	-	recombinase A
2961	 43.37	+1	3045631..3046875	-	414	29377622	cinA	EF3172	-	competence/damage-inducible protein CinA
2962	 42.21	+1	3047067..3048272	+	401	29377623	-	EF3173	-	hypothetical protein
2963	 41.71	+1	3048351..3048971	-	206	29377624	-	EF3174	-	hypothetical protein
2964	 35.92	0	3049039..3049464	-	141	29377625	-	EF3175	-	rrf2 family protein
2965	 39.06	0	3049553..3049936	-	127	29377626	-	EF3176	-	hypothetical protein
2966	 39.90	0	3050100..3050891	+	263	29377627	-	EF3177	-	hypothetical protein
2967	 37.55	0	3050944..3052080	-	378	29377628	-	EF3178	-	succinyl-diaminopimelate desuccinylase
2968	 38.53	0	3052210..3053094	-	294	29377629	-	EF3179	-	hypothetical protein
2969	 34.34	0	3053119..3053616	-	165	29377630	-	EF3180	-	ECF subfamily RNA polymerase sigma factor
2970	 34.37	0	3053737..3055188	-	483	29377631	-	EF3181	-	hypothetical protein
2971	 37.86	0	3055172..3055657	-	161	29377632	-	EF3182	-	hypothetical protein
2972	 38.44	0	3055759..3056835	-	358	29377633	-	EF3183	-	cell wall surface anchor family protein, putative
2973	 43.74	+1	3056948..3057706	-	252	29377634	-	EF3184	-	hypothetical protein
2974	 45.19	+1	3057707..3058507	-	266	29377635	-	EF3185	-	hypothetical protein
2975	 42.99	+1	3058512..3059246	-	244	29377636	-	EF3186	-	hypothetical protein
2976	 40.77	0	3059203..3059592	-	129	29377637	-	EF3187	-	cell wall surface anchor family protein
2977	 41.78	+1	3059612..3064276	-	1554	29377638	-	EF3188	-	hypothetical protein
2978	 38.52	0	3064383..3064517	-	44	29377639	-	EF3189	-	hypothetical protein
2979	 40.73	0	3064838..3065851	-	337	29377640	-	EF3191	-	lipase, putative
2980	 42.67	+1	3066017..3066562	+	181	29377641	-	EF3192	-	isochorismatase family protein
2981	 39.62	0	3066767..3067450	-	227	29377642	-	EF3193	-	antiholin-like protein LrgB
2982	 37.38	0	3067447..3067866	-	139	29377643	-	EF3194	-	murein hydrolase regulator LrgA
2983	 39.37	0	3068018..3068746	-	242	29377644	-	EF3196	-	response regulator
2984	 41.81	+1	3068727..3070496	-	589	29377645	-	EF3197	-	sensor histidine kinase
2985	 38.58	0	3070588..3071406	-	272	29377646	-	EF3198	-	YaeC family lipoprotein
2986	 40.62	0	3071419..3072090	-	223	29377647	-	EF3199	-	ABC transporter, permease protein
2987	 39.14	0	3072087..3072809	-	240	29377648	-	EF3200	-	ABC transporter, ATP-binding protein
2988	 41.73	+1	3073171..3073563	-	130	29377649	-	EF3201	-	OsmC/Ohr family protein
2989	 42.96	+1	3073770..3074039	+	89	29377650	rpsN	EF3202	-	30S ribosomal protein S14
2990	 40.67	0	3074150..3074299	+	49	29377651	rpmG	EF3203	-	50S ribosomal protein L33
2991	 42.15	+1	3074315..3075289	+	324	29377652	-	EF3204	-	cobalamin synthesis protein/P47K family protein
2992	 34.75	0	3075306..3075446	+	46	29377653	-	EF3205	-	hypothetical protein
2993	 41.02	0	3075467..3077002	+	511	29377654	-	EF3206	-	adhesion lipoprotein
2994	 44.82	+1	3077202..3078176	-	324	29377655	-	EF3207	-	dihydrouridine synthase family protein
2995	 39.69	0	3078365..3079135	-	256	29377656	-	EF3208	-	ABC transporter, permease protein
2996	 43.06	+1	3079128..3080063	-	311	29377657	-	EF3209	-	ABC transporter, ATP-binding protein
2997	 36.90	0	3080321..3080740	+	139	29377658	-	EF3210	-	PTS system, IIA component, putative
2998	 40.85	0	3080753..3081244	+	163	29377659	-	EF3211	-	PTS system, IIB component
2999	 42.03	+1	3081261..3082076	+	271	29377660	-	EF3212	-	PTS system, IIC component
3000	 40.58	0	3082073..3082900	+	275	29377661	-	EF3213	-	PTS system, IID component
3001	 40.92	0	3083048..3084259	+	403	29377662	-	EF3214	-	DEAD-box ATP dependent DNA helicase
3002	 36.57	0	3084337..3085509	+	390	29377663	-	EF3215	-	IS256, transposase
3003	 38.80	0	3085619..3086899	+	426	29377664	-	EF3216	-	transcriptional regulator, putative
3004	 32.47	-1	3086941..3089835	-	964	29377665	-	EF3217	-	helicase, putative
3005	 37.17	0	3089810..3090226	-	138	29377666	-	EF3218	-	mutator MutT protein, putative
3006	 28.74	-1	3091008..3094640	-	1210	29377667	-	EF3220	-	hypothetical protein
3007	 35.06	0	3094803..3095033	-	76	29377668	-	EF3221	-	Cro/CI family transcriptional regulator
3008	 27.51	-2	3095139..3095447	+	102	29377669	-	EF3222	-	hypothetical protein
3009	 30.07	-1	3095546..3096310	-	254	29377670	-	EF3223	-	hypothetical protein
3010	 37.27	0	3096557..3096886	+	109	29377671	-	EF3224	-	hypothetical protein
3011	 35.52	0	3096883..3097386	+	167	29377672	-	EF3225	-	hypothetical protein
3012	 31.41	-1	3097590..3098423	+	277	29377673	-	EF3226	-	Rep protein
3013	 28.57	-2	3098420..3098692	+	90	29377674	-	EF3227	-	hypothetical protein
3014	 44.02	+1	3100122..3100514	-	130	29377675	rpsI	EF3230	-	30S ribosomal protein S9
3015	 29.63	-1	3101034..3101141	+	35	29377676	-	EF3232	-	hypothetical protein
3016	 37.82	0	3101194..3101661	-	155	29377677	-	EF3233	-	Dps family protein
3017	 43.75	+1	3101789..3102508	-	239	29377678	-	EF3234	-	putative lipoprotein
3018	 46.94	+2	3102592..3104112	-	506	29377679	-	EF3235	-	gluconate kinase, putative
3019	 43.00	+1	3104221..3104913	+	230	29377680	-	EF3236	-	type III leader peptidase family protein
3020	 41.79	+1	3104962..3108615	-	1217	29377681	rpoC	EF3237	-	DNA-directed RNA polymerase subunit beta'
3021	 42.11	+1	3108782..3112405	-	1207	29377682	rpoB	EF3238	-	DNA-directed RNA polymerase subunit beta
3022	 40.28	0	3112814..3113029	-	71	29377683	-	EF3239	-	hypothetical protein
37.28	MEAN

4.35	STD DEV
