IslandPathversion 1.0

IslandPath Analysis: Enterococcus faecalis V583

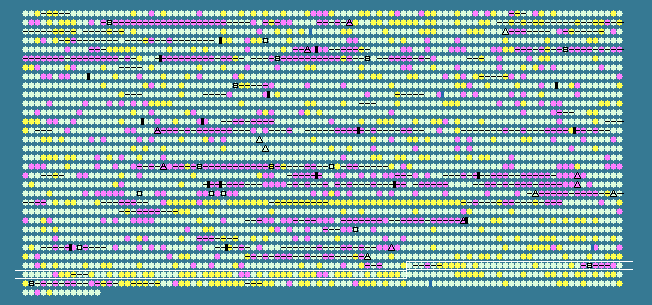

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.28 STD DEV: 4.35
Enterococcus faecalis V583, complete genome - 1..3218031
3113 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2865	 39.76	0	2939535..2940188	-	217	29377526	-	EF3068	-	hypothetical protein
2866	 38.31	0	2940260..2941063	-	267	29377527	-	EF3069	-	formate/nitrite transporter family protein
2867	 40.36	0	2941388..2941999	+	203	29377528	rpsD	EF3070	-	30S ribosomal protein S4
2868	 30.48	-1	2942036..2942140	-	34	29377529	-	EF3071	-	hypothetical protein
2869	 40.62	0	2942159..2942707	+	182	29377530	-	EF3072	-	BioY family protein
2870	 42.09	+1	2942769..2943305	+	178	29377531	-	EF3073	-	signal peptidase I
2871	 41.08	0	2943360..2947244	-	1294	29377532	-	EF3074	-	hypothetical protein
2872	 42.00	+1	2947739..2952019	-	1426	29377533	-	EF3075	-	hypothetical protein
2873	 46.56	+2	2952006..2952368	-	120	29377534	-	EF3076	-	cell wall surface anchor family protein
2874	 41.34	0	2952734..2953345	-	203	29377535	-	EF3078	-	hypothetical protein
2875	 39.96	0	2953380..2953937	-	185	29377536	-	EF3079	-	acetyltransferase
2876	 42.75	+1	2954023..2955243	-	406	29377537	pepT-2	EF3080	-	peptidase T
2877	 39.84	0	2955265..2956908	-	547	29377538	-	EF3081	-	pheromone binding protein
2878	 37.00	0	2957485..2958438	-	317	29377539	-	EF3082	-	iron compound ABC transporter, substrate-binding protein
2879	 38.49	0	2958477..2959232	-	251	29377540	-	EF3083	-	iron compound ABC transporter, ATP-binding protein
2880	 37.27	0	2959229..2960194	-	321	29377541	-	EF3084	-	iron compound ABC transporter, permease protein
2881	 38.61	0	2960191..2961138	-	315	29377542	-	EF3085	-	iron compound ABC transporter, permease protein
2882	 39.29	0	2961323..2961775	+	150	29377543	-	EF3086	-	hypothetical protein
2883	 36.23	0	2961957..2962094	-	45	29377544	-	EF3087	-	hypothetical protein
2884	 39.34	0	2962391..2962573	-	60	29377545	-	EF3088	-	hypothetical protein
2885	 38.66	0	2962683..2964953	-	756	29377546	-	EF3089	-	bifunctional glutamate--cysteine ligase/glutathione synthetase
2886	 41.32	0	2965124..2965624	+	166	29377547	-	EF3090	-	isochorismatase family protein
2887	 37.68	0	2966185..2967081	+	298	29377548	-	EF3091	-	YitT family protein
2888	 40.10	0	2967132..2967530	-	132	29377549	-	EF3092	-	glyoxalase family protein
2889	 40.53	0	2967650..2968135	-	161	29377550	-	EF3093	-	hypothetical protein
2890	 40.63	0	2968295..2969623	-	442	29377551	ftsY	EF3094	-	signal recognition particle-docking protein FtsY
2891	 39.13	0	2969626..2970453	-	275	29377552	-	EF3095	-	HAD superfamily hydrolase
2892	 41.04	0	2970478..2974056	-	1192	29377553	-	EF3096	-	chromosome partition protein SMC
2893	 38.10	0	2974077..2974769	-	230	29377554	rnc	EF3097	-	ribonuclease III
2894	 28.32	-2	2975023..2975541	-	172	29377555	-	EF3099	-	transporter accessory protein, putative
2895	 36.57	0	2975706..2976878	+	390	29377556	-	EF3100	-	IS256, transposase
2896	 27.82	-2	2976849..2977229	-	126	29377557	-	EF3101	-	hypothetical protein
2897	 28.84	-1	2977226..2977492	-	88	29377558	-	EF3102	-	hypothetical protein
2898	 27.30	-2	2977479..2978672	-	397	29377559	-	EF3103	-	hypothetical protein
2899	 28.10	-2	2978782..2979507	-	241	29377560	-	EF3104	-	ABC transporter, ATP-binding protein
2900	 36.11	0	2979561..2979776	-	71	29377561	-	EF3105	-	hypothetical protein
2901	 39.73	0	2980159..2981940	-	593	29377562	-	EF3106	-	peptide ABC transporter, peptide-binding protein
2902	 38.10	0	2981969..2982892	-	307	29377563	-	EF3107	-	peptide ABC transporter, permease protein
2903	 39.56	0	2982920..2983882	-	320	29377564	-	EF3108	-	peptide ABC transporter, permease protein
2904	 37.67	0	2983882..2984826	-	314	29377565	-	EF3109	-	peptide ABC transporter, ATP-binding protein
2905	 39.68	0	2984826..2985833	-	335	29377566	-	EF3110	-	peptide ABC transporter, ATP-binding protein
2906	 33.33	0	2986130..2986369	-	79	29377567	acpP	EF3111	-	acyl carrier protein
2907	 41.92	+1	2986506..2987507	-	333	29377568	plsX	EF3112	-	putative glycerol-3-phosphate acyltransferase PlsX
2908	 42.46	+1	2987610..2989646	-	678	29377569	recG	EF3113	-	ATP-dependent DNA helicase RecG
2909	 41.09	0	2989762..2991438	-	558	29377570	-	EF3114	-	DAK2 domain-containing protein
2910	 38.02	0	2991521..2991883	-	120	29377571	-	EF3115	-	hypothetical protein
2911	 37.57	0	2992157..2992345	+	62	29377572	rpmB	EF3116	-	50S ribosomal protein L28
2912	 42.33	+1	2992448..2993092	-	214	29377573	-	EF3117	-	thiamin pyrophosphokinase family protein
2913	 40.67	0	2993089..2993742	-	217	29377574	rpe	EF3118	-	ribulose-phosphate 3-epimerase
2914	 40.04	0	2993766..2994659	-	297	29377575	-	EF3119	-	hypothetical protein
2915	 42.47	+1	2994908..2997064	-	718	29377576	-	EF3120	-	serine/threonine protein kinase
2916	 40.40	0	2997061..2997810	-	249	29377577	-	EF3121	-	protein phosphatase 2C, putative
2917	 41.09	0	2997812..2999191	-	459	29377578	sun	EF3122	-	Sun protein
2918	 41.61	0	2999197..3000138	-	313	29377579	fmt	EF3123	-	methionyl-tRNA formyltransferase
2919	 41.80	+1	3000651..3003083	-	810	29377580	priA	EF3125	-	primosomal protein n'
2920	 37.67	0	3003238..3003537	-	99	29377581	rpoZ	EF3126	-	DNA-directed RNA polymerase subunit omega
2921	 40.81	0	3003545..3004159	-	204	29377582	gmk	EF3127	-	guanylate kinase
2922	 41.70	+1	3004382..3005863	+	493	29377583	-	EF3129	-	D-alanyl-D-alanine carboxypeptidase
2923	 38.89	0	3005907..3006212	-	101	29377584	-	EF3130	-	hypothetical protein
2924	 37.63	0	3006268..3007152	-	294	29377585	-	EF3131	-	hypothetical protein
2925	 36.07	0	3007169..3007387	-	72	29377586	-	EF3132	-	hypothetical protein
2926	 38.64	0	3007567..3008037	-	156	29377587	-	EF3133	-	hypothetical protein
2927	 41.28	0	3008352..3009005	-	217	29377588	eda-2	EF3134	-	2-dehydro-3-deoxyphosphogluconate aldolase/4-hydroxy-2-oxoglutarate aldolase
2928	 42.18	+1	3009010..3010083	-	357	29377589	-	EF3135	-	mannonate dehydratase
2929	 44.81	+1	3010107..3010559	-	150	29377590	-	EF3136	-	PTS system, IIA component
2930	 35.31	0	3010637..3011143	-	168	29377591	-	EF3137	-	PTS system, IIB component
2931	 41.92	+1	3011165..3012037	-	290	29377592	-	EF3138	-	PTS system, IID component
2932	 42.65	+1	3012058..3012894	-	278	29377593	-	EF3139	-	PTS system, IIC component
2933	 43.81	+1	3012907..3014013	-	368	29377594	-	EF3140	-	alcohol dehydrogenase, iron-containing
2934	 42.71	+1	3014028..3015029	-	333	29377595	-	EF3141	-	D-isomer specific 2-hydroxyacid dehydrogenase family protein
2935	 42.67	+1	3015042..3015941	-	299	29377596	-	EF3142	-	6-phosphogluconate dehydrogenase-like protein
2936	 38.06	0	3016354..3017241	+	295	29377597	-	EF3144	-	RpiR family phosphosugar-binding transcriptional regulator
2937	 30.24	-1	3017375..3017827	-	150	29377598	-	EF3145	-	hypothetical protein
2938	 30.13	-1	3018368..3019084	-	238	29377599	-	EF3146	-	hypothetical protein
2939	 38.69	0	3019630..3020208	-	192	29377600	pgsA	EF3148	-	CDP-diacylglycerol--glycerol-3-phosphate 3-phosphatidyltransferase
2940	 43.94	+1	3020333..3021199	-	288	29377601	-	EF3149	-	hypothetical protein
2941	 38.62	0	3021367..3022671	-	434	29377602	-	EF3150	-	M16 family peptidase
2942	 41.06	0	3022664..3023932	-	422	29377603	-	EF3151	-	hypothetical protein
2943	 42.89	+1	3024141..3024590	+	149	29377604	mscL	EF3152	-	large conductance mechanosensitive channel protein
2944	 46.30	+2	3024631..3025347	-	238	29377605	-	EF3153	-	hypothetical protein
2945	 41.21	0	3025445..3026155	-	236	29377606	-	EF3154	-	hypothetical protein
2946	 40.34	0	3026239..3026937	-	232	29377607	-	EF3155	-	hypothetical protein
2947	 42.16	+1	3027279..3027992	-	237	29377608	-	EF3156	-	GntR family transcriptional regulator
2948	 44.50	+1	3028662..3030998	+	778	29377609	-	EF3157	-	glycosy hydrolase family protein
2949	 47.00	+2	3031013..3031663	+	216	29377610	-	EF3158	-	HAD superfamily hydrolase
2950	 32.43	-1	3032274..3032717	+	147	29377611	-	EF3160	-	hypothetical protein
2951	 28.36	-2	3033479..3033880	+	133	29377612	-	EF3161	-	hypothetical protein
2952	 39.81	0	3034065..3035036	-	323	29377613	prsA-2	EF3163	-	ribose-phosphate pyrophosphokinase
2953	 42.69	+1	3035211..3035648	-	145	29377614	-	EF3164	-	methionine sulfoxide reductase B
2954	 47.39	+2	3035781..3036335	-	184	29377615	maf	EF3165	-	maf protein
2955	 43.32	+1	3036360..3038492	-	710	29377616	mutL	EF3166	-	DNA mismatch repair protein
2956	 39.97	0	3038524..3041100	-	858	29377617	hexA	EF3167	-	DNA mismatch repair protein
2957	 40.32	0	3041101..3041472	-	123	29377618	-	EF3168	-	hypothetical protein
2958	 42.73	+1	3041561..3042358	-	265	29377619	-	EF3169	-	hypothetical protein
2959	 39.24	0	3042518..3044074	-	518	29377620	-	EF3170	-	HD/KH domain-containing protein
2960	 42.60	+1	3044471..3045517	-	348	29377621	recA	EF3171	-	recombinase A
2961	 43.37	+1	3045631..3046875	-	414	29377622	cinA	EF3172	-	competence/damage-inducible protein CinA
2962	 42.21	+1	3047067..3048272	+	401	29377623	-	EF3173	-	hypothetical protein
2963	 41.71	+1	3048351..3048971	-	206	29377624	-	EF3174	-	hypothetical protein
2964	 35.92	0	3049039..3049464	-	141	29377625	-	EF3175	-	rrf2 family protein
37.28	MEAN

4.35	STD DEV
