IslandPathversion 1.0

IslandPath Analysis: Enterococcus faecalis V583

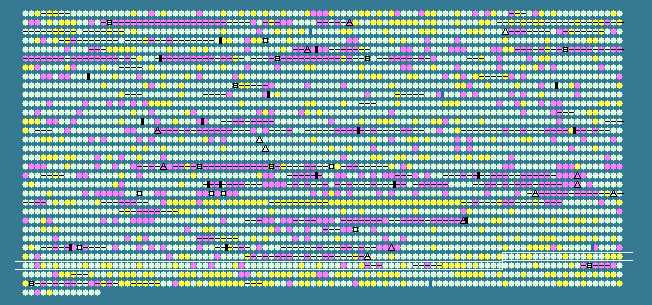

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.28 STD DEV: 4.35
Enterococcus faecalis V583, complete genome - 1..3218031
3113 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2781	 35.15	0	2851892..2852386	-	164	29377442	-	EF2979	-	PTS system, IIB component
2782	 37.06	0	2852406..2852807	-	133	29377443	-	EF2980	-	PTS system, IIA component
2783	 36.64	0	2852879..2855692	-	937	29377444	-	EF2981	-	sigma-54 dependent DNA-binding response regulator
2784	 41.10	0	2855814..2856341	-	175	29377445	-	EF2982	-	phosphoglycerate mutase family protein
2785	 45.69	+1	2856407..2857855	-	482	29377446	-	EF2983	-	glutamyl-tRNA(Gln) amidotransferase, A subunit, putative
2786	 36.19	0	2857952..2858617	-	221	29377447	-	EF2984	-	transcriptional regulator, putative
2787	 39.87	0	2858998..2860206	-	402	29377448	-	EF2985	-	permease, putative
2788	 37.19	0	2860203..2860877	-	224	29377449	-	EF2986	-	ABC transporter, ATP-binding protein
2789	 39.33	0	2860870..2862036	-	388	29377450	-	EF2987	-	hypothetical protein
2790	 40.00	0	2862208..2862507	-	99	29377451	-	EF2988	-	rhodanese family protein
2791	 42.06	+1	2862500..2864149	-	549	29377452	-	EF2989	-	coenzyme A disulfide reductase
2792	 40.63	0	2864150..2864464	-	104	29377453	-	EF2990	-	rhodanese family protein
2793	 37.16	0	2864633..2864893	+	86	29377454	-	EF2991	-	hypothetical protein
2794	 38.57	0	2864939..2866198	-	419	29377455	-	EF2992	-	major facilitator family transporter
2795	 43.26	+1	2866295..2867503	-	402	29377456	-	EF2994	-	aminotransferase, class V
2796	 37.02	0	2867675..2869300	+	541	29377457	-	EF2995	-	hypothetical protein
2797	 40.71	0	2869418..2870203	-	261	29377458	-	EF2996	-	hypothetical protein
2798	 42.57	+1	2870225..2871448	-	407	29377459	-	EF2997	-	allantoate amidohydrolase
2799	 43.81	+1	2871630..2872994	-	454	29377460	-	EF2999	-	allantoinase
2800	 41.55	0	2872995..2874491	-	498	29377461	-	EF3000	-	allantoin permease
2801	 38.37	0	2875086..2875601	-	171	29377462	-	EF3001	-	protease synthase and sporulation negative regulatory protein pai 1
2802	 38.19	0	2875617..2876069	-	150	29377463	-	EF3002	-	MarR family transcriptional regulator
2803	 31.46	-1	2876262..2876954	+	230	29377464	-	EF3003	-	putative lipoprotein
2804	 42.04	+1	2877118..2878737	-	539	29377465	-	EF3004	-	sulfate transporter family protein
2805	 37.92	0	2878956..2880023	+	355	29377466	-	EF3005	-	choloylglycine hydrolase family protein
2806	 41.55	0	2880075..2880731	-	218	29377467	-	EF3006	-	hypothetical protein
2807	 39.48	0	2880756..2881829	-	357	29377468	-	EF3007	-	hypothetical protein
2808	 35.39	0	2882171..2883826	-	551	29377469	-	EF3008	-	hypothetical protein
2809	 38.99	0	2883957..2884823	+	288	29377470	-	EF3009	-	hypothetical protein
2810	 40.32	0	2884801..2886360	+	519	29377471	-	EF3010	-	hypothetical protein
2811	 41.75	+1	2886347..2887771	+	474	29377472	-	EF3011	-	hypothetical protein
2812	 40.19	0	2887814..2888995	+	393	29377473	-	EF3012	-	hypothetical protein
2813	 38.03	0	2889087..2890535	+	482	29377474	-	EF3013	-	hypothetical protein
2814	 40.85	0	2890541..2893093	-	850	29377475	-	EF3014	-	cation transporter E1-E2 family ATPase
2815	 42.52	+1	2893243..2894505	-	420	29377476	-	EF3015	-	serine/threonine transporter SstT
2816	 34.38	0	2894634..2895017	-	127	29377477	-	EF3016	-	hypothetical protein
2817	 38.89	0	2895972..2897753	-	593	29377478	-	EF3018	-	hypothetical protein
2818	 36.35	0	2897905..2898831	-	308	29377479	-	EF3019	-	hypothetical protein
2819	 35.05	0	2898834..2899298	-	154	29377480	-	EF3020	-	hypothetical protein
2820	 44.31	+1	2899436..2899945	-	169	29377481	-	EF3021	-	hypothetical protein
2821	 39.31	0	2900293..2901681	+	462	29377482	-	EF3022	-	sodium:dicarboxylate symporter family protein
2822	 38.02	0	2901752..2905870	-	1372	29377483	-	EF3023	-	polysaccharide lyase family protein 8
2823	 35.04	0	2906206..2906322	+	38	29377484	-	EF3024	-	hypothetical protein
2824	 35.83	0	2906454..2906933	-	159	29377485	-	EF3025	-	hypothetical protein
2825	 40.34	0	2907334..2908632	+	432	29377486	htrA	EF3027	-	serine protease DO
2826	 41.38	0	2908679..2909299	-	206	29377487	-	EF3028	-	tRNA-binding domain-containing protein
2827	 35.16	0	2909403..2910221	-	272	29377488	-	EF3029	-	PTS system, IID component
2828	 38.00	0	2910211..2910981	-	256	29377489	-	EF3030	-	PTS system, IIC component
2829	 32.91	-1	2911003..2911476	-	157	29377490	-	EF3031	-	PTS system, IIB component
2830	 35.08	0	2911479..2912222	-	247	29377491	-	EF3032	-	hypothetical protein
2831	 37.71	0	2912234..2912644	-	136	29377492	-	EF3033	-	PTS system, IIA component
2832	 33.06	0	2912659..2913390	-	243	29377493	-	EF3034	-	GntR family transcriptional regulator
2833	 37.72	0	2913494..2913949	-	151	29377494	-	EF3035	-	universal stress protein
2834	 36.51	0	2914097..2914411	-	104	29377495	-	EF3036	-	thioredoxin family protein
2835	 40.11	0	2914423..2915499	-	358	29377496	pepA	EF3037	-	glutamyl-aminopeptidase
2836	 41.23	0	2915806..2916147	+	113	29377497	-	EF3039	-	hypothetical protein
2837	 22.52	-2	2916153..2916263	+	36	29377498	-	EF3040	-	hypothetical protein
2838	 40.28	0	2916466..2918121	+	551	29377499	-	EF3041	-	pheromone binding protein
2839	 34.55	0	2918188..2919006	-	272	29377500	-	EF3042	-	PTS system, IID component
2840	 39.79	0	2918996..2919769	-	257	29377501	-	EF3043	-	PTS system, IIC component
2841	 38.19	0	2919794..2920945	-	383	29377502	nagA-2	EF3044	-	N-acetylglucosamine-6-phosphate deacetylase
2842	 37.11	0	2920991..2921467	-	158	29377503	-	EF3045	-	PTS system, IIB component
2843	 40.64	0	2921494..2921931	-	145	29377504	-	EF3046	-	PTS system, IIA component
2844	 36.62	0	2922077..2923171	-	364	29377505	-	EF3047	-	hypothetical protein
2845	 37.52	0	2923258..2924046	-	262	29377506	-	EF3048	-	hypothetical protein
2846	 34.53	0	2924218..2924970	+	250	29377507	-	EF3049	-	RpiR family phosphosugar-binding transcriptional regulator , putative
2847	 41.49	0	2925039..2925590	-	183	29377508	tag-2	EF3050	-	DNA-3-methyladenine glycosylase I
2848	 40.10	0	2925667..2926434	-	255	29377509	-	EF3051	-	hypothetical protein
2849	 40.22	0	2926660..2927022	+	120	29377510	-	EF3052	-	hypothetical protein
2850	 41.67	+1	2927142..2927717	-	191	29377511	-	EF3053	-	hypothetical protein
2851	 38.92	0	2927880..2928506	-	208	29377512	-	EF3054	-	putative lipoprotein
2852	 34.99	0	2928610..2929395	-	261	29377513	-	EF3055	-	hypothetical protein
2853	 38.37	0	2929629..2930363	+	244	29377514	-	EF3056	-	sortase family protein
2854	 32.97	0	2930411..2930686	-	91	29377515	-	EF3057	-	hypothetical protein
2855	 40.76	0	2930730..2931200	-	156	29377516	-	EF3058	-	phosphotyrosine protein phosphatase
2856	 34.04	0	2931241..2931810	-	189	29377517	-	EF3059	-	TetR family transcriptional regulator
2857	 41.27	0	2931988..2933436	-	482	29377518	-	EF3060	-	secreted lipase, putative
2858	 33.14	0	2933741..2934250	-	169	29377519	mreD	EF3061	-	rod shape-determining protein MreD
2859	 38.79	0	2934247..2935107	-	286	29377520	mreC	EF3062	-	rod shape-determining protein MreC
2860	 27.17	-2	2935040..2935315	+	91	29377521	-	EF3063	-	immunity protein, putative
2861	 39.86	0	2935289..2937403	-	704	29377522	pnpA	EF3064	-	polynucleotide phosphorylase/polyadenylase
2862	 37.78	0	2937590..2937859	-	89	29377523	rpsO	EF3065	-	ribosomal protein S15
2863	 39.18	0	2938139..2938702	+	187	29377524	def	EF3066	-	peptide deformylase
2864	 41.31	0	2938749..2939525	-	258	29377525	-	EF3067	-	HAD superfamily hydrolase
2865	 39.76	0	2939535..2940188	-	217	29377526	-	EF3068	-	hypothetical protein
2866	 38.31	0	2940260..2941063	-	267	29377527	-	EF3069	-	formate/nitrite transporter family protein
2867	 40.36	0	2941388..2941999	+	203	29377528	rpsD	EF3070	-	30S ribosomal protein S4
2868	 30.48	-1	2942036..2942140	-	34	29377529	-	EF3071	-	hypothetical protein
2869	 40.62	0	2942159..2942707	+	182	29377530	-	EF3072	-	BioY family protein
2870	 42.09	+1	2942769..2943305	+	178	29377531	-	EF3073	-	signal peptidase I
2871	 41.08	0	2943360..2947244	-	1294	29377532	-	EF3074	-	hypothetical protein
2872	 42.00	+1	2947739..2952019	-	1426	29377533	-	EF3075	-	hypothetical protein
2873	 46.56	+2	2952006..2952368	-	120	29377534	-	EF3076	-	cell wall surface anchor family protein
2874	 41.34	0	2952734..2953345	-	203	29377535	-	EF3078	-	hypothetical protein
2875	 39.96	0	2953380..2953937	-	185	29377536	-	EF3079	-	acetyltransferase
2876	 42.75	+1	2954023..2955243	-	406	29377537	pepT-2	EF3080	-	peptidase T
2877	 39.84	0	2955265..2956908	-	547	29377538	-	EF3081	-	pheromone binding protein
2878	 37.00	0	2957485..2958438	-	317	29377539	-	EF3082	-	iron compound ABC transporter, substrate-binding protein
2879	 38.49	0	2958477..2959232	-	251	29377540	-	EF3083	-	iron compound ABC transporter, ATP-binding protein
2880	 37.27	0	2959229..2960194	-	321	29377541	-	EF3084	-	iron compound ABC transporter, permease protein
37.28	MEAN

4.35	STD DEV
