IslandPathversion 1.0

IslandPath Analysis: Enterococcus faecalis V583

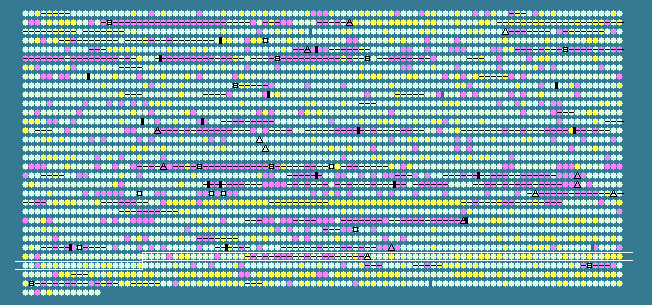

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.28 STD DEV: 4.35
Enterococcus faecalis V583, complete genome - 1..3218031
3113 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2721	 40.45	0	2795953..2796444	-	163	29377382	-	EF2918	-	transferase, putative
2722	 38.93	0	2796687..2798456	-	589	29377383	-	EF2919	-	ABC transporter, ATP-binding/permease protein
2723	 38.25	0	2798453..2800180	-	575	29377384	-	EF2920	-	ABC transporter, ATP-binding/permease protein
2724	 36.19	0	2800357..2800461	-	34	29377385	-	EF2921	-	hypothetical protein
2725	 32.82	-1	2800409..2800795	+	128	29377386	-	EF2922	-	hypothetical protein
2726	 34.74	0	2801100..2801312	+	70	29377387	-	EF2923	-	hypothetical protein
2727	 40.87	0	2801314..2802999	+	561	29377388	-	EF2924	-	metallo-beta-lactamase superfamily protein
2728	 40.80	0	2803105..2803305	-	66	29377389	-	EF2925	-	cold-shock domain-contain protein
2729	 39.77	0	2803459..2804157	-	232	29377390	radC	EF2926	-	DNA repair protein RadC
2730	 38.81	0	2804213..2804869	-	218	29377391	-	EF2927	-	HAD superfamily hydrolase
2731	 37.11	0	2804856..2806178	-	440	29377392	-	EF2928	-	FolC family protein
2732	 37.43	0	2806427..2808991	+	854	29377393	-	EF2929	-	hypothetical protein
2733	 33.50	0	2808984..2809583	+	199	29377394	-	EF2930	-	hypothetical protein
2734	 40.41	0	2809629..2812271	-	880	29377395	valS	EF2931	-	valyl-tRNA synthetase
2735	 39.26	0	2812663..2813151	-	162	29377396	-	EF2932	-	AhpC/TSA family protein
2736	 37.81	0	2813215..2813862	-	215	29377397	-	EF2933	-	redox-sensing transcriptional repressor Rex
2737	 39.18	0	2813992..2815206	-	404	29377398	thiI	EF2934	-	thiazole biosynthesis protein ThiI
2738	 40.79	0	2815365..2816678	-	437	29377399	-	EF2935	-	xanthine/uracil permeases family protein
2739	 30.68	-1	2817287..2817625	-	112	29377400	-	EF2936	-	hypothetical protein
2740	 36.19	0	2817629..2817838	-	69	29377401	-	EF2937	-	hypothetical protein
2741	 32.97	0	2817863..2818141	-	92	29377402	-	EF2938	-	hypothetical protein
2742	 37.25	0	2818345..2818548	-	67	29377403	-	EF2939	-	cold-shock domain-contain protein
2743	 32.64	-1	2818565..2819137	-	190	29377404	-	EF2940	-	hypothetical protein
2744	 30.30	-1	2819152..2819349	-	65	29377405	-	EF2941	-	hypothetical protein
2745	 31.00	-1	2819330..2819887	-	185	29377406	-	EF2942	-	hypothetical protein
2746	 34.64	0	2819916..2820449	-	177	29377407	-	EF2943	-	hypothetical protein
2747	 34.58	0	2820430..2820912	-	160	29377408	-	EF2944	-	hypothetical protein
2748	 31.21	-1	2821157..2821297	-	46	29377409	-	EF2945	-	hypothetical protein
2749	 35.42	0	2821576..2821719	-	47	29377410	-	EF2946	-	hypothetical protein
2750	 34.06	0	2821957..2822367	-	136	29377411	-	EF2947	-	hypothetical protein
2751	 33.67	0	2822713..2825097	-	794	29377412	-	EF2948	-	DNA primase domain-containing protein
2752	 29.32	-1	2825114..2825362	-	82	29377413	-	EF2949	-	hypothetical protein
2753	 34.01	0	2825362..2825655	-	97	29377414	-	EF2950	-	hypothetical protein
2754	 36.49	0	2825668..2826333	-	221	29377415	-	EF2951	-	hypothetical protein
2755	 34.94	0	2826337..2826585	-	82	29377416	-	EF2952	-	hypothetical protein
2756	 42.45	+1	2826669..2826986	-	105	29377417	-	EF2953	-	hypothetical protein
2757	 30.70	-1	2827370..2828320	+	316	29377418	-	EF2954	-	Cro/CI family transcriptional regulator
2758	 34.90	0	2828409..2829554	+	381	29377419	-	EF2955	-	phage integrase family site specific recombinase
2759	 40.65	0	2829780..2830517	-	245	29377420	-	EF2956	-	short chain dehydrogenase/reductase family oxidoreductase
2760	 36.08	0	2830517..2831098	-	193	29377421	-	EF2957	-	hexapeptide repeat-containing acetyltransferase
2761	 36.95	0	2831206..2832090	+	294	29377422	-	EF2958	-	LysR family transcriptional regulator
2762	 43.24	+1	2832110..2832997	-	295	29377423	-	EF2959	-	ribose uptake protein, putative
2763	 35.10	0	2833018..2833413	-	131	29377424	-	EF2960	-	D-ribose pyranase
2764	 39.25	0	2833429..2834340	-	303	29377425	rbsK	EF2961	-	ribokinase
2765	 39.56	0	2834438..2835433	-	331	29377426	-	EF2962	-	LacI family sugar-binding transcriptional regulator
2766	 38.26	0	2835645..2836619	+	324	29377427	-	EF2963	-	esterase, putative
2767	 40.42	0	2836684..2838051	-	455	29377428	ulaA	EF2964	-	ascorbate-specific PTS system enzyme IIC
2768	 35.00	0	2838066..2838365	-	99	29377429	-	EF2965	-	hypothetical protein
2769	 38.71	0	2838367..2840376	-	669	29377430	-	EF2966	-	BglG family transcriptional antiterminator
2770	 39.11	0	2840542..2840766	-	74	29377431	-	EF2967	-	hypothetical protein
2771	 38.75	0	2840812..2841180	-	122	29377432	-	EF2968	-	cell wall surface anchor family protein
2772	 37.13	0	2841194..2842327	-	377	29377433	-	EF2969	-	hypothetical protein
2773	 42.90	+1	2842415..2843104	-	229	29377434	-	EF2970	-	hypothetical protein
2774	 39.20	0	2843530..2844501	-	323	29377435	-	EF2972	-	amidinotransferase family protein
2775	 41.67	+1	2844613..2846028	-	471	29377436	phoZ	EF2973	-	alkaline phosphatase
2776	 38.93	0	2846146..2848254	-	702	29377437	-	EF2974	-	MutS2 family protein
2777	 43.41	+1	2848406..2849149	-	247	29377438	-	EF2975	-	hypothetical protein
2778	 46.38	+2	2849153..2850256	-	367	29377439	-	EF2976	-	pyridoxal phosphate-dependent enzyme, putative
2779	 37.60	0	2850268..2851110	-	280	29377440	-	EF2977	-	PTS system, IID component
2780	 44.13	+1	2851119..2851868	-	249	29377441	-	EF2978	-	PTS system, IIC component
2781	 35.15	0	2851892..2852386	-	164	29377442	-	EF2979	-	PTS system, IIB component
2782	 37.06	0	2852406..2852807	-	133	29377443	-	EF2980	-	PTS system, IIA component
2783	 36.64	0	2852879..2855692	-	937	29377444	-	EF2981	-	sigma-54 dependent DNA-binding response regulator
2784	 41.10	0	2855814..2856341	-	175	29377445	-	EF2982	-	phosphoglycerate mutase family protein
2785	 45.69	+1	2856407..2857855	-	482	29377446	-	EF2983	-	glutamyl-tRNA(Gln) amidotransferase, A subunit, putative
2786	 36.19	0	2857952..2858617	-	221	29377447	-	EF2984	-	transcriptional regulator, putative
2787	 39.87	0	2858998..2860206	-	402	29377448	-	EF2985	-	permease, putative
2788	 37.19	0	2860203..2860877	-	224	29377449	-	EF2986	-	ABC transporter, ATP-binding protein
2789	 39.33	0	2860870..2862036	-	388	29377450	-	EF2987	-	hypothetical protein
2790	 40.00	0	2862208..2862507	-	99	29377451	-	EF2988	-	rhodanese family protein
2791	 42.06	+1	2862500..2864149	-	549	29377452	-	EF2989	-	coenzyme A disulfide reductase
2792	 40.63	0	2864150..2864464	-	104	29377453	-	EF2990	-	rhodanese family protein
2793	 37.16	0	2864633..2864893	+	86	29377454	-	EF2991	-	hypothetical protein
2794	 38.57	0	2864939..2866198	-	419	29377455	-	EF2992	-	major facilitator family transporter
2795	 43.26	+1	2866295..2867503	-	402	29377456	-	EF2994	-	aminotransferase, class V
2796	 37.02	0	2867675..2869300	+	541	29377457	-	EF2995	-	hypothetical protein
2797	 40.71	0	2869418..2870203	-	261	29377458	-	EF2996	-	hypothetical protein
2798	 42.57	+1	2870225..2871448	-	407	29377459	-	EF2997	-	allantoate amidohydrolase
2799	 43.81	+1	2871630..2872994	-	454	29377460	-	EF2999	-	allantoinase
2800	 41.55	0	2872995..2874491	-	498	29377461	-	EF3000	-	allantoin permease
2801	 38.37	0	2875086..2875601	-	171	29377462	-	EF3001	-	protease synthase and sporulation negative regulatory protein pai 1
2802	 38.19	0	2875617..2876069	-	150	29377463	-	EF3002	-	MarR family transcriptional regulator
2803	 31.46	-1	2876262..2876954	+	230	29377464	-	EF3003	-	putative lipoprotein
2804	 42.04	+1	2877118..2878737	-	539	29377465	-	EF3004	-	sulfate transporter family protein
2805	 37.92	0	2878956..2880023	+	355	29377466	-	EF3005	-	choloylglycine hydrolase family protein
2806	 41.55	0	2880075..2880731	-	218	29377467	-	EF3006	-	hypothetical protein
2807	 39.48	0	2880756..2881829	-	357	29377468	-	EF3007	-	hypothetical protein
2808	 35.39	0	2882171..2883826	-	551	29377469	-	EF3008	-	hypothetical protein
2809	 38.99	0	2883957..2884823	+	288	29377470	-	EF3009	-	hypothetical protein
2810	 40.32	0	2884801..2886360	+	519	29377471	-	EF3010	-	hypothetical protein
2811	 41.75	+1	2886347..2887771	+	474	29377472	-	EF3011	-	hypothetical protein
2812	 40.19	0	2887814..2888995	+	393	29377473	-	EF3012	-	hypothetical protein
2813	 38.03	0	2889087..2890535	+	482	29377474	-	EF3013	-	hypothetical protein
2814	 40.85	0	2890541..2893093	-	850	29377475	-	EF3014	-	cation transporter E1-E2 family ATPase
2815	 42.52	+1	2893243..2894505	-	420	29377476	-	EF3015	-	serine/threonine transporter SstT
2816	 34.38	0	2894634..2895017	-	127	29377477	-	EF3016	-	hypothetical protein
2817	 38.89	0	2895972..2897753	-	593	29377478	-	EF3018	-	hypothetical protein
2818	 36.35	0	2897905..2898831	-	308	29377479	-	EF3019	-	hypothetical protein
2819	 35.05	0	2898834..2899298	-	154	29377480	-	EF3020	-	hypothetical protein
2820	 44.31	+1	2899436..2899945	-	169	29377481	-	EF3021	-	hypothetical protein
37.28	MEAN

4.35	STD DEV
