IslandPathversion 1.0

IslandPath Analysis: Enterococcus faecalis V583

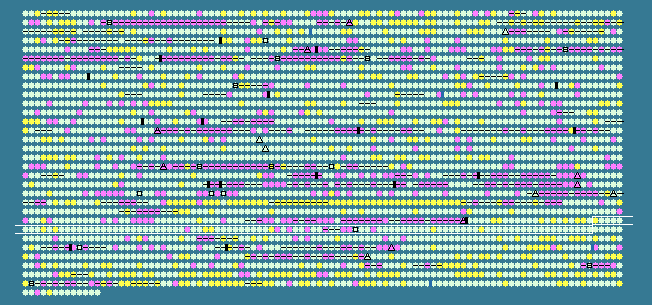

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.28 STD DEV: 4.35
Enterococcus faecalis V583, complete genome - 1..3218031
3113 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2396	 42.15	+1	2484221..2486794	-	857	29377057	-	EF2570	-	aldehyde oxidoreductase, putative
2397	 39.48	0	2486915..2487922	-	335	29377058	-	EF2571	-	hypothetical protein
2398	 36.39	0	2487919..2488278	-	119	29377059	-	EF2572	-	molybdenum transporter
2399	 38.64	0	2488372..2489691	-	439	29377060	-	EF2573	-	xanthine/uracil permease family protein
2400	 36.75	0	2489785..2490165	-	126	29377061	-	EF2574	-	endoribonuclease L-PSP, putative
2401	 40.00	0	2490180..2491124	-	314	29377062	arcC-4	EF2575	-	carbamate kinase
2402	 38.60	0	2491146..2491259	-	37	29377063	-	EF2576	-	hypothetical protein
2403	 37.10	0	2491365..2492558	-	397	29377064	-	EF2577	-	hypothetical protein
2404	 41.10	0	2492597..2493922	-	441	161511184	-	EF2578	-	peptidase
2405	 40.03	0	2493913..2495076	-	387	29377066	-	EF2579	-	diaminopropionate ammonia-lyase
2406	 41.12	0	2495130..2496503	-	457	29377067	-	EF2580	-	dihydropyrimidinase
2407	 38.36	0	2496533..2499538	-	1001	29377068	-	EF2581	-	putative selenate reductase subunit YgfK
2408	 39.85	0	2499569..2500903	-	444	29377069	-	EF2582	-	putative chlorohydrolase/aminohydrolase
2409	 34.59	0	2501307..2501945	+	212	29377070	-	EF2583	-	hypothetical protein
2410	 35.71	0	2502398..2502565	+	55	29377071	-	EF2584	-	hypothetical protein
2411	 37.47	0	2502660..2504012	+	450	29377072	-	EF2585	-	mur ligase family protein
2412	 36.94	0	2504002..2504694	+	230	29377073	-	EF2586	-	cobyric acid synthase, putative
2413	 39.59	0	2504931..2505905	+	324	29377074	-	EF2587	-	inosine-uridine preferring nucleoside hydrolase
2414	 37.73	0	2505908..2506453	+	181	29377075	-	EF2588	-	hypothetical protein
2415	 39.30	0	2506507..2507478	-	323	29377076	manA	EF2589	-	mannose-6-phosphate isomerase, class I
2416	 37.16	0	2507520..2508563	-	347	29377077	-	EF2590	-	hypothetical protein
2417	 34.66	0	2508693..2509520	-	275	29377078	-	EF2591	-	glyoxalase family protein
2418	 38.52	0	2509725..2511593	-	622	29377079	-	EF2592	-	ABC transporter, ATP-binding/permease protein
2419	 37.85	0	2511590..2513317	-	575	29377080	-	EF2593	-	ABC transporter, ATP-binding/permease protein
2420	 36.58	0	2513338..2514015	-	225	29377081	-	EF2594	-	TetR family transcriptional regulator
2421	 35.96	0	2514163..2514732	-	189	29377082	gmk-1	EF2595	-	guanylate kinase
2422	 37.55	0	2514914..2516359	-	481	29377083	-	EF2597	-	glycosy hydrolase family protein
2423	 39.23	0	2516384..2518264	-	626	29377084	-	EF2598	-	PTS system, beta-glucoside-specific IIABC component
2424	 36.65	0	2518427..2519269	-	280	29377085	-	EF2599	-	BglG family transcriptional antiterminator
2425	 37.48	0	2519570..2520196	+	208	29377086	-	EF2601	-	acyl carrier protein, putative
2426	 36.75	0	2520258..2521427	-	389	29377087	-	EF2602	-	hypothetical protein
2427	 38.32	0	2521432..2521812	-	126	29377088	-	EF2603	-	PTS system, IIA component
2428	 28.25	-2	2521928..2522104	-	58	29377089	-	EF2604	-	hypothetical protein
2429	 39.17	0	2522118..2523419	-	433	29377090	murAA	EF2605	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase 1
2430	 35.44	0	2523522..2523758	-	78	29377091	-	EF2606	-	hypothetical protein
2431	 43.81	+1	2523947..2524366	-	139	29377092	atpC	EF2607	-	F0F1 ATP synthase subunit epsilon
2432	 40.80	0	2524383..2525789	-	468	29377093	atpD	EF2608	-	F0F1 ATP synthase subunit beta
2433	 39.38	0	2525863..2526771	-	302	29377094	atpG	EF2609	-	F0F1 ATP synthase subunit gamma
2434	 40.21	0	2526787..2528343	-	518	29377095	atpA	EF2610	-	F0F1 ATP synthase subunit alpha
2435	 38.12	0	2528372..2528914	-	180	29377096	atpH	EF2611	-	F0F1 ATP synthase subunit delta
2436	 36.91	0	2528901..2529431	-	176	29377097	atpF	EF2612	-	ATP synthase F0, B subunit
2437	 37.84	0	2529569..2529790	-	73	29377098	atpE	EF2613	-	ATP synthase F0, C subunit
2438	 38.19	0	2529839..2530558	-	239	29377099	atpB	EF2614	-	F0F1 ATP synthase subunit A
2439	 34.31	0	2530681..2530782	-	33	29377100	-	EF2615	-	hypothetical protein
2440	 34.62	0	2530861..2531325	-	154	29377101	smpB	EF2616	-	SsrA-binding protein
2441	 37.89	0	2531338..2533707	-	789	29377102	vacB	EF2617	-	ribonuclease R
2442	 40.78	0	2533707..2534471	-	254	29377103	-	EF2618	-	carboxylesterase precursor, putative
2443	 30.30	-1	2534488..2534586	-	32	29377104	-	EF2619	-	hypothetical protein
2444	 37.13	0	2534626..2534862	-	78	29377105	secG	EF2620	-	preprotein translocase, SecG subunit
2445	 33.33	0	2535030..2535305	-	91	29377106	-	EF2621	-	hypothetical protein
2446	 35.79	0	2535295..2535579	-	94	29377107	-	EF2622	-	hypothetical protein
2447	 40.31	0	2535671..2537476	-	601	29377108	cadA	EF2623	-	cadmium-translocating P-type ATPase
2448	 33.33	0	2537502..2537597	-	31	29377109	-	EF2624	-	hypothetical protein
2449	 40.10	0	2537668..2538495	-	275	29377110	nadE	EF2625	-	NAD synthetase
2450	 38.25	0	2538498..2539982	-	494	29377111	-	EF2626	-	nicotinate phosphoribosyltransferase
2451	 31.63	-1	2540060..2540470	-	136	29377112	-	EF2627	-	teichoic acid glycosylation protein, putative
2452	 39.53	0	2540690..2542237	-	515	29377113	-	EF2628	-	N-acetylmuramoyl-L-alanine amidase
2453	 36.01	0	2542254..2542964	-	236	29377114	-	EF2629	-	hypothetical protein
2454	 32.38	-1	2542988..2543512	-	174	29377115	-	EF2630	-	transcriptional regulator
2455	 32.16	-1	2543537..2543707	-	56	29377116	-	EF2631	-	hypothetical protein
2456	 36.57	0	2544006..2545178	+	390	29377117	-	EF2632	-	IS256, transposase
2457	 39.54	0	2545342..2546967	-	541	29377118	groEL	EF2633	-	chaperonin, 60 kDa
2458	 38.25	0	2547025..2547309	-	94	29377119	groES	EF2634	-	chaperonin, 10 kDa
2459	 30.51	-1	2547542..2547718	+	58	29377120	-	EF2636	-	hypothetical protein
2460	 36.54	0	2547737..2548390	+	217	29377121	-	EF2637	-	abortive infection protein
2461	 36.41	0	2548433..2549083	-	216	29377122	-	EF2638	-	redox-sensing transcriptional repressor Rex
2462	 37.70	0	2549297..2551243	+	648	29377123	-	EF2639	-	ABC transporter, ATP-binding protein
2463	 38.39	0	2551258..2551890	+	210	29377124	-	EF2640	-	GntR family transcriptional regulator
2464	 37.88	0	2552073..2553281	+	402	29377125	-	EF2641	-	glycine betaine/L-proline ABC transporter, ATP-binding subunit
2465	 39.42	0	2553274..2554983	+	569	29377126	-	EF2642	-	glycine betaine/L-proline ABC transporter, glycine betaine/L-proline-binding/permease protein
2466	 35.86	0	2555267..2555977	-	236	29377127	-	EF2643	-	hypothetical protein
2467	 38.98	0	2556122..2557024	-	300	29377128	-	EF2644	-	diacylglycerol kinase catalytic subunit
2468	 33.93	0	2557147..2558160	-	337	29377129	-	EF2645	-	hypothetical protein
2469	 44.39	+1	2558302..2559450	-	382	29377130	-	EF2646	-	glycerate kinase, putative
2470	 39.29	0	2559472..2560764	-	430	29377131	-	EF2647	-	GntP family permease
2471	 36.70	0	2560874..2561557	-	227	29377132	-	EF2648	-	hypothetical protein
2472	 36.03	0	2561707..2562780	-	357	29377133	-	EF2649	-	spermidine/putrescine ABC transporter, spermidine/putrescine-binding protein
2473	 35.36	0	2562777..2563613	-	278	29377134	-	EF2650	-	spermidine/putrescine ABC transporter, permease protein
2474	 38.17	0	2563613..2564419	-	268	29377135	-	EF2651	-	spermidine/putrescine ABC transporter, permease protein
2475	 38.77	0	2564438..2565523	-	361	29377136	-	EF2652	-	spermidine/putrescine ABC transporter, ATP-binding subunit
2476	 36.28	0	2565549..2566091	-	180	29377137	-	EF2653	-	Cro/CI family transcriptional regulator
2477	 40.79	0	2566355..2567347	+	330	29377138	-	EF2654	-	alcohol dehydrogenase, zinc-containing
2478	 37.60	0	2567363..2568136	+	257	29377139	-	EF2655	-	phosphopantothenate--cysteine ligase
2479	 38.74	0	2568133..2568687	+	184	29377140	-	EF2656	-	phosphopantothenoylcysteine decarboxylase
2480	 38.36	0	2568691..2569326	+	211	29377141	-	EF2657	-	hypothetical protein
2481	 36.98	0	2569382..2570587	-	401	29377142	-	EF2658	-	FemAB family protein
2482	 34.52	0	2570825..2571331	-	168	29377143	-	EF2659	-	hypothetical protein
2483	 37.92	0	2571594..2572553	+	319	29377144	-	EF2661	-	diacylglycerol kinase catalytic subunit
2484	 36.27	0	2572694..2573815	-	373	29377145	-	EF2662	-	choline binding protein
2485	 39.11	0	2574013..2576610	-	865	29377146	-	EF2663	-	RecD/TraA family helicase
2486	 38.29	0	2576637..2577281	-	214	29377147	-	EF2664	-	phosphoglycerate mutase family protein
2487	 36.69	0	2577498..2578004	-	168	29377148	-	EF2665	-	RNA methyltransferase
2488	 37.59	0	2578316..2579161	-	281	29377149	-	EF2666	-	ribosomal RNA large subunit methyltransferase A, putative
2489	 40.63	0	2579291..2579920	+	209	29377150	-	EF2667	-	copper homeostasis protein, putative
2490	 39.35	0	2580038..2581399	-	453	29377151	mgtE	EF2668	-	magnesium transporter
2491	 39.10	0	2582331..2583128	-	265	29377152	ppnK	EF2670	-	inorganic polyphosphate/ATP-NAD kinase
2492	 38.30	0	2583141..2583845	-	234	29377153	-	EF2671	-	hypothetical protein
2493	 39.21	0	2584012..2584590	+	192	29377154	-	EF2672	-	hypothetical protein
2494	 36.67	0	2584654..2585313	+	219	29377155	-	EF2673	-	hypothetical protein
2495	 35.32	0	2585405..2587216	-	603	29377156	pepF	EF2674	-	oligoendopeptidase F,plasmid
37.28	MEAN

4.35	STD DEV
