IslandPathversion 1.0

IslandPath Analysis: Enterococcus faecalis V583

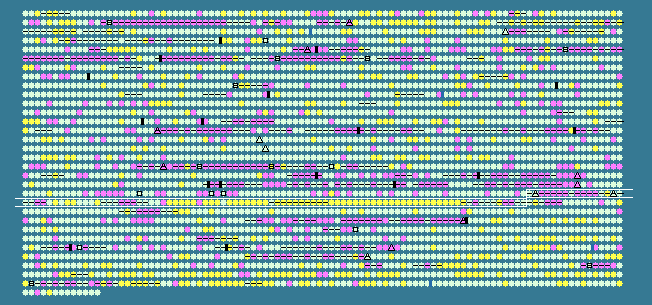

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.28 STD DEV: 4.35
Enterococcus faecalis V583, complete genome - 1..3218031
3113 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2085	 37.17	0	2162567..2163400	-	277	29376746	-	EF2239	-	hypothetical protein
2086	 34.55	0	2163823..2164971	-	382	29376747	-	EF2240	-	phage integrase family site specific recombinase
2087	 31.72	-1	2164977..2165162	-	61	29376748	-	EF2241	-	hypothetical protein
2088	 31.05	-1	2166261..2166479	-	72	29376749	-	EF2243	-	hypothetical protein
2089	 26.72	-2	2166531..2166938	-	135	29376750	-	EF2244	-	hypothetical protein
2090	 31.39	-1	2166991..2167401	-	136	29376751	-	EF2245	-	hypothetical protein
2091	 33.61	0	2168130..2168864	-	244	29376752	-	EF2247	-	transcriptional regulator
2092	 35.79	0	2169108..2172122	-	1004	29376753	-	EF2248	-	hypothetical protein
2093	 28.31	-2	2172375..2172593	-	72	29376754	-	EF2249	-	hypothetical protein
2094	 32.87	-1	2172738..2174681	-	647	29376755	-	EF2250	-	hypothetical protein
2095	 33.33	0	2174734..2174901	+	55	29376756	-	EF2251	-	hypothetical protein
2096	 32.73	-1	2174873..2175202	-	109	29376757	-	EF2252	-	hypothetical protein
2097	 38.00	0	2175207..2176256	-	349	29376758	-	EF2253	-	hypothetical protein
2098	 42.45	+1	2176313..2176981	-	222	29376759	-	EF2254	-	hypothetical protein
2099	 36.22	0	2177344..2178453	-	369	29376760	-	EF2255	-	phage integrase family site specific recombinase
2100	 36.56	0	2178943..2180244	-	433	29376761	-	EF2257	-	PTS system, IIC component, putative
2101	 36.57	0	2180257..2180874	-	205	29376762	-	EF2258	-	hypothetical protein
2102	 34.05	0	2180914..2181606	+	230	29376763	-	EF2259	-	phosphosugar-binding transcriptional regulator, putative
2103	 27.60	-2	2181852..2182409	+	185	29376764	-	EF2260	-	hypothetical protein
2104	 27.56	-2	2182765..2182920	+	51	29376765	-	EF2261	-	hypothetical protein
2105	 38.62	0	2183317..2184111	-	264	29376766	-	EF2262	-	hypothetical protein
2106	 42.16	+1	2184206..2185009	-	267	29376767	-	EF2263	-	gluconate 5-dehydrogenase
2107	 39.59	0	2185033..2185863	-	276	29376768	kduI-2	EF2264	-	5-keto-4-deoxyuronate isomerase
2108	 41.82	+1	2185899..2186900	-	333	29376769	-	EF2265	-	carbohydrate kinase
2109	 42.75	+1	2186903..2187550	-	215	29376770	-	EF2266	-	keto-hydroxyglutarate-aldolase/keto-deoxy-phosphogluconate aldolase
2110	 37.41	0	2187628..2188044	-	138	29376771	-	EF2267	-	PTS system, IIA component
2111	 39.29	0	2188057..2189985	-	642	29376772	-	EF2268	-	hypothetical protein
2112	 38.11	0	2190127..2190942	-	271	29376773	-	EF2269	-	PTS system, IID component
2113	 41.54	0	2190932..2191747	-	271	29376774	-	EF2270	-	PTS system, IIC component
2114	 38.32	0	2191777..2192277	-	166	29376775	-	EF2271	-	PTS system, IIB component
2115	 38.13	0	2192295..2193482	-	395	29376776	-	EF2272	-	glucuronyl hydrolase, putative
2116	 35.50	0	2193646..2194383	-	245	29376777	-	EF2273	-	GntR family transcriptional regulator
2117	 25.23	-2	2194879..2195100	+	73	29376778	-	EF2275	-	hypothetical protein
2118	 31.05	-1	2195087..2196838	+	583	29376779	-	EF2276	-	hypothetical protein
2119	 29.37	-1	2197119..2198027	-	302	29376780	-	EF2277	-	hypothetical protein
2120	 39.10	0	2198027..2199049	-	340	29376781	-	EF2278	-	NLP/P60 family lipoprotein
2121	 37.40	0	2199046..2201160	-	704	29376782	-	EF2279	-	hypothetical protein
2122	 39.22	0	2201166..2203613	-	815	29376783	-	EF2280	-	hypothetical protein
2123	 37.44	0	2203600..2203989	-	129	29376784	-	EF2281	-	hypothetical protein
2124	 31.87	-1	2204066..2204680	+	204	29376785	-	EF2282	-	hypothetical protein
2125	 50.87	+2	2204960..2206573	-	537	29376786	-	EF2283	-	resolvase family site-specific recombinase
2126	 51.98	+2	2206701..2206877	-	58	29376787	-	EF2284	-	hypothetical protein
2127	 57.61	+2	2206945..2207805	-	286	29376788	-	EF2285	-	hypothetical protein
2128	 54.29	+2	2207802..2209013	-	403	29376789	-	EF2286	-	ParB-like nuclease domain-containing protein
2129	 56.33	+2	2209172..2209732	+	186	29376790	-	EF2287	-	hypothetical protein
2130	 31.67	-1	2209998..2210117	+	39	29376791	-	EF2288	-	hypothetical protein
2131	 49.89	+2	2210145..2210591	-	148	29376792	-	EF2289	-	hypothetical protein
2132	 44.62	+1	2210747..2211127	-	126	29376793	-	EF2290	-	ECF subfamily RNA polymerase sigma factor
2133	 46.45	+2	2211601..2211966	+	121	29376794	-	EF2291	-	Cro/CI family transcriptional regulator
2134	 39.42	0	2211933..2212277	-	114	29376795	-	EF2292	-	hypothetical protein
2135	 47.13	+2	2212353..2212961	-	202	29376796	vanX	EF2293	-	D-alanyl-D-alanine dipeptidase
2136	 48.79	+2	2212967..2213995	-	342	29376797	vanB	EF2294	-	D-alanine--D-lactate ligase
2137	 50.82	+2	2213988..2214959	-	323	29376798	-	EF2295	-	D-specific alpha-keto acid dehydrogenase
2138	 46.01	+2	2214956..2215783	-	275	29376799	vanW	EF2296	-	vancomycin B-type resistance protein VanW
2139	 49.07	+2	2215801..2216607	-	268	29376800	vanYB	EF2297	-	D-alanyl-D-alanine carboxypeptidase
2140	 46.88	+2	2216783..2218126	-	447	29376801	vanSB	EF2298	-	sensor histidine kinase VanSB
2141	 47.06	+2	2218126..2218788	-	220	29376802	vanRB	EF2299	-	DNA-binding response regulator VanRB
2142	 38.62	0	2218843..2219031	-	62	29376803	-	EF2300	-	streptomycin resistance protein, putative
2143	 49.77	+2	2219565..2219783	-	72	29376804	-	EF2302	-	hypothetical protein
2144	 50.88	+2	2220066..2221478	-	470	29376805	-	EF2303	-	hypothetical protein
2145	 42.75	+1	2221559..2221834	+	91	29376806	-	EF2304	-	Cro/CI family transcriptional regulator
2146	 59.73	+2	2221837..2222787	-	316	29376807	-	EF2305	-	TOPRIM domain-containing protein
2147	 56.34	+2	2222854..2223192	-	112	29376808	-	EF2306	-	hypothetical protein
2148	 56.01	+2	2223189..2232710	-	3173	29376809	-	EF2307	-	hypothetical protein
2149	 52.94	+2	2232905..2233006	-	33	29376810	-	EF2308	-	hypothetical protein
2150	 55.71	+2	2233047..2233265	-	72	29376811	-	EF2309	-	hypothetical protein
2151	 60.00	+2	2233538..2233987	-	149	29376812	-	EF2310	-	hypothetical protein
2152	 59.88	+2	2233984..2234145	-	53	29376813	-	EF2311	-	hypothetical protein
2153	 57.84	+2	2234375..2236492	-	705	29376814	topB-2	EF2312	-	DNA topoisomerase III
2154	 59.65	+2	2236443..2236670	-	75	29376815	-	EF2313	-	hypothetical protein
2155	 59.13	+2	2236670..2237956	-	428	29376816	-	EF2314	-	bacteriocin, putative
2156	 55.82	+2	2238911..2239159	-	82	29376817	-	EF2315	-	hypothetical protein
2157	 55.83	+2	2239156..2240004	-	282	29376818	-	EF2316	-	hypothetical protein
2158	 47.06	+2	2239989..2240090	+	33	29376819	-	EF2317	-	hypothetical protein
2159	 59.40	+2	2240101..2242878	-	925	29376820	-	EF2318	-	M24/M37 family peptidase
2160	 56.36	+2	2242875..2243990	-	371	29376821	-	EF2319	-	hypothetical protein
2161	 54.36	+2	2244004..2246481	-	825	29376822	-	EF2320	-	traE protein, putative
2162	 53.10	+2	2246405..2246824	-	139	29376823	-	EF2321	-	hypothetical protein
2163	 55.71	+2	2246825..2248129	-	434	29376824	-	EF2322	-	hypothetical protein
2164	 51.49	+2	2248728..2249597	-	289	29376825	-	EF2324	-	hypothetical protein
2165	 53.65	+2	2249591..2249782	-	63	29376826	-	EF2325	-	hypothetical protein
2166	 42.87	+1	2249859..2251745	-	628	29376827	-	EF2326	-	group II intron reverse transcriptase maturase
2167	 51.52	+2	2252465..2252596	-	43	29376828	-	EF2327	-	hypothetical protein
2168	 51.07	+2	2252661..2254436	-	591	29376829	-	EF2328	-	TraG family protein
2169	 52.92	+2	2254433..2254912	-	159	29376830	-	EF2329	-	hypothetical protein
2170	 47.73	+2	2254941..2255447	-	168	29376831	-	EF2330	-	hypothetical protein
2171	 54.40	+2	2255485..2255916	-	143	29376832	-	EF2331	-	hypothetical protein
2172	 56.41	+2	2255995..2256852	-	285	29376833	-	EF2332	-	hypothetical protein
2173	 59.91	+2	2256825..2257283	-	152	29376834	-	EF2333	-	hypothetical protein
2174	 51.67	+2	2257334..2258320	-	328	29376835	-	EF2334	-	hypothetical protein
2175	 37.33	0	2258996..2259496	-	166	29376836	-	EF2335	-	hypothetical protein
2176	 33.78	0	2259509..2259730	-	73	29376837	-	EF2336	-	hypothetical protein
2177	 37.68	0	2259735..2259872	-	45	29376838	-	EF2337	-	hypothetical protein
2178	 39.16	0	2259869..2261053	-	394	29376839	-	EF2338	-	Cro/CI family transcriptional regulator
2179	 40.00	0	2261311..2261565	-	84	29376840	-	EF2339	-	hypothetical protein
2180	 43.88	+1	2261591..2262586	-	331	29376841	-	EF2340	-	C-5 cytosine-specific DNA methylase
2181	 31.14	-1	2262814..2263635	-	273	29376842	-	EF2341	-	hypothetical protein
2182	 32.90	-1	2263625..2264083	-	152	29376843	-	EF2342	-	hypothetical protein
2183	 37.34	0	2264189..2265535	-	448	29376844	-	EF2343	-	FtsK/SpoIIIE family protein
2184	 38.70	0	2265603..2265956	-	117	29376845	-	EF2344	-	hypothetical protein
37.28	MEAN

4.35	STD DEV
