IslandPathversion 1.0

IslandPath Analysis: Enterococcus faecalis V583

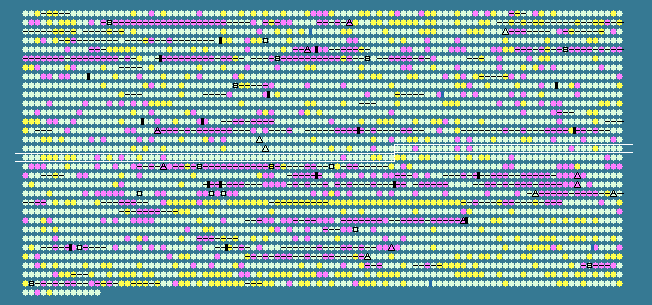

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.28 STD DEV: 4.35
Enterococcus faecalis V583, complete genome - 1..3218031
3113 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1563	 39.64	0	1623797..1624399	+	200	29376224	-	EF1670	-	phospholipase/carboxylesterase family protein
1564	 39.07	0	1624479..1625420	-	313	29376225	-	EF1671	-	oxidoreductase, zinc-binding
1565	 35.83	0	1625538..1626821	-	427	29376226	-	EF1672	-	permease protein, putative
1566	 33.33	0	1626822..1627502	-	226	29376227	-	EF1673	-	ABC transporter, ATP-binding protein
1567	 36.34	0	1627695..1628426	-	243	29376228	-	EF1674	-	hypothetical protein
1568	 35.56	0	1628428..1629282	-	284	29376229	-	EF1675	-	ABC transporter, ATP-binding protein
1569	 36.59	0	1629279..1629647	-	122	29376230	-	EF1676	-	GntR family transcriptional regulator
1570	 35.14	0	1629796..1630239	-	147	29376231	-	EF1677	-	putative lipoprotein
1571	 35.32	0	1630360..1630914	-	184	29376232	-	EF1678	-	signal peptidase I
1572	 37.31	0	1630932..1632365	-	477	29376233	-	EF1679	-	carboxyl-terminal protease
1573	 33.33	0	1632462..1632680	-	72	29376234	-	EF1680	-	hypothetical protein
1574	 40.12	0	1632686..1633201	-	171	29376235	msrA	EF1681	-	peptide methionine sulfoxide reductase
1575	 32.56	-1	1633218..1633862	-	214	29376236	-	EF1682	-	hypothetical protein
1576	 38.77	0	1633864..1634691	-	275	29376237	-	EF1683	-	lipase/acylhydrolase, putative
1577	 37.01	0	1634867..1635709	-	280	29376238	-	EF1684	-	DegV family protein, putative
1578	 37.71	0	1635832..1636494	+	220	29376239	hlyIII	EF1685	-	hemolysin III
1579	 35.86	0	1636688..1636885	+	65	29376240	-	EF1686	-	hypothetical protein
1580	 40.74	0	1636991..1637503	-	170	29376241	apt	EF1687	-	adenine phosphoribosyltransferase
1581	 39.17	0	1637506..1639818	-	770	29376242	recJ	EF1688	-	single-stranded-DNA-specific exonuclease RecJ
1582	 35.90	0	1639973..1640440	-	155	29376243	-	EF1689	-	hypothetical protein
1583	 40.18	0	1640457..1641245	-	262	29376244	-	EF1690	-	short chain dehydrogenase/reductase family oxidoreductase
1584	 39.28	0	1641246..1642187	-	313	29376245	-	EF1691	-	AtsA/ElaC family beta-lactamase
1585	 38.10	0	1642402..1642968	-	188	29376246	-	EF1692	-	hypothetical protein
1586	 37.13	0	1643089..1643325	-	78	29376247	-	EF1693	-	KH domain-containing protein
1587	 35.51	0	1643346..1643621	-	91	29376248	rpsP	EF1694	-	ribosomal protein S16
1588	 39.67	0	1643768..1644493	-	241	29376249	-	EF1695	-	acetyltransferase
1589	 38.92	0	1644784..1645266	+	160	29376250	-	EF1698	-	NADPH-dependent FMN reductase domain-containing protein
1590	 36.52	0	1645387..1646139	+	250	29376251	-	EF1699	-	MerR family transcriptional regulator
1591	 39.75	0	1646214..1647632	-	472	29376252	ffh	EF1700	-	signal recognition particle protein
1592	 30.68	-1	1647637..1647975	-	112	29376253	-	EF1701	-	hypothetical protein
1593	 40.22	0	1648059..1648523	-	154	29376254	-	EF1702	-	hypothetical protein
1594	 39.94	0	1648686..1649396	+	236	29376255	phoP	EF1703	-	alkaline phosphatase synthesis transcriptional regulatory protein PhoP
1595	 38.12	0	1649393..1651168	+	591	29376256	-	EF1704	-	sensory box histidine kinase
1596	 41.41	0	1651210..1652100	-	296	29376257	-	EF1705	-	phosphate-binding protein
1597	 39.61	0	1652211..1653389	-	392	29376258	-	EF1706	-	aromatic amino acid aminotransferase
1598	 39.65	0	1653551..1656241	-	896	29376259	-	EF1707	-	glycosy hydrolase family protein
1599	 37.98	0	1656253..1657542	-	429	29376260	-	EF1708	-	hypothetical protein
1600	 39.26	0	1657699..1658745	+	348	29376261	-	EF1709	-	GntR family sugar-binding transcriptional regulator
1601	 35.48	0	1658934..1659863	-	309	29376262	-	EF1710	-	LysR family transcriptional regulator
1602	 37.91	0	1659882..1660580	-	232	29376263	-	EF1711	-	carbonic anhydrase, putative
1603	 40.28	0	1660778..1661410	-	210	29376264	pyrE	EF1712	-	orotate phosphoribosyltransferase
1604	 42.30	+1	1661412..1662125	-	237	29376265	pyrF	EF1713	-	orotidine 5'-phosphate decarboxylase
1605	 42.28	+1	1662115..1663053	-	312	29376266	pyrD-2	EF1714	-	dihydroorotate dehydrogenase
1606	 42.80	+1	1663050..1663841	-	263	29376267	pyrDII	EF1715	-	dihydroorotate dehydrogenase electron transfer subunit
1607	 39.71	0	1663949..1667131	-	1060	29376268	carB	EF1716	-	carbamoyl phosphate synthase large subunit
1608	 42.13	+1	1667131..1668210	-	359	29376269	pyraA	EF1717	-	carbamoyl phosphate synthase small subunit
1609	 42.21	+1	1668213..1669496	-	427	29376270	pyrC	EF1718	-	dihydroorotase
1610	 39.05	0	1669505..1670431	-	308	29376271	pyrB	EF1719	-	aspartate carbamoyltransferase catalytic subunit
1611	 37.86	0	1670445..1671725	-	426	29376272	-	EF1720	-	uracil permease
1612	 39.48	0	1671742..1672278	-	178	29376273	pyrR	EF1721	-	pyrimidine regulatory protein PyrR
1613	 32.92	-1	1673512..1673997	-	161	29376274	lspA	EF1723	-	lipoprotein signal peptidase
1614	 38.44	0	1673994..1674698	-	234	29376275	-	EF1724	-	CBS domain-containing protein
1615	 41.59	0	1674803..1676473	-	556	29376276	fhs	EF1725	-	formate--tetrahydrofolate ligase
1616	 35.75	0	1676652..1676858	+	68	29376277	-	EF1726	-	cold-shock domain-contain protein
1617	 31.82	-1	1676963..1677424	-	153	29376278	ebsa	EF1727	-	ebsA protein
1618	 37.50	0	1677525..1677932	+	135	29376279	ebsB	EF1728	-	EbsB protein
1619	 37.78	0	1678062..1678556	-	164	29376280	-	EF1730	-	EbsC protein
1620	 41.86	+1	1678574..1679335	-	253	29376281	aroD	EF1731	-	3-dehydroquinate dehydratase
1621	 36.19	0	1679491..1681275	-	594	29376282	-	EF1732	-	ABC transporter ATP-binding protein/peptidase
1622	 39.10	0	1681275..1683026	-	583	29376283	-	EF1733	-	ABC transporter ATP-binding protein/peptidase
1623	 38.81	0	1683224..1683442	-	72	29376284	-	EF1734	-	hypothetical protein
1624	 25.00	-2	1683491..1683586	-	31	29376285	-	EF1735	-	hypothetical protein
1625	 38.03	0	1683636..1684529	-	297	29376286	nfo	EF1736	-	endonuclease IV
1626	 39.74	0	1684540..1685007	-	155	29376287	-	EF1737	-	hypothetical protein
1627	 38.46	0	1685007..1685669	-	220	29376288	-	EF1738	-	hypothetical protein
1628	 36.98	0	1685850..1687112	-	420	29376289	tryS-2	EF1739	-	tyrosyl-tRNA synthetase
1629	 38.72	0	1687297..1689708	+	803	29376290	-	EF1740	-	penicillin-binding protein 1B, putative
1630	 36.03	0	1689813..1690814	-	333	29376291	ccpA	EF1741	-	catabolite control protein A
1631	 39.13	0	1691029..1692132	+	367	29376292	pepQ-2	EF1743	-	proline dipeptidase
1632	 37.59	0	1692253..1692840	-	195	29376293	-	EF1744	-	general stress protein, putative
1633	 37.04	0	1692856..1693287	-	143	29376294	-	EF1745	-	hypothetical protein
1634	 35.01	0	1693465..1694361	-	298	29376295	galU	EF1746	-	UTP-glucose-1-phosphate uridylyltransferase
1635	 39.88	0	1694373..1695395	-	340	29376296	gpsA	EF1747	-	NAD(P)H-dependent glycerol-3-phosphate dehydrogenase
1636	 38.23	0	1695464..1696300	-	278	29376297	lgt	EF1748	-	prolipoprotein diacylglyceryl transferase
1637	 39.74	0	1696315..1697250	-	311	29376298	hprK	EF1749	-	HPr kinase/phosphorylase
1638	 36.97	0	1697460..1698422	+	320	29376299	-	EF1750	-	endo/excinuclease amino terminal domain-containing protein
1639	 36.69	0	1698458..1698814	-	118	29376300	-	EF1751	-	hypothetical protein
1640	 39.20	0	1698814..1699137	-	107	29376301	-	EF1752	-	hypothetical protein
1641	 35.52	0	1699212..1700813	-	533	29376302	-	EF1753	-	hypothetical protein
1642	 34.22	0	1701023..1701700	-	225	29376303	-	EF1754	-	PhoU family protein
1643	 35.05	0	1701715..1702473	-	252	29376304	-	EF1755	-	phosphate ABC transporter, ATP-binding protein
1644	 38.40	0	1702484..1703293	-	269	29376305	-	EF1756	-	phosphate ABC transporter, ATP-binding protein
1645	 38.53	0	1703310..1704194	-	294	29376306	-	EF1757	-	phosphate ABC transporter, permease protein
1646	 39.41	0	1704194..1705114	-	306	29376307	-	EF1758	-	phosphate ABC transporter, permease protein
1647	 38.36	0	1705237..1706091	-	284	29376308	-	EF1759	-	phosphate ABC transporter, phosphate-binding protein
1648	 35.71	0	1706267..1707151	-	294	29376309	-	EF1760	-	cell division ABC transporter, permease protein FtsX, putative
1649	 39.59	0	1707144..1707830	-	228	29376310	ftsE	EF1761	-	cell division ATP-binding protein FtsE
1650	 38.02	0	1709114..1711651	-	845	29376311	secA	EF1763	-	preprotein translocase subunit SecA
1651	 35.87	0	1711907..1712458	-	183	29376312	yfiA	EF1764	-	ribosomal subunit interface protein
1652	 39.59	0	1712597..1713283	-	228	29376313	comFC	EF1765	-	competence protein F
1653	 40.55	0	1713273..1714589	-	438	29376314	comFA	EF1767	-	competence protein F
1654	 31.66	-1	1714861..1715577	+	238	29376315	-	EF1768	-	ABC transporter, ATP-binding protein
1655	 36.90	0	1715901..1716236	-	111	29376316	-	EF1769	-	PTS system, IIB component, putative
1656	 36.11	0	1716357..1716644	-	95	29376317	-	EF1770	-	hypothetical protein
1657	 38.76	0	1716786..1717448	+	220	29376318	-	EF1771	-	hypothetical protein
1658	 38.03	0	1717438..1717671	+	77	29376319	-	EF1772	-	hypothetical protein
1659	 44.18	+1	1717756..1718520	+	254	29376320	fabG	EF1773	-	3-ketoacyl-(acyl-carrier-protein) reductase
1660	 41.95	+1	1718666..1719187	+	173	29376321	-	EF1774	-	hypothetical protein
1661	 39.86	0	1719227..1719961	-	244	29376322	-	EF1775	-	hypothetical protein
1662	 38.48	0	1719982..1720311	-	109	29376323	-	EF1776	-	hypothetical protein
37.28	MEAN

4.35	STD DEV
