IslandPathversion 1.0

IslandPath Analysis: Enterococcus faecalis V583

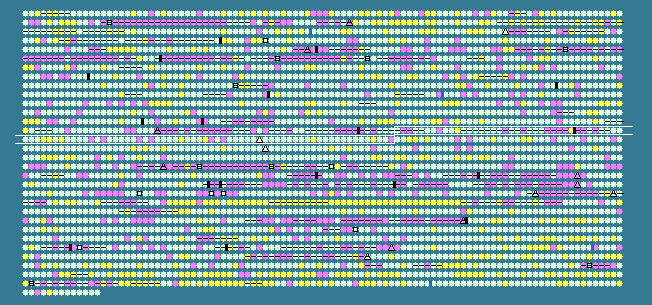

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.28 STD DEV: 4.35
Enterococcus faecalis V583, complete genome - 1..3218031
3113 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1363	 35.26	0	1421878..1423122	+	414	29376024	-	EF1457	-	minor head protein
1364	 29.09	-1	1423115..1423279	+	54	29376025	-	EF1458	-	hypothetical protein
1365	 30.90	-1	1423336..1423623	+	95	29376026	-	EF1459	-	hypothetical protein
1366	 35.71	0	1423616..1423825	+	69	29376027	-	EF1460	-	LysM domain-containing protein
1367	 35.24	0	1423838..1424938	+	366	29376028	-	EF1461	-	hypothetical protein
1368	 37.15	0	1424941..1425411	+	156	29376029	-	EF1462	-	hypothetical protein
1369	 35.83	0	1425432..1426313	+	293	29376030	-	EF1463	-	hypothetical protein
1370	 31.27	-1	1426333..1426719	+	128	29376031	-	EF1464	-	hypothetical protein
1371	 37.72	0	1426731..1427072	+	113	29376032	-	EF1465	-	hypothetical protein
1372	 33.99	0	1427069..1427674	+	201	29376033	-	EF1466	-	hypothetical protein
1373	 40.83	0	1427674..1428033	+	119	29376034	-	EF1467	-	hypothetical protein
1374	 34.59	0	1428020..1428496	+	158	29376035	-	EF1468	-	hypothetical protein
1375	 34.39	0	1428493..1429530	+	345	29376036	-	EF1469	-	hypothetical protein
1376	 35.59	0	1429546..1429944	+	132	29376037	-	EF1470	-	hypothetical protein
1377	 36.04	0	1429997..1430329	+	110	29376038	-	EF1471	-	hypothetical protein
1378	 40.30	0	1430310..1430510	+	66	29376039	-	EF1472	-	hypothetical protein
1379	 37.19	0	1430513..1435678	+	1721	29376040	-	EF1473	-	hypothetical protein
1380	 40.32	0	1435678..1436235	+	185	29376041	-	EF1474	-	LysM domain-containing protein
1381	 31.96	-1	1436245..1436607	+	120	29376042	-	EF1475	-	hypothetical protein
1382	 34.42	0	1436608..1437438	+	276	29376043	-	EF1476	-	hypothetical protein
1383	 34.23	0	1437438..1437770	+	110	29376044	-	EF1477	-	hypothetical protein
1384	 29.89	-1	1437770..1438117	+	115	29376045	-	EF1478	-	hypothetical protein
1385	 35.93	0	1438110..1439264	+	384	29376046	-	EF1479	-	hypothetical protein
1386	 35.56	0	1439248..1439877	+	209	29376047	-	EF1480	-	hypothetical protein
1387	 35.58	0	1439896..1441539	+	547	29376048	-	EF1481	-	hypothetical protein
1388	 31.95	-1	1441561..1441995	+	144	29376049	-	EF1482	-	hypothetical protein
1389	 33.33	0	1441995..1442123	+	42	29376050	-	EF1483	-	hypothetical protein
1390	 31.09	-1	1442128..1442484	+	118	29376051	-	EF1484	-	hypothetical protein
1391	 32.83	-1	1442481..1442678	+	65	29376052	-	EF1485	-	hypothetical protein
1392	 41.46	0	1442737..1443843	+	368	29376053	ply-2	EF1486	-	endolysin
1393	 32.84	-1	1444146..1444550	+	134	29376054	-	EF1487	-	hypothetical protein
1394	 28.01	-2	1444543..1445706	+	387	29376055	-	EF1488	-	hypothetical protein
1395	 34.14	0	1445810..1446058	-	82	29376056	-	EF1489	-	hypothetical protein
1396	 32.22	-1	1446424..1446603	-	59	29376057	-	EF1490	-	hypothetical protein
1397	 35.81	0	1446662..1447105	-	147	29376058	-	EF1491	-	hypothetical protein
1398	 40.43	0	1447477..1447800	+	107	29376059	-	EF1492	-	V-type ATPase, subunit F
1399	 36.92	0	1447790..1449769	+	659	29376060	-	EF1493	-	V-type ATP synthase subunit I
1400	 38.61	0	1449797..1450270	+	157	29376061	-	EF1494	-	V-type ATP synthase subunit K
1401	 36.43	0	1450287..1450868	+	193	29376062	-	EF1495	-	V-type ATPase, subunit E
1402	 36.63	0	1450885..1451886	+	333	29376063	-	EF1496	-	V-type ATPase, subunit C
1403	 34.29	0	1451876..1452187	+	103	29376064	-	EF1497	-	V-type ATP synthase subunit F
1404	 41.95	+1	1452199..1453986	+	595	29376065	-	EF1498	-	V-type ATP synthase subunit A
1405	 40.81	0	1453979..1455355	+	458	29376066	-	EF1499	-	V-type ATP synthase subunit B
1406	 35.38	0	1455360..1455995	+	211	29376067	-	EF1500	-	V-type ATP synthase subunit D
1407	 40.81	0	1456070..1456390	+	106	29376068	-	EF1501	-	hypothetical protein
1408	 37.05	0	1456539..1457480	-	313	29376069	-	EF1502	-	beta-lactamase, putative
1409	 37.11	0	1457575..1459455	-	626	29376070	-	EF1503	-	fructose-1,6-bisphosphatase, putative
1410	 40.29	0	1459671..1460963	+	430	29376071	lysA	EF1504	-	diaminopimelate decarboxylase
1411	 37.34	0	1461103..1462101	+	332	29376072	-	EF1505	-	hypothetical protein
1412	 29.59	-1	1462117..1462650	-	177	29376073	-	EF1506	-	hypothetical protein
1413	 35.42	0	1462937..1463320	+	127	29376074	-	EF1507	-	hypothetical protein
1414	 33.13	0	1463289..1463771	+	160	29376075	-	EF1508	-	hypothetical protein
1415	 39.63	0	1463984..1464523	+	179	29376076	-	EF1509	-	hypothetical protein
1416	 36.23	0	1464621..1464965	-	114	29376077	-	EF1510	-	hypothetical protein
1417	 39.91	0	1465241..1466305	+	354	29376078	-	EF1511	-	mandelate racemase/muconate lactonizing enzyme family protein
1418	 39.14	0	1466322..1467698	+	458	29376079	-	EF1512	-	hypothetical protein
1419	 36.90	0	1467716..1469368	+	550	29376080	-	EF1513	-	pheromone binding protein
1420	 33.09	0	1469678..1470511	+	277	29376081	-	EF1515	-	BigG family transcription antiterminator
1421	 39.59	0	1470548..1472545	+	665	29376082	-	EF1516	-	PTS system, IIABC components
1422	 27.89	-2	1472638..1472784	+	48	29376083	-	EF1517	-	hypothetical protein
1423	 36.19	0	1472760..1473389	+	209	29376084	-	EF1518	-	hypothetical protein
1424	 37.91	0	1473518..1475854	+	778	29376085	-	EF1519	-	cation transporter E1-E2 family ATPase
1425	 38.42	0	1476171..1478057	+	628	29376086	dnaG	EF1521	-	DNA primase
1426	 38.39	0	1478166..1479272	+	368	29376087	sigA	EF1522	-	RNA polymerase sigma factor RpoD
1427	 41.62	0	1479424..1481499	+	691	29376088	-	EF1523	-	hypothetical protein
1428	 37.98	0	1481573..1482454	+	293	29376089	-	EF1524	-	hypothetical protein
1429	 34.44	0	1482570..1483019	+	149	29376090	-	EF1525	-	FUR family transcriptional regulator
1430	 40.75	0	1483070..1484080	-	336	29376091	gap-1	EF1526	-	glyceraldehyde 3-phosphate dehydrogenase
1431	 43.17	+1	1484374..1485684	+	436	161511185	obgE	EF1527	-	GTPase ObgE
1432	 33.00	0	1485823..1486125	+	100	29376093	-	EF1528	-	hypothetical protein
1433	 39.80	0	1486152..1487450	+	432	29376094	-	EF1529	-	PTS system, IIC component, putative
1434	 30.56	-1	1487675..1488214	+	179	29376095	-	EF1531	-	TetR family transcriptional regulator
1435	 34.72	0	1488214..1488357	+	47	29376096	-	EF1532	-	hypothetical protein
1436	 37.30	0	1488354..1488731	+	125	29376097	-	EF1533	-	hypothetical protein
1437	 37.33	0	1488775..1489524	-	249	29376098	-	EF1534	-	peptidyl-prolyl cis-trans isomerase, cyclophilin-type
1438	 36.26	0	1489706..1490797	+	363	29376099	-	EF1535	-	hypothetical protein
1439	 38.60	0	1490992..1491921	+	309	29376100	-	EF1536	-	hypothetical protein
1440	 38.61	0	1492090..1492980	+	296	29376101	-	EF1537	-	integrase/recombinase XerD, putative
1441	 35.47	0	1493045..1493839	+	264	29376102	scpA	EF1538	-	segregation and condensation protein A
1442	 36.63	0	1493836..1494441	+	201	29376103	-	EF1539	-	hypothetical protein
1443	 36.96	0	1495564..1496169	+	201	29376104	-	EF1541	-	hypothetical protein
1444	 37.46	0	1496350..1497756	+	468	29376105	-	EF1542	-	hypothetical protein
1445	 38.53	0	1497779..1498009	-	76	29376106	fer	EF1543	-	ferredoxin
1446	 39.71	0	1498033..1499067	+	344	29376107	-	EF1544	-	hypothetical protein
1447	 38.05	0	1499068..1500510	+	480	29376108	recQ-1	EF1545	-	ATP-dependent DNA helicase RecQ
1448	 39.55	0	1500586..1501212	+	208	29376109	-	EF1546	-	LysM domain-containing protein
1449	 42.00	+1	1501449..1502129	+	226	29376110	cmk	EF1547	-	cytidylate kinase
1450	 38.86	0	1502243..1503454	+	403	29376111	rpsA	EF1548	-	30S ribosomal protein S1
1451	 38.22	0	1503628..1504938	+	436	29376112	engA	EF1549	-	GTP-binding protein EngA
1452	 38.41	0	1505186..1505461	+	91	29376113	hup	EF1550	-	DNA-binding protein HU
1453	 40.54	0	1505576..1505686	+	36	29376114	-	EF1551	-	hypothetical protein
1454	 37.46	0	1505768..1506808	+	346	29376115	-	EF1552	-	hypothetical protein
1455	 37.52	0	1506881..1508074	+	397	29376116	-	EF1553	-	TPR domain-containing protein
1456	 36.30	0	1508084..1508623	+	179	29376117	-	EF1554	-	hypothetical protein
1457	 38.76	0	1508661..1509545	-	294	29376118	-	EF1555	-	YitT family protein
1458	 35.90	0	1509669..1510019	+	116	29376119	-	EF1556	-	hypothetical protein
1459	 44.62	+1	1510012..1510791	+	259	29376120	dapB	EF1557	-	dihydrodipicolinate reductase
1460	 39.64	0	1510788..1512008	+	406	29376121	papS	EF1558	-	poly A polymerase
1461	 40.53	0	1512008..1512382	+	124	29376122	-	EF1559	-	hypothetical protein
1462	 33.33	0	1512472..1512927	+	151	29376123	-	EF1560	-	hypothetical protein
37.28	MEAN

4.35	STD DEV
