IslandPath Analysis: Enterococcus faecalis V583

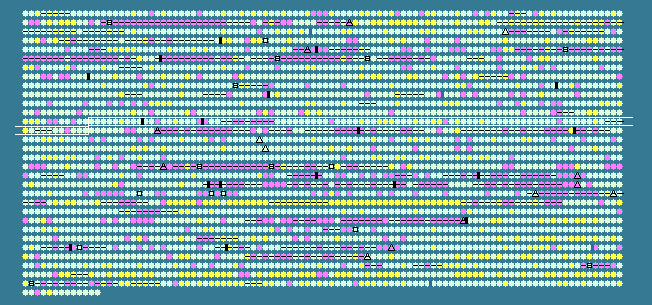

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.28 STD DEV: 4.35
Enterococcus faecalis V583, complete genome - 1..3218031
3113 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1212	 36.79	0	1271417..1272601	+	394	29375873	-	EF1305	-	coproporphyrinogen III oxidase
1213	 38.03	0	1272827..1273870	+	347	29375874	hrcA	EF1306	-	heat-inducible transcription repressor
1214	 37.59	0	1273925..1274464	+	179	29375875	grpE	EF1307	-	heat shock protein GrpE
1215	 38.20	0	1274524..1276353	+	609	29375876	dnaK	EF1308	-	dnak protein
1216	 38.21	0	1276468..1276590	+	40	29375877	-	EF1309	-	hypothetical protein
1217	 42.65	+1	1276645..1277814	+	389	29375878	dnaJ	EF1310	-	dnaJ protein
1218	 40.54	0	1278053..1278787	+	244	29375879	-	EF1311	-	hypothetical protein
1219	 39.40	0	1278885..1281077	+	730	29375880	-	EF1312	-	S1 RNA-binding domain-containing protein
1220	 40.04	0	1281104..1281565	+	153	29375881	-	EF1313	-	hypothetical protein
1221	 36.54	0	1281964..1283181	+	405	29375882	-	EF1314	-	aminotransferase AlaT
1222	 35.03	0	1283247..1283423	-	58	29375883	-	EF1315	-	hypothetical protein
1223	 29.35	-1	1283601..1284428	+	275	29375884	-	EF1316	-	Cro/CI family transcriptional regulator
1224	 40.12	0	1284529..1285677	+	382	29375885	nagA-1	EF1317	-	N-acetylglucosamine-6-phosphate deacetylase
1225	 36.43	0	1285720..1286106	-	128	29375886	-	EF1318	-	hypothetical protein
1226	 40.91	0	1286120..1286779	-	219	29375887	-	EF1319	-	hypothetical protein
1227	 40.31	0	1286940..1287641	+	233	29375888	-	EF1320	-	ABC transporter, ATP-binding protein
1228	 37.81	0	1287651..1290287	+	878	29375889	-	EF1321	-	permease domain protein
1229	 40.57	0	1290480..1291004	+	174	29375890	-	EF1322	-	hypothetical protein
1230	 30.34	-1	1292637..1292870	+	77	29375891	-	EF1324	-	hypothetical protein
1231	 32.22	-1	1293283..1293462	+	59	29375892	-	EF1325	-	hypothetical protein
1232	 35.80	0	1293518..1294126	-	202	29375893	-	EF1326	-	TetR family transcriptional regulator
1233	 40.44	0	1294305..1298552	+	1415	29375894	-	EF1327	-	BadF/BadG/BcrA/BcrD ATPase family protein
1234	 38.84	0	1298759..1299466	+	235	29375895	-	EF1328	-	GntR family transcriptional regulator
1235	 34.66	0	1300129..1301262	+	377	29375896	-	EF1329	-	HesA/MoeB/ThiF family protein
1236	 31.46	-1	1301226..1302026	+	266	29375897	-	EF1330	-	hypothetical protein
1237	 32.38	-1	1302049..1302993	+	314	29375898	-	EF1331	-	ABC transporter, ATP-binding protein
1238	 35.52	0	1303137..1303730	+	197	29375899	-	EF1332	-	hypothetical protein
1239	 30.25	-1	1303739..1304452	+	237	29375900	-	EF1333	-	ABC transporter, ATP-binding protein
1240	 29.51	-1	1304427..1305158	+	243	29375901	-	EF1334	-	AgrC domain-containing protein
1241	 27.38	-2	1305180..1306490	-	436	29375902	-	EF1335	-	sensor histidine kinase, putative
1242	 30.78	-1	1306490..1307194	-	234	29375903	-	EF1336	-	response regulator
1243	 34.03	0	1307771..1308202	+	143	29375904	-	EF1337	-	hypothetical protein
1244	 40.66	0	1308371..1309285	+	304	29375905	trxB	EF1338	-	thioredoxin reductase
1245	 38.53	0	1309328..1309789	-	153	29375906	-	EF1339	-	hypothetical protein
1246	 34.73	0	1309986..1310486	-	166	29375907	-	EF1340	-	pheromone cAM373 precursor lipoprotein
1247	 37.99	0	1310605..1312944	-	779	29375908	-	EF1341	-	ABC transporter, ATP-binding/permease protein
1248	 35.79	0	1313090..1313578	+	162	29375909	-	EF1342	-	MarR family transcriptional regulator
1249	 38.43	0	1313616..1314479	-	287	29375910	-	EF1343	-	sugar ABC transporter, permease protein
1250	 37.65	0	1314483..1315826	-	447	29375911	-	EF1344	-	sugar ABC transporter, permease protein
1251	 38.77	0	1315912..1317162	-	416	29375912	-	EF1345	-	sugar ABC transporter, sugar-binding protein
1252	 28.07	-2	1317308..1317421	+	37	29375913	-	EF1346	-	hypothetical protein
1253	 39.16	0	1317422..1319188	+	588	29375914	-	EF1347	-	glycosy hydrolase family protein
1254	 39.79	0	1319216..1320841	+	541	29375915	-	EF1348	-	glucan 1,6-alpha-glucosidase, putative
1255	 39.90	0	1320843..1322456	+	537	29375916	-	EF1349	-	glycosy hydrolase family protein
1256	 35.91	0	1322627..1323208	+	193	29375917	-	EF1350	-	hypothetical protein
1257	 43.01	+1	1323565..1323657	+	30	29375918	-	EF1351	-	hypothetical protein
1258	 37.85	0	1323681..1326293	+	870	29375919	-	EF1352	-	magnesium-translocating P-type ATPase
1259	 38.71	0	1326892..1328007	+	371	29375920	pdhA	EF1353	-	pyruvate dehydrogenase complex E1 component, alpha subunit
1260	 41.62	0	1328010..1328987	+	325	29375921	pdhB	EF1354	-	pyruvate dehydrogenase complex, E1 component, beta subunit
1261	 41.85	+1	1329130..1330749	+	539	29375922	aceF	EF1355	-	dihydrolipoamide acetyltransferase
1262	 41.08	0	1330757..1332163	+	468	29375923	lpdA	EF1356	-	dihydrolipoamide dehydrogenase
1263	 36.98	0	1332276..1333262	-	328	29375924	-	EF1357	-	AraC family transcriptional regulator
1264	 39.74	0	1333423..1334562	+	379	29375925	gldA	EF1358	-	glycerol dehydrogenase
1265	 37.59	0	1334575..1334973	+	132	29375926	-	EF1359	-	hypothetical protein
1266	 41.16	0	1334974..1335957	+	327	29375927	-	EF1360	-	dihydroxyacetone kinase family protein
1267	 38.14	0	1335970..1336572	+	200	29375928	-	EF1361	-	dihydroxyacetone kinase family protein
1268	 40.62	0	1336711..1337478	+	255	29375929	-	EF1362	-	hypothetical protein
1269	 40.89	0	1337551..1338702	-	383	29375930	-	EF1363	-	hydroxymethylglutaryl-CoA synthase
1270	 40.88	0	1338888..1341299	+	803	29375931	-	EF1364	-	acetyl-CoA acetyltransferase/hydroxymethylglutaryl-CoA reductase, degradative
1271	 33.62	0	1341319..1342371	-	350	29375932	-	EF1365	-	hypothetical protein
1272	 36.85	0	1342388..1343467	-	359	29375933	-	EF1366	-	hypothetical protein
1273	 40.80	0	1343749..1343949	-	66	29375934	-	EF1367	-	cold-shock domain-contain protein
1274	 36.54	0	1344247..1345368	-	373	29375935	-	EF1368	-	hypothetical protein
1275	 37.32	0	1345707..1346057	-	116	29375936	-	EF1369	-	Cro/CI family transcriptional regulator
1276	 37.59	0	1346249..1347682	+	477	29375937	-	EF1370	-	drug resistance transporter, EmrB/QacA family protein
1277	 41.48	0	1347887..1348561	+	224	29375938	-	EF1371	-	hypothetical protein
1278	 39.32	0	1348571..1349890	+	439	29375939	-	EF1372	-	CBS domain-containing protein
1279	 39.83	0	1349904..1350857	+	317	29375940	-	EF1373	-	DHH family protein
1280	 38.64	0	1350971..1351309	+	112	29375941	phnA	EF1374	-	phnA protein
1281	 37.82	0	1351370..1351681	-	103	29375942	-	EF1375	-	hypothetical protein
1282	 35.11	0	1351824..1353005	+	393	29375943	-	EF1376	-	hypothetical protein
1283	 35.93	0	1353068..1354417	+	449	29375944	-	EF1377	-	DEAD-box ATP dependent DNA helicase
1284	 35.96	0	1354964..1355647	+	227	29375945	-	EF1378	-	transcriptional regulator, putative
1285	 38.78	0	1355993..1358635	+	880	29375946	alaS	EF1379	-	alanyl-tRNA synthetase
1286	 39.05	0	1358838..1359554	+	238	29375947	-	EF1380	-	hypothetical protein
1287	 38.52	0	1359538..1360656	+	372	29375948	-	EF1381	-	hypothetical protein
1288	 36.83	0	1360686..1361915	+	409	29375949	pepT-1	EF1382	-	peptidase T
1289	 37.83	0	1362061..1362327	+	88	29375950	-	EF1383	-	hypothetical protein
1290	 33.04	0	1362347..1363375	+	342	29375951	-	EF1384	-	hypothetical protein
1291	 36.45	0	1363546..1364091	+	181	29375952	-	EF1385	-	molybdopterin-guanine dinucleotide biosynthesis protein A, putative
1292	 40.24	0	1364107..1364931	+	274	29375953	-	EF1386	-	formate/nitrite transporter family protein
1293	 36.43	0	1364921..1365502	+	193	29375954	-	EF1387	-	hypothetical protein
1294	 36.61	0	1365490..1365978	+	162	29375955	-	EF1388	-	NAD-dependent formate dehydrogenase, gamma subunit, putative
1295	 40.75	0	1366035..1367288	+	417	29375956	-	EF1389	-	NAD-dependent formate dehydrogenase, beta subunit, putative
1296	 41.16	0	1367291..1370011	+	906	29375957	fdhA	EF1390	-	NAD-dependent formate dehydrogenase, alpha subunit
1297	 39.30	0	1370059..1371231	+	390	29375958	-	EF1391	-	molybdenum cofactor biosynthesis family protein
1298	 39.41	0	1372064..1372573	+	169	29375959	moaC	EF1392	-	molybdenum cofactor biosynthesis protein MoaC
1299	 38.46	0	1372570..1373544	+	324	29375960	-	EF1393	-	molybdopterin cofactor biosynthesis protein A, putative
1300	 40.00	0	1373547..1373981	+	144	29375961	-	EF1394	-	hypothetical protein
1301	 42.86	+1	1373974..1374456	+	160	29375962	-	EF1395	-	molybdenum cofactor biosynthesis family protein
1302	 38.27	0	1374460..1375431	+	323	29375963	-	EF1396	-	molybdenum cofactor biosynthesis family protein, putative
1303	 37.33	0	1375450..1376250	+	266	29375964	-	EF1397	-	molybdenum ABC transporter, molybdenum-binding protein
1304	 38.54	0	1376259..1376930	+	223	29375965	-	EF1398	-	molybdenum ABC transporter, permease protein
1305	 37.61	0	1376927..1377931	+	334	29375966	-	EF1399	-	molybdenum ABC transporter, ATP-binding protein, putative
1306	 37.28	0	1378053..1380155	+	700	29375967	-	EF1400	-	cadmium-translocating P-type ATPase
1307	 38.71	0	1380152..1380244	-	30	29375968	-	EF1401	-	hypothetical protein
1308	 33.56	0	1380424..1380867	+	147	29375969	-	EF1402	-	hypothetical protein
1309	 35.70	0	1380887..1381435	+	182	29375970	-	EF1403	-	hypothetical protein
1310	 38.91	0	1381546..1383912	+	788	29375971	-	EF1404	-	MutS2 family protein
1311	 38.73	0	1384010..1384324	+	104	29375972	trx	EF1405	-	thioredoxin
37.28	MEAN

4.35	STD DEV
