IslandPath Analysis: Colwellia psychrerythraea 34H

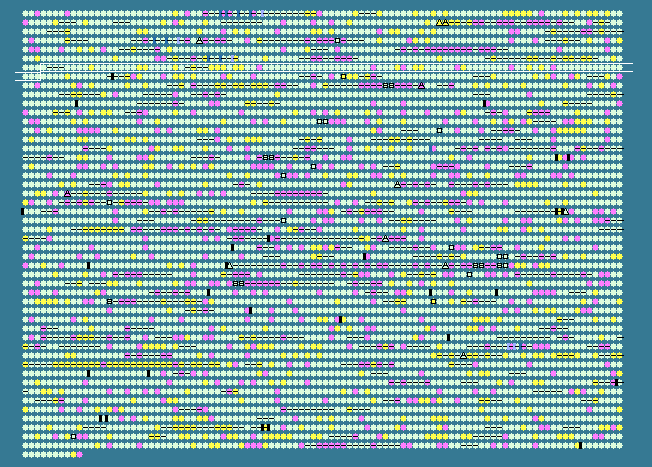

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 38.03 STD DEV: 3.50
Colwellia psychrerythraea 34H, complete genome - 1..5373180
4910 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
604	 39.27	0	633570..634781	-	403	71278920	argD	CPS_0636	-	bifunctional N-succinyldiaminopimelate-aminotransferase/acetylornithine transaminase protein
605	 36.50	0	635450..636490	-	346	71279470	-	CPS_0637	-	hypothetical protein
606	 36.17	0	636703..637302	-	199	71278635	pabA	CPS_0638	-	anthranilate synthase component II
607	 38.40	0	637472..638674	-	400	71279917	-	CPS_0639	-	hypothetical protein
608	 39.91	0	639049..639276	+	75	71279696	-	CPS_0640	-	putative glutaredoxin
609	 38.64	0	639577..639915	+	112	71280408	-	CPS_0641	-	nitrogen regulatory protein P-II
610	 40.83	0	639928..641208	+	426	71280768	-	CPS_0642	-	putative ammonium transporter
611	 38.37	0	641366..642238	-	290	71281270	ppiA1	CPS_0643	-	peptidyl-prolyl cis-trans isomerase A
612	 42.17	+1	642533..642928	+	131	71282232	-	CPS_0644	-	hypothetical protein
613	 38.83	0	643090..643944	+	284	71277947	-	CPS_0645	-	hypothetical protein
614	 36.11	0	644004..644111	+	35	71278589	-	CPS_0646	-	hypothetical protein
615	 40.99	0	644205..644426	+	73	71278986	feoA	CPS_0647	-	ferrous iron transport protein A
616	 39.29	0	644477..646660	+	727	71277903	feoB	CPS_0648	-	ferrous iron transport protein B
617	 40.80	0	647258..648301	+	347	71278146	pfkA	CPS_0649	-	6-phosphofructokinase
618	 38.10	0	648387..649877	-	496	71280445	-	CPS_0650	-	sensor histidine kinase
619	 36.91	0	649884..650666	-	260	71282358	-	CPS_0651	-	DNA-binding response regulator
620	 42.21	+1	650711..651442	-	243	71278704	-	CPS_0652	-	hypothetical protein
621	 42.64	+1	651452..652171	-	239	71279151	-	CPS_0653	-	hypothetical protein
622	 36.74	0	652520..653371	-	283	71280544	-	CPS_0654	-	putative lipoprotein
623	 36.28	0	653522..654607	-	361	71282025	-	CPS_0655	-	hypothetical protein
624	 40.02	0	654948..656054	-	368	71282206	-	CPS_0656	-	enoyl-CoA hydratase/isomerase family protein
625	 39.64	0	656054..656830	-	258	71277850	-	CPS_0657	-	enoyl-CoA hydratase
626	 42.50	+1	656886..658052	-	388	71279027	-	CPS_0658	-	acyl-CoA dehydrogenase
627	 40.32	0	658291..659163	+	290	71278818	-	CPS_0659	-	AraC family transcriptional regulator
628	 40.75	0	659322..660899	-	525	71279364	-	CPS_0660	-	sulfatase family protein
629	 42.61	+1	660899..662461	-	520	71278812	-	CPS_0661	-	AMP-binding enzyme family protein
630	 38.82	0	662686..663705	-	339	71278276	-	CPS_0662	-	AraC family transcriptional regulator
631	 41.50	0	663968..664408	+	146	71281524	-	CPS_0663	-	hypothetical protein
632	 42.75	+1	664446..664859	+	137	71280973	-	CPS_0664	-	MaoC domain-containing protein
633	 42.15	+1	664915..665742	+	275	71280473	-	CPS_0665	-	putative 3-oxoacyl-(acyl-carrier-protein) reductase
634	 42.03	+1	665753..666913	+	386	71279398	-	CPS_0666	-	acyl-CoA dehydrogenase
635	 40.34	0	667020..669401	+	793	71279021	-	CPS_0667	-	putative TonB-dependent receptor
636	 41.99	+1	669469..670635	+	388	71279469	-	CPS_0668	-	CAIB/BAIF family protein
637	 45.73	+2	670653..671822	+	389	71278797	-	CPS_0669	-	lipid-transfer protein
638	 40.81	0	672068..673672	+	534	71282351	-	CPS_0670	-	GMC family oxidoreductase
639	 38.32	0	673669..674169	+	166	71281633	-	CPS_0671	-	hypothetical protein
640	 28.28	-2	674232..674330	+	32	71279859	-	CPS_0672	-	hypothetical protein
641	 38.02	0	674360..675085	+	241	71279155	-	CPS_0673	-	enoyl-CoA hydratase/isomerase family protein
642	 39.92	0	675188..677554	-	788	71278443	-	CPS_0674	-	sensory box protein
643	 39.17	0	677701..679344	-	547	71277795	-	CPS_0675	-	AMP-binding protein
644	 41.03	0	679408..679524	+	38	71278167	-	CPS_0676	-	hypothetical protein
645	 40.23	0	679566..680174	+	202	71280848	-	CPS_0677	-	acetyltransferase
646	 38.14	0	680243..680845	-	200	71282208	-	CPS_0678	-	hypothetical protein
647	 35.73	0	680845..681969	-	374	71280320	-	CPS_0679	-	hypothetical protein
648	 39.25	0	682125..683426	-	433	71278723	-	CPS_0680	-	sensor histidine kinase
649	 39.95	0	683429..684169	-	246	71281676	-	CPS_0681	-	DNA-binding response regulator
650	 37.56	0	684485..684910	-	141	71278207	-	CPS_0682	-	hypothetical protein
651	 37.20	0	684900..685856	-	318	71278802	-	CPS_0683	-	hypothetical protein
652	 40.50	0	685986..688091	-	701	71280846	-	CPS_0684	-	putative TonB-dependent receptor
653	 36.50	0	688425..689435	+	336	71280891	-	CPS_0685	-	hypothetical protein
654	 35.44	0	689448..690731	+	427	71279179	-	CPS_0686	-	GGDEF/HAMP domain-containing protein
655	 37.20	0	690931..691680	+	249	71280315	-	CPS_0687	-	hypothetical protein
656	 39.64	0	692301..694061	+	586	71278747	-	CPS_0688	-	thiamine pyrophosphate binding domain-containing protein
657	 40.00	0	694269..694748	+	159	71278033	-	CPS_0689	-	hypothetical protein
658	 37.22	0	694954..695571	+	205	71278116	-	CPS_0690	-	hypothetical protein
659	 28.65	-2	695576..695746	+	56	71279101	-	CPS_0691	-	hypothetical protein
660	 38.62	0	695813..698008	-	731	71280342	-	CPS_0692	-	hypothetical protein
661	 38.02	0	698442..699806	+	454	71280209	-	CPS_0693	-	hypothetical protein
662	 39.88	0	700137..701282	+	381	71281563	-	CPS_0694	-	putative lipoprotein
663	 41.99	+1	701374..702990	+	538	71278215	-	CPS_0695	-	putative lipoprotein
664	 33.33	-1	703397..703516	+	39	71280154	-	CPS_0696	-	hypothetical protein
665	 39.13	0	703624..704106	+	160	71279285	-	CPS_0697	-	arginine repressor
666	 41.67	+1	704221..705480	-	419	71281339	-	CPS_0698	-	long-chain fatty acid transport protein
667	 41.95	+1	705774..706214	+	146	71282372	-	CPS_0699	-	hypothetical protein
668	 41.22	0	706221..706499	+	92	71281821	-	CPS_0700	-	hypothetical protein
669	 37.76	0	706509..707819	+	436	71277934	-	CPS_0701	-	hypothetical protein
670	 37.31	0	707870..708523	+	217	71278460	-	CPS_0702	-	fumarylacetoacetate hydrolase family protein
671	 40.85	0	708616..709014	+	132	71278995	-	CPS_0703	-	hypothetical protein
672	 39.05	0	709084..709923	-	279	71279675	-	CPS_0704	-	hypothetical protein
673	 31.58	-1	710126..710296	-	56	71281976	-	CPS_0705	-	hypothetical protein
674	 41.69	+1	710302..711582	-	426	71278279	-	CPS_0706	-	putative ampG protein
675	 41.09	0	711599..711727	-	42	71280401	-	CPS_0707	-	hypothetical protein
676	 36.67	0	711700..712029	-	109	71280948	-	CPS_0708	-	hypothetical protein
677	 37.59	0	712267..712854	-	195	71280914	ppiA2	CPS_0709	-	peptidyl-prolyl cis-trans isomerase A
678	 36.32	0	712904..713473	-	189	71281611	-	CPS_0710	-	putative lipoprotein
679	 37.23	0	713487..714665	-	392	71282296	-	CPS_0711	-	ribosomal RNA small subunit methyltransferase D
680	 40.63	0	714804..715118	+	104	71280098	bolA	CPS_0712	-	bolA protein
681	 38.04	0	715255..716445	+	396	71280300	-	CPS_0713	-	trans-2-enoyl-CoA reductase
682	 33.07	-1	716671..717051	-	126	71280830	-	CPS_0714	-	hypothetical protein
683	 36.56	0	717135..717227	-	30	71281668	-	CPS_0715	-	hypothetical protein
684	 37.48	0	717447..718049	-	200	71282239	-	CPS_0716	-	hypothetical protein
685	 44.44	+1	718725..719669	+	314	71281530	-	CPS_0717	-	transcription termination factor Rho
686	 38.65	0	720124..720330	+	68	71278873	-	CPS_0718	-	cold shock DNA-binding domain-containing protein
687	 43.41	+1	720872..722101	+	409	71279935	-	CPS_0719	-	putative spore maturation protein A/B
688	 37.27	0	722390..723049	-	219	71281079	-	CPS_0720	-	hemolysin III
689	 33.33	-1	723183..723401	-	72	71280921	-	CPS_0721	-	EF hand domain-containing protein
690	 39.99	0	723827..725269	+	480	71281380	-	CPS_0722	-	alpha/beta fold family hydrolase
691	 39.68	0	725332..726087	+	251	71282460	natA	CPS_0723	-	ATP-binding transport protein NatA
692	 39.04	0	726084..727274	+	396	71279262	natB	CPS_0724	-	protein NatB
693	 40.70	0	727671..728213	+	180	71281281	-	CPS_0725	-	sigma-70 family RNA polymerase sigma factor
694	 37.39	0	728210..728875	+	221	71279558	-	CPS_0726	-	hypothetical protein
695	 37.40	0	729194..729439	-	81	71279858	-	CPS_0727	-	hypothetical protein
696	 41.19	0	729351..730610	+	419	71278068	glyA1	CPS_0728	-	serine hydroxymethyltransferase
697	 38.96	0	730921..731418	+	165	71281647	-	CPS_0729	-	transcriptional regulator NrdR
698	 41.03	0	731492..732661	+	389	71282342	ribD	CPS_0730	-	riboflavin biosynthesis protein RibD
699	 40.20	0	732709..733407	+	232	71280235	ribE1	CPS_0731	-	riboflavin synthase subunit alpha
700	 39.82	0	733549..734658	+	369	71280915	ribB	CPS_0732	-	3,4-dihydroxy-2-butanone-4-phosphate synthase
701	 38.44	0	734820..735995	+	391	71280551	-	CPS_0733	-	hypothetical protein
702	 37.43	0	736051..736758	+	235	71279893	-	CPS_0734	-	hypothetical protein
703	 35.28	0	736745..737515	+	256	71280157	-	CPS_0735	-	hypothetical protein
38.03	MEAN

3.50	STD DEV
