IslandPath Analysis: Colwellia psychrerythraea 34H

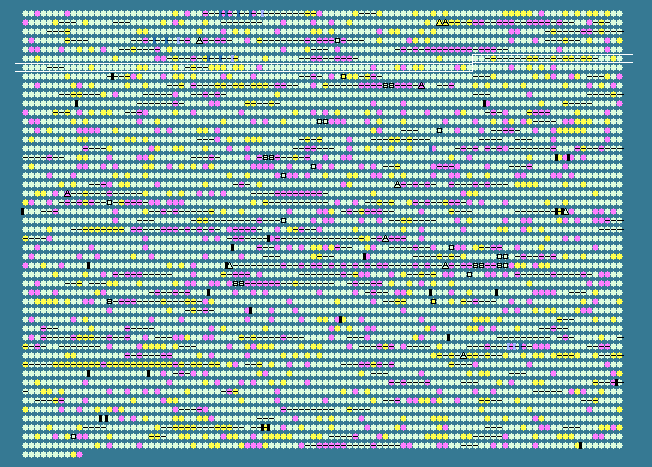

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 38.03 STD DEV: 3.50
Colwellia psychrerythraea 34H, complete genome - 1..5373180
4910 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
576	 41.33	0	613761..613985	-	74	71278970	-	CPS_0608	-	hypothetical protein
577	 35.53	0	614083..614994	+	303	71281439	rbn	CPS_0609	-	ribonuclease BN
578	 39.50	0	614991..615428	+	145	71282133	dtd	CPS_0610	-	D-tyrosyl-tRNA deacylase
579	 43.09	+1	615689..616057	+	122	71281768	rplN	CPS_0611	-	ribosomal protein L14
580	 37.46	0	616070..616384	+	104	71282363	rplX	CPS_0612	-	ribosomal protein L24
581	 41.03	0	616397..616942	+	181	71280744	rplE	CPS_0613	-	50S ribosomal protein L5
582	 41.50	0	616947..617252	+	101	71281347	rpsN	CPS_0614	-	30S ribosomal protein S14
583	 40.00	0	617272..617661	+	129	71281939	rpsH	CPS_0615	-	ribosomal protein S8
584	 40.07	0	617672..618205	+	177	71282308	rplF	CPS_0616	-	ribosomal protein L6
585	 44.63	+1	618215..618568	+	117	71280095	rplR	CPS_0617	-	ribosomal protein L18
586	 44.31	+1	618578..619087	+	169	71278175	rpsE	CPS_0618	-	ribosomal protein S5
587	 36.56	0	619088..619273	+	61	71279415	rpmD	CPS_0619	-	ribosomal protein L30
588	 41.38	0	619276..619710	+	144	71279982	rplO	CPS_0620	-	ribosomal protein L15
589	 42.53	+1	619717..621054	+	445	71280980	secY	CPS_0621	-	preprotein translocase, SecY subunit
590	 36.84	0	621085..621198	+	37	71280904	rpmJ	CPS_0622	-	ribosomal protein L36
591	 44.82	+1	621350..621706	+	118	71278025	rpsM	CPS_0623	-	30S ribosomal protein S13
592	 46.67	+2	621720..622109	+	129	71278557	rpsK	CPS_0624	-	30S ribosomal protein S11
593	 40.58	0	622142..622762	+	206	71277977	rpsD	CPS_0625	-	ribosomal protein S4
594	 42.53	+1	622788..623777	+	329	71279611	rpoA	CPS_0626	-	DNA-directed RNA polymerase subunit alpha
595	 43.21	+1	623821..624225	+	134	71278989	rplQ	CPS_0627	-	50S ribosomal protein L17
596	 40.11	0	624421..625320	+	299	71281158	prkB	CPS_0628	-	phosphoribulokinase
597	 35.30	0	625655..627535	-	626	71280694	-	CPS_0629	-	GGDEF domain-containing protein
598	 35.97	0	627757..628515	-	252	71281634	speD	CPS_0630	-	S-adenosylmethionine decarboxylase
599	 43.70	+1	628528..628932	-	134	71281754	-	CPS_0631	-	OsmC family protein
600	 36.23	0	629147..629491	-	114	71281157	-	CPS_0632	-	hypothetical protein
601	 38.87	0	629665..630855	-	396	71281846	astE	CPS_0633	-	succinylglutamate desuccinylase
602	 41.18	0	630856..632334	-	492	71282088	astD	CPS_0634	-	succinylglutamic semialdehyde dehydrogenase
603	 38.25	0	632460..633476	-	338	71278021	astA	CPS_0635	-	arginine N-succinyltransferase
604	 39.27	0	633570..634781	-	403	71278920	argD	CPS_0636	-	bifunctional N-succinyldiaminopimelate-aminotransferase/acetylornithine transaminase protein
605	 36.50	0	635450..636490	-	346	71279470	-	CPS_0637	-	hypothetical protein
606	 36.17	0	636703..637302	-	199	71278635	pabA	CPS_0638	-	anthranilate synthase component II
607	 38.40	0	637472..638674	-	400	71279917	-	CPS_0639	-	hypothetical protein
608	 39.91	0	639049..639276	+	75	71279696	-	CPS_0640	-	putative glutaredoxin
609	 38.64	0	639577..639915	+	112	71280408	-	CPS_0641	-	nitrogen regulatory protein P-II
610	 40.83	0	639928..641208	+	426	71280768	-	CPS_0642	-	putative ammonium transporter
611	 38.37	0	641366..642238	-	290	71281270	ppiA1	CPS_0643	-	peptidyl-prolyl cis-trans isomerase A
612	 42.17	+1	642533..642928	+	131	71282232	-	CPS_0644	-	hypothetical protein
613	 38.83	0	643090..643944	+	284	71277947	-	CPS_0645	-	hypothetical protein
614	 36.11	0	644004..644111	+	35	71278589	-	CPS_0646	-	hypothetical protein
615	 40.99	0	644205..644426	+	73	71278986	feoA	CPS_0647	-	ferrous iron transport protein A
616	 39.29	0	644477..646660	+	727	71277903	feoB	CPS_0648	-	ferrous iron transport protein B
617	 40.80	0	647258..648301	+	347	71278146	pfkA	CPS_0649	-	6-phosphofructokinase
618	 38.10	0	648387..649877	-	496	71280445	-	CPS_0650	-	sensor histidine kinase
619	 36.91	0	649884..650666	-	260	71282358	-	CPS_0651	-	DNA-binding response regulator
620	 42.21	+1	650711..651442	-	243	71278704	-	CPS_0652	-	hypothetical protein
621	 42.64	+1	651452..652171	-	239	71279151	-	CPS_0653	-	hypothetical protein
622	 36.74	0	652520..653371	-	283	71280544	-	CPS_0654	-	putative lipoprotein
623	 36.28	0	653522..654607	-	361	71282025	-	CPS_0655	-	hypothetical protein
624	 40.02	0	654948..656054	-	368	71282206	-	CPS_0656	-	enoyl-CoA hydratase/isomerase family protein
625	 39.64	0	656054..656830	-	258	71277850	-	CPS_0657	-	enoyl-CoA hydratase
626	 42.50	+1	656886..658052	-	388	71279027	-	CPS_0658	-	acyl-CoA dehydrogenase
627	 40.32	0	658291..659163	+	290	71278818	-	CPS_0659	-	AraC family transcriptional regulator
628	 40.75	0	659322..660899	-	525	71279364	-	CPS_0660	-	sulfatase family protein
629	 42.61	+1	660899..662461	-	520	71278812	-	CPS_0661	-	AMP-binding enzyme family protein
630	 38.82	0	662686..663705	-	339	71278276	-	CPS_0662	-	AraC family transcriptional regulator
631	 41.50	0	663968..664408	+	146	71281524	-	CPS_0663	-	hypothetical protein
632	 42.75	+1	664446..664859	+	137	71280973	-	CPS_0664	-	MaoC domain-containing protein
633	 42.15	+1	664915..665742	+	275	71280473	-	CPS_0665	-	putative 3-oxoacyl-(acyl-carrier-protein) reductase
634	 42.03	+1	665753..666913	+	386	71279398	-	CPS_0666	-	acyl-CoA dehydrogenase
635	 40.34	0	667020..669401	+	793	71279021	-	CPS_0667	-	putative TonB-dependent receptor
636	 41.99	+1	669469..670635	+	388	71279469	-	CPS_0668	-	CAIB/BAIF family protein
637	 45.73	+2	670653..671822	+	389	71278797	-	CPS_0669	-	lipid-transfer protein
638	 40.81	0	672068..673672	+	534	71282351	-	CPS_0670	-	GMC family oxidoreductase
639	 38.32	0	673669..674169	+	166	71281633	-	CPS_0671	-	hypothetical protein
640	 28.28	-2	674232..674330	+	32	71279859	-	CPS_0672	-	hypothetical protein
641	 38.02	0	674360..675085	+	241	71279155	-	CPS_0673	-	enoyl-CoA hydratase/isomerase family protein
642	 39.92	0	675188..677554	-	788	71278443	-	CPS_0674	-	sensory box protein
643	 39.17	0	677701..679344	-	547	71277795	-	CPS_0675	-	AMP-binding protein
644	 41.03	0	679408..679524	+	38	71278167	-	CPS_0676	-	hypothetical protein
645	 40.23	0	679566..680174	+	202	71280848	-	CPS_0677	-	acetyltransferase
646	 38.14	0	680243..680845	-	200	71282208	-	CPS_0678	-	hypothetical protein
647	 35.73	0	680845..681969	-	374	71280320	-	CPS_0679	-	hypothetical protein
648	 39.25	0	682125..683426	-	433	71278723	-	CPS_0680	-	sensor histidine kinase
649	 39.95	0	683429..684169	-	246	71281676	-	CPS_0681	-	DNA-binding response regulator
650	 37.56	0	684485..684910	-	141	71278207	-	CPS_0682	-	hypothetical protein
651	 37.20	0	684900..685856	-	318	71278802	-	CPS_0683	-	hypothetical protein
652	 40.50	0	685986..688091	-	701	71280846	-	CPS_0684	-	putative TonB-dependent receptor
653	 36.50	0	688425..689435	+	336	71280891	-	CPS_0685	-	hypothetical protein
654	 35.44	0	689448..690731	+	427	71279179	-	CPS_0686	-	GGDEF/HAMP domain-containing protein
655	 37.20	0	690931..691680	+	249	71280315	-	CPS_0687	-	hypothetical protein
656	 39.64	0	692301..694061	+	586	71278747	-	CPS_0688	-	thiamine pyrophosphate binding domain-containing protein
657	 40.00	0	694269..694748	+	159	71278033	-	CPS_0689	-	hypothetical protein
658	 37.22	0	694954..695571	+	205	71278116	-	CPS_0690	-	hypothetical protein
659	 28.65	-2	695576..695746	+	56	71279101	-	CPS_0691	-	hypothetical protein
660	 38.62	0	695813..698008	-	731	71280342	-	CPS_0692	-	hypothetical protein
661	 38.02	0	698442..699806	+	454	71280209	-	CPS_0693	-	hypothetical protein
662	 39.88	0	700137..701282	+	381	71281563	-	CPS_0694	-	putative lipoprotein
663	 41.99	+1	701374..702990	+	538	71278215	-	CPS_0695	-	putative lipoprotein
664	 33.33	-1	703397..703516	+	39	71280154	-	CPS_0696	-	hypothetical protein
665	 39.13	0	703624..704106	+	160	71279285	-	CPS_0697	-	arginine repressor
666	 41.67	+1	704221..705480	-	419	71281339	-	CPS_0698	-	long-chain fatty acid transport protein
667	 41.95	+1	705774..706214	+	146	71282372	-	CPS_0699	-	hypothetical protein
668	 41.22	0	706221..706499	+	92	71281821	-	CPS_0700	-	hypothetical protein
669	 37.76	0	706509..707819	+	436	71277934	-	CPS_0701	-	hypothetical protein
670	 37.31	0	707870..708523	+	217	71278460	-	CPS_0702	-	fumarylacetoacetate hydrolase family protein
671	 40.85	0	708616..709014	+	132	71278995	-	CPS_0703	-	hypothetical protein
672	 39.05	0	709084..709923	-	279	71279675	-	CPS_0704	-	hypothetical protein
673	 31.58	-1	710126..710296	-	56	71281976	-	CPS_0705	-	hypothetical protein
674	 41.69	+1	710302..711582	-	426	71278279	-	CPS_0706	-	putative ampG protein
675	 41.09	0	711599..711727	-	42	71280401	-	CPS_0707	-	hypothetical protein
38.03	MEAN

3.50	STD DEV
