IslandPathversion 1.0

IslandPath Analysis: Colwellia psychrerythraea 34H

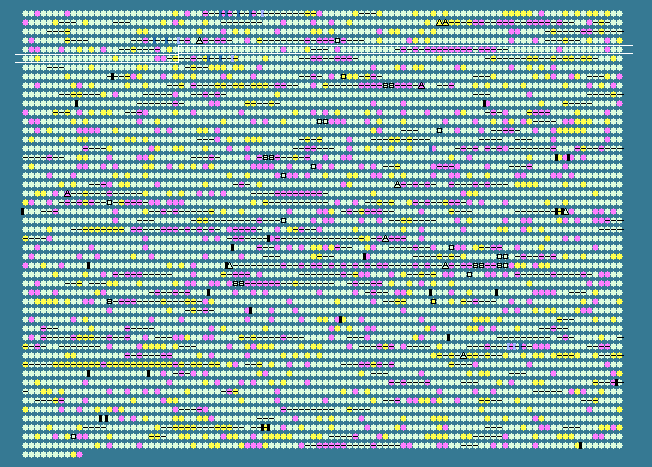

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 38.03 STD DEV: 3.50
Colwellia psychrerythraea 34H, complete genome - 1..5373180
4910 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
427	 37.97	0	448457..449362	+	301	71278315	-	CPS_0451	-	putative ABC transporter, permease protein
428	 35.99	0	449451..450806	-	451	71279148	-	CPS_0452	-	sensory box protein
429	 38.10	0	450857..450961	+	34	71279976	-	CPS_0453	-	hypothetical protein
430	 39.70	0	450999..451328	-	109	71280244	metJ	CPS_0454	-	transcriptional repressor protein MetJ
431	 41.22	0	451577..452743	+	388	71281194	metB	CPS_0455	-	cystathionine gamma-synthase
432	 40.14	0	452818..455316	+	832	71281091	metL	CPS_0456	-	bifunctional aspartate kinase II/homoserine dehydrogenase II
433	 36.52	0	455519..456898	+	459	71280557	-	CPS_0457	-	hypothetical protein
434	 40.07	0	456939..458066	+	375	71279158	-	CPS_0458	-	hypothetical protein
435	 40.03	0	458130..459278	-	382	71280802	argE1	CPS_0459	-	acetylornithine deacetylase
436	 40.81	0	459400..460455	+	351	71282422	argC	CPS_0460	-	N-acetyl-gamma-glutamyl-phosphate reductase
437	 41.00	0	460529..461311	+	260	71281509	argB	CPS_0461	-	acetylglutamate kinase
438	 37.79	0	461364..462305	+	313	71278881	argF	CPS_0462	-	ornithine carbamoyltransferase
439	 40.02	0	462423..463679	+	418	71277989	argG	CPS_0463	-	argininosuccinate synthase
440	 40.61	0	463682..465619	+	645	71279608	argHA	CPS_0464	-	bifunctional argininosuccinate lyase/N-acetylglutamate synthase
441	 40.27	0	465662..466972	+	436	71281193	argA	CPS_0465	-	N-acetylglutamate synthase
442	 39.39	0	467115..469706	-	863	71280952	-	CPS_0466	-	penicillin-binding protein
443	 40.09	0	469834..470913	+	359	71282032	pilM	CPS_0467	-	type IV pilus biogenesis protein PilM
444	 34.39	-1	470901..471467	+	188	71282602	pilN	CPS_0468	-	type IV pilus biogenesis protein PilN
445	 36.85	0	471467..472063	+	198	71280664	pilO	CPS_0469	-	type IV pilus biogenesis protein PilO
446	 40.00	0	472060..472614	+	184	71281057	pilP	CPS_0470	-	type IV pilus biogenesis protein PilP
447	 36.16	0	472626..474746	+	706	71279149	-	CPS_0471	-	type IV pilus biogenesis protein PilQ
448	 42.00	+1	474987..475505	+	172	71279819	aroK	CPS_0472	-	shikimate kinase
449	 37.46	0	475541..476605	+	354	71277743	aroB	CPS_0473	-	3-dehydroquinate synthase
450	 37.02	0	476667..478076	+	469	71281985	-	CPS_0474	-	hypothetical protein
451	 34.67	0	478317..479138	+	273	71280623	dam	CPS_0475	-	DNA adenine methylase
452	 36.72	0	479356..479532	-	58	71280513	-	CPS_0476	-	hypothetical protein
453	 31.45	-1	479564..479881	-	105	71279430	-	CPS_0477	-	hypothetical protein
454	 38.70	0	479980..480669	-	229	71278855	-	CPS_0478	-	hypothetical protein
455	 38.81	0	480988..481662	+	224	71282136	rpe	CPS_0479	-	ribulose-phosphate 3-epimerase
456	 40.18	0	481722..482729	+	335	71281083	trpS	CPS_0480	-	tryptophanyl-tRNA synthetase
457	 36.41	0	482833..483903	-	356	71279438	-	CPS_0481	-	FHA domain-containing protein
458	 38.29	0	483894..485165	-	423	71282640	-	CPS_0482	-	serine protease
459	 36.95	0	485685..486596	+	303	71280014	-	CPS_0483	-	putative beta-lactamase
460	 41.20	0	486776..489025	+	749	71279802	-	CPS_0484	-	TonB-dependent receptor
461	 40.35	0	489273..491381	+	702	71281362	-	CPS_0485	-	TonB-dependent receptor
462	 40.54	0	491392..492639	+	415	71279335	-	CPS_0486	-	BNR repeat-containing protein
463	 37.85	0	492636..493166	+	176	71281999	-	CPS_0487	-	hypothetical protein
464	 34.30	-1	493192..493500	-	102	71282167	-	CPS_0488	-	hypothetical protein
465	 38.32	0	493626..493946	+	106	71281508	-	CPS_0489	-	hypothetical protein
466	 30.89	-2	493953..495998	+	681	71279302	-	CPS_0490	-	putative site-specific recombinase
467	 34.81	0	496127..496261	+	44	71278930	-	CPS_0491	-	hypothetical protein
468	 30.25	-2	496519..497004	+	161	71281110	-	CPS_0492	-	hypothetical protein
469	 27.08	-2	497019..498617	+	532	71280389	-	CPS_0493	-	hypothetical protein
470	 34.01	-1	498614..499357	+	247	71282164	-	CPS_0494	-	hypothetical protein
471	 28.46	-2	500193..500951	-	252	71281467	-	CPS_0495	-	hypothetical protein
472	 31.46	-1	501285..502031	+	248	71278835	-	CPS_0496	-	hypothetical protein
473	 28.39	-2	502031..502576	+	181	71282120	-	CPS_0497	-	hypothetical protein
474	 30.03	-2	502587..502949	+	120	71278691	-	CPS_0498	-	hypothetical protein
475	 31.05	-1	503008..504321	-	437	71278051	-	CPS_0499	-	hypothetical protein
476	 36.20	0	504321..504704	-	127	71280061	-	CPS_0500	-	hypothetical protein
477	 33.04	-1	504750..505442	-	230	71279759	-	CPS_0501	-	haemagglutinin associated protein
478	 30.85	-2	505614..506699	-	361	71281006	-	CPS_0502	-	hypothetical protein
479	 28.12	-2	506712..506807	-	31	71280230	-	CPS_0503	-	hypothetical protein
480	 39.22	0	506802..506903	+	33	71282142	-	CPS_0504	-	hypothetical protein
481	 35.80	0	507044..507205	+	53	71281885	-	CPS_0505	-	hypothetical protein
482	 38.10	0	507211..508845	-	544	71279338	-	CPS_0506	-	putative sucrose phosphorylase
483	 38.47	0	508992..510218	-	408	71278725	-	CPS_0507	-	hypothetical protein
484	 38.54	0	510211..511074	-	287	71279977	-	CPS_0508	-	mannosyl-3-phosphoglycerate phosphatase
485	 36.05	0	511071..511952	-	293	71280803	-	CPS_0509	-	hypothetical protein
486	 35.00	0	512255..512374	-	39	71278886	-	CPS_0510	-	hypothetical protein
487	 35.07	0	512644..513333	-	229	71279668	-	CPS_0511	-	hypothetical protein
488	 37.16	0	513572..514093	-	173	71282130	-	CPS_0512	-	putative lipoprotein
489	 37.13	0	514677..515177	+	166	71277770	-	CPS_0513	-	hypothetical protein
490	 33.80	-1	515198..515413	+	71	71280987	-	CPS_0514	-	hypothetical protein
491	 35.06	0	515361..515534	-	57	71281827	-	CPS_0515	-	hypothetical protein
492	 37.01	0	515464..516198	-	244	71279362	-	CPS_0516	-	short chain dehydrogenase/reductase family oxidoreductase
493	 36.50	0	516188..516598	-	136	71281373	-	CPS_0517	-	hypothetical protein
494	 35.51	0	516631..517089	-	152	71280597	-	CPS_0518	-	hypothetical protein
495	 38.51	0	517420..517593	+	57	71281118	-	CPS_0519	-	hypothetical protein
496	 38.31	0	517662..518525	-	287	71282030	-	CPS_0520	-	hypothetical protein
497	 38.29	0	518656..519522	-	288	71282591	-	CPS_0521	-	hypothetical protein
498	 27.59	-2	519766..520026	+	86	71277828	-	CPS_0522	-	hypothetical protein
499	 38.07	0	520083..520694	+	203	71278352	-	CPS_0523	-	hydrolase, HAD-family protein
500	 38.00	0	520948..521718	+	256	71279210	-	CPS_0524	-	hypothetical protein
501	 37.36	0	521663..522481	+	272	71279799	-	CPS_0525	-	hypothetical protein
502	 36.42	0	522537..524189	+	550	71280426	-	CPS_0526	-	FAD-binding protein
503	 41.82	+1	524311..525111	-	266	71282188	-	CPS_0527	-	hypothetical protein
504	 35.88	0	525408..528161	-	917	71278736	-	CPS_0528	-	TPR domain-containing protein
505	 38.38	0	528547..528645	+	32	71278053	-	CPS_0529	-	hypothetical protein
506	 35.65	0	529113..529328	-	71	71280166	-	CPS_0530	-	hypothetical protein
507	 36.66	0	529237..530109	-	290	71279446	-	CPS_0531	-	LysR family transcriptional regulator
508	 39.32	0	530204..530704	+	166	71279647	-	CPS_0532	-	glyoxalase family protein
509	 36.72	0	531016..531546	-	176	71279122	-	CPS_0533	-	hypothetical protein
510	 35.39	0	531556..531798	-	80	71281284	-	CPS_0534	-	hypothetical protein
511	 38.39	0	532046..534064	+	672	71282373	-	CPS_0535	-	amidohydrolase family protein
512	 38.44	0	534162..535865	-	567	71280071	-	CPS_0536	-	RNA pseudouridine synthase family protein
513	 39.03	0	536253..537218	-	321	71278710	-	CPS_0537	-	siroheme synthase, N-terminal component
514	 39.23	0	537356..537847	-	163	71277832	-	CPS_0538	-	ribonuclease activity regulator protein RraA
515	 37.44	0	537998..538192	+	64	71282197	-	CPS_0539	-	hypothetical protein
516	 42.63	+1	538174..539055	+	293	71282574	prmA	CPS_0540	-	ribosomal protein L11 methyltransferase
517	 35.18	0	539224..541065	-	613	71282021	-	CPS_0541	-	GGDEF domain-containing protein
518	 36.86	0	541142..541396	-	84	71281149	-	CPS_0542	-	hypothetical protein
519	 40.75	0	541451..542272	-	273	71279805	-	CPS_0543	-	putative methylase
520	 38.61	0	542440..543045	-	201	71281772	-	CPS_0544	-	hypothetical protein
521	 35.48	0	543040..543132	+	30	71280019	-	CPS_0545	-	hypothetical protein
522	 35.37	0	543186..544955	-	589	71280714	-	CPS_0546	-	GGDEF domain-containing protein
523	 31.84	-1	544966..545232	-	88	71279645	-	CPS_0547	-	hypothetical protein
524	 34.22	-1	545636..546196	-	186	71277959	-	CPS_0548	-	acetyltransferase
525	 38.84	0	546351..547676	-	441	71278600	-	CPS_0549	-	hypothetical protein
526	 42.28	+1	547968..548984	+	338	71281750	-	CPS_0550	-	NifR3/Smm1 family protein
38.03	MEAN

3.50	STD DEV
