IslandPath Analysis: Colwellia psychrerythraea 34H

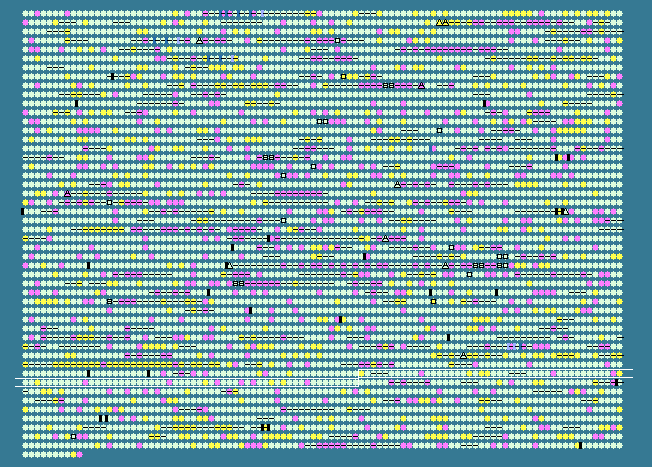

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 38.03 STD DEV: 3.50
Colwellia psychrerythraea 34H, complete genome - 1..5373180
4910 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
4057	 41.67	+1	4410069..4410356	+	95	71280225	-	CPS_4188	-	hypothetical protein
4058	 37.73	0	4410417..4412123	+	568	71278896	-	CPS_4189	-	spermidine synthase
4059	 36.96	0	4412293..4412706	+	137	71281882	-	CPS_4190	-	hypothetical protein
4060	 38.84	0	4412758..4413447	+	229	71281423	-	CPS_4191	-	PspA/IM30 family protein
4061	 35.83	0	4413583..4414224	+	213	71279390	-	CPS_4192	-	hypothetical protein
4062	 40.12	0	4414237..4414575	+	112	71280351	-	CPS_4193	-	hypothetical protein
4063	 38.76	0	4414694..4414951	+	85	71280671	-	CPS_4194	-	putative major outer membrane lipoprotein
4064	 37.61	0	4415061..4415972	-	303	71282503	-	CPS_4195	-	LysM domain-containing protein
4065	 35.01	0	4415978..4417585	-	535	71281790	-	CPS_4196	-	putative adenylate cyclase
4066	 36.63	0	4417888..4418493	+	201	71277992	-	CPS_4197	-	hypothetical protein
4067	 34.01	-1	4418941..4419825	-	294	71282201	-	CPS_4198	-	putative alpha-1,2-fucosyltransferase
4068	 38.58	0	4420011..4421135	+	374	71279076	gmd	CPS_4199	-	GDP-mannose 4,6-dehydratase
4069	 35.99	0	4421149..4422090	+	313	71281547	-	CPS_4200	-	NAD-dependent epimerase/dehydratase family protein
4070	 36.40	0	4422083..4423255	+	390	71280985	-	CPS_4201	-	polysaccharide biosynthesis protein
4071	 36.80	0	4423389..4424483	+	364	71277966	-	CPS_4202	-	glycosyl transferase, group 1 family protein
4072	 36.30	0	4425230..4426576	+	448	71282234	-	CPS_4204	-	hypothetical protein
4073	 35.35	0	4426608..4427003	+	131	71279534	tagD	CPS_4205	-	glycerol-3-phosphate cytidyltransferase
4074	 35.44	0	4427022..4428065	+	347	71280089	-	CPS_4206	-	CDP-glycerol:Poly(glycerophosphate) glycerophosphotransferase family protein
4075	 45.83	+2	4428233..4428304	+	23	71280306	leuL	CPS_4207	-	putative Leu operon leader peptide
4076	 39.72	0	4428459..4430039	+	526	71280884	leuA	CPS_4208	-	2-isopropylmalate synthase
4077	 42.52	+1	4430113..4431201	+	362	71281049	leuB	CPS_4209	-	3-isopropylmalate dehydrogenase
4078	 42.51	+1	4431203..4432618	+	471	71281595	leuC	CPS_4210	-	isopropylmalate isomerase large subunit
4079	 37.35	0	4432648..4433244	+	198	71278144	leuD	CPS_4211	-	3-isopropylmalate dehydratase, small subunit
4080	 37.94	0	4433359..4435050	-	563	71280580	-	CPS_4212	-	putative general secretion pathway protein A
4081	 39.20	0	4435217..4437382	+	721	71279226	-	CPS_4213	-	putative ferric aerobactin receptor
4082	 35.61	0	4437389..4437520	+	43	71278619	-	CPS_4214	-	hypothetical protein
4083	 41.11	0	4437501..4438838	+	445	71282596	cca	CPS_4215	-	tRNA nucleotidyltransferase
4084	 40.28	0	4439081..4439656	+	191	71281904	-	CPS_4216	-	hypothetical protein
4085	 40.28	0	4439697..4440272	-	191	71281254	-	CPS_4217	-	2OG-Fe(II) oxygenase family oxidoreductase
4086	 39.13	0	4440364..4440777	-	137	71280569	-	CPS_4218	-	hypothetical protein
4087	 40.67	0	4441249..4443060	-	603	71278993	nirTB	CPS_4219	-	denitrification system component NirT/cytochrome c552
4088	 40.09	0	4443352..4444980	-	542	71279389	nirS	CPS_4220	-	nitrite reductase
4089	 33.86	-1	4445380..4445946	+	188	71282489	-	CPS_4221	-	hemerythrin family protein
4090	 40.59	0	4446298..4446669	+	123	71280331	nirC	CPS_4222	-	c-type cytochrome c55x
4091	 41.22	0	4446791..4448032	+	413	71279697	-	CPS_4223	-	nirF protein
4092	 40.75	0	4448035..4449153	+	372	71280163	-	CPS_4224	-	putative heme biosynthesis protein
4093	 40.35	0	4449146..4449658	+	170	71278672	-	CPS_4225	-	putative heme biosynthesis protein
4094	 38.04	0	4449748..4450299	+	183	71279515	-	CPS_4226	-	putative heme biosythesis protein
4095	 39.25	0	4450668..4451900	+	410	71282516	-	CPS_4227	-	putative heme biosynthesis protein
4096	 40.05	0	4452038..4452916	+	292	71281489	cobA2	CPS_4228	-	uroporphyrin-III C-methyltransferase
4097	 40.82	0	4453209..4454837	+	542	71278461	nirN	CPS_4229	-	heme-binding protein NirN
4098	 37.51	0	4455106..4455966	+	286	71282622	-	CPS_4230	-	hypothetical protein
4099	 33.93	-1	4456002..4457006	-	334	71280155	-	CPS_4231	-	TPR domain-containing protein
4100	 41.67	+1	4457434..4457889	+	151	71279462	-	CPS_4232	-	hypothetical protein
4101	 37.96	0	4457928..4458791	+	287	71280895	-	CPS_4233	-	UbiA prenyltransferase family protein
4102	 37.99	0	4458885..4460711	-	608	71279974	-	CPS_4234	-	hypothetical protein
4103	 43.26	+1	4460867..4461742	-	291	71279547	-	CPS_4235	-	membrane protein
4104	 36.96	0	4462164..4462742	+	192	71279092	-	CPS_4236	-	hemerythrin family protein
4105	 38.78	0	4462873..4464945	-	690	71281299	-	CPS_4237	-	RecQ domain-containing protein
4106	 40.24	0	4464949..4466454	-	501	71280566	-	CPS_4238	-	hypothetical protein
4107	 36.94	0	4466455..4467174	-	239	71282449	-	CPS_4239	-	hypothetical protein
4108	 39.66	0	4467378..4467725	-	115	71281779	-	CPS_4240	-	L-PSP family endoribonuclease
4109	 39.16	0	4468063..4469640	-	525	71279202	guaA	CPS_4241	-	bifunctional GMP synthase/glutamine amidotransferase protein
4110	 41.00	0	4469992..4471464	-	490	71278503	guaB	CPS_4242	-	inositol-5-monophosphate dehydrogenase
4111	 22.22	-2	4471504..4471638	+	44	71280729	-	CPS_4243	-	hypothetical protein
4112	 37.90	0	4471685..4473019	+	444	71281697	xseA	CPS_4244	-	exodeoxyribonuclease VII large subunit
4113	 34.73	0	4473133..4474566	+	477	71280812	-	CPS_4245	-	GGDEF domain-containing protein
4114	 38.37	0	4474558..4475232	-	224	71281324	-	CPS_4246	-	hypothetical protein
4115	 39.95	0	4475330..4476826	-	498	71279565	engA	CPS_4247	-	GTP-binding protein EngA
4116	 40.58	0	4477079..4477216	+	45	71281293	-	CPS_4248	-	hypothetical protein
4117	 39.44	0	4477310..4478554	-	414	71279719	-	CPS_4249	-	outer membrane protein assembly complex subunit YfgL
4118	 39.14	0	4478606..4479277	-	223	71279045	-	CPS_4250	-	hypothetical protein
4119	 40.12	0	4479301..4480581	-	426	71281687	hisS	CPS_4251	-	histidyl-tRNA synthetase
4120	 39.88	0	4480764..4481894	-	376	71278491	ispG	CPS_4252	-	4-hydroxy-3-methylbut-2-en-1-yl diphosphate synthase
4121	 39.17	0	4481962..4482954	-	330	71280611	-	CPS_4253	-	hypothetical protein
4122	 38.22	0	4482947..4484521	-	524	71278988	-	CPS_4254	-	lysM domain-containing protein
4123	 38.67	0	4484597..4485757	-	386	71278436	-	CPS_4255	-	hypothetical protein
4124	 40.05	0	4486025..4486456	-	143	71277786	ndk	CPS_4256	-	nucleoside diphosphate kinase
4125	 33.78	-1	4486493..4486714	-	73	71281963	-	CPS_4257	-	hypothetical protein
4126	 40.04	0	4487165..4488580	+	471	71278828	-	CPS_4258	-	hypothetical protein
4127	 40.59	0	4488598..4490223	+	541	71281260	-	CPS_4259	-	AMP-binding protein
4128	 36.92	0	4490690..4492699	+	669	71280706	-	CPS_4260	-	sensor histidine kinase/response regulator
4129	 39.03	0	4492724..4493425	+	233	71279900	-	CPS_4261	-	DNA-binding response regulator
4130	 40.91	0	4493556..4495244	-	562	71279383	sfcA	CPS_4262	-	malate dehydrogenase
4131	 42.03	+1	4495507..4495713	-	68	71282568	-	CPS_4263	-	hypothetical protein
4132	 40.09	0	4496079..4496537	+	152	71279037	-	CPS_4264	-	AsnC family transcriptional regulator
4133	 34.53	-1	4496677..4497597	-	306	71279560	-	CPS_4265	-	hypothetical protein
4134	 35.27	0	4497792..4498049	+	85	71277918	-	CPS_4266	-	hypothetical protein
4135	 39.09	0	4498201..4500441	-	746	71278446	dcp	CPS_4267	-	peptidyl-dipeptidase Dcp
4136	 38.21	0	4501006..4501374	-	122	71280754	-	CPS_4268	-	hypothetical protein
4137	 20.83	-2	4501508..4501627	-	39	71281269	-	CPS_4269	-	hypothetical protein
4138	 36.65	0	4501728..4503263	+	511	71280602	-	CPS_4270	-	sensor histidine kinase
4139	 32.50	-1	4503260..4503859	+	199	71281120	-	CPS_4271	-	hypothetical protein
4140	 39.08	0	4503875..4505248	+	457	71277923	-	CPS_4272	-	sigma-54 dependent response regulator
4141	 39.13	0	4505300..4505437	+	45	71278368	-	CPS_4273	-	hypothetical protein
4142	 41.67	+1	4505475..4505618	-	47	71282033	-	CPS_4274	-	hypothetical protein
4143	 36.36	0	4505631..4507214	-	527	71282588	-	CPS_4275	-	TPR domain/sulfotransferase domain-containing protein
4144	 41.55	+1	4507618..4510014	-	798	71281321	-	CPS_4276	-	TonB-dependent receptor
4145	 36.68	0	4510583..4511509	-	308	71281836	-	CPS_4277	-	hypothetical protein
4146	 41.01	0	4511583..4512272	-	229	71279218	-	CPS_4278	-	putative carboxylesterase
4147	 38.98	0	4512368..4513306	-	312	71282151	-	CPS_4279	-	LysR family transcriptional regulator
4148	 29.63	-2	4513284..4513391	-	35	71281388	-	CPS_4280	-	hypothetical protein
4149	 38.10	0	4513537..4513851	+	104	71280687	trx3	CPS_4281	-	thioredoxin
4150	 35.56	0	4513864..4513953	-	29	71279096	-	CPS_4282	-	hypothetical protein
4151	 40.88	0	4514040..4515245	+	401	71280853	-	CPS_4283	-	hypothetical protein
4152	 38.16	0	4515389..4516342	+	317	71278159	-	CPS_4284	-	D-isomer specific 2-hydroxyacid dehydrogenase family protein
4153	 37.00	0	4516447..4517019	+	190	71278696	-	CPS_4285	-	acetyltransferase
4154	 37.95	0	4517069..4517371	-	100	71281714	-	CPS_4286	-	hypothetical protein
4155	 38.74	0	4517431..4517541	-	36	71282253	-	CPS_4287	-	hypothetical protein
4156	 40.41	0	4517517..4518194	-	225	71278897	ung	CPS_4288	-	uracil-DNA glycosylase
38.03	MEAN

3.50	STD DEV
