IslandPathversion 1.0

IslandPath Analysis: Colwellia psychrerythraea 34H

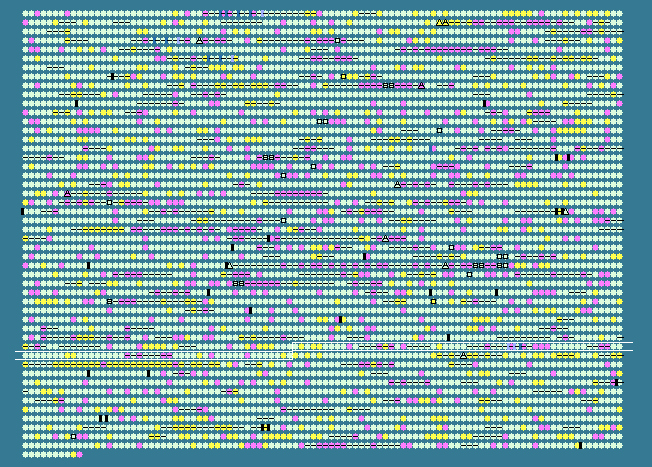

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 38.03 STD DEV: 3.50
Colwellia psychrerythraea 34H, complete genome - 1..5373180
4910 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3746	 36.61	0	4034228..4034410	-	60	71281099	-	CPS_3866	-	hypothetical protein
3747	 43.33	+1	4034936..4036645	+	569	71278911	-	CPS_3867	-	hypothetical protein
3748	 39.67	0	4036667..4037392	+	241	71282172	-	CPS_3868	-	hypothetical protein
3749	 43.69	+1	4037731..4038522	+	263	71282023	-	CPS_3869	-	formate dehydrogenase family accessory protein FdhD
3750	 42.16	+1	4038536..4040845	+	769	71281164	-	CPS_3870	-	oxidoreductase, alpha/molybdopterin subunit
3751	 38.53	0	4041230..4043596	-	788	71278361	-	CPS_3871	-	putative sensor histidine kinase
3752	 41.18	0	4043798..4045786	+	662	71282581	tkt	CPS_3872	-	transketolase
3753	 40.10	0	4045898..4046917	+	339	71278354	epd	CPS_3873	-	D-erythrose 4-phosphate dehydrogenase
3754	 40.48	0	4046986..4048161	+	391	71280637	pgk	CPS_3874	-	phosphoglycerate kinase
3755	 26.13	-2	4048204..4048314	+	36	71281918	-	CPS_3875	-	hypothetical protein
3756	 40.75	0	4048601..4049665	+	354	71282271	fba	CPS_3876	-	fructose-1,6-bisphosphate aldolase
3757	 36.27	0	4049805..4050689	+	294	71278311	-	CPS_3877	-	hypothetical protein
3758	 36.27	0	4050719..4051297	-	192	71278884	-	CPS_3878	-	hypothetical protein
3759	 34.75	0	4051481..4052188	-	235	71282592	-	CPS_3879	-	putative ABC transporter, periplasmic substrate-binding protein
3760	 18.75	-2	4052208..4052303	-	31	71278417	-	CPS_3880	-	hypothetical protein
3761	 43.59	+1	4052480..4052596	-	38	71277804	-	CPS_3881	-	hypothetical protein
3762	 32.60	-1	4052726..4055176	+	816	71279842	-	CPS_3882	-	leucine-rich repeat-containing protein
3763	 40.36	0	4055352..4057031	+	559	71279997	-	CPS_3883	-	putative ABC transporter ATP-binding protein
3764	 32.23	-1	4057228..4057590	+	120	71278427	-	CPS_3884	-	hypothetical protein
3765	 38.35	0	4057681..4058178	+	165	71277769	-	CPS_3885	-	ACT domain-containing protein
3766	 40.53	0	4058349..4060292	-	647	71279869	-	CPS_3886	-	ATP-dependent helicase
3767	 39.08	0	4060348..4060695	-	115	71279147	-	CPS_3887	-	hypothetical protein
3768	 39.58	0	4061049..4061096	+	15	71280161	hisL	CPS_3888	-	His operon leader peptide
3769	 40.31	0	4061309..4062211	+	300	71279395	hisG	CPS_3889	-	ATP phosphoribosyltransferase
3770	 41.84	+1	4062401..4063705	+	434	71281089	hisD2	CPS_3890	-	histidinol dehydrogenase
3771	 38.30	0	4063762..4064868	+	368	71280715	hisC	CPS_3891	-	histidinol-phosphate aminotransferase
3772	 39.41	0	4064924..4066009	+	361	71282446	hisB	CPS_3892	-	imidazole glycerol-phosphate dehydratase/histidinol phosphatase
3773	 38.35	0	4066021..4066698	+	225	71281927	hisH	CPS_3893	-	imidazole glycerol phosphate synthase, glutamine amidotransferase subunit
3774	 39.95	0	4066695..4067480	+	261	71277867	hisA	CPS_3894	-	phosphoribosylformimino-5-aminoimidazole carboxamide ribotide isomerase
3775	 39.25	0	4067480..4068256	+	258	71281800	hisF	CPS_3895	-	imidazole glycerol phosphate synthase subunit HisF
3776	 40.10	0	4068250..4068870	+	206	71280385	hisI	CPS_3896	-	phosphoribosyl-ATP pyrophosphatase/phosphoribosyl-AMP cyclohydrolase
3777	 38.27	0	4068998..4069888	+	296	71278612	-	CPS_3897	-	hypothetical protein
3778	 34.34	-1	4070024..4070320	+	98	71279247	-	CPS_3898	-	hypothetical protein
3779	 38.12	0	4070342..4070821	+	159	71279772	-	CPS_3899	-	acetyltransferase
3780	 41.40	0	4070889..4071533	-	214	71279627	-	CPS_3900	-	adenylate kinase
3781	 37.82	0	4071788..4073749	-	653	71282161	htpG	CPS_3901	-	heat shock protein 90
3782	 30.83	-2	4074878..4074997	-	39	71278925	-	CPS_3903	-	hypothetical protein
3783	 34.87	0	4078046..4078306	-	86	71280028	-	CPS_3905	-	hypothetical protein
3784	 24.76	-2	4080941..4081045	-	34	71280711	-	CPS_3908	-	hypothetical protein
3785	 41.13	0	4081078..4084206	+	1042	71282552	-	CPS_3909	-	serine protease
3786	 34.30	-1	4084900..4085418	-	172	71281839	-	CPS_3910	-	hypothetical protein
3787	 30.00	-2	4085427..4085546	-	39	71278413	-	CPS_3911	-	hypothetical protein
3788	 33.95	-1	4085820..4086305	+	161	71279825	-	CPS_3912	-	hypothetical protein
3789	 40.02	0	4086397..4088982	-	861	71281252	clpB	CPS_3913	-	ATP-dependent chaperone protein ClpB
3790	 38.53	0	4089118..4090002	-	294	71281218	-	CPS_3914	-	hypothetical protein
3791	 41.03	0	4089983..4090957	-	324	71280552	rluD	CPS_3915	-	23S rRNA pseudouridine synthase D
3792	 38.74	0	4091132..4091890	+	252	71282332	-	CPS_3916	-	putative lipoprotein
3793	 36.87	0	4092177..4092515	-	112	71278680	-	CPS_3917	-	nitrogen regulatory protein P-II
3794	 39.48	0	4092666..4093511	+	281	71280832	nadE	CPS_3918	-	NAD synthetase
3795	 37.16	0	4093604..4094230	+	208	71280575	-	CPS_3919	-	putative type IV pilus biogenesis protein
3796	 39.24	0	4094394..4094630	-	78	71282393	-	CPS_3920	-	RNA-binding protein
3797	 32.46	-1	4094772..4095116	+	114	71281774	-	CPS_3921	-	putative 5-carboxymethyl-2-hydroxymuconate delta-isomerase
3798	 32.15	-1	4095241..4096335	-	364	71278036	-	CPS_3922	-	GGDEF domain-containing protein
3799	 35.79	0	4096525..4097418	-	297	71279665	-	CPS_3923	-	sensory box protein
3800	 35.42	0	4097525..4100785	-	1086	71277969	-	CPS_3924	-	sensory box protein
3801	 37.88	0	4101646..4103670	+	674	71280779	-	CPS_3925	-	methyl-accepting chemotaxis protein
3802	 40.94	0	4103873..4106962	-	1029	71281350	-	CPS_3926	-	AcrB/AcrD/AcrF family protein
3803	 40.97	0	4106962..4108140	-	392	71280404	-	CPS_3927	-	RND family efflux transporter MFP subunit
3804	 37.22	0	4108608..4109456	+	282	71280600	-	CPS_3928	-	hypothetical protein
3805	 39.20	0	4109806..4111323	+	505	71279028	-	CPS_3929	-	methyl-accepting chemotaxis protein
3806	 40.00	0	4111342..4111896	+	184	71281076	-	CPS_3930	-	cytochrome b561 family protein
3807	 39.67	0	4111893..4114037	-	714	71278854	-	CPS_3931	-	hypothetical protein
3808	 43.24	+1	4114363..4115946	+	527	71278323	-	CPS_3932	-	alkaline phosphatase family protein
3809	 42.63	+1	4115971..4117821	+	616	71282312	-	CPS_3933	-	alkaline phosphatase family protein
3810	 37.18	0	4117969..4118721	+	250	71277884	-	CPS_3934	-	hypothetical protein
3811	 41.40	0	4118826..4120337	-	503	71277951	-	CPS_3935	-	GntR family transcriptional regulator
3812	 37.98	0	4120443..4121066	+	207	71279707	-	CPS_3936	-	acetyltransferase
3813	 39.31	0	4121053..4121721	+	222	71281478	-	CPS_3937	-	hypothetical protein
3814	 36.34	0	4121831..4123027	-	398	71282570	-	CPS_3938	-	hypothetical protein
3815	 40.49	0	4123394..4125070	-	558	71282028	-	CPS_3939	-	pyridoxamine 5'-phosphate oxidase / oxidoreductase, NAD-dependent
3816	 40.66	0	4125241..4125786	-	181	71281156	-	CPS_3940	-	alkylhydroperoxidase
3817	 40.11	0	4126067..4126966	+	299	71278424	-	CPS_3941	-	LysR family transcriptional regulator
3818	 29.09	-2	4127371..4127535	+	54	71278047	-	CPS_3942	-	hypothetical protein
3819	 40.58	0	4128332..4128538	+	68	71281016	-	CPS_3943	-	hypothetical protein
3820	 33.33	-1	4128798..4129142	-	114	71281556	-	CPS_3944	-	hypothetical protein
3821	 36.40	0	4129245..4130156	+	303	71278689	-	CPS_3945	-	LysR family transcriptional regulator
3822	 37.60	0	4130412..4130786	-	124	71279527	-	CPS_3946	-	hypothetical protein
3823	 40.83	0	4130917..4131276	-	119	71278008	-	CPS_3947	-	hypothetical protein
3824	 34.25	-1	4131688..4132122	-	144	71278409	-	CPS_3948	-	hypothetical protein
3825	 33.33	-1	4132087..4132227	+	46	71281577	-	CPS_3949	-	hypothetical protein
3826	 34.98	0	4132461..4134161	-	566	71282577	-	CPS_3950	-	response regulator/GGDEF domain-containing protein
3827	 38.30	0	4134238..4134660	-	140	71280813	-	CPS_3951	-	response regulator
3828	 36.02	0	4134704..4136488	-	594	71280278	-	CPS_3952	-	sensor histidine kinase
3829	 39.18	0	4136781..4137926	-	381	71281624	tyrA	CPS_3953	-	bifunctional chorismate mutase/prephenate dehydrogenase
3830	 42.23	+1	4138113..4139180	-	355	71282192	aroF	CPS_3954	-	phospho-2-dehydro-3-deoxyheptonate aldolase
3831	 40.78	0	4139779..4141725	-	648	71280294	acs	CPS_3955	-	acetyl-CoA synthetase
3832	 32.59	-1	4142080..4142214	+	44	71280945	-	CPS_3956	-	hypothetical protein
3833	 39.11	0	4142226..4144838	-	870	71279516	-	CPS_3957	-	TonB-dependent receptor
3834	 38.37	0	4145052..4146242	-	396	71280103	-	CPS_3958	-	putative regulatory protein
3835	 37.99	0	4146285..4146842	-	185	71278716	-	CPS_3959	-	sigma-70 family RNA polymerase sigma factor
3836	 39.43	0	4147119..4149449	-	776	71278168	nagZ1	CPS_3960	-	beta-hexosaminidase
3837	 40.39	0	4149641..4152148	-	835	71278302	-	CPS_3961	-	TonB-dependent receptor
3838	 29.17	-2	4152356..4152475	-	39	71281468	-	CPS_3962	-	hypothetical protein
3839	 35.85	0	4152507..4152824	-	105	71279348	-	CPS_3963	-	hypothetical protein
3840	 41.27	0	4152998..4153954	-	318	71280323	pip2	CPS_3964	-	proline iminopeptidase
3841	 37.30	0	4154040..4154417	-	125	71279537	-	CPS_3965	-	hypothetical protein
3842	 37.72	0	4154615..4155823	-	402	71281706	-	CPS_3966	-	kelch domain-containing protein
3843	 38.38	0	4156045..4157154	-	369	71278645	-	CPS_3967	-	hypothetical protein
3844	 42.35	+1	4157523..4159895	-	790	71281688	-	CPS_3968	-	penicillin-binding protein
3845	 41.10	0	4159945..4164942	-	1665	71281864	-	CPS_3969	-	putative lipoprotein
38.03	MEAN

3.50	STD DEV
