IslandPath Analysis: Colwellia psychrerythraea 34H

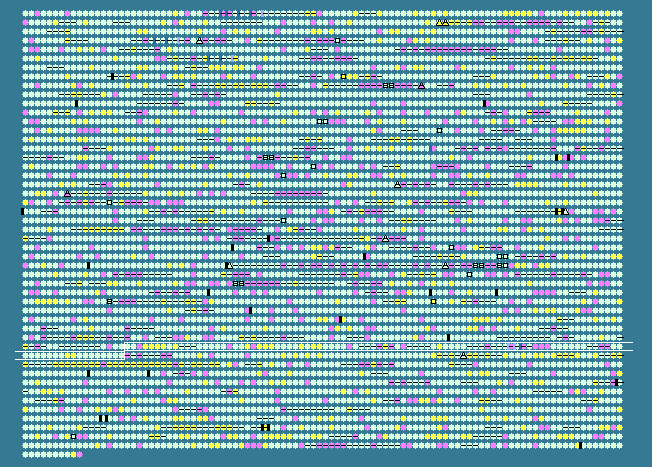

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 38.03 STD DEV: 3.50
Colwellia psychrerythraea 34H, complete genome - 1..5373180
4910 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3718	 40.74	0	4003130..4004128	+	332	71280808	-	CPS_3838	-	quinol oxidase, subunit II
3719	 37.26	0	4004354..4006264	-	636	71279880	-	CPS_3839	-	methyl-accepting chemotaxis protein
3720	 32.68	-1	4006328..4007095	-	255	71279184	-	CPS_3840	-	putative lipoprotein
3721	 42.29	+1	4007524..4008651	-	375	71278482	gcvT2	CPS_3841	-	glycine cleavage system T protein
3722	 42.08	+1	4008712..4010094	-	460	71281204	-	CPS_3842	-	amino acid/cation symporter
3723	 43.49	+1	4010426..4011055	-	209	71277752	-	CPS_3843	-	DNA-binding protein
3724	 42.05	+1	4011509..4012804	+	431	71277781	glyA3	CPS_3844	-	serine hydroxymethyltransferase
3725	 40.05	0	4012856..4013242	+	128	71279650	gcvH2	CPS_3845	-	glycine cleavage system H protein
3726	 41.69	+1	4013294..4016164	+	956	71281560	gcvP2	CPS_3846	-	glycine dehydrogenase
3727	 37.46	0	4016256..4017320	+	354	71281946	-	CPS_3847	-	porin
3728	 37.76	0	4017528..4018001	-	157	71281417	-	CPS_3848	-	peptidyl-prolyl cis-trans isomerase, FKBP-type
3729	 35.94	0	4018216..4018560	+	114	71280586	-	CPS_3849	-	putative lipoprotein
3730	 37.16	0	4018642..4019634	-	330	71279763	-	CPS_3850	-	hypothetical protein
3731	 38.68	0	4019740..4020450	-	236	71281517	-	CPS_3851	-	hypothetical protein
3732	 38.07	0	4020443..4021012	-	189	71278823	-	CPS_3852	-	sigma-70 family RNA polymerase sigma factor
3733	 41.25	0	4021308..4022318	-	336	71280739	-	CPS_3853	-	alcohol dehydrogenase, zinc-containing
3734	 38.71	0	4022748..4023974	-	408	71280354	-	CPS_3854	-	hypothetical protein
3735	 34.34	-1	4024284..4024382	-	32	71281619	-	CPS_3855	-	hypothetical protein
3736	 39.67	0	4024927..4025652	+	241	71278775	-	CPS_3856	-	hypothetical protein
3737	 41.46	0	4025839..4025961	+	40	71280431	-	CPS_3857	-	hypothetical protein
3738	 41.80	+1	4026225..4026602	-	125	71282330	-	CPS_3858	-	L-PSP family endoribonuclease
3739	 32.35	-1	4026607..4026708	-	33	71281477	-	CPS_3859	-	hypothetical protein
3740	 41.99	+1	4026757..4028316	-	519	71280398	-	CPS_3860	-	BCCT family transporter
3741	 42.64	+1	4028459..4029457	-	332	71282567	-	CPS_3861	-	M19 family peptidase
3742	 42.76	+1	4029472..4030914	-	480	71281462	-	CPS_3862	-	aldehyde dehydrogenase family protein
3743	 39.94	0	4031005..4031928	+	307	71278659	-	CPS_3863	-	LysR family transcriptional regulator
3744	 38.08	0	4032241..4033947	+	568	71278287	-	CPS_3864	-	methyl-accepting chemotaxis protein
3745	 41.18	0	4034003..4034104	-	33	71280380	-	CPS_3865	-	hypothetical protein
3746	 36.61	0	4034228..4034410	-	60	71281099	-	CPS_3866	-	hypothetical protein
3747	 43.33	+1	4034936..4036645	+	569	71278911	-	CPS_3867	-	hypothetical protein
3748	 39.67	0	4036667..4037392	+	241	71282172	-	CPS_3868	-	hypothetical protein
3749	 43.69	+1	4037731..4038522	+	263	71282023	-	CPS_3869	-	formate dehydrogenase family accessory protein FdhD
3750	 42.16	+1	4038536..4040845	+	769	71281164	-	CPS_3870	-	oxidoreductase, alpha/molybdopterin subunit
3751	 38.53	0	4041230..4043596	-	788	71278361	-	CPS_3871	-	putative sensor histidine kinase
3752	 41.18	0	4043798..4045786	+	662	71282581	tkt	CPS_3872	-	transketolase
3753	 40.10	0	4045898..4046917	+	339	71278354	epd	CPS_3873	-	D-erythrose 4-phosphate dehydrogenase
3754	 40.48	0	4046986..4048161	+	391	71280637	pgk	CPS_3874	-	phosphoglycerate kinase
3755	 26.13	-2	4048204..4048314	+	36	71281918	-	CPS_3875	-	hypothetical protein
3756	 40.75	0	4048601..4049665	+	354	71282271	fba	CPS_3876	-	fructose-1,6-bisphosphate aldolase
3757	 36.27	0	4049805..4050689	+	294	71278311	-	CPS_3877	-	hypothetical protein
3758	 36.27	0	4050719..4051297	-	192	71278884	-	CPS_3878	-	hypothetical protein
3759	 34.75	0	4051481..4052188	-	235	71282592	-	CPS_3879	-	putative ABC transporter, periplasmic substrate-binding protein
3760	 18.75	-2	4052208..4052303	-	31	71278417	-	CPS_3880	-	hypothetical protein
3761	 43.59	+1	4052480..4052596	-	38	71277804	-	CPS_3881	-	hypothetical protein
3762	 32.60	-1	4052726..4055176	+	816	71279842	-	CPS_3882	-	leucine-rich repeat-containing protein
3763	 40.36	0	4055352..4057031	+	559	71279997	-	CPS_3883	-	putative ABC transporter ATP-binding protein
3764	 32.23	-1	4057228..4057590	+	120	71278427	-	CPS_3884	-	hypothetical protein
3765	 38.35	0	4057681..4058178	+	165	71277769	-	CPS_3885	-	ACT domain-containing protein
3766	 40.53	0	4058349..4060292	-	647	71279869	-	CPS_3886	-	ATP-dependent helicase
3767	 39.08	0	4060348..4060695	-	115	71279147	-	CPS_3887	-	hypothetical protein
3768	 39.58	0	4061049..4061096	+	15	71280161	hisL	CPS_3888	-	His operon leader peptide
3769	 40.31	0	4061309..4062211	+	300	71279395	hisG	CPS_3889	-	ATP phosphoribosyltransferase
3770	 41.84	+1	4062401..4063705	+	434	71281089	hisD2	CPS_3890	-	histidinol dehydrogenase
3771	 38.30	0	4063762..4064868	+	368	71280715	hisC	CPS_3891	-	histidinol-phosphate aminotransferase
3772	 39.41	0	4064924..4066009	+	361	71282446	hisB	CPS_3892	-	imidazole glycerol-phosphate dehydratase/histidinol phosphatase
3773	 38.35	0	4066021..4066698	+	225	71281927	hisH	CPS_3893	-	imidazole glycerol phosphate synthase, glutamine amidotransferase subunit
3774	 39.95	0	4066695..4067480	+	261	71277867	hisA	CPS_3894	-	phosphoribosylformimino-5-aminoimidazole carboxamide ribotide isomerase
3775	 39.25	0	4067480..4068256	+	258	71281800	hisF	CPS_3895	-	imidazole glycerol phosphate synthase subunit HisF
3776	 40.10	0	4068250..4068870	+	206	71280385	hisI	CPS_3896	-	phosphoribosyl-ATP pyrophosphatase/phosphoribosyl-AMP cyclohydrolase
3777	 38.27	0	4068998..4069888	+	296	71278612	-	CPS_3897	-	hypothetical protein
3778	 34.34	-1	4070024..4070320	+	98	71279247	-	CPS_3898	-	hypothetical protein
3779	 38.12	0	4070342..4070821	+	159	71279772	-	CPS_3899	-	acetyltransferase
3780	 41.40	0	4070889..4071533	-	214	71279627	-	CPS_3900	-	adenylate kinase
3781	 37.82	0	4071788..4073749	-	653	71282161	htpG	CPS_3901	-	heat shock protein 90
3782	 30.83	-2	4074878..4074997	-	39	71278925	-	CPS_3903	-	hypothetical protein
3783	 34.87	0	4078046..4078306	-	86	71280028	-	CPS_3905	-	hypothetical protein
3784	 24.76	-2	4080941..4081045	-	34	71280711	-	CPS_3908	-	hypothetical protein
3785	 41.13	0	4081078..4084206	+	1042	71282552	-	CPS_3909	-	serine protease
3786	 34.30	-1	4084900..4085418	-	172	71281839	-	CPS_3910	-	hypothetical protein
3787	 30.00	-2	4085427..4085546	-	39	71278413	-	CPS_3911	-	hypothetical protein
3788	 33.95	-1	4085820..4086305	+	161	71279825	-	CPS_3912	-	hypothetical protein
3789	 40.02	0	4086397..4088982	-	861	71281252	clpB	CPS_3913	-	ATP-dependent chaperone protein ClpB
3790	 38.53	0	4089118..4090002	-	294	71281218	-	CPS_3914	-	hypothetical protein
3791	 41.03	0	4089983..4090957	-	324	71280552	rluD	CPS_3915	-	23S rRNA pseudouridine synthase D
3792	 38.74	0	4091132..4091890	+	252	71282332	-	CPS_3916	-	putative lipoprotein
3793	 36.87	0	4092177..4092515	-	112	71278680	-	CPS_3917	-	nitrogen regulatory protein P-II
3794	 39.48	0	4092666..4093511	+	281	71280832	nadE	CPS_3918	-	NAD synthetase
3795	 37.16	0	4093604..4094230	+	208	71280575	-	CPS_3919	-	putative type IV pilus biogenesis protein
3796	 39.24	0	4094394..4094630	-	78	71282393	-	CPS_3920	-	RNA-binding protein
3797	 32.46	-1	4094772..4095116	+	114	71281774	-	CPS_3921	-	putative 5-carboxymethyl-2-hydroxymuconate delta-isomerase
3798	 32.15	-1	4095241..4096335	-	364	71278036	-	CPS_3922	-	GGDEF domain-containing protein
3799	 35.79	0	4096525..4097418	-	297	71279665	-	CPS_3923	-	sensory box protein
3800	 35.42	0	4097525..4100785	-	1086	71277969	-	CPS_3924	-	sensory box protein
3801	 37.88	0	4101646..4103670	+	674	71280779	-	CPS_3925	-	methyl-accepting chemotaxis protein
3802	 40.94	0	4103873..4106962	-	1029	71281350	-	CPS_3926	-	AcrB/AcrD/AcrF family protein
3803	 40.97	0	4106962..4108140	-	392	71280404	-	CPS_3927	-	RND family efflux transporter MFP subunit
3804	 37.22	0	4108608..4109456	+	282	71280600	-	CPS_3928	-	hypothetical protein
3805	 39.20	0	4109806..4111323	+	505	71279028	-	CPS_3929	-	methyl-accepting chemotaxis protein
3806	 40.00	0	4111342..4111896	+	184	71281076	-	CPS_3930	-	cytochrome b561 family protein
3807	 39.67	0	4111893..4114037	-	714	71278854	-	CPS_3931	-	hypothetical protein
3808	 43.24	+1	4114363..4115946	+	527	71278323	-	CPS_3932	-	alkaline phosphatase family protein
3809	 42.63	+1	4115971..4117821	+	616	71282312	-	CPS_3933	-	alkaline phosphatase family protein
3810	 37.18	0	4117969..4118721	+	250	71277884	-	CPS_3934	-	hypothetical protein
3811	 41.40	0	4118826..4120337	-	503	71277951	-	CPS_3935	-	GntR family transcriptional regulator
3812	 37.98	0	4120443..4121066	+	207	71279707	-	CPS_3936	-	acetyltransferase
3813	 39.31	0	4121053..4121721	+	222	71281478	-	CPS_3937	-	hypothetical protein
3814	 36.34	0	4121831..4123027	-	398	71282570	-	CPS_3938	-	hypothetical protein
3815	 40.49	0	4123394..4125070	-	558	71282028	-	CPS_3939	-	pyridoxamine 5'-phosphate oxidase / oxidoreductase, NAD-dependent
3816	 40.66	0	4125241..4125786	-	181	71281156	-	CPS_3940	-	alkylhydroperoxidase
3817	 40.11	0	4126067..4126966	+	299	71278424	-	CPS_3941	-	LysR family transcriptional regulator
38.03	MEAN

3.50	STD DEV
