IslandPathversion 1.0

IslandPath Analysis: Colwellia psychrerythraea 34H

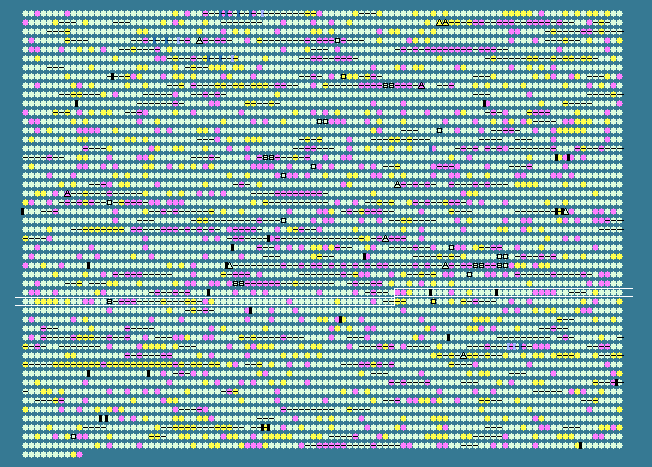

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 38.03 STD DEV: 3.50
Colwellia psychrerythraea 34H, complete genome - 1..5373180
4910 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3163	 29.41	-2	3387307..3388401	+	364	71282426	-	CPS_3255	-	acyltransferase family protein
3164	 34.11	-1	3388485..3388613	+	42	71281804	-	CPS_3256	-	hypothetical protein
3165	 45.85	+2	3388666..3390063	+	465	71278282	-	CPS_3257	-	monooxygenase family protein
3166	 41.51	0	3390465..3394085	+	1206	71278809	-	CPS_3258	-	sensory box protein
3167	 35.78	0	3394233..3396029	-	598	71282134	-	CPS_3259	-	sensor histidine kinase
3168	 35.53	0	3396035..3397309	-	424	71281536	-	CPS_3260	-	hypothetical protein
3169	 39.52	0	3398979..3399560	-	193	71282044	pgsA	CPS_3269	-	CDP-diacylglycerol--glycerol-3-phosphate 3-phosphatidyltransferase
3170	 39.32	0	3399720..3401639	-	639	71280471	uvrC	CPS_3270	-	excinuclease ABC subunit C
3171	 38.14	0	3401665..3402309	-	214	71281032	-	CPS_3271	-	response regulator
3172	 25.23	-2	3402451..3402561	+	36	71281464	-	CPS_3272	-	hypothetical protein
3173	 35.82	0	3402467..3402748	-	93	71282156	-	CPS_3273	-	hypothetical protein
3174	 38.95	0	3403203..3403718	+	171	71280625	fabA	CPS_3274	-	3-hydroxydecanoyl-(acyl carrier protein) dehydratase
3175	 45.40	+2	3403877..3404050	-	57	71281094	rmf1	CPS_3275	-	ribosome modulation factor
3176	 37.73	0	3404296..3406137	-	613	71280791	-	CPS_3276	-	hypothetical protein
3177	 39.16	0	3406270..3408207	-	645	71282051	uup	CPS_3277	-	ABC transporter, ATP-binding protein Uup
3178	 39.19	0	3408216..3408488	-	90	71278480	-	CPS_3278	-	hypothetical protein
3179	 37.52	0	3408526..3410673	-	715	71278744	-	CPS_3279	-	23S rRNA m(2)G2445 methyltransferase
3180	 40.93	0	3412608..3413147	-	179	71279897	-	CPS_3286	-	DNA-binding protein
3181	 41.27	0	3413397..3413585	+	62	71280159	-	CPS_3287	-	hypothetical protein
3182	 39.33	0	3413811..3414761	+	316	71280924	-	CPS_3288	-	hypothetical protein
3183	 39.60	0	3414849..3415838	-	329	71280295	-	CPS_3289	-	oxidoreductase, zinc-binding
3184	 34.96	0	3415984..3416352	-	122	71281150	-	CPS_3290	-	hypothetical protein
3185	 36.02	0	3416352..3416612	-	86	71280612	-	CPS_3291	-	hypothetical protein
3186	 32.83	-1	3417018..3417215	-	65	71279138	-	CPS_3292	-	hypothetical protein
3187	 34.07	-1	3417237..3417776	+	179	71278572	-	CPS_3293	-	hypothetical protein
3188	 32.75	-1	3417888..3418058	+	56	71278317	-	CPS_3294	-	hypothetical protein
3189	 29.76	-2	3418169..3418336	-	55	71282091	-	CPS_3295	-	hypothetical protein
3190	 37.23	0	3418728..3419651	-	307	71281902	-	CPS_3296	-	universal stress protein
3191	 38.36	0	3420120..3421292	-	390	71281375	-	CPS_3297	-	hypothetical protein
3192	 36.64	0	3421320..3422165	-	281	71279839	-	CPS_3298	-	hypothetical protein
3193	 39.29	0	3422414..3422665	-	83	71279916	-	CPS_3299	-	hypothetical protein
3194	 37.44	0	3422885..3424492	+	535	71280713	-	CPS_3300	-	methyl-accepting chemotaxis protein
3195	 34.62	0	3424629..3424862	-	77	71281397	-	CPS_3301	-	hypothetical protein
3196	 43.13	+1	3425176..3426237	+	353	71281825	-	CPS_3302	-	di-haem cytochrome c peroxidase
3197	 34.62	0	3426314..3426469	+	51	71280728	-	CPS_3303	-	hypothetical protein
3198	 38.58	0	3426571..3428115	+	514	71281420	baeS	CPS_3304	-	sensor histidine kinase BaeS
3199	 38.63	0	3428149..3428847	+	232	71279117	baeR	CPS_3305	-	DNA-binding response regulator BaeR
3200	 40.63	0	3428922..3429743	-	273	71279690	-	CPS_3306	-	UbiE/COQ5 family methlytransferase
3201	 34.60	0	3429982..3431004	+	340	71277893	-	CPS_3307	-	hypothetical protein
3202	 36.53	0	3431046..3431264	+	72	71279269	-	CPS_3308	-	hypothetical protein
3203	 42.10	+1	3431395..3432261	+	288	71280539	-	CPS_3309	-	putative phosphonate ABC transporter, periplasmic phosphonate-binding protein
3204	 41.91	+1	3432261..3432971	+	236	71281195	-	CPS_3310	-	putative phosphonate ABC transporter, ATP-binding protein
3205	 43.72	+1	3432980..3434491	+	503	71280974	-	CPS_3311	-	putative phosphonate ABC transporter, permease protein
3206	 42.47	+1	3434841..3435737	+	298	71279683	-	CPS_3312	-	putative glutathione S-transferase YghU
3207	 37.54	0	3435914..3437149	-	411	71278234	-	CPS_3313	-	putative lipoprotein
3208	 42.43	+1	3437188..3438066	-	292	71281962	-	CPS_3314	-	putative nitrate ABC transporter, ATP-binding protein
3209	 38.61	0	3438076..3439023	-	315	71282501	-	CPS_3315	-	putative nitrate ABC transporter, permease protein
3210	 40.62	0	3439182..3440567	-	461	71282245	-	CPS_3316	-	putative nitrate ABC transporter, periplasmic nitrate-binding protein
3211	 33.99	-1	3441225..3441830	-	201	71281236	-	CPS_3317	-	putative response regulator NasT
3212	 31.45	-1	3441933..3442091	+	52	71280584	-	CPS_3318	-	hypothetical protein
3213	 39.48	0	3442399..3443211	-	270	71282533	-	CPS_3319	-	enoyl-CoA hydratase/isomerase family protein
3214	 39.01	0	3443356..3444306	+	316	71281959	-	CPS_3320	-	LysR family transcriptional regulator
3215	 39.68	0	3444695..3445939	+	414	71281257	-	CPS_3321	-	ISCps4, transposase
3216	 35.14	0	3446068..3446676	+	202	71280574	-	CPS_3322	-	hypothetical protein
3217	 33.89	-1	3446697..3446876	-	59	71279272	-	CPS_3323	-	hypothetical protein
3218	 34.18	-1	3446725..3446961	-	78	71281399	-	CPS_3324	-	hypothetical protein
3219	 27.96	-2	3447565..3447657	-	30	71278412	-	CPS_3325	-	hypothetical protein
3220	 36.31	0	3447742..3448749	+	335	71277772	-	CPS_3326	-	putative lipoprotein
3221	 37.04	0	3448983..3449117	-	44	71282110	-	CPS_3327	-	hypothetical protein
3222	 41.06	0	3449153..3450148	-	331	71281732	-	CPS_3328	-	putative catalase
3223	 36.67	0	3450228..3450617	-	129	71282443	-	CPS_3329	-	hypothetical protein
3224	 44.21	+1	3450668..3451090	-	140	71280679	ohr	CPS_3330	-	organic hydroperoxide resistance protein
3225	 37.82	0	3451244..3451711	+	155	71281411	-	CPS_3331	-	MarR family transcriptional regulator
3226	 40.15	0	3452397..3455768	+	1123	71278429	-	CPS_3332	-	hypothetical protein
3227	 41.10	0	3455784..3456800	+	338	71282274	-	CPS_3333	-	hypothetical protein
3228	 49.73	+2	3457409..3460360	+	983	71277763	-	CPS_3335	-	serine protease
3229	 51.75	+2	3458551..3458778	-	75	71278717	-	CPS_3334	-	hypothetical protein
3230	 38.60	0	3460595..3461050	-	151	71279023	-	CPS_3336	-	hypothetical protein
3231	 32.02	-1	3461246..3463306	+	686	71279776	-	CPS_3337	-	putative adenylate cyclase
3232	 46.46	+2	3463418..3463516	+	32	71281129	-	CPS_3338	-	hypothetical protein
3233	 39.39	0	3463678..3464007	-	109	71280719	-	CPS_3339	-	hypothetical protein
3234	 40.26	0	3464423..3466255	+	610	71281139	kefC	CPS_3340	-	glutathione-regulated potassium-efflux system protein KefC
3235	 38.23	0	3466354..3466986	-	210	71280604	-	CPS_3341	-	TetR family transcriptional regulator
3236	 39.58	0	3467047..3467814	-	255	71279800	-	CPS_3342	-	hypothetical protein
3237	 38.57	0	3467824..3469734	-	636	71279270	-	CPS_3343	-	putative acylase
3238	 39.48	0	3469862..3472237	-	791	71277744	-	CPS_3344	-	TonB-dependent receptor
3239	 37.77	0	3472300..3473943	-	547	71280665	-	CPS_3345	-	acid-CoA ligase family protein
3240	 37.66	0	3473943..3474821	-	292	71282517	-	CPS_3346	-	enoyl-CoA hydratase/isomerase family protein
3241	 39.77	0	3474769..3476229	-	486	71279161	-	CPS_3347	-	putative osmoregulated proline transporter
3242	 37.41	0	3476878..3477024	+	48	71279836	-	CPS_3348	-	hypothetical protein
3243	 38.52	0	3476966..3477100	-	44	71277774	-	CPS_3349	-	hypothetical protein
3244	 39.65	0	3477150..3478178	-	342	71278426	-	CPS_3350	-	metallo-beta-lactamase family protein
3245	 32.54	-1	3478254..3478379	-	41	71282604	-	CPS_3351	-	hypothetical protein
3246	 37.71	0	3478695..3479630	-	311	71280521	-	CPS_3352	-	membrane protein
3247	 40.40	0	3479997..3480845	+	282	71281861	-	CPS_3353	-	methylated-DNA--protein-cysteine methyltransferase
3248	 39.37	0	3480846..3482054	-	402	71282608	-	CPS_3354	-	hypothetical protein
3249	 40.65	0	3482124..3483134	-	336	71280260	gap3	CPS_3355	-	glyceraldehyde-3-phosphate dehydrogenase
3250	 35.44	0	3483238..3483474	-	78	71281389	-	CPS_3356	-	redox-active disulfide protein 2
3251	 38.28	0	3483494..3484504	-	336	71279975	-	CPS_3357	-	putative permease
3252	 37.80	0	3484639..3485466	-	275	71280619	-	CPS_3358	-	ArsR family transcriptional regulator
3253	 44.26	+1	3485804..3487231	-	475	71279133	-	CPS_3359	-	aldehyde dehydrogenase family protein
3254	 41.05	0	3487287..3488945	-	552	71279850	-	CPS_3360	-	acetolactate synthase
3255	 38.38	0	3489282..3489380	-	32	71282293	-	CPS_3361	-	hypothetical protein
3256	 40.46	0	3489536..3490054	-	172	71277890	-	CPS_3362	-	putative lipoprotein
3257	 41.20	0	3490065..3492173	-	702	71281348	-	CPS_3363	-	hypothetical protein
3258	 36.93	0	3492433..3493266	+	277	71281897	-	CPS_3364	-	hypothetical protein
3259	 32.52	-1	3493261..3493383	-	40	71282176	-	CPS_3365	-	hypothetical protein
3260	 40.24	0	3493444..3493863	-	139	71280437	-	CPS_3366	-	hypothetical protein
3261	 37.42	0	3494151..3495521	+	456	71281050	msrAB	CPS_3367	-	peptide methionine sulfoxide reductase MsrA/MsrB
3262	 37.84	0	3495557..3495667	-	36	71279145	-	CPS_3368	-	hypothetical protein
38.03	MEAN

3.50	STD DEV
