IslandPathversion 1.0

IslandPath Analysis: Colwellia psychrerythraea 34H

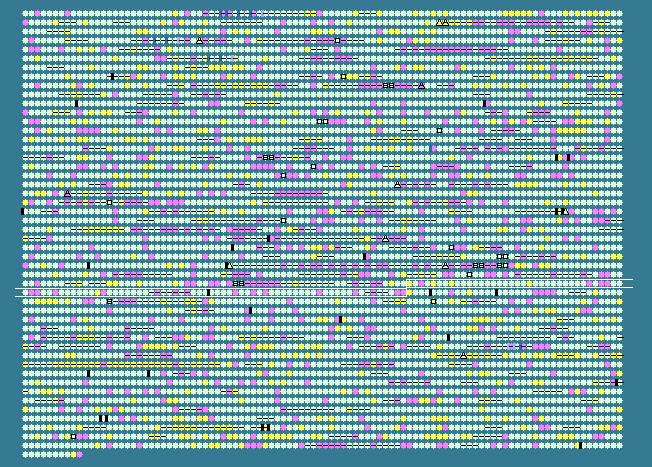

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 38.03 STD DEV: 3.50
Colwellia psychrerythraea 34H, complete genome - 1..5373180
4910 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3065	 43.67	+1	3278764..3279885	-	373	71279712	aroC	CPS_3150	-	chorismate synthase
3066	 38.73	0	3280026..3280970	-	314	71280281	-	CPS_3151	-	N5-glutamine S-adenosyl-L-methionine-dependent methyltransferase
3067	 31.18	-1	3280939..3281031	+	30	71280501	-	CPS_3152	-	hypothetical protein
3068	 38.51	0	3281119..3281814	+	231	71278197	-	CPS_3153	-	hypothetical protein
3069	 43.31	+1	3281825..3282325	-	166	71281545	sixA	CPS_3154	-	phosphohistidine phosphatase SixA
3070	 37.35	0	3282599..3285409	+	936	71279434	-	CPS_3155	-	zinc metallopeptidase
3071	 39.56	0	3285557..3287851	-	764	161407971	fadJ	CPS_3156	-	multifunctional fatty acid oxidation complex subunit alpha
3072	 43.12	+1	3287920..3289227	-	435	71280472	fadI	CPS_3157	-	3-ketoacyl-CoA thiolase
3073	 40.51	0	3289462..3289698	-	78	71280991	-	CPS_3158	-	hypothetical protein
3074	 39.62	0	3289884..3290885	+	333	71278888	-	CPS_3159	-	hypothetical protein
3075	 41.19	0	3290930..3291985	+	351	71282038	-	CPS_3160	-	hypothetical protein
3076	 38.81	0	3291985..3292587	+	200	71280026	-	CPS_3161	-	hypothetical protein
3077	 39.17	0	3293642..3295714	+	690	71282583	-	CPS_3163	-	TPR domain-containing protein
3078	 39.12	0	3295782..3297527	+	581	71280983	-	CPS_3164	-	batD protein
3079	 38.95	0	3297666..3298181	+	171	71279207	-	CPS_3165	-	RNA polymerase sigma factor
3080	 38.38	0	3298174..3298887	+	237	71280632	-	CPS_3166	-	hypothetical protein
3081	 37.32	0	3299016..3301475	-	819	71281207	-	CPS_3167	-	putative peptidase
3082	 39.84	0	3301704..3302195	+	163	71278834	-	CPS_3168	-	SecC motif-containing protein
3083	 37.86	0	3302215..3302832	-	205	71278471	-	CPS_3169	-	hypothetical protein
3084	 39.24	0	3303032..3304318	-	428	71282190	-	CPS_3170	-	sensor histidine kinase
3085	 43.39	+1	3304400..3304588	+	62	71281806	-	CPS_3171	-	hypothetical protein
3086	 38.35	0	3304710..3305426	-	238	71279233	-	CPS_3172	-	DNA-binding response regulator
3087	 38.54	0	3305759..3306565	+	268	71279793	xth	CPS_3173	-	exonuclease III
3088	 35.49	0	3306578..3307411	+	277	71277877	rrmA	CPS_3174	-	23S rRNA methyltransferase A
3089	 37.83	0	3307436..3307969	-	177	71278395	-	CPS_3175	-	hypothetical protein
3090	 39.87	0	3308144..3309382	+	412	71282106	ackA	CPS_3176	-	acetate kinase
3091	 40.64	0	3309465..3311585	+	706	71282469	pta	CPS_3177	-	phosphate acetyltransferase
3092	 35.90	0	3312157..3312507	+	116	71277796	-	CPS_3178	-	ArsC family protein
3093	 40.25	0	3312564..3313763	+	399	71278622	dapE	CPS_3179	-	succinyl-diaminopimelate desuccinylase
3094	 38.59	0	3313784..3314506	+	240	71279677	-	CPS_3180	-	D-alanyl-D-alanine carboxypeptidase family protein
3095	 31.75	-1	3314566..3314754	+	62	71280646	-	CPS_3181	-	hypothetical protein
3096	 37.61	0	3314892..3316061	-	389	71281685	-	CPS_3182	-	putative lipoprotein
3097	 30.11	-2	3316082..3316174	-	30	71282319	-	CPS_3183	-	hypothetical protein
3098	 31.11	-1	3316111..3316245	-	44	71282379	-	CPS_3184	-	hypothetical protein
3099	 35.97	0	3316289..3316819	+	176	71280810	gcvR	CPS_3185	-	glycine cleavage system transcriptional repressor
3100	 35.01	0	3317012..3317488	+	158	71280359	bcp	CPS_3186	-	thioredoxin-dependent thiol peroxidase
3101	 37.43	0	3317673..3318746	-	357	71281155	-	CPS_3187	-	putative permease
3102	 29.58	-2	3318760..3318999	-	79	71281953	-	CPS_3188	-	hypothetical protein
3103	 34.48	-1	3319306..3319914	+	202	71282249	-	CPS_3189	-	hypothetical protein
3104	 38.02	0	3319983..3321434	+	483	71278166	-	CPS_3190	-	hypothetical protein
3105	 35.29	0	3321514..3321870	+	118	71279048	arsC	CPS_3191	-	arsenate reductase
3106	 34.34	-1	3321915..3322310	+	131	71279585	-	CPS_3192	-	hypothetical protein
3107	 39.25	0	3322616..3324559	+	647	71281210	-	CPS_3193	-	putative lipoprotein
3108	 36.86	0	3324669..3325376	-	235	71281837	-	CPS_3194	-	hypothetical protein
3109	 37.03	0	3325373..3326806	-	477	71278596	-	CPS_3195	-	hypothetical protein
3110	 39.48	0	3327017..3328057	+	346	71279275	purM	CPS_3196	-	phosphoribosylformylglycinamidine cyclo-ligase
3111	 39.88	0	3328176..3328817	+	213	71279980	purN	CPS_3197	-	phosphoribosylglycinamide formyltransferase
3112	 35.70	0	3329030..3329788	+	252	71280453	-	CPS_3198	-	hypothetical protein
3113	 43.33	+1	3330375..3330494	-	39	71281542	-	CPS_3199	-	hypothetical protein
3114	 27.64	-2	3330484..3330606	-	40	71281585	-	CPS_3200	-	hypothetical protein
3115	 34.96	0	3330692..3331183	+	163	71282078	-	CPS_3201	-	hypothetical protein
3116	 39.06	0	3331323..3333224	-	633	71278938	-	CPS_3202	-	putative lipoprotein
3117	 40.28	0	3333540..3335798	+	752	71282007	-	CPS_3203	-	radical SAM domain-containing protein
3118	 38.98	0	3335981..3337573	+	530	71280232	-	CPS_3204	-	ABC transporter, ATP-binding protein
3119	 39.41	0	3337664..3338551	+	295	71278372	-	CPS_3205	-	hypothetical protein
3120	 40.89	0	3338717..3340384	-	555	71279779	-	CPS_3206	-	glutamate synthase domain-containing protein
3121	 37.67	0	3340815..3342104	+	429	71279349	-	CPS_3207	-	hypothetical protein
3122	 36.36	0	3342659..3342757	+	32	71280352	-	CPS_3208	-	hypothetical protein
3123	 31.30	-1	3342747..3343238	-	163	71280712	-	CPS_3209	-	hypothetical protein
3124	 34.91	0	3343260..3343955	-	231	71281618	-	CPS_3210	-	C39 family peptidase
3125	 35.00	0	3343975..3344334	-	119	71278468	-	CPS_3211	-	hypothetical protein
3126	 33.33	-1	3344407..3344511	+	34	71281068	-	CPS_3212	-	hypothetical protein
3127	 37.89	0	3345165..3346085	+	306	71279797	-	CPS_3213	-	hypothetical protein
3128	 32.22	-1	3346698..3347507	+	269	71279241	-	CPS_3214	-	putative transcriptional regulator
3129	 37.05	0	3347779..3349125	-	448	71279863	-	CPS_3215	-	putative ATP-dependent RNA helicase SrmB
3130	 39.56	0	3349180..3350592	-	470	71279128	gltX	CPS_3216	-	glutamyl-tRNA synthetase
3131	 37.04	0	3350608..3350715	+	35	71277865	-	CPS_3217	-	hypothetical protein
3132	 41.12	0	3351989..3353323	-	444	71282511	-	CPS_3224	-	hypothetical protein
3133	 38.96	0	3353344..3354036	-	230	71278398	-	CPS_3225	-	putative lipoprotein
3134	 41.48	0	3354150..3356345	-	731	71280564	-	CPS_3226	-	hypothetical protein
3135	 36.90	0	3356480..3356899	+	139	71281151	-	CPS_3227	-	hypothetical protein
3136	 33.55	-1	3356925..3357395	+	156	71280624	-	CPS_3228	-	hypothetical protein
3137	 37.68	0	3357481..3357963	-	160	71279761	-	CPS_3229	-	acetyltransferase
3138	 39.36	0	3358621..3360330	+	569	71279026	proS	CPS_3230	-	prolyl-tRNA synthetase
3139	 32.26	-1	3360539..3360631	+	30	71281531	-	CPS_3231	-	hypothetical protein
3140	 36.33	0	3360743..3361978	+	411	71281034	-	CPS_3232	-	aminotransferase AlaT
3141	 33.50	-1	3362001..3362594	+	197	71280485	-	CPS_3233	-	hypothetical protein
3142	 35.23	0	3362902..3363480	-	192	71279417	-	CPS_3234	-	putative lipoprotein
3143	 40.48	0	3363778..3363861	+	27	71281762	-	CPS_3235	-	ilvIH operon leader peptide
3144	 40.28	0	3364002..3365729	+	575	71278872	ilvI	CPS_3236	-	acetolactate synthase III, large subunit, biosynthetic type
3145	 36.95	0	3365729..3366226	+	165	71278331	ilvH	CPS_3237	-	acetolactate synthase 3 regulatory subunit
3146	 37.06	0	3366321..3367151	-	276	71282095	-	CPS_3238	-	hypothetical protein
3147	 38.14	0	3367231..3369375	-	714	71281554	-	CPS_3239	-	Slt family transglycosylase
3148	 38.90	0	3369541..3371211	-	556	71281009	glnS	CPS_3240	-	glutaminyl-tRNA synthetase
3149	 35.98	0	3371476..3372762	-	428	71281369	-	CPS_3241	-	response regulator
3150	 33.58	-1	3372958..3373368	-	136	71278220	-	CPS_3242	-	hypothetical protein
3151	 36.00	0	3373461..3374474	-	337	71277831	-	CPS_3243	-	glycosyl transferase family protein
3152	 35.23	0	3374488..3375753	-	421	71279610	-	CPS_3244	-	polysaccharide biosynthesis protein
3153	 37.36	0	3375927..3377393	-	488	71278402	-	CPS_3245	-	sigma 54-dependent DNA-binding response regulator
3154	 37.57	0	3377795..3378526	+	243	71277823	-	CPS_3246	-	hypothetical protein
3155	 35.19	0	3378712..3380001	+	429	71279884	-	CPS_3247	-	WecB/TagA/CpsF family glycosyl transferase
3156	 34.21	-1	3380001..3380681	+	226	71279334	-	CPS_3248	-	putative polysaccharide biosynthesis glycosyltransferase
3157	 39.83	0	3380983..3382260	+	425	71281208	-	CPS_3249	-	polysaccharide biosynthesis/export protein
3158	 37.86	0	3382268..3383680	+	470	71280009	-	CPS_3250	-	hypothetical protein
3159	 31.16	-1	3383691..3383828	-	45	71278994	-	CPS_3251	-	hypothetical protein
3160	 38.38	0	3383945..3385213	+	422	71278432	-	CPS_3252	-	capsular polysaccharide biosynthesis protein,-like protein
3161	 35.60	0	3385206..3386351	+	381	71277908	-	CPS_3253	-	putative polysaccharide pyruvyl transferase
3162	 36.61	0	3386311..3387255	+	314	71282279	-	CPS_3254	-	glycosyl transferase, group 2 family protein
3163	 29.41	-2	3387307..3388401	+	364	71282426	-	CPS_3255	-	acyltransferase family protein
3164	 34.11	-1	3388485..3388613	+	42	71281804	-	CPS_3256	-	hypothetical protein
38.03	MEAN

3.50	STD DEV
