IslandPathversion 1.0

IslandPath Analysis: Colwellia psychrerythraea 34H

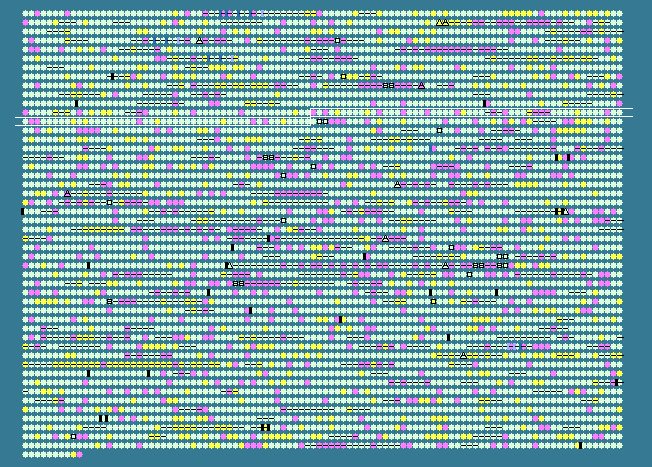

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 38.03 STD DEV: 3.50
Colwellia psychrerythraea 34H, complete genome - 1..5373180
4910 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1149	 26.26	-2	1215102..1215200	-	32	71281367	-	CPS_1188	-	hypothetical protein
1150	 39.43	0	1215202..1216857	+	551	71277782	fadD1	CPS_1189	-	long-chain-fatty-acid--CoA ligase
1151	 29.27	-2	1216864..1216986	-	40	71281143	-	CPS_1190	-	hypothetical protein
1152	 38.08	0	1216995..1217732	-	245	71279221	-	CPS_1191	-	short chain dehydrogenase
1153	 41.87	+1	1217993..1220593	+	866	71282572	-	CPS_1192	-	hypothetical protein
1154	 36.57	0	1220779..1221828	+	349	71278653	sohB	CPS_1193	-	putative periplasmic protease
1155	 39.43	0	1221977..1223320	-	447	71279376	-	CPS_1194	-	putative proton/glutamate symporter
1156	 40.92	0	1223606..1226242	+	878	71279739	-	CPS_1195	-	intimin/invasin family protein
1157	 38.66	0	1226297..1227403	-	368	71280474	-	CPS_1196	-	arginase family protein
1158	 41.63	+1	1227821..1230520	+	899	71281029	topA	CPS_1197	-	DNA topoisomerase I
1159	 39.02	0	1230624..1230992	-	122	71278095	-	CPS_1198	-	hypothetical protein
1160	 33.46	-1	1231051..1231821	-	256	71282321	-	CPS_1199	-	hypothetical protein
1161	 38.67	0	1232099..1233073	+	324	71282599	cysB	CPS_1200	-	transcriptional regulator CysB
1162	 39.43	0	1233150..1233395	-	81	71280940	-	CPS_1201	-	ferredoxin, 4Fe-4S
1163	 38.94	0	1233435..1234826	-	463	71281199	yegQ	CPS_1202	-	U32 family peptidase
1164	 34.28	-1	1235097..1235939	+	280	71278751	-	CPS_1203	-	hypothetical protein
1165	 36.04	0	1236024..1236947	-	307	71282036	rdgC	CPS_1204	-	recombination associated protein
1166	 34.71	0	1237281..1239023	-	580	71278390	-	CPS_1205	-	sensor histidine kinase
1167	 35.78	0	1239412..1240434	+	340	71278969	-	CPS_1206	-	putative outer membrane porin
1168	 33.33	-1	1240752..1240892	-	46	71280708	-	CPS_1207	-	hypothetical protein
1169	 37.75	0	1240979..1241680	+	233	71282474	phoB	CPS_1208	-	phosphate regulon response regulator PhoB
1170	 37.93	0	1241719..1243023	+	434	71279283	phoR	CPS_1209	-	phosphate regulon sensor protein PhoR
1171	 37.19	0	1243168..1244127	+	319	71281115	-	CPS_1210	-	putative phosphate ABC transporter, periplasmic phosphate-binding protein
1172	 40.32	0	1244343..1245272	+	309	71277944	ispH	CPS_1211	-	4-hydroxy-3-methylbut-2-enyl diphosphate reductase
1173	 27.45	-2	1245325..1245426	+	33	71279663	-	CPS_1212	-	hypothetical protein
1174	 44.67	+1	1245807..1246388	+	193	71281505	pilV	CPS_1213	-	type IV pilus modification protein PilV
1175	 41.38	0	1246661..1247629	+	322	71281995	-	CPS_1214	-	hypothetical protein
1176	 38.43	0	1247634..1248182	+	182	71278763	-	CPS_1215	-	hypothetical protein
1177	 40.37	0	1248219..1251986	+	1255	71279463	-	CPS_1216	-	hypothetical protein
1178	 39.20	0	1251986..1252411	+	141	71280185	pilE	CPS_1217	-	type IV pilus biogenesis protein PilE
1179	 34.48	-1	1252414..1252761	+	115	71280255	-	CPS_1218	-	hypothetical protein
1180	 39.78	0	1252900..1253442	-	180	71281725	-	CPS_1219	-	putative type IV pilus biogenesis protein
1181	 27.19	-2	1253480..1253593	+	37	71280571	-	CPS_1220	-	hypothetical protein
1182	 38.10	0	1253678..1254853	-	391	71278851	pheA	CPS_1221	-	chorismate mutase/prephenate dehydratase
1183	 38.76	0	1254961..1255347	-	128	71281908	-	CPS_1222	-	hypothetical protein
1184	 39.42	0	1255400..1257832	-	810	71277793	-	CPS_1223	-	penicillin amidase family protein
1185	 44.17	+1	1257949..1258068	+	39	71279871	-	CPS_1224	-	hypothetical protein
1186	 31.25	-1	1258085..1258516	-	143	71278758	-	CPS_1225	-	hypothetical protein
1187	 31.79	-1	1258359..1258553	+	64	71281209	-	CPS_1226	-	hypothetical protein
1188	 27.91	-2	1258768..1258896	+	42	71280382	-	CPS_1227	-	hypothetical protein
1189	 39.37	0	1258969..1261137	-	722	71282347	glcB	CPS_1228	-	malate synthase G
1190	 40.39	0	1261760..1262482	-	240	71277771	-	CPS_1229	-	LrgB-like family protein
1191	 37.53	0	1262482..1262862	-	126	71282590	-	CPS_1230	-	LrgA family protein
1192	 39.24	0	1262869..1263816	-	315	71279562	-	CPS_1231	-	LysR family transcriptional regulator
1193	 41.73	+1	1264150..1265733	+	527	71279542	icl	CPS_1232	-	isocitrate lyase
1194	 36.68	0	1265937..1266743	-	268	71280459	-	CPS_1233	-	hypothetical protein
1195	 38.61	0	1267037..1268116	-	359	71279693	-	CPS_1234	-	RND family efflux transporter MFP subunit
1196	 40.63	0	1268113..1271553	-	1146	71282258	-	CPS_1235	-	AcrB/AcrD/AcrF family protein
1197	 37.25	0	1271596..1271901	-	101	71278667	-	CPS_1236	-	ArsR family transcriptional regulator
1198	 32.38	-1	1272072..1272281	+	69	71278286	-	CPS_1237	-	hypothetical protein
1199	 41.09	0	1272323..1272670	+	115	71279861	-	CPS_1238	-	hypothetical protein
1200	 40.61	0	1272721..1273380	+	219	71279312	-	CPS_1239	-	DsbA-like thioredoxin domain-containing protein
1201	 39.75	0	1273535..1274797	-	420	71279638	lysA	CPS_1240	-	diaminopimelate decarboxylase
1202	 33.33	-1	1274897..1275007	-	36	71280365	-	CPS_1241	-	hypothetical protein
1203	 34.38	-1	1274970..1275065	+	31	71282540	-	CPS_1242	-	hypothetical protein
1204	 38.10	0	1275068..1275592	-	174	71282157	-	CPS_1243	-	FMN reductase, NADPH-dependent
1205	 39.34	0	1275785..1276666	+	293	71278724	-	CPS_1244	-	LysR family transcriptional regulator
1206	 40.27	0	1276708..1277385	-	225	71278457	-	CPS_1245	-	hypothetical protein
1207	 34.91	0	1277448..1277891	-	147	71279105	-	CPS_1246	-	putative lipoprotein
1208	 39.71	0	1278299..1279192	+	297	71279614	-	CPS_1247	-	M23/37 family peptidase
1209	 41.60	+1	1279205..1280353	-	382	71280531	-	CPS_1248	-	ABC transporter, permease protein
1210	 40.64	0	1280353..1281324	-	323	71278096	-	CPS_1249	-	ABC transporter, ATP-binding protein
1211	 44.07	+1	1281321..1282289	-	322	71279735	-	CPS_1250	-	hypothetical protein
1212	 40.72	0	1282425..1282871	-	148	71279034	-	CPS_1251	-	Holliday junction resolvase-like protein
1213	 40.57	0	1282974..1283678	-	234	71278931	-	CPS_1252	-	hypothetical protein
1214	 38.94	0	1283691..1284653	-	320	71278064	gshB	CPS_1253	-	glutathione synthetase
1215	 40.82	0	1284938..1285672	-	244	71280059	-	CPS_1254	-	hypothetical protein
1216	 37.48	0	1285836..1286438	+	200	71281035	-	CPS_1255	-	hypothetical protein
1217	 39.98	0	1286654..1287841	-	395	71280871	metK	CPS_1256	-	S-adenosylmethionine synthetase
1218	 38.00	0	1288023..1288793	-	256	71280369	murI	CPS_1257	-	glutamate racemase
1219	 39.50	0	1289047..1290375	+	442	71282158	-	CPS_1258	-	putative MFS transporter family protein
1220	 34.16	-1	1290673..1291878	-	401	71279108	-	CPS_1259	-	putative sensor histidine kinase
1221	 38.81	0	1292246..1292866	-	206	71280792	-	CPS_1260	-	putative nitrate/nitrite DNA-binding response regulator
1222	 38.53	0	1292882..1294285	-	467	71282408	-	CPS_1261	-	sensor histidine kinase
1223	 42.16	+1	1294309..1294512	+	67	71281849	-	CPS_1262	-	hypothetical protein
1224	 39.39	0	1295571..1296611	+	346	71281682	-	CPS_1263	-	hypothetical protein
1225	 38.97	0	1296642..1297706	+	354	71278630	-	CPS_1264	-	extracellular solute-binding protein
1226	 38.43	0	1298064..1298612	+	182	71279030	-	CPS_1265	-	C4-dicarboxylate transporter family protein, DctQ subunit
1227	 39.09	0	1298615..1300003	+	462	71280689	-	CPS_1266	-	putative C4-dicarboxylate transporter family protein, DctM subunit
1228	 37.46	0	1300181..1301854	+	557	71282609	-	CPS_1267	-	methyl-accepting chemotaxis protein
1229	 35.92	0	1302650..1302958	-	102	71282346	-	CPS_1268	-	hypothetical protein
1230	 38.24	0	1303050..1303151	+	33	71280275	-	CPS_1269	-	hypothetical protein
1231	 37.48	0	1303162..1303764	+	200	71280947	-	CPS_1270	-	hypothetical protein
1232	 39.39	0	1303867..1305252	+	461	71281317	pepP	CPS_1271	-	Xaa-Pro aminopeptidase
1233	 41.48	0	1305439..1306752	+	437	71279860	ubiH	CPS_1272	-	2-octaprenyl-6-methoxyphenol hydroxylase
1234	 42.59	+1	1306849..1308177	+	442	71278061	-	CPS_1273	-	monooxygenase family protein
1235	 41.32	0	1308798..1309886	+	362	71282177	gcvT	CPS_1274	-	glycine cleavage system aminomethyltransferase T
1236	 40.77	0	1310018..1310407	+	129	71280736	gcvH1	CPS_1275	-	glycine cleavage system H protein
1237	 41.30	0	1310695..1313592	+	965	71281092	gcvP1	CPS_1276	-	glycine dehydrogenase
1238	 35.04	0	1313828..1314646	+	272	71278518	-	CPS_1277	-	hypothetical protein
1239	 30.88	-2	1314810..1316684	+	624	71278887	-	CPS_1278	-	putative lipoprotein
1240	 35.04	0	1317459..1317809	+	116	71281865	-	CPS_1279	-	hypothetical protein
1241	 34.09	-1	1317899..1318162	-	87	71282043	-	CPS_1280	-	putative lipoprotein
1242	 39.68	0	1318228..1320135	-	635	71280773	-	CPS_1281	-	metallo-beta-lactamase family protien
1243	 36.81	0	1320261..1321181	+	306	71281111	-	CPS_1282	-	LysR family transcriptional regulator
1244	 44.75	+1	1321233..1322756	-	507	71279168	-	CPS_1283	-	hypothetical protein
1245	 38.45	0	1323237..1324214	+	325	71279402	-	CPS_1284	-	metallo-beta-lactamase family protein
1246	 39.01	0	1324417..1325490	+	357	71279959	-	CPS_1285	-	DJ-1/PfpI family protein
1247	 39.23	0	1325821..1328721	+	966	71282331	-	CPS_1286	-	M16 family metallopeptidase
1248	 40.88	0	1328843..1329478	-	211	71281987	-	CPS_1287	-	Ser/Thr protein phosphatase family protein
38.03	MEAN

3.50	STD DEV
