IslandPath Analysis: Colwellia psychrerythraea 34H

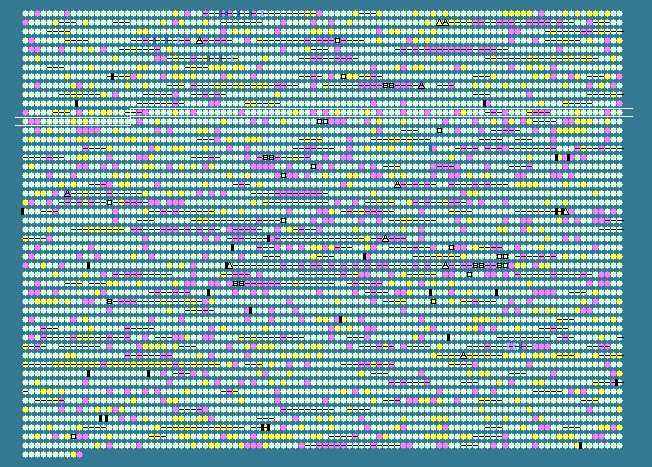

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 38.03 STD DEV: 3.50
Colwellia psychrerythraea 34H, complete genome - 1..5373180
4910 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1119	 39.05	0	1180982..1181086	-	34	71279811	-	CPS_1158	-	hypothetical protein
1120	 34.31	-1	1181089..1181292	-	67	71280362	-	CPS_1159	-	DNA-binding protein
1121	 33.57	-1	1181289..1181711	-	140	71280760	-	CPS_1160	-	hypothetical protein
1122	 39.09	0	1182264..1183619	+	451	71281297	-	CPS_1161	-	putative lipoprotein
1123	 39.00	0	1183704..1185572	-	622	71282530	btuB	CPS_1162	-	tonB-dependent vitamin B12 receptor
1124	 38.19	0	1186061..1186945	-	294	71281717	-	CPS_1163	-	putative vitamin B12 transport protein BtuF
1125	 39.32	0	1187027..1187644	-	205	71277835	cobO2	CPS_1164	-	cob(I)yrinic acid a,c-diamide adenosyltransferase
1126	 42.05	+1	1187701..1188687	-	328	71279080	-	CPS_1165	-	putative vitamin B12 transport system permease protein BtuC
1127	 38.39	0	1188680..1189510	-	276	71280150	-	CPS_1166	-	putative vitamin B12 transport ATP-binding protein BtuD
1128	 37.24	0	1189958..1190443	+	161	71280681	bfr1	CPS_1167	-	bacterioferritin, subunit 1
1129	 33.76	-1	1190453..1190920	+	155	71281265	bfr2	CPS_1168	-	bacterioferritin, subunit 2
1130	 40.51	0	1190992..1191186	-	64	71281251	-	CPS_1169	-	bacterioferritin-associated ferredoxin
1131	 38.81	0	1191506..1193569	-	687	71281901	pepO	CPS_1170	-	metalloendopeptidase PepO
1132	 41.48	0	1193906..1195132	-	408	71282601	-	CPS_1171	-	hypothetical protein
1133	 38.39	0	1195472..1196242	+	256	71278643	-	CPS_1172	-	class II aldolase/adducin domain-containing protein
1134	 40.48	0	1196460..1197635	+	391	71281434	-	CPS_1173	-	mandelate racemase/muconate lactonizing enzyme family protein
1135	 37.62	0	1197669..1198625	-	318	71279674	-	CPS_1174	-	hypothetical protein
1136	 38.98	0	1198691..1199416	-	241	71278813	-	CPS_1175	-	short chain dehydrogenase/reductase family oxidoreductase
1137	 32.91	-1	1199664..1200134	+	156	71281730	-	CPS_1176	-	hypothetical protein
1138	 39.90	0	1200697..1202493	+	598	71282231	-	CPS_1177	-	acyl-CoA dehydrogenase family protein
1139	 40.27	0	1202840..1204570	-	576	71278966	-	CPS_1178	-	hypothetical protein
1140	 41.00	0	1204810..1205070	-	86	71279059	rpsT	CPS_1179	-	ribosomal protein S20
1141	 39.97	0	1205405..1207000	+	531	71280021	mviN	CPS_1180	-	integral membrane protein MviN
1142	 38.33	0	1207417..1208337	+	306	71278470	ribF	CPS_1181	-	riboflavin biosynthesis protein RibF
1143	 40.46	0	1208450..1211311	+	953	71277791	ileS	CPS_1182	-	isoleucyl-tRNA synthetase
1144	 37.75	0	1211442..1211984	+	180	71282159	lspA	CPS_1183	-	signal peptidase II
1145	 37.84	0	1212065..1212508	+	147	71279280	fkbP	CPS_1184	-	FKBP-type peptidyl-prolyl cis-trans isomerase FkbP
1146	 43.89	+1	1212677..1213396	+	239	71281363	-	CPS_1185	-	putative glycoprotease family protein
1147	 38.33	0	1213435..1214115	+	226	71282630	-	CPS_1186	-	hypothetical protein
1148	 39.37	0	1214160..1215086	+	308	71278549	-	CPS_1187	-	putative lipase
1149	 26.26	-2	1215102..1215200	-	32	71281367	-	CPS_1188	-	hypothetical protein
1150	 39.43	0	1215202..1216857	+	551	71277782	fadD1	CPS_1189	-	long-chain-fatty-acid--CoA ligase
1151	 29.27	-2	1216864..1216986	-	40	71281143	-	CPS_1190	-	hypothetical protein
1152	 38.08	0	1216995..1217732	-	245	71279221	-	CPS_1191	-	short chain dehydrogenase
1153	 41.87	+1	1217993..1220593	+	866	71282572	-	CPS_1192	-	hypothetical protein
1154	 36.57	0	1220779..1221828	+	349	71278653	sohB	CPS_1193	-	putative periplasmic protease
1155	 39.43	0	1221977..1223320	-	447	71279376	-	CPS_1194	-	putative proton/glutamate symporter
1156	 40.92	0	1223606..1226242	+	878	71279739	-	CPS_1195	-	intimin/invasin family protein
1157	 38.66	0	1226297..1227403	-	368	71280474	-	CPS_1196	-	arginase family protein
1158	 41.63	+1	1227821..1230520	+	899	71281029	topA	CPS_1197	-	DNA topoisomerase I
1159	 39.02	0	1230624..1230992	-	122	71278095	-	CPS_1198	-	hypothetical protein
1160	 33.46	-1	1231051..1231821	-	256	71282321	-	CPS_1199	-	hypothetical protein
1161	 38.67	0	1232099..1233073	+	324	71282599	cysB	CPS_1200	-	transcriptional regulator CysB
1162	 39.43	0	1233150..1233395	-	81	71280940	-	CPS_1201	-	ferredoxin, 4Fe-4S
1163	 38.94	0	1233435..1234826	-	463	71281199	yegQ	CPS_1202	-	U32 family peptidase
1164	 34.28	-1	1235097..1235939	+	280	71278751	-	CPS_1203	-	hypothetical protein
1165	 36.04	0	1236024..1236947	-	307	71282036	rdgC	CPS_1204	-	recombination associated protein
1166	 34.71	0	1237281..1239023	-	580	71278390	-	CPS_1205	-	sensor histidine kinase
1167	 35.78	0	1239412..1240434	+	340	71278969	-	CPS_1206	-	putative outer membrane porin
1168	 33.33	-1	1240752..1240892	-	46	71280708	-	CPS_1207	-	hypothetical protein
1169	 37.75	0	1240979..1241680	+	233	71282474	phoB	CPS_1208	-	phosphate regulon response regulator PhoB
1170	 37.93	0	1241719..1243023	+	434	71279283	phoR	CPS_1209	-	phosphate regulon sensor protein PhoR
1171	 37.19	0	1243168..1244127	+	319	71281115	-	CPS_1210	-	putative phosphate ABC transporter, periplasmic phosphate-binding protein
1172	 40.32	0	1244343..1245272	+	309	71277944	ispH	CPS_1211	-	4-hydroxy-3-methylbut-2-enyl diphosphate reductase
1173	 27.45	-2	1245325..1245426	+	33	71279663	-	CPS_1212	-	hypothetical protein
1174	 44.67	+1	1245807..1246388	+	193	71281505	pilV	CPS_1213	-	type IV pilus modification protein PilV
1175	 41.38	0	1246661..1247629	+	322	71281995	-	CPS_1214	-	hypothetical protein
1176	 38.43	0	1247634..1248182	+	182	71278763	-	CPS_1215	-	hypothetical protein
1177	 40.37	0	1248219..1251986	+	1255	71279463	-	CPS_1216	-	hypothetical protein
1178	 39.20	0	1251986..1252411	+	141	71280185	pilE	CPS_1217	-	type IV pilus biogenesis protein PilE
1179	 34.48	-1	1252414..1252761	+	115	71280255	-	CPS_1218	-	hypothetical protein
1180	 39.78	0	1252900..1253442	-	180	71281725	-	CPS_1219	-	putative type IV pilus biogenesis protein
1181	 27.19	-2	1253480..1253593	+	37	71280571	-	CPS_1220	-	hypothetical protein
1182	 38.10	0	1253678..1254853	-	391	71278851	pheA	CPS_1221	-	chorismate mutase/prephenate dehydratase
1183	 38.76	0	1254961..1255347	-	128	71281908	-	CPS_1222	-	hypothetical protein
1184	 39.42	0	1255400..1257832	-	810	71277793	-	CPS_1223	-	penicillin amidase family protein
1185	 44.17	+1	1257949..1258068	+	39	71279871	-	CPS_1224	-	hypothetical protein
1186	 31.25	-1	1258085..1258516	-	143	71278758	-	CPS_1225	-	hypothetical protein
1187	 31.79	-1	1258359..1258553	+	64	71281209	-	CPS_1226	-	hypothetical protein
1188	 27.91	-2	1258768..1258896	+	42	71280382	-	CPS_1227	-	hypothetical protein
1189	 39.37	0	1258969..1261137	-	722	71282347	glcB	CPS_1228	-	malate synthase G
1190	 40.39	0	1261760..1262482	-	240	71277771	-	CPS_1229	-	LrgB-like family protein
1191	 37.53	0	1262482..1262862	-	126	71282590	-	CPS_1230	-	LrgA family protein
1192	 39.24	0	1262869..1263816	-	315	71279562	-	CPS_1231	-	LysR family transcriptional regulator
1193	 41.73	+1	1264150..1265733	+	527	71279542	icl	CPS_1232	-	isocitrate lyase
1194	 36.68	0	1265937..1266743	-	268	71280459	-	CPS_1233	-	hypothetical protein
1195	 38.61	0	1267037..1268116	-	359	71279693	-	CPS_1234	-	RND family efflux transporter MFP subunit
1196	 40.63	0	1268113..1271553	-	1146	71282258	-	CPS_1235	-	AcrB/AcrD/AcrF family protein
1197	 37.25	0	1271596..1271901	-	101	71278667	-	CPS_1236	-	ArsR family transcriptional regulator
1198	 32.38	-1	1272072..1272281	+	69	71278286	-	CPS_1237	-	hypothetical protein
1199	 41.09	0	1272323..1272670	+	115	71279861	-	CPS_1238	-	hypothetical protein
1200	 40.61	0	1272721..1273380	+	219	71279312	-	CPS_1239	-	DsbA-like thioredoxin domain-containing protein
1201	 39.75	0	1273535..1274797	-	420	71279638	lysA	CPS_1240	-	diaminopimelate decarboxylase
1202	 33.33	-1	1274897..1275007	-	36	71280365	-	CPS_1241	-	hypothetical protein
1203	 34.38	-1	1274970..1275065	+	31	71282540	-	CPS_1242	-	hypothetical protein
1204	 38.10	0	1275068..1275592	-	174	71282157	-	CPS_1243	-	FMN reductase, NADPH-dependent
1205	 39.34	0	1275785..1276666	+	293	71278724	-	CPS_1244	-	LysR family transcriptional regulator
1206	 40.27	0	1276708..1277385	-	225	71278457	-	CPS_1245	-	hypothetical protein
1207	 34.91	0	1277448..1277891	-	147	71279105	-	CPS_1246	-	putative lipoprotein
1208	 39.71	0	1278299..1279192	+	297	71279614	-	CPS_1247	-	M23/37 family peptidase
1209	 41.60	+1	1279205..1280353	-	382	71280531	-	CPS_1248	-	ABC transporter, permease protein
1210	 40.64	0	1280353..1281324	-	323	71278096	-	CPS_1249	-	ABC transporter, ATP-binding protein
1211	 44.07	+1	1281321..1282289	-	322	71279735	-	CPS_1250	-	hypothetical protein
1212	 40.72	0	1282425..1282871	-	148	71279034	-	CPS_1251	-	Holliday junction resolvase-like protein
1213	 40.57	0	1282974..1283678	-	234	71278931	-	CPS_1252	-	hypothetical protein
1214	 38.94	0	1283691..1284653	-	320	71278064	gshB	CPS_1253	-	glutathione synthetase
1215	 40.82	0	1284938..1285672	-	244	71280059	-	CPS_1254	-	hypothetical protein
1216	 37.48	0	1285836..1286438	+	200	71281035	-	CPS_1255	-	hypothetical protein
1217	 39.98	0	1286654..1287841	-	395	71280871	metK	CPS_1256	-	S-adenosylmethionine synthetase
1218	 38.00	0	1288023..1288793	-	256	71280369	murI	CPS_1257	-	glutamate racemase
38.03	MEAN

3.50	STD DEV
