IslandPath Analysis: Colwellia psychrerythraea 34H

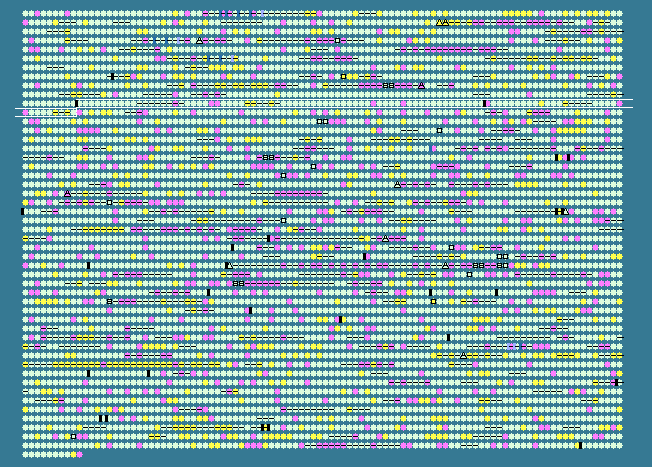

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 38.03 STD DEV: 3.50
Colwellia psychrerythraea 34H, complete genome - 1..5373180
4910 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1010	 39.43	0	1074305..1074583	+	92	71278604	oadG	CPS_1048	-	oxaloacetate decarboxylase, gamma subunit
1011	 40.87	0	1074649..1076427	+	592	71280675	oadA	CPS_1049	-	pyruvate carboxylase subunit B
1012	 40.21	0	1076436..1077569	+	377	71280130	oadB	CPS_1050	-	oxaloacetate decarboxylase, beta subunit
1013	 34.92	0	1077645..1077770	+	41	71280647	-	CPS_1051	-	hypothetical protein
1014	 41.45	0	1078012..1078824	+	270	71279962	-	CPS_1052	-	M48 family peptidase
1015	 39.45	0	1078913..1079566	-	217	71281994	pdxH	CPS_1053	-	pyridoxamine 5'-phosphate oxidase
1016	 37.56	0	1079677..1079889	-	70	71281316	-	CPS_1054	-	hypothetical protein
1017	 39.80	0	1080485..1081072	-	195	71278465	napC	CPS_1055	-	cytochrome c-type protein NapC
1018	 38.29	0	1081081..1081584	-	167	71277776	napB	CPS_1056	-	periplasmic nitrate reductase, cytochrome c-type subunit
1019	 40.70	0	1081594..1084092	-	832	71279873	napA	CPS_1057	-	nitrate reductase
1020	 37.74	0	1084149..1084466	-	105	71279163	napD	CPS_1058	-	napD protein
1021	 35.52	0	1084486..1085034	-	182	71281481	napF	CPS_1059	-	ferredoxin-type protein NapF
1022	 38.27	0	1085039..1085200	-	53	71281582	napE	CPS_1060	-	napE protein
1023	 38.11	0	1085515..1087689	+	724	71281055	-	CPS_1061	-	hypothetical protein
1024	 35.96	0	1087729..1087956	-	75	71278964	-	CPS_1062	-	hypothetical protein
1025	 37.14	0	1087934..1088038	-	34	71278263	-	CPS_1063	-	hypothetical protein
1026	 34.50	-1	1087947..1088204	-	85	71279936	-	CPS_1064	-	hypothetical protein
1027	 40.00	0	1088472..1088606	-	44	71279385	-	CPS_1065	-	hypothetical protein
1028	 37.64	0	1088634..1089515	+	293	71280976	-	CPS_1066	-	ABC transporter, ATP-binding protein
1029	 37.43	0	1089548..1090573	+	341	71280463	-	CPS_1067	-	putative ABC transporter, permease protein
1030	 38.25	0	1090765..1091883	+	372	71278947	-	CPS_1068	-	3-oxoacyl-(acyl carrier protein) synthase III
1031	 40.09	0	1091926..1092576	+	216	71278073	-	CPS_1069	-	hypothetical protein
1032	 33.33	-1	1092543..1092713	+	56	71280877	-	CPS_1070	-	hypothetical protein
1033	 34.33	-1	1092646..1092945	+	99	71280348	-	CPS_1071	-	septum formation initiator family protein
1034	 39.21	0	1092969..1093700	+	243	71281808	ispD	CPS_1072	-	2-C-methyl-D-erythritol 4-phosphate cytidylyltransferase
1035	 40.55	0	1093771..1094283	+	170	71281605	ispF	CPS_1073	-	2C-methyl-D-erythritol 2,4-cyclodiphosphate synthase
1036	 39.95	0	1094340..1095443	+	367	71278765	-	CPS_1074	-	hypothetical protein
1037	 40.61	0	1095447..1096229	+	260	71278059	surE	CPS_1075	-	acid phosphatase SurE
1038	 43.78	+1	1096248..1096898	+	216	71280136	pcm	CPS_1076	-	protein-L-isoaspartate O-methyltransferase
1039	 41.80	+1	1096898..1097476	+	192	71279573	-	CPS_1077	-	DedA family membrane protein
1040	 36.15	0	1097561..1098412	+	283	71277883	-	CPS_1078	-	putative lipoprotein NlpD
1041	 38.27	0	1098522..1099412	+	296	71278347	rpoS	CPS_1079	-	RNA polymerase sigma factor RpoS
1042	 41.70	+1	1099928..1101265	+	445	71279370	nqrA	CPS_1080	-	Na(+)-translocating NADH-quinone reductase subunit A
1043	 41.31	0	1101268..1102470	+	400	71279883	nqrB	CPS_1081	-	Na(+)-translocating NADH-quinone reductase subunit B
1044	 38.91	0	1102463..1103233	+	256	71278488	nqrC	CPS_1082	-	Na(+)-translocating NADH-quinone reductase subunit C
1045	 37.66	0	1103233..1103856	+	207	71282119	nqrD	CPS_1083	-	Na(+)-translocating NADH-quinone reductase subunit D
1046	 38.46	0	1103859..1104482	+	207	71282541	nqrE	CPS_1084	-	Na(+)-translocating NADH-quinone reductase subunit E
1047	 40.20	0	1104545..1105768	+	407	71281144	nqrF	CPS_1085	-	Na(+)-translocating NADH-quinone reductase subunit F
1048	 40.12	0	1106014..1107045	+	343	71278788	apbE	CPS_1086	-	thiamin biosynthesis lipoprotein ApbE
1049	 39.39	0	1107179..1107409	+	76	71278094	-	CPS_1087	-	hypothetical protein
1050	 39.30	0	1107564..1109456	-	630	71282210	dxs	CPS_1088	-	1-deoxy-D-xylulose-5-phosphate synthase
1051	 40.75	0	1109511..1110413	-	300	71278749	ispA	CPS_1089	-	geranyltranstransferase
1052	 36.95	0	1110413..1110661	-	82	71278087	xseB	CPS_1090	-	exodeoxyribonuclease VII, small subunit
1053	 36.19	0	1110938..1111042	-	34	71280170	-	CPS_1091	-	hypothetical protein
1054	 39.87	0	1111247..1112011	+	254	71279500	-	CPS_1092	-	flagellar motor protein PomA
1055	 41.48	0	1112056..1113000	+	314	71280941	motB	CPS_1093	-	flagellar motor protein MotB
1056	 36.15	0	1113274..1114728	+	484	71280272	thiI	CPS_1094	-	thiamine biosynthesis protein ThiI
1057	 38.66	0	1114738..1115676	-	312	71278126	panE	CPS_1095	-	2-dehydropantoate 2-reductase
1058	 38.36	0	1115775..1116152	-	125	71278950	-	CPS_1096	-	hypothetical protein
1059	 31.06	-1	1116166..1116297	-	43	71279968	-	CPS_1097	-	hypothetical protein
1060	 38.30	0	1116355..1116837	+	160	71278314	-	CPS_1098	-	nucleotide-binding protein
1061	 37.39	0	1117011..1117775	+	254	71278550	-	CPS_1099	-	hypothetical protein
1062	 35.76	0	1118313..1119260	+	315	71281871	metA	CPS_1100	-	homoserine O-succinyltransferase
1063	 40.10	0	1119355..1123047	+	1230	71282306	metH	CPS_1101	-	B12-dependent methionine synthase
1064	 32.38	-1	1123175..1123279	+	34	71280251	-	CPS_1102	-	hypothetical protein
1065	 35.12	0	1123267..1123602	-	111	71280910	yfiA1	CPS_1103	-	ribosomal subunit interface protein
1066	 38.20	0	1123943..1126201	-	752	71279274	-	CPS_1104	-	dipeptidyl peptidase IV
1067	 41.11	0	1126450..1127838	-	462	71281385	-	CPS_1105	-	DNA repair protein RadA
1068	 35.72	0	1128134..1130602	+	822	71279593	-	CPS_1106	-	hypothetical protein
1069	 40.39	0	1130762..1131682	-	306	71278256	serB	CPS_1107	-	phosphoserine phosphatase
1070	 38.82	0	1131875..1132567	+	230	71278629	-	CPS_1108	-	hypothetical protein
1071	 39.53	0	1132578..1133480	-	300	71281630	-	CPS_1109	-	TatD family hydrolase
1072	 39.39	0	1133766..1135514	-	582	71282384	argS	CPS_1110	-	arginyl-tRNA synthetase
1073	 39.85	0	1135852..1137432	-	526	71281408	prfC	CPS_1111	-	peptide chain release factor 3
1074	 35.90	0	1137464..1137619	+	51	71280327	-	CPS_1112	-	hypothetical protein
1075	 36.55	0	1137750..1137998	-	82	71279355	-	CPS_1113	-	hypothetical protein
1076	 38.46	0	1138189..1138695	-	168	71279741	rimI	CPS_1114	-	ribosomal-protein-alanine acetyltransferase
1077	 37.83	0	1138709..1139086	-	125	71280440	-	CPS_1115	-	hypothetical protein
1078	 32.26	-1	1139539..1139631	+	30	71280845	-	CPS_1117	-	hypothetical protein
1079	 36.78	0	1139645..1141414	-	589	71281541	aceK	CPS_1118	-	bifunctional isocitrate dehydrogenase kinase/phosphatase protein
1080	 40.65	0	1141665..1142744	+	359	71281922	queA	CPS_1119	-	S-adenosylmethionine:tRNA ribosyltransferase-isomerase
1081	 41.02	0	1142819..1143976	+	385	71278113	tgt	CPS_1120	-	queuine tRNA-ribosyltransferase
1082	 39.88	0	1144168..1144503	+	111	71281167	yajC	CPS_1121	-	preprotein translocase subunit YajC
1083	 39.50	0	1144707..1146554	+	615	71282618	secD	CPS_1122	-	preprotein translocase subunit SecD
1084	 36.92	0	1146575..1147522	+	315	71281229	secF	CPS_1123	-	preprotein translocase subunit SecF
1085	 38.71	0	1147600..1147785	-	61	71279160	-	CPS_1124	-	hypothetical protein
1086	 40.19	0	1147766..1149166	+	466	71279831	-	CPS_1125	-	DEAD-box ATP dependent DNA helicase
1087	 42.93	+1	1149302..1150093	-	263	71277882	cobA1	CPS_1126	-	uroporphyrin-III C-methyltransferase
1088	 39.02	0	1150177..1150299	+	40	71279367	-	CPS_1127	-	hypothetical protein
1089	 39.18	0	1150276..1151079	-	267	71281075	suhB	CPS_1128	-	inositol-1-monophosphatase
1090	 38.69	0	1151668..1152489	+	273	71281163	-	CPS_1129	-	RNA methyltransferase
1091	 41.60	+1	1152528..1153337	+	269	71281877	cysE	CPS_1130	-	serine O-acetyltransferase
1092	 40.24	0	1153622..1154128	+	168	71278574	-	CPS_1131	-	Rrf2 family protein
1093	 39.01	0	1154177..1155391	+	404	71278598	iscS	CPS_1132	-	cysteine desulfurase
1094	 38.02	0	1155494..1155877	+	127	71278981	iscU	CPS_1133	-	scaffold protein
1095	 40.43	0	1155889..1156212	+	107	71280094	-	CPS_1134	-	iron-sulfur cluster assembly protein
1096	 36.55	0	1156396..1156923	+	175	71282522	hscB	CPS_1135	-	co-chaperone HscB
1097	 40.63	0	1157013..1158875	+	620	71281967	hscA	CPS_1136	-	chaperone protein HscA
1098	 39.23	0	1158944..1159282	+	112	71281441	-	CPS_1137	-	ferredoxin, 2Fe-2S
1099	 37.88	0	1159702..1161615	+	637	71281070	-	CPS_1138	-	GGDEF/EAL domain-containing protein
1100	 34.48	-1	1162017..1164362	+	781	71278615	-	CPS_1139	-	GGDEF/GAF/EAL domain-containing protein
1101	 27.91	-2	1164512..1164640	-	42	71277931	-	CPS_1140	-	hypothetical protein
1102	 36.27	0	1164637..1164738	-	33	71282543	-	CPS_1141	-	hypothetical protein
1103	 39.23	0	1164782..1165816	-	344	71281824	cobC	CPS_1142	-	cobC protein
1104	 40.58	0	1165886..1166920	-	344	71281460	-	CPS_1143	-	putative cobalamin biosynthesis protein D
1105	 37.63	0	1167014..1167595	-	193	71281188	-	CPS_1144	-	phosphoglycerate mutase family protein
1106	 44.09	+1	1167816..1167908	-	30	71280309	-	CPS_1145	-	hypothetical protein
1107	 37.94	0	1168297..1168926	+	209	71282548	-	CPS_1146	-	hypothetical protein
1108	 42.62	+1	1169061..1170395	+	444	71281694	cobB	CPS_1147	-	cobyrinic acid a,c-diamide synthase
1109	 38.89	0	1170819..1171466	+	215	71281755	cobO1	CPS_1148	-	cob(I)yrinic acid a,c-diamide adenosyltransferase
38.03	MEAN

3.50	STD DEV
