IslandPathversion 1.0

IslandPath Analysis: Corynebacterium glutamicum ATCC 13032

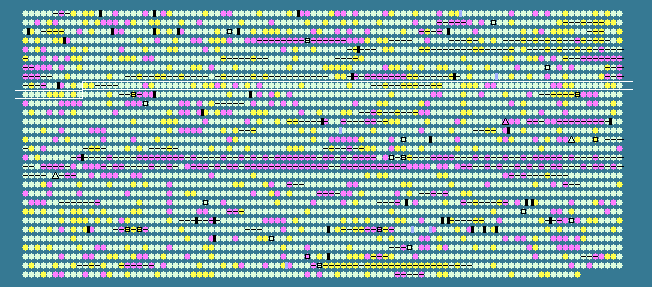

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 54.31 STD DEV: 3.83
Corynebacterium glutamicum ATCC 13032, complete genome - 1..3309401
2993 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
811	 57.84	0	899250..900008	-	252	19552072	-	NCgl0811	-	inositol monophosphatase family protein
812	 58.93	+1	900043..904605	+	1520	23308807	-	NCgl0812	-	Lhr-like helicase
813	 55.51	0	904615..905385	+	256	19552074	-	NCgl0813	-	formamidopyrimidine-DNA glycosylase
814	 52.31	0	905389..905799	+	136	19552075	-	NCgl0814	-	hypothetical protein
815	 55.06	0	905789..906391	-	200	19552076	-	NCgl0815	-	hypothetical protein
816	 52.21	0	906556..907731	-	391	19552077	-	NCgl0816	-	cyanate permease
817	 54.96	0	907756..909378	-	540	19552078	pgi	NCgl0817	-	glucose-6-phosphate isomerase
818	 57.00	0	909518..910696	-	392	19552079	-	NCgl0818	-	hypothetical protein
819	 54.25	0	910852..911157	-	101	19552080	-	NCgl0819	-	hypothetical protein
820	 55.67	0	911226..913517	+	763	19552081	-	NCgl0820	-	helicase
821	 50.36	-1	913474..915699	-	741	19552082	-	NCgl0821	-	ABC-type transporter, permease component
822	 62.03	+2	915696..916364	-	222	19552083	-	NCgl0822	-	ABC-type transporter, ATPase component
823	 53.73	0	916365..916874	-	169	19552084	-	NCgl0823	-	transcriptional regulator
824	 57.70	0	916967..917680	-	237	19552085	-	NCgl0824	-	metalloendopeptidase-like membrane protein
825	 56.06	0	918036..919355	+	439	19552086	-	NCgl0825	-	hypothetical protein
826	 51.68	0	919366..919959	+	197	19552087	purN	NCgl0826	-	phosphoribosylglycinamide formyltransferase
827	 56.88	0	919967..921529	+	520	19552088	purH	NCgl0827	-	bifunctional phosphoribosylaminoimidazolecarboxamide formyltransferase/IMP cyclohydrolase
828	 52.80	0	921594..922415	+	273	19552089	-	NCgl0828	-	citrate lyase beta subunit
829	 60.24	+1	922393..923061	-	222	19552090	-	NCgl0829	-	transcriptional regulator
830	 57.66	0	923135..923989	-	284	19552091	-	NCgl0830	-	hypothetical protein
831	 59.92	+1	924156..924407	-	83	19552092	rpsR	NCgl0831	-	30S ribosomal protein S18
832	 57.84	0	924422..924727	-	101	19552093	rpsN	NCgl0832	-	30S ribosomal protein S14
833	 50.30	-1	924731..924895	-	54	19552094	rpmG	NCgl0833	-	50S ribosomal protein L33
834	 58.23	+1	924898..925134	-	78	19552095	rpmB	NCgl0834	-	50S ribosomal protein L28
835	 56.33	0	925322..926878	-	518	19552096	-	NCgl0835	-	sulfate permease
836	 47.94	-1	926928..927242	-	104	19552097	-	NCgl0836	-	transcriptional regulator
837	 57.68	0	927474..927740	+	88	19552098	rpmE2	NCgl0837	-	50S ribosomal protein L31 type B
838	 59.77	+1	927752..927925	+	57	19552099	rpmF	NCgl0838	-	50S ribosomal protein L32
839	 51.50	0	928117..928815	+	232	19552100	-	NCgl0839	-	two-component system, response regulator
840	 49.20	-1	928884..930251	+	455	19552101	-	NCgl0840	-	two-component system, sensory transduction histidine kinase
841	 51.06	0	930326..931651	+	441	19552102	-	NCgl0841	-	trypsin-like serine protease
842	 55.95	0	931706..932293	+	195	19552103	-	NCgl0842	-	molybdopterin biosynthesis enzyme
843	 53.19	0	932567..932974	-	135	19552104	-	NCgl0843	-	large-conductance mechanosensitive channel
844	 50.99	0	933057..933611	-	184	19552105	-	NCgl0844	-	hypothetical protein
845	 55.85	0	933730..934302	-	190	19552106	-	NCgl0845	-	5-formyltetrahydrofolate cyclo-ligase
846	 53.80	0	934375..935322	+	315	19552107	-	NCgl0846	-	UDP-glucose pyrophosphorylase
847	 58.41	+1	935351..936610	+	419	19552108	-	NCgl0847	-	molybdopterin biosynthesis enzyme
848	 57.53	0	936720..937277	+	185	19552109	-	NCgl0848	-	putative acetyltransferase
849	 54.83	0	937391..938404	+	337	19552110	-	NCgl0849	-	hypothetical protein
850	 52.45	0	938427..939629	+	400	19552111	-	NCgl0850	-	cyanate permease
851	 51.96	0	939686..940093	+	135	19552112	-	NCgl0851	-	hypothetical protein
852	 55.36	0	940086..940757	+	223	19552113	-	NCgl0852	-	hypothetical protein
853	 54.26	0	940768..941928	+	386	19552114	-	NCgl0853	-	glycosidase
854	 56.94	0	942378..943940	-	520	19552115	-	NCgl0854	-	dolichyl-phosphate-mannose--protein O-mannosyl transferase PMT1
855	 58.78	+1	943988..944836	+	282	19552116	-	NCgl0855	-	methyltransferase
856	 51.74	0	945029..946783	+	584	19552117	-	NCgl0856	-	choline-glycine betaine transporter
857	 56.68	0	946840..948672	+	610	19552118	-	NCgl0857	-	methionyl-tRNA synthetase
858	 54.04	0	948791..950842	+	683	19552119	-	NCgl0858	-	putative helicase
859	 51.42	0	950825..951460	-	211	19552120	-	NCgl0859	-	hypothetical protein
860	 55.30	0	951831..952991	-	386	19552121	-	NCgl0860	-	hypothetical protein
861	 59.22	+1	953040..953549	-	169	19552122	-	NCgl0861	-	hypothetical protein
862	 52.19	0	953973..954269	+	98	23308808	-	NCgl0862	-	hypothetical protein
863	 52.29	0	954277..954756	+	159	23308809	-	NCgl0863	-	hypothetical protein
864	 64.27	+2	954941..955357	+	138	23308810	-	NCgl0864	-	hypothetical protein
865	 62.12	+2	955683..957398	-	571	19552127	-	NCgl0865	-	D-lactate dehydrogenase
866	 60.36	+1	957841..958998	-	385	19552128	-	NCgl0866	-	adenine specific DNA methylase Mod
867	 52.19	0	960081..960377	+	98	23308811	-	NCgl0867	-	hypothetical protein
868	 52.24	0	960463..960864	+	133	19552131	-	NCgl0868	-	hypothetical protein
869	 62.22	+2	961297..961656	+	119	19552132	-	NCgl0869	-	ArsR family transcriptional regulator
870	 61.81	+1	961656..962252	+	198	19552133	-	NCgl0870	-	hypothetical protein
871	 53.84	0	962809..963642	+	277	19552134	-	NCgl0871	-	Mg-dependent DNase
872	 54.40	0	963813..964937	+	374	19552135	-	NCgl0872	-	hypothetical protein
873	 55.33	0	964974..965855	+	293	19552136	ksgA	NCgl0873	-	dimethyladenosine transferase
874	 60.36	+1	965852..966787	+	311	19552137	-	NCgl0874	-	4-diphosphocytidyl-2-C-methyl-D-erythritol kinase
875	 59.37	+1	966828..968663	+	611	19552138	-	NCgl0875	-	ABC-type transporter
876	 60.25	+1	968667..969461	+	264	19552139	-	NCgl0876	-	pyridoxal/pyridoxine/pyridoxamine kinase
877	 52.17	0	969458..969940	-	160	19552140	-	NCgl0877	-	hypothetical protein
878	 50.75	0	970020..970352	+	110	19552141	-	NCgl0878	-	hypothetical protein
879	 47.22	-1	970418..970741	+	107	19552142	-	NCgl0879	-	hypothetical protein
880	 51.09	0	970864..971826	+	320	19552143	-	NCgl0880	-	hypothetical protein
881	 54.09	0	972241..973035	-	264	23308812	-	NCgl0881	-	hypothetical protein
882	 54.71	0	973139..974158	+	339	19552145	-	NCgl0882	-	enoyl-CoA hydratase
883	 53.94	0	974243..974965	+	240	19552146	-	NCgl0883	-	hypothetical protein
884	 55.47	0	974962..976158	-	398	19552147	-	NCgl0884	-	hypothetical protein
885	 55.58	0	976286..977737	+	483	19552148	-	NCgl0885	-	hypothetical protein
886	 51.37	0	977797..978378	-	193	23308813	-	NCgl0886	-	transcriptional regulator
887	 54.84	0	978365..980740	-	791	23308814	-	NCgl0887	-	RND superfamily drug exporter
888	 51.68	0	980987..981493	+	168	19552151	-	NCgl0888	-	ribonuclease activity regulator protein RraA
889	 46.76	-1	981658..982290	+	210	19552152	-	NCgl0889	-	hypothetical protein
890	 45.31	-2	982291..982674	-	127	19552153	-	NCgl0890	-	hypothetical protein
891	 58.75	+1	983100..984653	+	517	19552154	-	NCgl0891	-	hypothetical protein
892	 61.70	+1	984861..986510	-	549	19552155	-	NCgl0892	-	peptide chain release factor 3
893	 55.74	0	986739..988010	+	423	19552156	-	NCgl0893	-	ABC-type transporter, periplasmic component
894	 55.14	0	988023..988907	+	294	19552157	-	NCgl0894	-	ABC-type transporter, permease component
895	 56.20	0	988904..989983	+	359	19552158	-	NCgl0895	-	ABC-type transporter, permease component
896	 56.65	0	989980..990708	+	242	19552159	-	NCgl0896	-	ABC-type transporter, ATPase component
897	 55.98	0	990716..991417	+	233	19552160	-	NCgl0897	-	ABC-type transporter, ATPase component
898	 59.19	+1	991414..992028	-	204	19552161	-	NCgl0898	-	peptidyl-tRNA hydrolase
899	 58.28	+1	992058..993083	+	341	19552162	-	NCgl0899	-	dioxygenase
900	 57.38	0	993174..994616	+	480	19552163	-	NCgl0900	-	glyceraldehyde-3-phosphate dehydrogenase
901	 52.49	0	994842..995384	-	180	19552164	-	NCgl0901	-	peptidyl-tRNA hydrolase
902	 56.72	0	995524..996126	-	200	19552165	-	NCgl0902	-	50S ribosomal protein L25/general stress protein Ctc
903	 53.70	0	996402..996833	+	143	19552166	-	NCgl0903	-	lactoylglutathione lyase
904	 56.94	0	996830..997456	-	208	19552167	-	NCgl0904	-	hypothetical protein
905	 59.51	+1	997463..998440	-	325	19552168	-	NCgl0905	-	ribose-phosphate pyrophosphokinase
906	 58.37	+1	998452..999909	-	485	19552169	-	NCgl0906	-	N-acetylglucosamine-1-phosphate uridyltransferase
907	 57.89	0	1000013..1001242	-	409	19552170	-	NCgl0907	-	hypothetical protein
908	 56.81	0	1001326..1002867	+	513	19552171	-	NCgl0908	-	putative multicopper oxidase
909	 60.15	+1	1003013..1003933	+	306	19552172	-	NCgl0909	-	ABC-type transporter, ATPase component
910	 55.76	0	1003953..1004786	+	277	19552173	-	NCgl0910	-	hypothetical protein
54.31	MEAN

3.83	STD DEV
