IslandPathversion 1.0

IslandPath Analysis: Corynebacterium glutamicum ATCC 13032

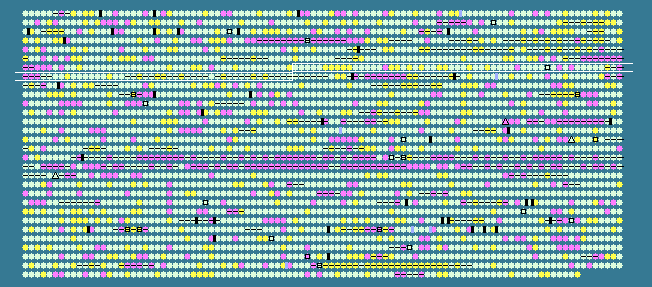

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 54.31 STD DEV: 3.83
Corynebacterium glutamicum ATCC 13032, complete genome - 1..3309401
2993 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
646	 56.08	0	690703..691722	-	339	19551906	-	NCgl0646	-	ABC-type transporter, permease component
647	 56.84	0	691882..692919	+	345	19551907	-	NCgl0647	-	tryptophanyl-tRNA synthetase
648	 53.68	0	693028..694113	+	361	19551908	-	NCgl0648	-	hypothetical protein
649	 52.87	0	694172..695077	+	301	19551909	-	NCgl0649	-	hypothetical protein
650	 57.36	0	695074..696384	-	436	19551910	-	NCgl0650	-	D-alanyl-D-alanine carboxypeptidase
651	 58.37	+1	696766..697995	-	409	19551911	-	NCgl0651	-	hypothetical protein
652	 60.16	+1	698062..698922	-	286	19551912	-	NCgl0652	-	hypothetical protein
653	 59.47	+1	698919..699182	-	87	19551913	-	NCgl0653	-	hypothetical protein
654	 58.65	+1	699281..699916	+	211	19551914	upp	NCgl0654	-	uracil phosphoribosyltransferase
655	 58.13	0	700010..700384	+	124	19551915	-	NCgl0655	-	transcriptional regulator
656	 54.68	0	700381..701973	-	530	19551916	-	NCgl0656	-	phosphomannomutase
657	 56.62	0	702081..703265	+	394	19551917	-	NCgl0657	-	metal-dependent amidase/aminoacylase/carboxypeptidase
658	 55.60	0	703405..704814	+	469	19551918	-	NCgl0658	-	flavoprotein disulfide reductase
659	 56.76	0	705211..708633	+	1140	19551919	-	NCgl0659	-	pyruvate carboxylase
660	 55.67	0	708839..709711	+	290	19551920	-	NCgl0660	-	hypothetical protein
661	 48.67	-1	709793..710281	+	162	19551921	-	NCgl0661	-	hypothetical protein
662	 58.59	+1	710517..711605	-	362	19551922	-	NCgl0662	-	G3E family GTPase
663	 58.14	+1	711724..712650	+	308	19551923	-	NCgl0663	-	thioredoxin reductase
664	 55.98	0	712738..714234	+	498	19551924	-	NCgl0664	-	hypothetical protein
665	 58.71	+1	714231..715148	+	305	19551925	-	NCgl0665	-	PEP phosphonomutase or related enzyme
666	 54.62	0	715141..716286	+	381	19551926	-	NCgl0666	-	methylcitrate synthase
667	 57.94	0	716283..716660	-	125	19551927	-	NCgl0667	-	hypothetical protein
668	 55.51	0	716684..718009	-	441	19551928	-	NCgl0668	-	transcriptional regulator
669	 55.19	0	718171..718353	+	60	19551929	-	NCgl0669	-	hypothetical protein
670	 58.67	+1	718577..720352	-	591	19551930	-	NCgl0670	-	acyl-CoA carboxylase
671	 58.50	+1	720544..721449	-	301	19551931	-	NCgl0671	-	thiosulfate sulfurtransferase
672	 56.74	0	721777..722844	+	355	19551932	-	NCgl0672	-	hypothetical protein
673	 53.48	0	722922..723338	-	138	19551933	-	NCgl0673	-	hypothetical protein
674	 53.79	0	723412..725562	+	716	19551934	-	NCgl0674	-	acyltransferase
675	 59.60	+1	725869..726462	-	197	19551935	maf	NCgl0675	-	Maf-like protein
676	 53.82	0	726467..726715	-	82	19551936	-	NCgl0676	-	hypothetical protein
677	 54.71	0	726739..728352	-	537	19551937	-	NCgl0677	-	detergent sensitivity rescuer dtsR2
678	 58.58	+1	728693..730324	-	543	19551938	-	NCgl0678	-	detergent sensitivity rescuer dtsR1
679	 52.35	0	730493..731302	+	269	19551939	-	NCgl0679	-	biotin--protein ligase
680	 53.14	0	731387..731800	+	137	19551940	-	NCgl0680	-	hypothetical protein
681	 57.56	0	731857..733020	+	387	19551941	-	NCgl0681	-	phosphoribosylaminoimidazole carboxylase ATPase subunit
682	 52.78	0	733060..734946	+	628	19551942	-	NCgl0682	-	K+ transporter
683	 49.44	-1	734984..735343	+	119	19551943	-	NCgl0683	-	hypothetical protein
684	 55.62	0	735402..735899	+	165	19551944	-	NCgl0684	-	phosphoribosylaminoimidazole carboxylase catalytic subunit
685	 52.41	0	735899..736354	+	151	19551945	-	NCgl0685	-	hypothetical protein
686	 52.58	0	736413..737207	+	264	19551946	-	NCgl0686	-	hypothetical protein
687	 55.73	0	737213..738529	-	438	19551947	-	NCgl0687	-	nitrilotriacetate monooxygenase
688	 53.18	0	738670..740115	-	481	19551948	-	NCgl0688	-	putative transposase
689	 57.70	0	740225..741016	-	263	19551949	fabG	NCgl0689	-	3-ketoacyl-(acyl-carrier-protein) reductase
690	 42.47	-2	741397..741768	+	123	23308800	-	NCgl0690	-	hypothetical protein
691	 53.79	0	741815..742381	-	188	19551950	-	NCgl0691	-	hypothetical protein
692	 49.65	-1	742409..742831	+	140	19551951	-	NCgl0692	-	hypothetical protein
693	 54.22	0	742828..743052	-	74	19551952	-	NCgl0693	-	hypothetical protein
694	 56.87	0	743064..743900	-	278	19551953	-	NCgl0694	-	ABC-type transporter, permease component
695	 56.71	0	743897..744931	-	344	19551954	-	NCgl0695	-	ABC-type transporter, permease component
696	 54.61	0	745043..745498	-	151	19551955	-	NCgl0696	-	hypothetical protein
697	 57.49	0	745619..746893	-	424	19551956	-	NCgl0697	-	ABC-type transporter, periplasmic component
698	 58.56	+1	747028..748026	-	332	19551957	-	NCgl0698	-	ABC-type transporter, ATPase component
699	 52.58	0	748020..748445	+	141	23308801	-	NCgl0699	-	hypothetical protein
700	 47.51	-1	748883..753685	-	1600	19551960	-	NCgl0700	-	helicase family protein
701	 47.60	-1	753694..757395	-	1233	19551961	-	NCgl0701	-	hypothetical protein
702	 50.31	-1	757627..758280	-	217	19551962	-	NCgl0702	-	hypothetical protein
703	 46.14	-2	758361..760796	-	811	19551963	-	NCgl0703	-	hypothetical protein
704	 55.54	0	760903..763203	-	766	19551964	-	NCgl0704	-	putative helicase
705	 53.42	0	763234..769536	-	2100	19551965	-	NCgl0705	-	putative helicase
706	 51.34	0	769544..774142	-	1532	19551966	-	NCgl0706	-	type II restriction enzyme, methylase subunits
707	 53.24	0	774147..777035	-	962	19551967	-	NCgl0707	-	SNF2 family helicase
708	 58.25	+1	777155..778711	-	518	19551968	-	NCgl0708	-	transcriptional regulator
709	 55.10	0	779041..779913	+	290	19551969	-	NCgl0709	-	glycosyltransferase
710	 57.39	0	780086..781174	+	362	19551970	-	NCgl0710	-	nucleoside-diphosphate-sugar pyrophosphorylase
711	 53.65	0	781564..781878	+	104	19551971	-	NCgl0711	-	hypothetical protein
712	 55.80	0	782159..782563	-	134	19551972	-	NCgl0712	-	hypothetical protein
713	 57.51	0	782712..783104	+	130	19551973	-	NCgl0713	-	hypothetical protein
714	 54.83	0	783184..784560	+	458	19551974	manB	NCgl0714	-	phosphomannomutase/phosphoglucomutase
715	 57.94	0	784635..785642	+	335	19551975	-	NCgl0715	-	hypothetical protein
716	 57.05	0	785643..786827	+	394	19551976	-	NCgl0716	-	phosphomannose isomerase
717	 54.33	0	787167..787952	-	261	19551977	-	NCgl0717	-	hypothetical protein
718	 52.26	0	788196..788549	+	117	19551978	-	NCgl0718	-	hypothetical protein
719	 57.13	0	788660..790096	+	478	19551979	-	NCgl0719	-	S-adenosyl-L-homocysteine hydrolase
720	 60.46	+1	790096..790707	+	203	19551980	-	NCgl0720	-	thymidylate kinase
721	 55.80	0	790732..791412	+	226	19551981	-	NCgl0721	-	two-component system response regulator
722	 56.67	0	791512..793011	+	499	19551982	-	NCgl0722	-	two-component system sensory transduction histidine kinase
723	 58.35	+1	793008..794714	+	568	19551983	-	NCgl0723	-	lipoprotein LpqB
724	 60.07	+1	794714..795304	+	196	23308802	-	NCgl0724	-	hypothetical protein
725	 54.50	0	795448..796113	+	221	19551984	-	NCgl0725	-	ribosome-associated protein Y
726	 56.70	0	796250..798787	+	845	19551985	secA	NCgl0726	-	preprotein translocase subunit SecA
727	 59.12	+1	799284..799694	+	136	19551987	-	NCgl0727	-	hypothetical protein
728	 56.21	0	799697..800203	+	168	19551988	-	NCgl0728	-	hypothetical protein
729	 56.61	0	800205..801089	-	294	19551989	-	NCgl0729	-	hypothetical protein
730	 53.13	0	801187..802479	-	430	19551990	-	NCgl0730	-	3-phosphoshikimate 1-carboxyvinyltransferase
731	 51.60	0	802508..803131	+	207	19551991	-	NCgl0731	-	hypothetical protein
732	 52.83	0	803128..804240	-	370	19551992	-	NCgl0732	-	hypothetical protein
733	 50.89	0	804408..805028	+	206	19551993	-	NCgl0733	-	RNA polymerase sigma factor RpoE
734	 61.69	+1	805532..805792	-	86	19551994	-	NCgl0734	-	hypothetical protein
735	 52.48	0	806318..806740	+	140	19551995	-	NCgl0735	-	hypothetical protein
736	 55.78	0	806737..807939	-	400	19551996	-	NCgl0736	-	hypothetical protein
737	 57.57	0	807943..809217	-	424	23308803	-	NCgl0737	-	putative helicase
738	 50.88	0	809286..809513	+	75	19551998	-	NCgl0738	-	hypothetical protein
739	 58.97	+1	809528..810397	+	289	19551999	-	NCgl0739	-	hypothetical protein
740	 55.12	0	810405..811166	+	253	19552000	-	NCgl0740	-	hypothetical protein
741	 59.59	+1	811170..814220	+	1016	19552001	-	NCgl0741	-	putative helicase
742	 56.86	0	814213..817425	+	1070	19552002	-	NCgl0742	-	putative helicase
743	 57.16	0	817465..818526	+	353	19552003	-	NCgl0743	-	NAD-binding component of Kef-type K+ transport system
744	 53.97	0	818523..819239	+	238	19552004	-	NCgl0744	-	NTP pyrophosphohydrolase
745	 57.54	0	819254..821290	+	678	19552005	-	NCgl0745	-	putative helicase
54.31	MEAN

3.83	STD DEV
