IslandPathversion 1.0

IslandPath Analysis: Corynebacterium glutamicum ATCC 13032

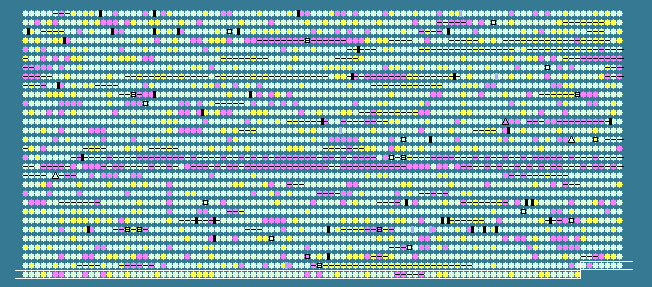

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 54.31 STD DEV: 3.83
Corynebacterium glutamicum ATCC 13032, complete genome - 1..3309401
2993 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2894	 56.59	0	3197413..3198504	+	363	19554190	-	NCgl2894	-	myo-inositol-1-phosphate synthase
2895	 47.03	-1	3198580..3199134	-	184	19554191	-	NCgl2895	-	hypothetical protein
2896	 55.17	0	3199200..3200687	-	495	19554192	-	NCgl2896	-	hypothetical protein
2897	 54.02	0	3201258..3201755	-	165	19554193	-	NCgl2897	-	starvation-inducible DNA-binding protein
2898	 54.53	0	3201901..3202716	+	271	23309003	-	NCgl2898	-	formamidopyrimidine-DNA glycosylase
2899	 55.56	0	3202953..3204104	+	383	19554195	-	NCgl2899	-	hypothetical protein
2900	 54.14	0	3204166..3204732	+	188	19554196	-	NCgl2900	-	hypothetical protein
2901	 52.41	0	3204729..3205205	-	158	19554197	-	NCgl2901	-	methylated DNA-protein cysteine methyltransferase
2902	 50.89	0	3205220..3206233	-	337	19554198	-	NCgl2902	-	hypothetical protein
2903	 54.96	0	3206850..3208028	+	392	19554199	-	NCgl2903	-	sugar transporter family protein
2904	 59.03	+1	3208280..3209458	+	392	19554200	-	NCgl2904	-	malic enzyme
2905	 57.10	0	3209703..3211187	-	494	19554201	-	NCgl2905	-	sugar kinase
2906	 47.98	-1	3211244..3211837	-	197	23309004	-	NCgl2906	-	hypothetical protein
2907	 48.53	-1	3211902..3212513	-	203	19554203	-	NCgl2907	-	hypothetical protein
2908	 55.40	0	3212613..3213935	+	440	19554204	-	NCgl2908	-	putative mercuric reductase
2909	 57.10	0	3213932..3215164	-	410	19554205	-	NCgl2909	-	D-amino acid dehydrogenase subunit
2910	 50.93	0	3215255..3216760	-	501	19554206	-	NCgl2910	-	hypothetical protein
2911	 50.45	-1	3216884..3217216	-	110	23309005	-	NCgl2911	-	hypothetical protein
2912	 57.41	0	3217455..3217778	-	107	19554208	-	NCgl2912	-	hypothetical protein
2913	 55.88	0	3217994..3218605	+	203	19554209	-	NCgl2913	-	hypothetical protein
2914	 45.63	-2	3218778..3219704	+	308	19554210	-	NCgl2914	-	hypothetical protein
2915	 57.82	0	3219776..3222634	-	952	19554211	leuS	NCgl2915	-	leucyl-tRNA synthetase
2916	 52.78	0	3222723..3223154	+	143	23309006	-	NCgl2916	-	hypothetical protein
2917	 56.01	0	3223087..3223452	-	121	19554212	-	NCgl2917	-	virulence associated protein
2918	 59.09	+1	3223990..3224715	-	241	19554213	-	NCgl2918	-	mycothiol-dependent maleylpyruvate isomerase
2919	 54.40	0	3224716..3225555	-	279	19554214	-	NCgl2919	-	2-hydroxyhepta-2,4-diene-1,7-dioatesomerase
2920	 56.65	0	3225561..3226688	-	375	19554215	-	NCgl2920	-	gentisate 1,2-dioxygenase
2921	 54.18	0	3226908..3227684	-	258	19554216	-	NCgl2921	-	hypothetical protein
2922	 57.00	0	3227749..3229083	+	444	19554217	-	NCgl2922	-	putative benzoate transporter
2923	 59.97	+1	3229120..3230448	+	442	19554218	-	NCgl2923	-	putative hydroxylase/monooxygenase
2924	 56.26	0	3231052..3232290	-	412	19554219	-	NCgl2924	-	putative transmembrane symporter
2925	 54.00	0	3232597..3233109	+	170	19554220	-	NCgl2925	-	hypothetical protein
2926	 51.15	0	3233248..3233421	-	57	23309007	-	NCgl2926	-	hypothetical protein
2927	 57.55	0	3233404..3234960	+	518	19554221	-	NCgl2927	-	anthranilate synthase component I
2928	 54.70	0	3234957..3235583	+	208	19554222	-	NCgl2928	-	anthranilate synthase component II
2929	 59.03	+1	3235603..3236649	+	348	19554223	trpD	NCgl2929	-	anthranilate phosphoribosyltransferase
2930	 58.11	0	3236642..3238066	+	474	23309008	-	NCgl2930	-	bifunctional indole-3-glycerol phosphate synthase/phosphoribosylanthranilate isomerase
2931	 62.28	+2	3238083..3239336	+	417	19554225	-	NCgl2931	-	tryptophan synthase subunit beta
2932	 59.43	+1	3239333..3240175	+	280	19554226	trpA	NCgl2932	-	tryptophan synthase subunit alpha
2933	 57.00	0	3240311..3241852	-	513	19554227	ulaA	NCgl2933	-	ascorbate-specific PTS system enzyme IIC
2934	 55.23	0	3241877..3242689	-	270	19554228	-	NCgl2934	-	hypothetical protein
2935	 54.90	0	3242855..3243763	+	302	19554229	-	NCgl2935	-	ABC-type transporter, ATPase component
2936	 56.52	0	3243760..3245346	+	528	23309009	-	NCgl2936	-	ABC-type transporter, permease component
2937	 53.42	0	3245318..3245770	+	150	23309010	-	NCgl2937	-	hypothetical protein
2938	 54.00	0	3245820..3246932	-	370	23309011	-	NCgl2938	-	NADH:flavin oxidoreductase
2939	 53.41	0	3247229..3248209	+	326	19554233	-	NCgl2939	-	hypothetical protein
2940	 54.18	0	3248393..3249169	+	258	19554234	-	NCgl2940	-	hypothetical protein
2941	 52.51	0	3249185..3249523	-	112	19554235	-	NCgl2941	-	transcriptional regulator
2942	 55.97	0	3249625..3250746	+	373	19554236	-	NCgl2942	-	NADH:flavin oxidoreductase
2943	 55.15	0	3250759..3251409	+	216	19554237	-	NCgl2943	-	hypothetical protein
2944	 53.85	0	3251464..3251619	-	51	19554238	-	NCgl2944	-	hypothetical protein
2945	 51.57	0	3251741..3251899	-	52	19554239	-	NCgl2945	-	hypothetical protein
2946	 55.56	0	3252131..3252301	-	56	19554240	-	NCgl2946	-	hypothetical protein
2947	 55.56	0	3252729..3253484	+	251	19554242	-	NCgl2947	-	short chain dehydrogenase
2948	 44.81	-2	3253561..3253743	+	60	19554243	-	NCgl2948	-	hypothetical protein
2949	 55.93	0	3253822..3255348	-	508	19554244	-	NCgl2949	-	dipeptide/tripeptide permease
2950	 50.54	0	3255742..3256299	-	185	19554245	-	NCgl2950	-	transcriptional regulator
2951	 57.17	0	3256469..3257374	-	301	19554246	-	NCgl2951	-	putative hydroxyquinol/catechol 1,2-dioxygenase
2952	 57.05	0	3257401..3258492	-	363	19554247	-	NCgl2952	-	maleylacetate reductase
2953	 58.02	0	3258559..3260085	-	508	19554248	-	NCgl2953	-	putative sugar permease
2954	 55.67	0	3261130..3261993	+	287	23309012	-	NCgl2954	-	transcriptional regulator
2955	 56.67	0	3262146..3263225	+	359	19554250	-	NCgl2955	-	putative oxidoreductase
2956	 55.90	0	3263238..3264119	+	293	19554251	-	NCgl2956	-	hypothetical protein
2957	 56.05	0	3264143..3265150	+	335	19554252	-	NCgl2957	-	myo-inositol dehydrogenase
2958	 59.02	+1	3265185..3266270	+	361	19554253	-	NCgl2958	-	putative dehydrogenase
2959	 54.32	0	3266604..3271097	+	1497	19554254	-	NCgl2959	-	hypothetical protein
2960	 51.92	0	3271465..3272481	+	338	19554255	-	NCgl2960	-	hypothetical protein
2961	 53.86	0	3272561..3274075	-	504	19554256	-	NCgl2961	-	putative proline-betaine transporter
2962	 54.33	0	3274486..3275190	-	234	19554257	-	NCgl2962	-	hypothetical protein
2963	 45.47	-2	3275600..3276571	-	323	19554258	-	NCgl2963	-	hypothetical protein
2964	 46.94	-1	3276669..3281600	-	1643	19554259	-	NCgl2964	-	putative helicase
2965	 55.29	0	3281664..3282173	-	169	19554260	-	NCgl2965	-	hypothetical protein
2966	 54.06	0	3282345..3282947	-	200	19554261	-	NCgl2966	-	hydroxymethylpyrimidine/phosphomethylpyrimidine kinase
2967	 46.28	-2	3282743..3283105	+	120	23309013	-	NCgl2967	-	hypothetical protein
2968	 52.17	0	3283181..3283387	+	68	19554262	-	NCgl2968	-	putative metal associated protein
2969	 55.60	0	3283471..3284238	-	255	19554263	-	NCgl2969	-	putative membrane transport protein
2970	 58.21	+1	3284397..3285425	-	342	19554264	-	NCgl2970	-	ABC-type transport systems, periplasmic component
2971	 59.82	+1	3285603..3286580	+	325	19554265	-	NCgl2971	-	putative oxidoreductase/dehydrogenase
2972	 54.78	0	3286623..3287009	+	128	19554266	-	NCgl2972	-	hypothetical protein
2973	 55.93	0	3287391..3288191	-	266	19554268	-	NCgl2973	-	phosphomethylpyrimidine kinase
2974	 51.44	0	3288266..3288613	+	115	19554269	-	NCgl2974	-	hypothetical protein
2975	 56.37	0	3288686..3288889	+	67	19554270	-	NCgl2975	-	putative copper chaperone
2976	 57.76	0	3288969..3289316	-	115	19554271	-	NCgl2976	-	hypothetical protein
2977	 54.48	0	3289309..3290022	-	237	19554272	-	NCgl2977	-	branched-chain amino acid permease
2978	 55.78	0	3290023..3290628	-	201	19554273	-	NCgl2978	-	hypothetical protein
2979	 53.00	0	3290621..3292105	-	494	19554274	-	NCgl2979	-	putative polynucleotide polymerase
2980	 53.97	0	3292533..3293501	+	322	23309014	-	NCgl2980	-	hypothetical protein
2981	 56.09	0	3293498..3296011	+	837	19554277	-	NCgl2981	-	hypothetical protein
2982	 60.03	+1	3296064..3299408	+	1114	19554278	-	NCgl2982	-	putative virulence factor
2983	 51.98	0	3299662..3300267	+	201	23309015	-	NCgl2983	-	putative RNA polymerase sigma factor
2984	 57.23	0	3300372..3301325	+	317	19554280	-	NCgl2984	-	thioredoxin reductase
2985	 50.93	0	3301410..3301733	+	107	19554281	-	NCgl2985	-	thioredoxin
2986	 56.47	0	3301756..3303000	+	414	23309016	-	NCgl2986	-	N-acetylmuramoyl-L-alanine amidase
2987	 58.13	0	3302997..3303617	-	206	19554283	-	NCgl2987	-	hypothetical protein
2988	 59.39	+1	3303634..3304773	-	379	19554284	-	NCgl2988	-	putative cell division protein ParB
2989	 52.49	0	3304833..3305756	-	307	19554285	-	NCgl2989	-	putative cell division protein ParA
2990	 53.42	0	3305862..3306533	-	223	23309017	gidB	NCgl2990	-	glucose-inhibited division protein B
2991	 54.19	0	3306680..3307633	-	317	19554287	-	NCgl2991	-	putative inner membrane protein translocase component YidC
2992	 57.21	0	3307969..3308370	-	133	19554288	rnpA	NCgl2992	-	ribonuclease P
2993	 59.72	+1	3308410..3308553	-	47	19554289	rpmH	NCgl2993	-	50S ribosomal protein L34
54.31	MEAN

3.83	STD DEV
