IslandPathversion 1.0

IslandPath Analysis: Corynebacterium glutamicum ATCC 13032

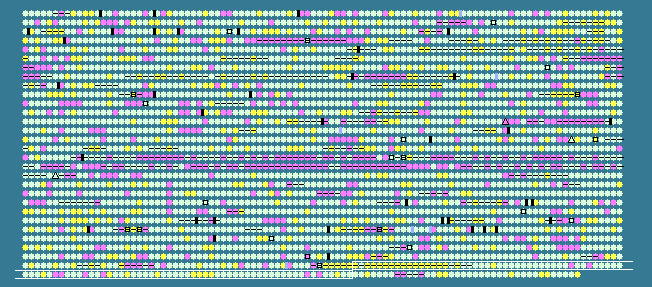

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 54.31 STD DEV: 3.83
Corynebacterium glutamicum ATCC 13032, complete genome - 1..3309401
2993 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2856	 62.35	+2	3161085..3161408	-	107	19554145	-	NCgl2856	-	ferredoxin 3
2857	 57.14	0	3161680..3162015	-	111	19554146	-	NCgl2857	-	hypothetical protein
2858	 61.09	+1	3163072..3163734	-	220	19554149	-	NCgl2858	-	hypothetical protein
2859	 67.25	+2	3163787..3166006	-	739	19554150	-	NCgl2859	-	cation transport ATPase
2860	 65.82	+2	3166057..3166293	-	78	19554151	-	NCgl2860	-	hypothetical protein
2861	 69.54	+2	3166265..3166438	-	57	19554152	-	NCgl2861	-	hypothetical protein
2862	 64.83	+2	3166448..3167647	-	399	19554153	-	NCgl2862	-	two-component system, sensory transduction histidine kinase
2863	 67.22	+2	3167644..3168366	-	240	19554154	-	NCgl2863	-	two-component system, response regulator
2864	 62.33	+2	3168769..3169344	+	191	19554155	-	NCgl2864	-	hypothetical protein
2865	 64.57	+2	3169415..3170896	+	493	19554156	-	NCgl2865	-	putative multicopper oxidase
2866	 62.84	+2	3171255..3171620	+	121	19554157	-	NCgl2866	-	hypothetical protein
2867	 66.99	+2	3171617..3172537	-	306	19554158	-	NCgl2867	-	putative NADPH:quinone reductase
2868	 66.46	+2	3172996..3173469	+	157	23309000	-	NCgl2868	-	hypothetical protein
2869	 59.92	+1	3173625..3173861	+	78	19554161	-	NCgl2869	-	copper chaperone
2870	 61.01	+1	3174067..3174384	+	105	19554162	-	NCgl2870	-	hypothetical protein
2871	 65.76	+2	3175028..3176905	+	625	19554164	-	NCgl2871	-	cation transport ATPase
2872	 55.71	0	3177087..3177305	-	72	19554165	-	NCgl2872	-	hypothetical protein
2873	 59.77	+1	3177306..3177566	-	86	19554166	-	NCgl2873	-	hypothetical protein
2874	 57.07	0	3178110..3178484	-	124	19554167	-	NCgl2874	-	thioredoxin
2875	 53.14	0	3178670..3178876	+	68	19554168	-	NCgl2875	-	copper chaperone
2876	 55.75	0	3179050..3180396	+	448	23309001	-	NCgl2876	-	putative transmembrane transport protein
2877	 51.99	0	3180549..3181127	-	192	23309002	-	NCgl2877	-	hypothetical protein
2878	 56.29	0	3181335..3182867	-	510	19554173	-	NCgl2878	-	replicative DNA helicase
2879	 58.06	0	3183476..3183928	-	150	19554174	rplI	NCgl2879	-	50S ribosomal protein L9
2880	 57.52	0	3183985..3184662	-	225	19554175	-	NCgl2880	-	single-strand DNA-binding protein
2881	 52.78	0	3184699..3184986	-	95	19554176	rpsF	NCgl2881	-	30S ribosomal protein S6
2882	 51.04	0	3185346..3185537	-	63	19554178	-	NCgl2882	-	hypothetical protein
2883	 54.00	0	3185534..3186994	-	486	19554179	-	NCgl2883	-	hypothetical protein
2884	 52.70	0	3187040..3189202	-	720	19554180	-	NCgl2884	-	penicillin-binding protein
2885	 50.89	0	3189294..3189686	-	130	19554181	-	NCgl2885	-	hypothetical protein
2886	 53.59	0	3189878..3190351	+	157	19554182	-	NCgl2886	-	transcriptional regulator
2887	 51.32	0	3190379..3191323	+	314	19554183	-	NCgl2887	-	hypothetical protein
2888	 51.61	0	3191355..3191852	+	165	19554184	-	NCgl2888	-	hypothetical protein
2889	 56.48	0	3191920..3192243	-	107	19554185	-	NCgl2889	-	hypothetical protein
2890	 52.18	0	3192264..3193202	-	312	19554186	-	NCgl2890	-	hypothetical protein
2891	 52.21	0	3193250..3194515	-	421	19554187	-	NCgl2891	-	ABC-type transporter, permease component
2892	 50.79	0	3194512..3195204	-	230	19554188	-	NCgl2892	-	ABC-type transporter, ATPase component
2893	 55.19	0	3195208..3197046	-	612	19554189	-	NCgl2893	-	efflux system protein
2894	 56.59	0	3197413..3198504	+	363	19554190	-	NCgl2894	-	myo-inositol-1-phosphate synthase
2895	 47.03	-1	3198580..3199134	-	184	19554191	-	NCgl2895	-	hypothetical protein
2896	 55.17	0	3199200..3200687	-	495	19554192	-	NCgl2896	-	hypothetical protein
2897	 54.02	0	3201258..3201755	-	165	19554193	-	NCgl2897	-	starvation-inducible DNA-binding protein
2898	 54.53	0	3201901..3202716	+	271	23309003	-	NCgl2898	-	formamidopyrimidine-DNA glycosylase
2899	 55.56	0	3202953..3204104	+	383	19554195	-	NCgl2899	-	hypothetical protein
2900	 54.14	0	3204166..3204732	+	188	19554196	-	NCgl2900	-	hypothetical protein
2901	 52.41	0	3204729..3205205	-	158	19554197	-	NCgl2901	-	methylated DNA-protein cysteine methyltransferase
2902	 50.89	0	3205220..3206233	-	337	19554198	-	NCgl2902	-	hypothetical protein
2903	 54.96	0	3206850..3208028	+	392	19554199	-	NCgl2903	-	sugar transporter family protein
2904	 59.03	+1	3208280..3209458	+	392	19554200	-	NCgl2904	-	malic enzyme
2905	 57.10	0	3209703..3211187	-	494	19554201	-	NCgl2905	-	sugar kinase
2906	 47.98	-1	3211244..3211837	-	197	23309004	-	NCgl2906	-	hypothetical protein
2907	 48.53	-1	3211902..3212513	-	203	19554203	-	NCgl2907	-	hypothetical protein
2908	 55.40	0	3212613..3213935	+	440	19554204	-	NCgl2908	-	putative mercuric reductase
2909	 57.10	0	3213932..3215164	-	410	19554205	-	NCgl2909	-	D-amino acid dehydrogenase subunit
2910	 50.93	0	3215255..3216760	-	501	19554206	-	NCgl2910	-	hypothetical protein
2911	 50.45	-1	3216884..3217216	-	110	23309005	-	NCgl2911	-	hypothetical protein
2912	 57.41	0	3217455..3217778	-	107	19554208	-	NCgl2912	-	hypothetical protein
2913	 55.88	0	3217994..3218605	+	203	19554209	-	NCgl2913	-	hypothetical protein
2914	 45.63	-2	3218778..3219704	+	308	19554210	-	NCgl2914	-	hypothetical protein
2915	 57.82	0	3219776..3222634	-	952	19554211	leuS	NCgl2915	-	leucyl-tRNA synthetase
2916	 52.78	0	3222723..3223154	+	143	23309006	-	NCgl2916	-	hypothetical protein
2917	 56.01	0	3223087..3223452	-	121	19554212	-	NCgl2917	-	virulence associated protein
2918	 59.09	+1	3223990..3224715	-	241	19554213	-	NCgl2918	-	mycothiol-dependent maleylpyruvate isomerase
2919	 54.40	0	3224716..3225555	-	279	19554214	-	NCgl2919	-	2-hydroxyhepta-2,4-diene-1,7-dioatesomerase
2920	 56.65	0	3225561..3226688	-	375	19554215	-	NCgl2920	-	gentisate 1,2-dioxygenase
2921	 54.18	0	3226908..3227684	-	258	19554216	-	NCgl2921	-	hypothetical protein
2922	 57.00	0	3227749..3229083	+	444	19554217	-	NCgl2922	-	putative benzoate transporter
2923	 59.97	+1	3229120..3230448	+	442	19554218	-	NCgl2923	-	putative hydroxylase/monooxygenase
2924	 56.26	0	3231052..3232290	-	412	19554219	-	NCgl2924	-	putative transmembrane symporter
2925	 54.00	0	3232597..3233109	+	170	19554220	-	NCgl2925	-	hypothetical protein
2926	 51.15	0	3233248..3233421	-	57	23309007	-	NCgl2926	-	hypothetical protein
2927	 57.55	0	3233404..3234960	+	518	19554221	-	NCgl2927	-	anthranilate synthase component I
2928	 54.70	0	3234957..3235583	+	208	19554222	-	NCgl2928	-	anthranilate synthase component II
2929	 59.03	+1	3235603..3236649	+	348	19554223	trpD	NCgl2929	-	anthranilate phosphoribosyltransferase
2930	 58.11	0	3236642..3238066	+	474	23309008	-	NCgl2930	-	bifunctional indole-3-glycerol phosphate synthase/phosphoribosylanthranilate isomerase
2931	 62.28	+2	3238083..3239336	+	417	19554225	-	NCgl2931	-	tryptophan synthase subunit beta
2932	 59.43	+1	3239333..3240175	+	280	19554226	trpA	NCgl2932	-	tryptophan synthase subunit alpha
2933	 57.00	0	3240311..3241852	-	513	19554227	ulaA	NCgl2933	-	ascorbate-specific PTS system enzyme IIC
2934	 55.23	0	3241877..3242689	-	270	19554228	-	NCgl2934	-	hypothetical protein
2935	 54.90	0	3242855..3243763	+	302	19554229	-	NCgl2935	-	ABC-type transporter, ATPase component
2936	 56.52	0	3243760..3245346	+	528	23309009	-	NCgl2936	-	ABC-type transporter, permease component
2937	 53.42	0	3245318..3245770	+	150	23309010	-	NCgl2937	-	hypothetical protein
2938	 54.00	0	3245820..3246932	-	370	23309011	-	NCgl2938	-	NADH:flavin oxidoreductase
2939	 53.41	0	3247229..3248209	+	326	19554233	-	NCgl2939	-	hypothetical protein
2940	 54.18	0	3248393..3249169	+	258	19554234	-	NCgl2940	-	hypothetical protein
2941	 52.51	0	3249185..3249523	-	112	19554235	-	NCgl2941	-	transcriptional regulator
2942	 55.97	0	3249625..3250746	+	373	19554236	-	NCgl2942	-	NADH:flavin oxidoreductase
2943	 55.15	0	3250759..3251409	+	216	19554237	-	NCgl2943	-	hypothetical protein
2944	 53.85	0	3251464..3251619	-	51	19554238	-	NCgl2944	-	hypothetical protein
2945	 51.57	0	3251741..3251899	-	52	19554239	-	NCgl2945	-	hypothetical protein
2946	 55.56	0	3252131..3252301	-	56	19554240	-	NCgl2946	-	hypothetical protein
2947	 55.56	0	3252729..3253484	+	251	19554242	-	NCgl2947	-	short chain dehydrogenase
2948	 44.81	-2	3253561..3253743	+	60	19554243	-	NCgl2948	-	hypothetical protein
2949	 55.93	0	3253822..3255348	-	508	19554244	-	NCgl2949	-	dipeptide/tripeptide permease
2950	 50.54	0	3255742..3256299	-	185	19554245	-	NCgl2950	-	transcriptional regulator
2951	 57.17	0	3256469..3257374	-	301	19554246	-	NCgl2951	-	putative hydroxyquinol/catechol 1,2-dioxygenase
2952	 57.05	0	3257401..3258492	-	363	19554247	-	NCgl2952	-	maleylacetate reductase
2953	 58.02	0	3258559..3260085	-	508	19554248	-	NCgl2953	-	putative sugar permease
2954	 55.67	0	3261130..3261993	+	287	23309012	-	NCgl2954	-	transcriptional regulator
2955	 56.67	0	3262146..3263225	+	359	19554250	-	NCgl2955	-	putative oxidoreductase
54.31	MEAN

3.83	STD DEV
