IslandPath Analysis: Corynebacterium glutamicum ATCC 13032

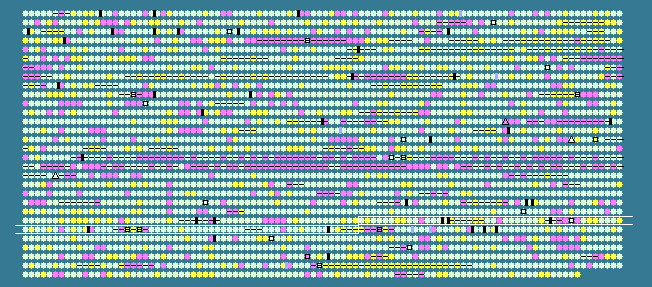

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 54.31 STD DEV: 3.83
Corynebacterium glutamicum ATCC 13032, complete genome - 1..3309401
2993 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2357	 54.40	0	2587977..2588726	+	249	19553639	-	NCgl2357	-	uncharacterized membrane-associated protein
2358	 59.49	+1	2588723..2589433	-	236	19553640	-	NCgl2358	-	short chain dehydrogenase
2359	 53.98	0	2589566..2590306	+	246	23308939	-	NCgl2359	-	transcriptional regulator
2360	 57.62	0	2590310..2591470	-	386	19553642	-	NCgl2360	-	cystathionine gamma-synthase
2361	 57.61	0	2591572..2592366	-	264	23308940	-	NCgl2361	-	ABC-type transporter, ATPase component
2362	 55.81	0	2592403..2592798	+	131	19553644	-	NCgl2362	-	hemoglobin-like protein
2363	 62.60	+2	2592839..2593969	+	376	19553645	-	NCgl2363	-	chromate transport protein ChrA
2364	 60.00	+1	2593966..2594595	-	209	19553646	-	NCgl2364	-	hypothetical protein
2365	 54.91	0	2594595..2595062	-	155	19553647	-	NCgl2365	-	thioesterase
2366	 57.26	0	2595186..2595653	-	155	19553648	-	NCgl2366	-	hypothetical protein
2367	 50.30	-1	2595820..2595984	-	54	19553649	-	NCgl2367	-	hypothetical protein
2368	 56.79	0	2596046..2597716	-	556	19553650	-	NCgl2368	-	putative ABC transporter ATP-binding protein
2369	 53.40	0	2597867..2598484	-	205	19553651	-	NCgl2369	-	single-stranded DNA-binding protein
2370	 54.64	0	2598660..2600813	-	717	19553652	-	NCgl2370	-	hypothetical protein
2371	 55.77	0	2601462..2602883	+	473	23308941	-	NCgl2371	-	alkaline phosphatase
2372	 58.41	+1	2603943..2604584	-	213	19553655	-	NCgl2372	-	hypothetical protein
2373	 55.30	0	2604607..2605521	-	304	19553656	-	NCgl2373	-	ABC-type transporter, permease component
2374	 53.66	0	2605525..2606370	-	281	19553657	-	NCgl2374	-	ABC-type transporter, permease component
2375	 56.38	0	2606559..2607890	-	443	19553658	-	NCgl2375	-	ABC-type transporter, periplasmic component
2376	 58.23	+1	2608183..2609427	-	414	19553659	-	NCgl2376	-	hypothetical protein
2377	 60.48	+1	2609510..2610640	-	376	19553660	-	NCgl2377	-	ABC-type transporter, ATPase component
2378	 57.21	0	2610846..2611532	-	228	19553661	-	NCgl2378	-	glycosyltransferase
2379	 56.85	0	2611533..2612276	+	247	19553662	-	NCgl2379	-	hypothetical protein
2380	 50.35	-1	2613074..2613637	-	187	19553665	-	NCgl2380	-	AraC-type DNA-binding domain-containing protein
2381	 56.14	0	2613878..2614504	+	208	19553666	-	NCgl2381	-	hypothetical protein
2382	 55.63	0	2614536..2615414	+	292	19553667	-	NCgl2382	-	hypothetical protein
2383	 51.90	0	2615937..2617121	-	394	19553668	-	NCgl2383	-	hypothetical protein
2384	 51.26	0	2617247..2617999	+	250	23308942	-	NCgl2384	-	hydroxypyruvate isomerase
2385	 55.31	0	2618073..2618873	+	266	19553670	-	NCgl2385	-	short-chain dehydrogenase
2386	 55.45	0	2618883..2619542	+	219	19553671	-	NCgl2386	-	oligoribonuclease
2387	 60.62	+1	2619539..2620729	-	396	23308943	-	NCgl2387	-	hypothetical protein
2388	 53.38	0	2620971..2622182	-	403	19553673	-	NCgl2388	-	hypothetical protein
2389	 51.54	0	2622962..2623609	+	215	19553674	-	NCgl2389	-	hypothetical protein
2390	 48.37	-1	2623619..2623771	-	50	19553675	-	NCgl2390	-	hypothetical protein
2391	 43.37	-2	2623804..2624052	+	82	19553676	-	NCgl2391	-	hypothetical protein
2392	 51.95	0	2624049..2625359	-	436	19553677	-	NCgl2392	-	putative transposase
2393	 49.52	-1	2625601..2625810	+	69	19553678	-	NCgl2393	-	hypothetical protein
2394	 53.43	0	2625807..2626433	-	208	19553679	-	NCgl2394	-	hypothetical protein
2395	 58.29	+1	2626491..2627732	-	413	19553680	-	NCgl2395	-	glutaminase
2396	 57.89	0	2627925..2628380	+	151	19553681	-	NCgl2396	-	transcriptional regulator
2397	 55.16	0	2628440..2628856	+	138	19553682	-	NCgl2397	-	transcriptional regulator
2398	 54.91	0	2628927..2630483	+	518	161486711	-	NCgl2398	-	glucuronate isomerase
2399	 57.74	0	2630637..2631140	+	167	19553684	-	NCgl2399	-	gluconate kinase
2400	 57.84	0	2631304..2632470	+	388	19553685	-	NCgl2400	-	hypothetical protein
2401	 54.01	0	2632544..2633104	+	186	19553686	-	NCgl2401	-	amidase
2402	 57.97	0	2633144..2633419	-	91	19553687	-	NCgl2402	-	hypothetical protein
2403	 51.15	0	2633592..2634068	+	158	19553688	-	NCgl2403	-	bacterioferritin comigratory protein
2404	 53.99	0	2634117..2634755	+	212	23308944	-	NCgl2404	-	transcriptional regulator
2405	 60.05	+1	2634745..2635152	-	135	19553690	acpS	NCgl2405	-	4'-phosphopantetheinyl transferase
2406	 55.81	0	2635163..2636497	-	444	19553691	-	NCgl2406	-	major facilitator superfamily permease
2407	 44.44	-2	2636867..2637172	+	101	19553692	-	NCgl2407	-	hypothetical protein
2408	 53.24	0	2637238..2637654	-	138	19553693	-	NCgl2408	-	hypothetical protein
2409	 59.09	+1	2638647..2647637	-	2996	19553694	-	NCgl2409	-	3-oxoacyl-(acyl-carrier-protein) synthase
2410	 55.53	0	2648233..2649417	-	394	19553696	-	NCgl2410	-	regulator of polyketide synthase expression
2411	 61.11	+1	2649593..2650168	+	191	19553697	-	NCgl2411	-	metalloendopeptidase-like protein
2412	 49.46	-1	2650442..2650906	+	154	19553698	-	NCgl2412	-	hypothetical protein
2413	 53.50	0	2650987..2651343	+	118	19553699	-	NCgl2413	-	hypothetical protein
2414	 56.68	0	2651418..2652038	-	206	19553700	-	NCgl2414	-	putative deoxyribonucleotide triphosphate pyrophosphatase
2415	 54.20	0	2652065..2652802	-	245	23308945	rph	NCgl2415	-	ribonuclease PH
2416	 51.17	0	2653007..2653219	-	70	19553702	-	NCgl2416	-	hypothetical protein
2417	 50.58	0	2653324..2654013	-	229	19553703	-	NCgl2417	-	hypothetical protein
2418	 58.25	+1	2654077..2654658	-	193	19553704	-	NCgl2418	-	putative transposase
2419	 64.48	+2	2654873..2656201	-	442	19553705	-	NCgl2419	-	hypothetical protein
2420	 58.29	+1	2656453..2656989	+	178	19553706	-	NCgl2420	-	putative transposase
2421	 50.83	0	2656972..2657634	-	220	19553707	-	NCgl2421	-	hypothetical protein
2422	 54.04	0	2657734..2658501	-	255	19553708	-	NCgl2422	-	metal-dependent hydrolase
2423	 51.81	0	2658604..2659458	-	284	19553709	-	NCgl2423	-	glutamate racemase
2424	 53.75	0	2659509..2660135	+	208	19553710	-	NCgl2424	-	hypothetical protein
2425	 53.13	0	2660145..2660639	-	164	19553711	-	NCgl2425	-	transcriptional regulator
2426	 51.33	0	2660669..2661418	-	249	19553712	-	NCgl2426	-	hypothetical protein
2427	 58.69	+1	2661415..2662329	-	304	19553713	-	NCgl2427	-	L-aminopeptidase/D-esterase
2428	 56.11	0	2662329..2662868	-	179	19553714	-	NCgl2428	-	hypothetical protein
2429	 52.27	0	2662881..2663255	-	124	19553715	clpS	NCgl2429	-	ATP-dependent Clp protease adaptor protein ClpS
2430	 51.81	0	2663513..2664064	+	183	19553716	-	NCgl2430	-	hypothetical protein
2431	 56.15	0	2664061..2665401	+	446	19553717	-	NCgl2431	-	nicotinate phosphoribosyltransferase
2432	 54.37	0	2665688..2665996	+	102	23308946	-	NCgl2432	-	hypothetical protein
2433	 57.11	0	2665861..2667858	+	665	19553718	-	NCgl2433	-	Rad3-related DNA helicase
2434	 53.69	0	2667868..2668761	-	297	19553719	-	NCgl2434	-	hypothetical protein
2435	 55.19	0	2668837..2669385	-	182	19553720	-	NCgl2435	-	hypothetical protein
2436	 55.76	0	2669555..2670856	-	433	19553721	-	NCgl2436	-	phosphoserine phosphatase
2437	 55.44	0	2671061..2672815	-	584	23308947	-	NCgl2437	-	heme/copper-type cytochrome/quinol oxidase, subunit 1
2438	 51.74	0	2673336..2674340	-	334	19553723	nrdF	NCgl2438	-	ribonucleotide-diphosphate reductase subunit beta
2439	 56.03	0	2674805..2675293	+	162	19553724	-	NCgl2439	-	ferritin-like protein
2440	 56.57	0	2675492..2676244	+	250	19553725	-	NCgl2440	-	transcriptional regulator
2441	 53.46	0	2676241..2676876	-	211	19553726	-	NCgl2441	-	Mn-dependent transcriptional regulator
2442	 52.33	0	2676916..2677194	-	92	19553727	-	NCgl2442	-	hypothetical protein
2443	 54.00	0	2677476..2679623	-	715	19553728	-	NCgl2443	-	ribonucleotide-diphosphate reductase subunit alpha
2444	 49.89	-1	2679682..2680128	-	148	19553729	nrdI	NCgl2444	-	ribonucleotide reductase stimulatory protein
2445	 57.26	0	2680417..2680650	-	77	19553730	-	NCgl2445	-	glutaredoxin-like protein
2446	 53.84	0	2681547..2682380	+	277	19553732	nadE	NCgl2446	-	NAD synthetase
2447	 59.73	+1	2682377..2683126	-	249	19553733	-	NCgl2447	-	hypothetical protein
2448	 52.90	0	2683129..2683542	-	137	19553734	-	NCgl2448	-	hypothetical protein
2449	 54.55	0	2683625..2684647	-	340	19553735	-	NCgl2449	-	putative Zn-NADPH:quinone dehydrogenase
2450	 52.98	0	2684920..2686293	+	457	19553736	-	NCgl2450	-	hypothetical protein
2451	 52.93	0	2686316..2687152	+	278	19553737	-	NCgl2451	-	hypothetical protein
2452	 54.59	0	2687447..2688241	-	264	19553738	-	NCgl2452	-	hypothetical protein
2453	 59.94	+1	2688387..2690051	-	554	19553739	-	NCgl2453	-	phosphoglucomutase
2454	 61.51	+1	2690151..2690441	+	96	19553740	ccrB	NCgl2454	-	camphor resistance protein CrcB
2455	 51.07	0	2690438..2690764	+	108	19553741	-	NCgl2455	-	hypothetical protein
2456	 58.24	+1	2690774..2691568	+	264	19553742	-	NCgl2456	-	hypothetical protein
54.31	MEAN

3.83	STD DEV
